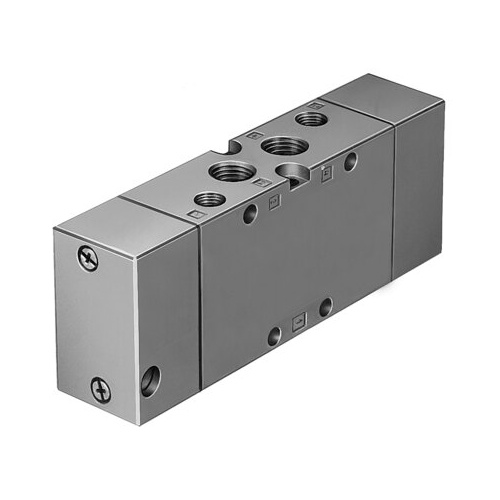

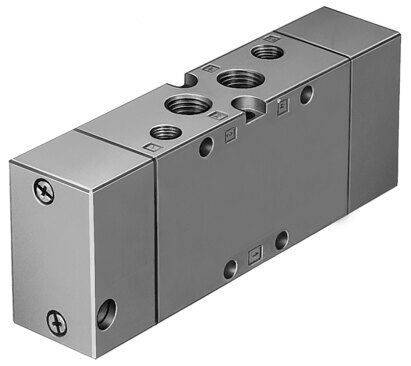

Pneumatic valve

VL-5/3B-1/4-B

14299





GTIN: 4052568112493

Valve function
5/3-way, pressurised
Standard nominal flow rate (standardised to DIN 1343)
1600 l/min
Pneumatic connection, port 1
G1/4
Type of actuation
Pneumatic

Technical Data

  • Valve function5/3-way, pressurised
  • Type of actuationPneumatic
  • Construction width32 mm
  • Standard nominal flow rate (standardised to DIN 1343)1600 l/min
  • pneumatic working portG1/4
  • Operating pressure-0.09 MPa ... 1 MPa
  • Operating pressure-0.9 bar ... 10 bar
  • DesignPiston gate valve
  • Type of resetMechanical spring
  • Nominal size10 mm
  • Grid dimension33 mm
  • Exhaust-air functionWith flow control option
  • Sealing principleSoft
  • Mounting positionoptional
  • Manual overrideNone
  • Type of pilotingDirect
  • Pilot air supplyExternal
  • Flow directionReversible
  • Symbol00991022
  • lapOverlap
  • Pilot pressure0.3 MPa ... 1 MPa
  • Pilot pressure3 bar ... 10 bar
  • b value0.38
  • C value6.35 l/sbar
  • Max. switching frequency3 Hz
  • Switching time off26 ms
  • Switching time on6 ms
  • Switching time reversal35 ms
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • Corrosion resistance class CRC1 - Low corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Storage temperature-40 °C ... 60 °C
  • Media temperature-10 °C ... 60 °C
  • Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]
  • Ambient temperature-10 °C ... 60 °C
  • Product weight375 g
  • Type of mountingOn PR rail With through-hole
  • Pilot air port 12G1/8
  • Pilot air port 14G1/8
  • Pneumatic connection, port 1G1/4
  • Pneumatic connection, port 2G1/4
  • Pneumatic connection, port 3G1/4
  • Pneumatic connection, port 4G1/4
  • Pneumatic connection, port 5G1/4
  • Note on materialsRoHS-compliant
  • Material sealsNBR
  • Material housingDie-cast aluminium



SKU 14299
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
