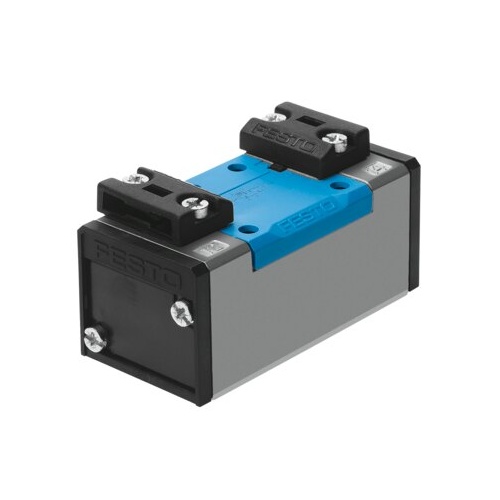

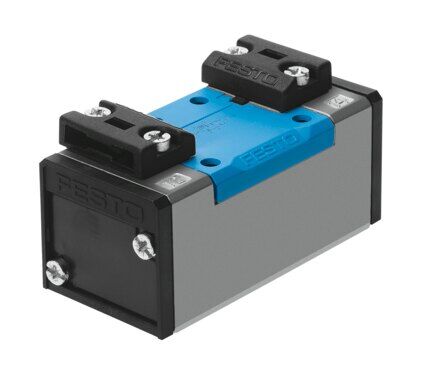

FESTO VL-5/3G-D-1-C Pneumatic valve 151010
VL-5/3G-D-1-C
$270.03
SAVE $32.37 (11%)
In Stock
Product Lifecycle Information
Product is planned to be discontinued. Do not use for new designs.
01/2025 - Product is being phased out. Do not use for new designs.
06/2027 - Product is discontinued. Products for replacement may be available while stocks permit.
07/2027 - Product is discontinued.
Pneumatic valve
VL-5/3G-D-1-C
151010
GTIN: 4052568116569
Technical Data
- Valve function5/3 closed
- Type of actuationPneumatic
- Construction width42 mm
- Standard nominal flow rate (standardised to DIN 1343)1200 l/min
- pneumatic working portSub-base size 1 to ISO 5599-1 G1/4
- Operating pressure-0.09 MPa ... 1.6 MPa
- Operating pressure-0.9 bar ... 16 bar
- DesignPiston gate valve
- Type of resetMechanical spring
- Nominal size8 mm
- Grid dimension43 mm
- Exhaust-air functionWith flow control option
- Sealing principleSoft
- Mounting positionoptional
- Conforms to standardISO 5599-1
- Manual overrideNone
- ISO code106
- Type of pilotingDirect
- Flow directionReversible
- Symbol00991018
- lapOverlap
- Pilot pressure0.3 MPa ... 1.6 MPa
- Pilot pressure3 bar ... 16 bar
- Switching time off44 ms
- Switching time on7 ms
- Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
- Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
- Vibration resistanceTransport application test with severity level 1 to FN 942017-4 and EN 60068-2-6
- Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27
- LABS (PWIS) conformityVDMA24364-B1/B2-L
- Media temperature-10 °C ... 60 °C
- Sound pressure level85 dB(A)
- Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]
- Ambient temperature-10 °C ... 60 °C
- Product weight320 g
- Type of mountingOn sub-base With through-hole
- Pilot air port 12Sub-base size 1 to ISO 5599-1
- Pilot air port 14Sub-base size 1 to ISO 5599-1
- Pneumatic connection, port 1Sub-base size 1 to ISO 5599-1
- Pneumatic connection, port 2Sub-base size 1 to ISO 5599-1
- Pneumatic connection, port 3Sub-base size 1 to ISO 5599-1
- Pneumatic connection, port 4Sub-base size 1 to ISO 5599-1
- Pneumatic connection, port 5Sub-base size 1 to ISO 5599-1
- Note on materialsRoHS-compliant
- Material sealsHNBR NBR
- Material housingDie-cast aluminium
| SKU | 151010 |
| Brand | FESTO |
| Shipping Weight | 1.0000kg |
| Shipping Width | 0.080m |
| Shipping Height | 0.200m |
| Shipping Length | 0.200m |
