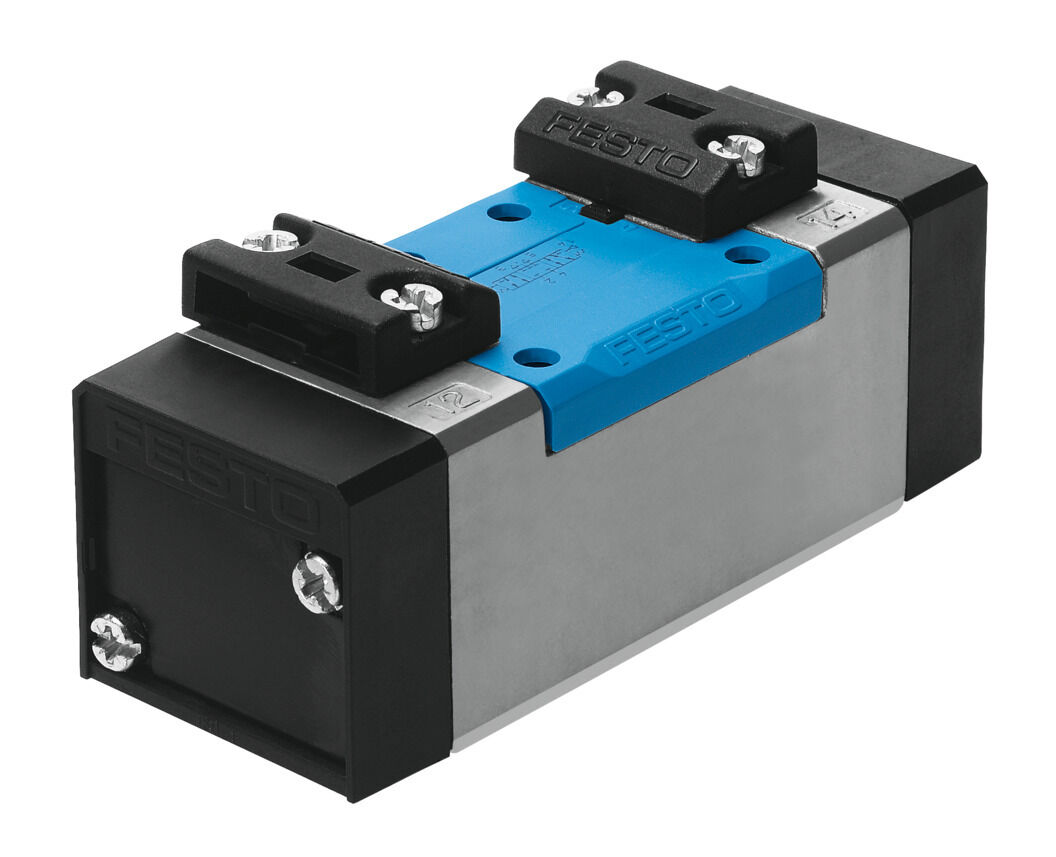

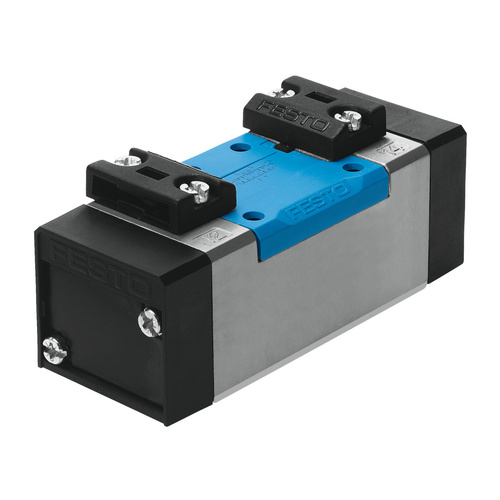

Pneumatic valve

VL-5/3G-D-2-C

151848





GTIN: 4052568117184

Valve function
5/3 closed
Standard nominal flow rate (standardised to DIN 1343)
2300 l/min
Pneumatic connection, port 1
Sub-base size 2 to ISO 5599-1
Type of actuation
Pneumatic

Technical Data

  • Valve function5/3 closed
  • Type of actuationPneumatic
  • Construction width54 mm
  • Standard nominal flow rate (standardised to DIN 1343)2300 l/min
  • pneumatic working portSub-base size 2 to ISO 5599-1 G3/8
  • Operating pressure-0.09 MPa ... 1.6 MPa
  • Operating pressure-0.9 bar ... 16 bar
  • DesignPiston gate valve
  • Type of resetMechanical spring
  • ApprovalUL - Recognized (OL)
  • Nominal size11.5 mm
  • Grid dimension56 mm
  • Exhaust-air functionWith flow control option
  • Sealing principleSoft
  • Mounting positionoptional
  • Conforms to standardISO 5599-1
  • Manual overrideNone
  • ISO code206
  • Type of pilotingDirect
  • Flow directionReversible
  • Symbol00991018
  • lapOverlap
  • Pilot pressure0.3 MPa ... 1.6 MPa
  • Pilot pressure3 bar ... 16 bar
  • Switching time off56 ms
  • Switching time on15 ms
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • Vibration resistanceTransport application test with severity level 1 to FN 942017-4 and EN 60068-2-6
  • Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Media temperature-10 °C ... 60 °C
  • Sound pressure level85 dB(A)
  • Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]
  • Ambient temperature-10 °C ... 60 °C
  • Product weight825 g
  • Type of mountingOn sub-base Via through-hole and screw
  • Pilot air port 12Sub-base size 2 to ISO 5599-1
  • Pilot air port 14Sub-base size 2 to ISO 5599-1
  • Pneumatic connection, port 1Sub-base size 2 to ISO 5599-1
  • Pneumatic connection, port 2Sub-base size 2 to ISO 5599-1
  • Pneumatic connection, port 3Sub-base size 2 to ISO 5599-1
  • Pneumatic connection, port 4Sub-base size 2 to ISO 5599-1
  • Pneumatic connection, port 5Sub-base size 2 to ISO 5599-1
  • Note on materialsRoHS-compliant
  • Material sealsHNBR NBR
  • Material housingDie-cast aluminium
