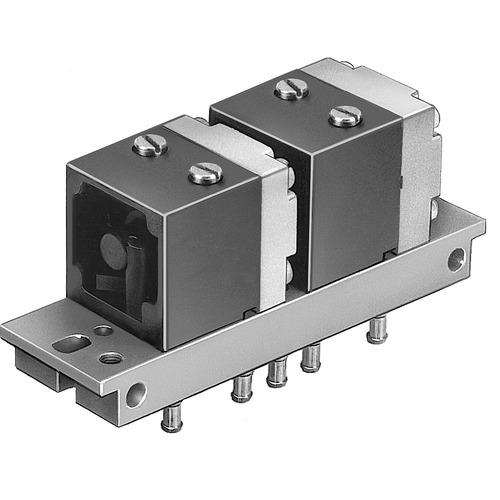

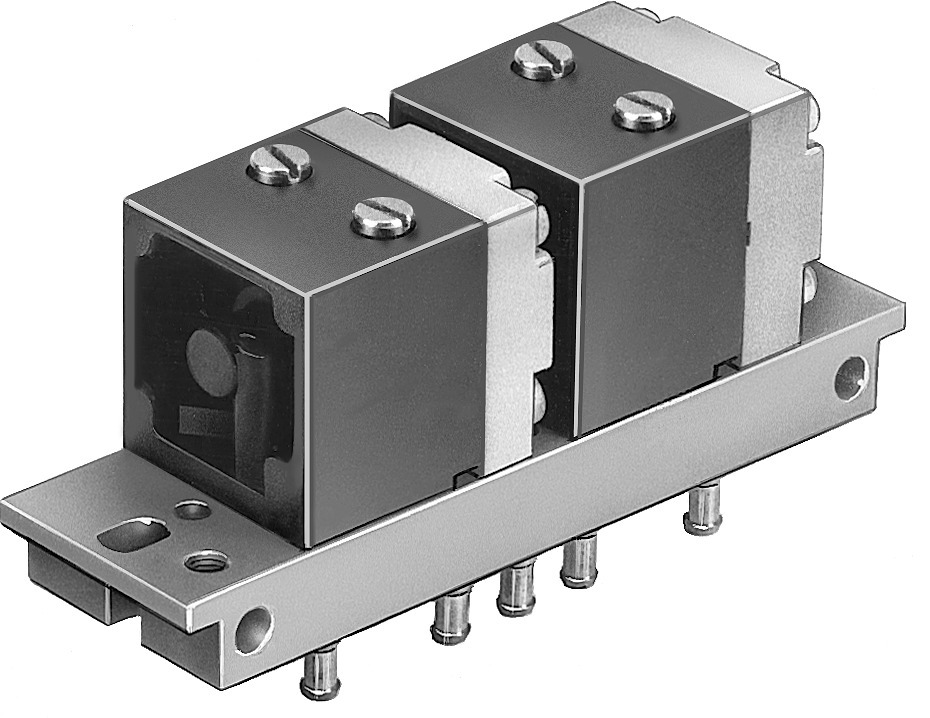

Pneumatic valve

VL/O-3-PK-3X2

Valve function
3/2 open, monostable
Standard nominal flow rate (standardised to DIN 1343)
100 l/min
Pneumatic connection, port 1
PK-3
Operating pressure
0 bar - 8 bar

4245

GTIN: 4052568000592

Technical Data

  • Valve function3/2 open, monostable
  • Standard nominal flow rate (standardised to DIN 1343)100 l/min
  • pneumatic working portPK-3
  • Operating pressure0 bar ... 8 bar
  • DesignPoppet seat
  • Nominal size2.5 mm

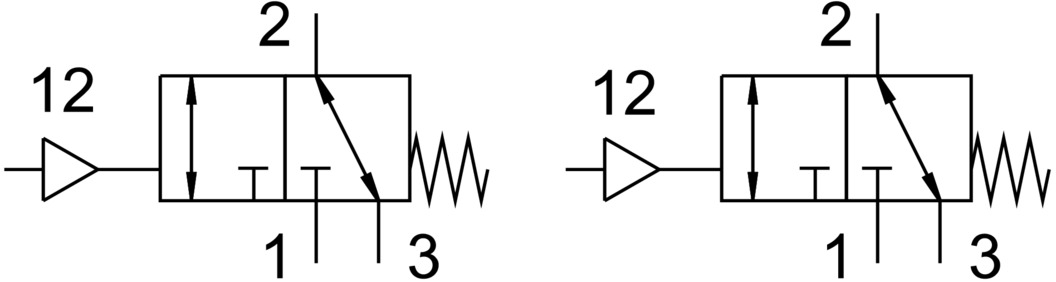

  • Symbol00995570
  • Switching time off50 ms
  • Switching time on12 ms
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Pilot mediumCompressed air to ISO 8573-1:2010 [7:-:-]
  • Ambient temperature-10 °C ... 60 °C
  • Product weight180 g
  • Type of mountingOn sub-base On mounting frame With through-hole
  • Pneumatic connection, port 1PK-3
  • Pneumatic connection, port 4PK-3
  • Pneumatic connection, port 5PK-3
  • Material sub-baseBrass PPS reinforced
  • Material sealsNBR
  • Material housingDie-cast zinc

Downloads

Technical data

Links

Spare parts

Pneumatic valvePneumatic valve

SKU 4245
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
