●Water Hammer Relief JSXR Series has been added [New]
●Air Water, Oil, Steam, Heated, water, Vacuum
●Improved environmental resistance due to the stainless steel coil cover
  [IP67 enclosure/NEMA4X*] ∗ IP65 for models with a DIN terminal
●CO2emissions (Power consumption): 71% reduction
●Compact: Valve volume reduced by 25%*, Lightweight: Weight reduced
  by 30%* ∗ Compared with the existing model
●Energy saving
  Coil force: 10% increase*, Power consumption: 14% reduction
  (Compared with the existing model)
●360° lead wire insertion and removal is possible
●Improved weather resistance in outdoor environments

Specifications

Size20
Valve TypeN.C.
Body MaterialStainless Steel
Seal MaterialNBR
Orifice Diameter And Port SizeOrifice Diameter:Φ3.2mm,Port Size:1/8
Thread TypeRc
Rated Voltage24 VDC
Electrical EntryDIN Terminal With Light(With Surge Voltage Suppressor)
Oil-free OptionNone
OptionWithout Bracket

Datasheet (PDF)

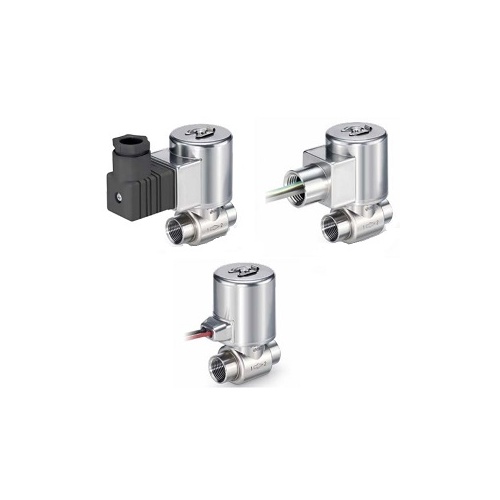

SKU JSX21-SN301R-5DZ
Brand SMC
