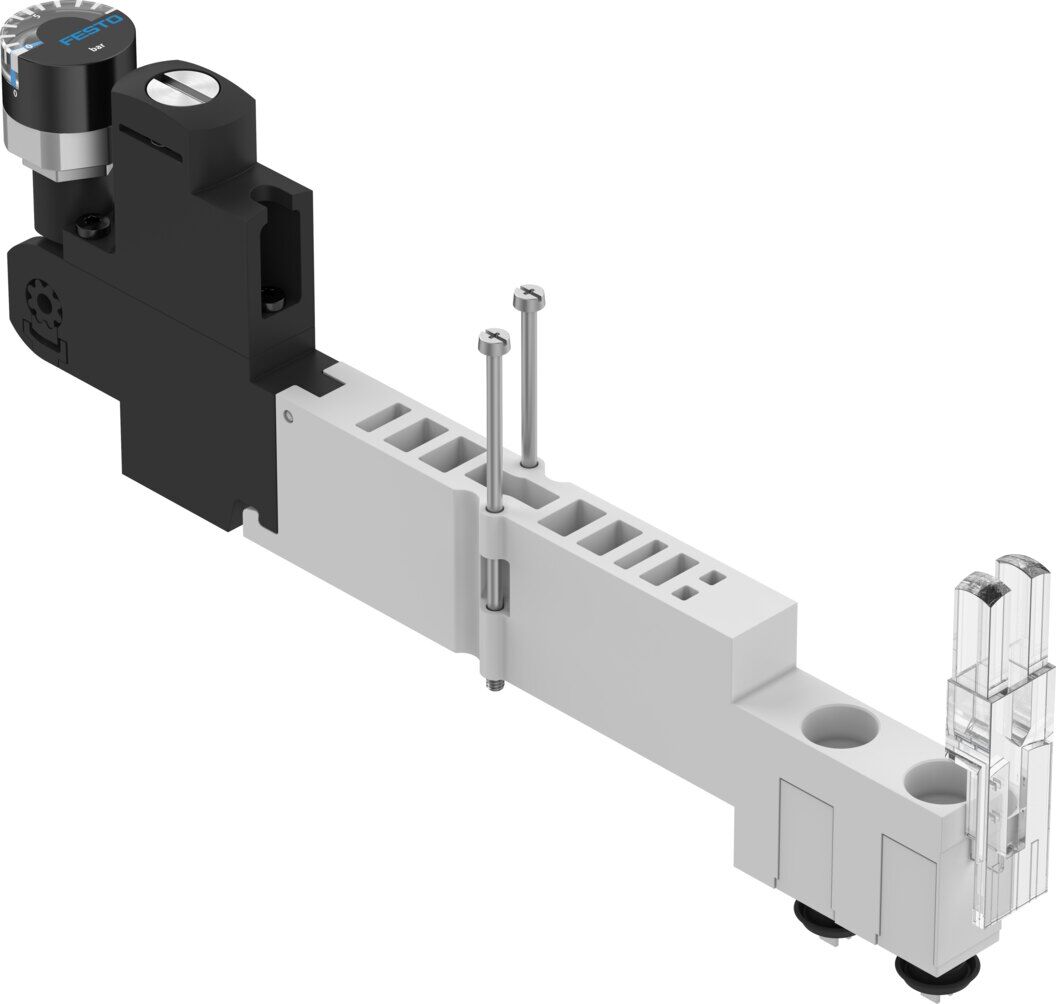

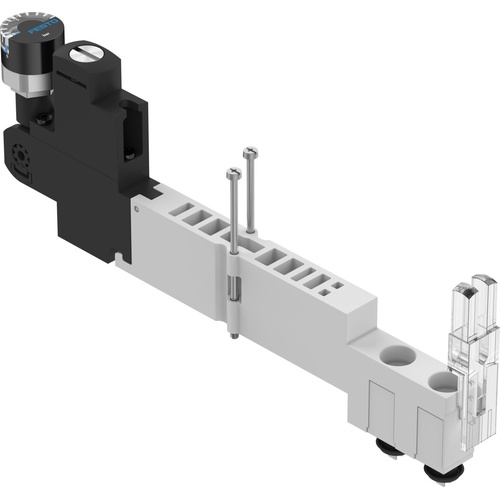

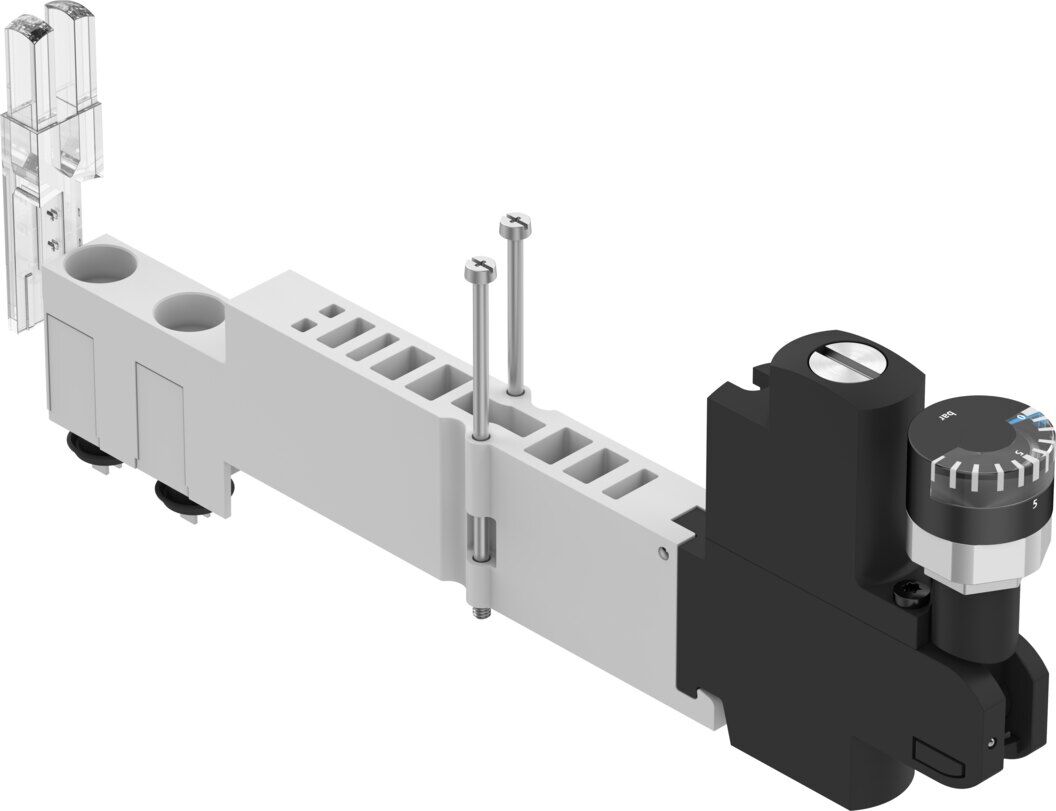

Regulator plate

VMPA1-B8-R2C2-C-10

543340





GTIN: 4052568181758







Technical Data

  • Construction width10.5 mm
  • Mounting positionoptional
  • Vertical pneumatic linkagePressure regulator for 2
  • Controller functionOutput pressure constant With secondary venting
  • Symbol00992003
  • Selection of pressure gaugePossible
  • Pressure regulation range2 bar ... 8.5 bar
  • Inlet pressure 10.5 bar ... 10 bar
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • Corrosion resistance class CRC1 - Low corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Degree of protectionIP65 To IEC 60529
  • Ambient temperature-5 °C ... 50 °C
  • Max. tightening torque0.25 Nm
  • Product weight73.8 g
  • Mounting with vertical stackingOn manifold sub-base
  • Pressure gauge connectionM5
  • Note on materialsRoHS-compliant
  • Material control panelPA
  • Material sealsNBR
  • Material regulator housingPA
SKU 543340
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
