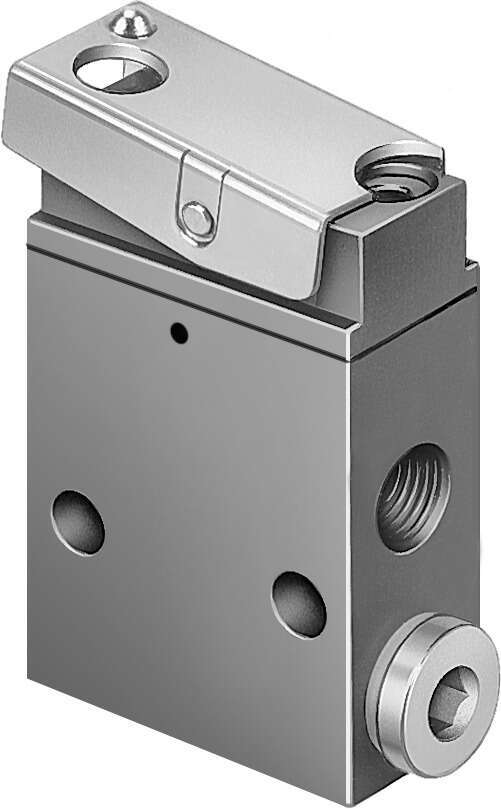

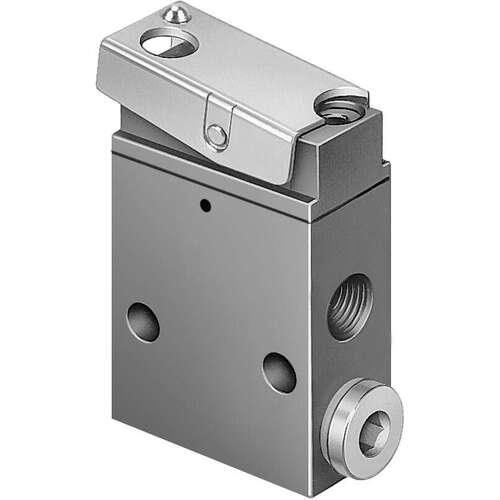

Stem actuated valve

VOS-3-1/8

2952

Technical Data

  • Valve function3/2 open, monostable
  • Type of actuationMechanical
  • Standard nominal flow rate (standardised to DIN 1343)141 l/min ... 161 l/min
  • pneumatic working portG1/8
  • Operating pressure0.35 MPa ... 0.8 MPa
  • Operating pressure3.5 bar ... 8 bar
  • DesignPoppet seat
  • Type of resetMechanical spring
  • Nominal size3.5 mm
  • Exhaust-air functionWith flow control option
  • Sealing principleSoft
  • Mounting positionoptional
  • Type of pilotingPilot actuated
  • Pilot air supplyInternal
  • Flow directionNon-reversible

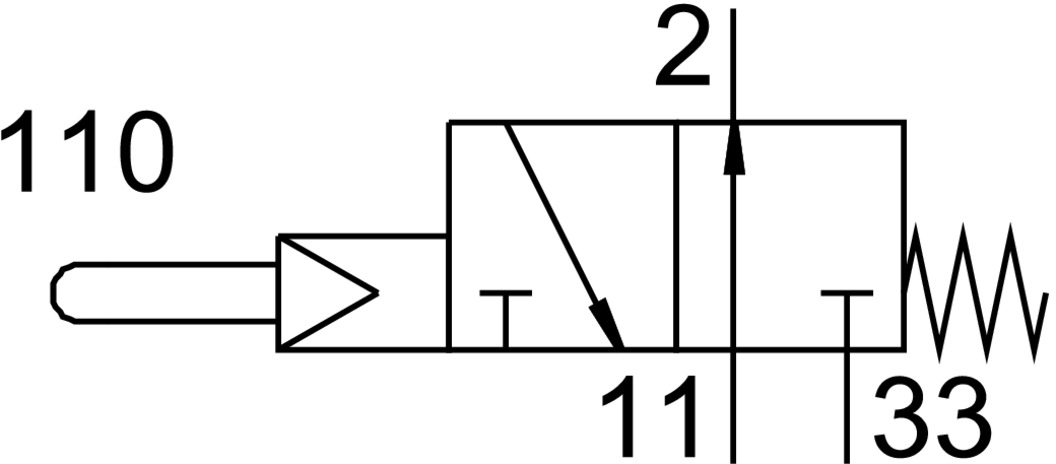

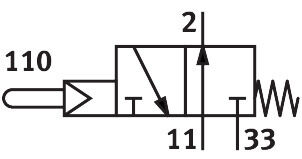

  • Symbol00991114
  • Pilot mediumCompressed air to ISO 8573-1:2010 [-:-:-]
  • Note on forced dynamizationSwitching frequency min. 1/year
  • Explosion protectionZone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX)
  • Operating mediumCompressed air to ISO 8573-1:2010 [-:-:-]
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Media temperature-10 °C ... 60 °C
  • Ambient temperature-10 °C ... 60 °C
  • Actuating force2.93 N
  • Product weight110 g
  • Type of mountingWith through-hole
  • Pneumatic connection, port 1G1/8
  • Pneumatic connection, port 2G1/8
  • Pneumatic connection, port 3G1/8
  • Note on materialsRoHS-compliant
  • Material sealsNBR
  • Material housingAnodised

GTIN: 4052568110277



VMEM_EN.PDF

CAD data

Spare parts

Product Documentation

Technical data

Reliability datasheet



Stem actuated valve

Stem actuated valve

SKU 2952
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
