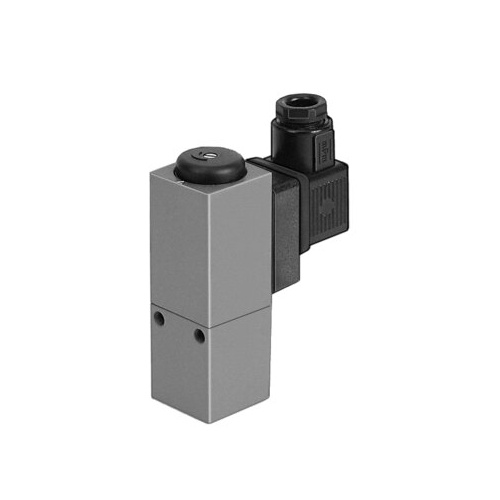

Vacuum switch

VPEV-1/8

150261





GTIN: 4052568116460

Technical Data

  • Conforms to standardEN 60947-5-1
  • Symbol00991471
  • ApprovalCCC
  • CE mark (see declaration of conformity)To EU Low Voltage Directive
  • UKCA marking (see declaration of conformity)To UK regulations for electrical equipment
  • Explosion protectionThe information in the certificate must be observed! Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX)
  • Note on materialsRoHS-compliant
  • Measured variableRelative pressure
  • Measurement methodPneumatic/electric pressure transducer
  • Pressure measuring range-0.1 MPa ... 0.16 MPa
  • Pressure measuring range-1 bar ... 1.6 bar
  • Pressure measuring range-14.5 psi ... 23.2 psi
  • Operating pressure-0.1 MPa ... 0.16 MPa
  • Operating pressure-1 bar ... 1.6 bar
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • Media temperature-20 °C ... 80 °C
  • Ambient temperature-20 °C ... 80 °C
  • Switching element functionChangeover switch
  • Max. switching frequency3 Hz
  • Max. switching output voltage AC250 V
  • Max. switching output voltage DC125 V
  • Max. output current5000 mA
  • Min. load current1 mA at 24 V 10 mA at 10 V 100 mA at 5 V
  • Utilisation category - inductive loadAC-14 DC-13
  • Utilisation category - resistive loadAC-12 DC-12
  • Electrical connectionType A Plugs To DIN 43650 Square design
  • Type of mountingWith through-hole
  • Mounting positionoptional
  • Pneumatic connectionG1/8
  • Product weight240 g
  • Material housingWrought aluminium alloy
  • Material switch contactSilver
  • Switching status indicationYellow LED
  • Setting range threshold value-0.95 bar ... -0.2 bar
  • Setting range threshold value after conversion0.16 bar ... 1.6 bar
  • Degree of protectionIP65
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L







SKU 150261
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
