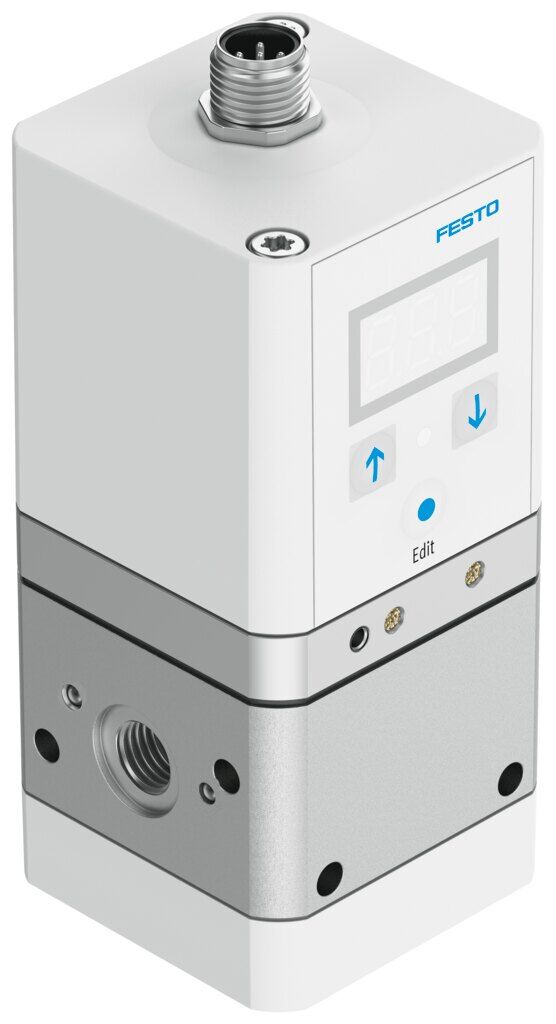

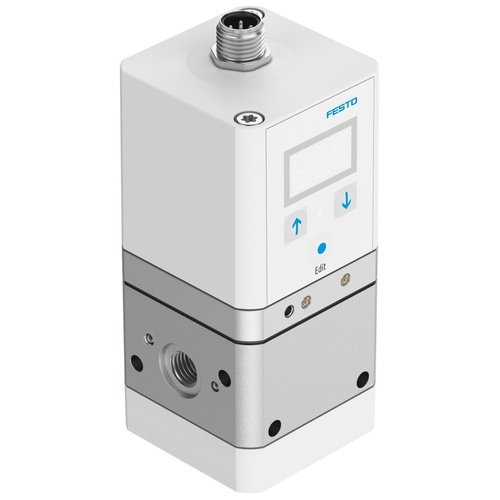

Proportional-pressure regulator

Technical Data

• Nominal size, supply5 mm
• Nominal size, exhaust2.5 mm
• Type of actuationElectric
• Sealing principleSoft
• Mounting positionoptional Preferably vertical
• DesignPiloted diaphragm regulator
• Short circuit current ratingFor all electrical connections
• Safety instructionsSafety position VPPE: if the power supply cable is interrupted, output pressure is maintained unregulated.
• Symbol00995303
• Reverse polarity protectionFor all electrical connections
• Type of resetMechanical spring
• Type of pilotingPilot actuated
• Valve function3-way proportional pressure regulator
• Display typeLED indicator 3-digit
• Pressure regulation range0.006 MPa ... 0.6 MPa
• Pressure regulation range0.06 bar ... 6 bar
• Inlet pressure 16 bar ... 8 bar
• Inlet pressure 10.6 MPa ... 0.8 MPa
• Max. pressure hysteresis0.003 MPa
• Max. pressure hysteresis0.03 bar
• Max. pressure hysteresis0.435 psi
• Standard nominal flow rate (standardised to DIN 1343)800 l/min
• Operational voltage range DC21.6 V ... 26.4 V
• Max. current consumption160 mA
• Duty cycle100%
• Max. electrical power consumption4.2 W
• Residual ripple10 %
• Switching outputPNP
• Signal range analogue output4 - 20 mA
• Signal range analogue input4 - 20 mA
• Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4] Inert gases
• Note on operating and pilot mediumLubricated operation not possible
• ApprovalRCM trademark c UL us listed (OL)
• KC markKC-EMV
• CE mark (see declaration of conformity)To EU EMC Directive In accordance with EU RoHS Directive
• UKCA marking (see declaration of conformity)To UK RoHS instructions
• Certificate issuing authorityUL E322346
• Corrosion resistance class CRC2 - Moderate corrosion stress
• LABS (PWIS) conformityVDMA24364-B2-L
• Media temperature10 °C ... 50 °C
• Degree of protectionIP65
• Ambient temperature0 °C ... 60 °C
• Product weight390 g
• Linearity1 %FS
• Hysteresis0.5 %FS
• Reproducibility0.5 %FS
• Total accuracy1.25%FS
• Temperature cooefficient0.04 %/K
• Electrical connectionM12 Plugs
• Type of mountingWith through-hole
• Pneumatic connection, port 1G1/8
• Pneumatic connection, port 2G1/8
• Pneumatic connection, port 3G1/8
• Note on materialsRoHS-compliant
• Material housingAnodised wrought aluminium alloy
