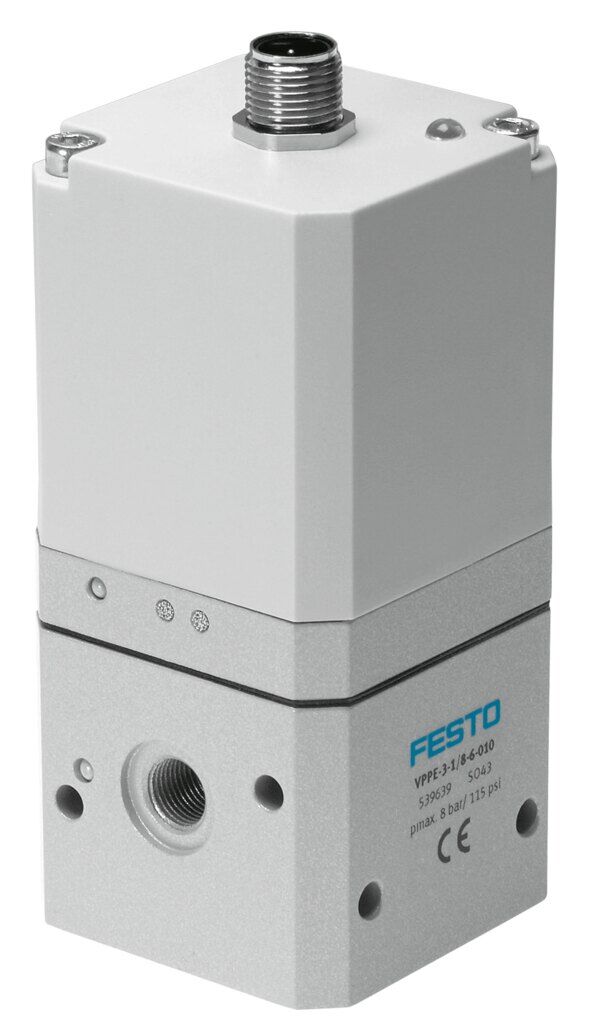

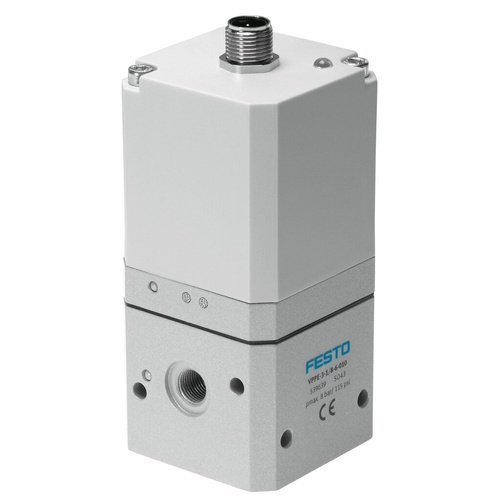

Proportional-pressure regulator

Technical Data

• Nominal size, supply5 mm
• Nominal size, exhaust2.5 mm
• Type of actuationElectric
• Sealing principleSoft
• Mounting positionoptional Preferably vertical
• DesignPiloted piston regulator
• Short circuit current ratingFor all electrical connections
• Safety instructionsSafety position VPPE: if the power supply cable is interrupted, output pressure is maintained unregulated.
• Symbol00995303
• Reverse polarity protectionFor all electrical connections
• Valve function3-way proportional-pressure regulator, closed
• Operating pressure0.8 MPa
• Operating pressure≤8 bar
• Pressure regulation range0.015 MPa ... 0.6 MPa
• Pressure regulation range0.15 bar ... 6 bar
• Inlet pressure 16 bar ... 8 bar
• Inlet pressure 10.6 MPa ... 0.8 MPa
• Max. pressure hysteresis0.015 MPa
• Max. pressure hysteresis0.15 bar
• Standard nominal flow rate (standardised to DIN 1343)850 l/min
• Switching time off1300 ms
• Switching time on550 ms
• Operational voltage range DC21.6 V ... 26.4 V
• Max. current consumption150 mA
• Max. electrical power consumption3.6 W
• Residual ripple10 %
• SETPOINT/ACTUAL valuesVoltage type 0 - 10 V
• Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4] Inert gases
• Note on operating and pilot mediumLubricated operation not possible
• ApprovalRCM trademark c UL us listed (OL)
• KC markKC-EMV
• CE mark (see declaration of conformity)To EU EMC Directive In accordance with EU RoHS Directive
• UKCA marking (see declaration of conformity)To UK RoHS instructions
• Certificate issuing authorityUL E322346
• Corrosion resistance class CRC2 - Moderate corrosion stress
• LABS (PWIS) conformityVDMA24364-B2-L
• Media temperature10 °C ... 50 °C
• Degree of protectionIP65
• Ambient temperature10 °C ... 50 °C
• Product weight445 g
• Linearity1 %FS
• Hysteresis2.5 %FS
• Reproducibility0.5 %FS
• Total accuracy2.25%FS
• Temperature cooefficient0.04 %/K
• Electrical connectionM12x1 Plugs Round design
• Type of mountingWith through-hole
• Pneumatic connection, port 1G1/8
• Pneumatic connection, port 2G1/8
• Note on materialsRoHS-compliant
• Material housingWrought aluminium alloy
• Material membraneNBR
