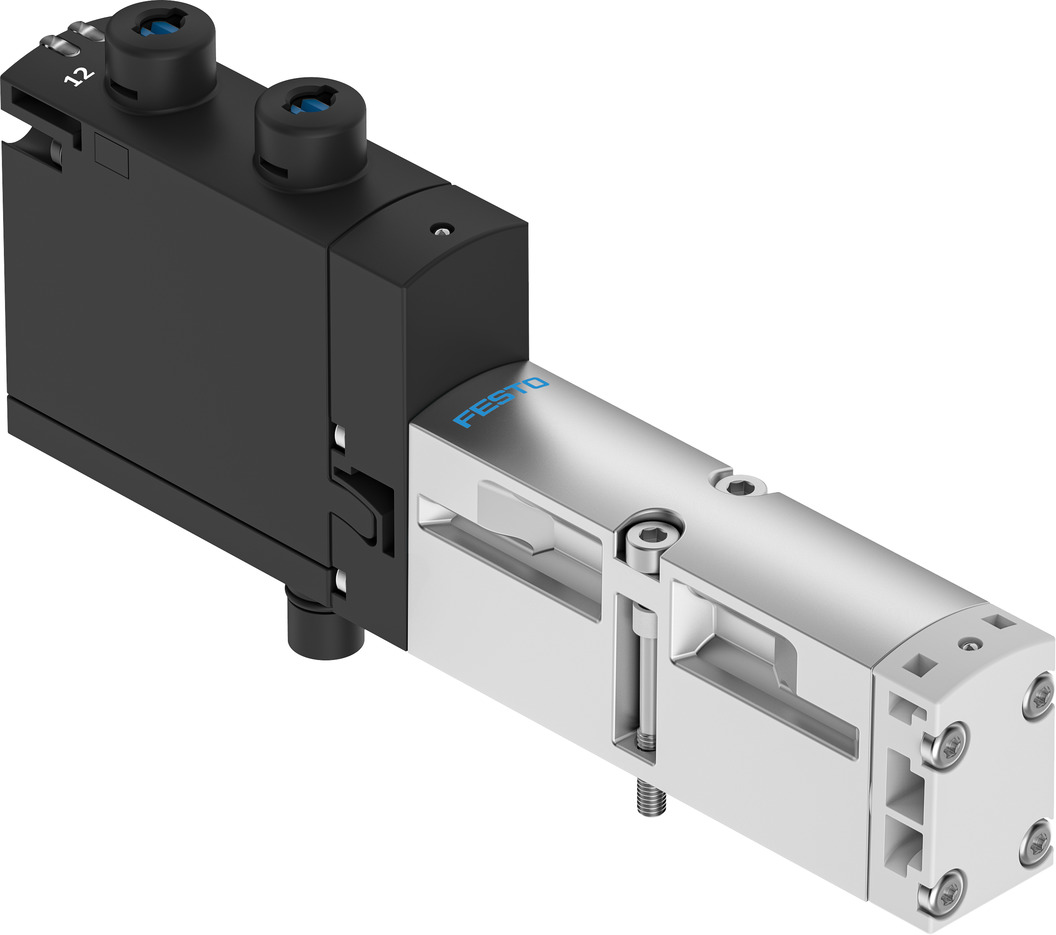

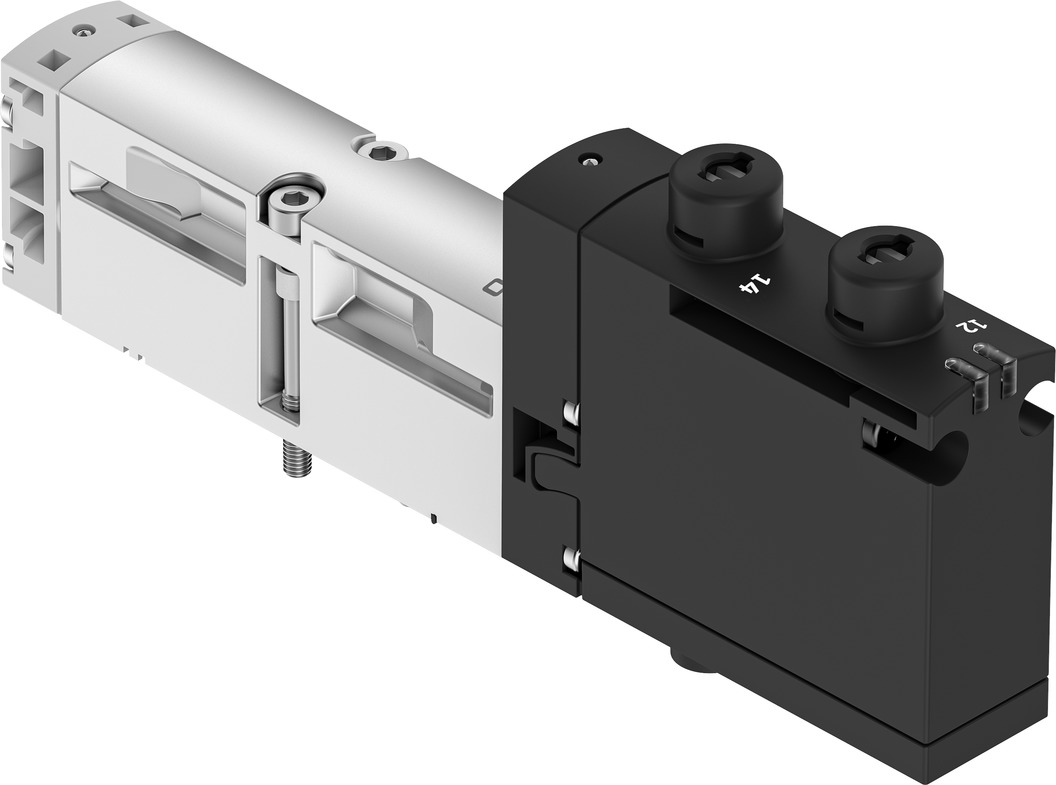

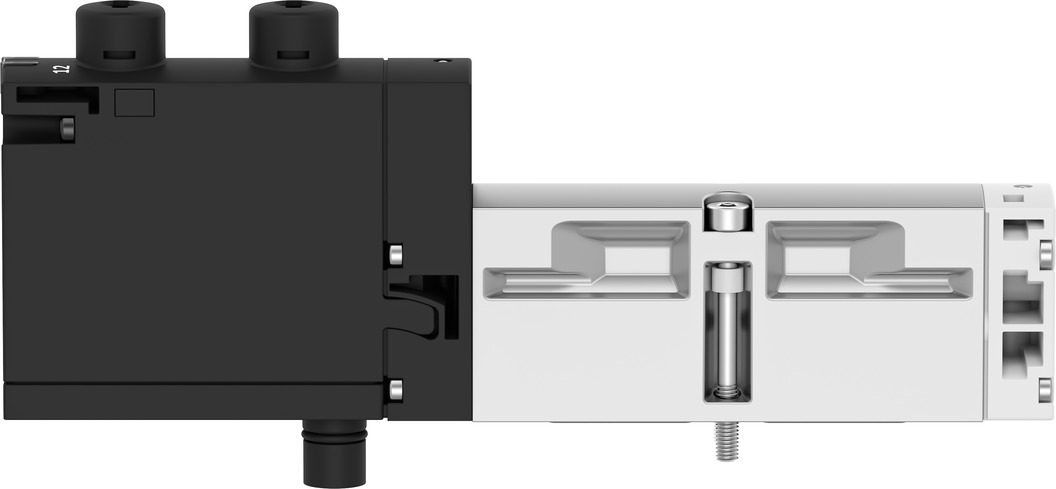

Solenoid valve

VSVA-B-T32C-AZD-A2-1T1L

539176

GTIN: 4052568177157

Technical Data

• Valve function2x3/2-way, monostable, closed
• Type of actuationElectric
• Construction width18 mm
• Standard nominal flow rate (standardised to DIN 1343)400 l/min
• pneumatic working portSub-base size 18 mm to ISO 15407-1 Sub-base size 02 to VDMA 24563 G1/8
• Operating voltage24V DC
• Operating pressure0.3 MPa ... 1 MPa
• Operating pressure3 bar ... 10 bar
• DesignPiston gate valve
• Approvalc UL us - Recognized (OL)
• Degree of protectionIP65 NEMA 4
• Exhaust-air functionWith flow control option Via throttle plate Via individual sub-base
• Sealing principleSoft
• Mounting positionoptional
• Manual overrideDetenting Non-detenting Covered
• Type of pilotingPilot actuated
• Pilot air supplyExternal Internal
• Flow directionNon-reversible

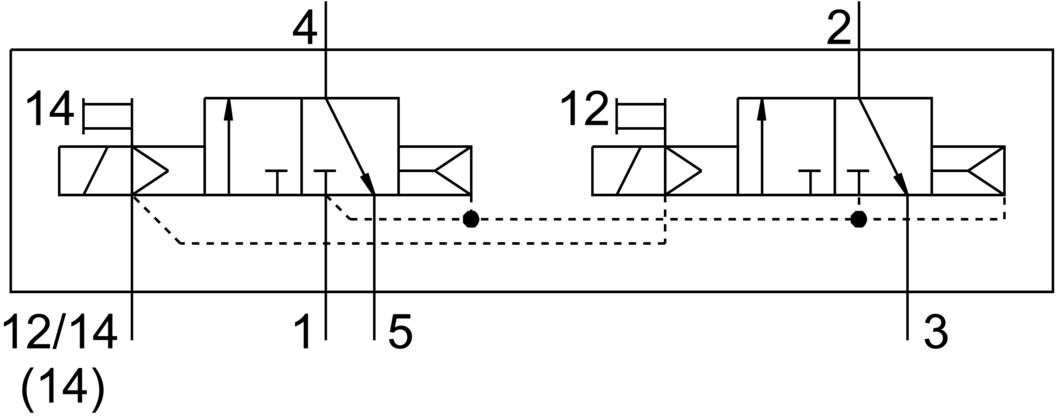

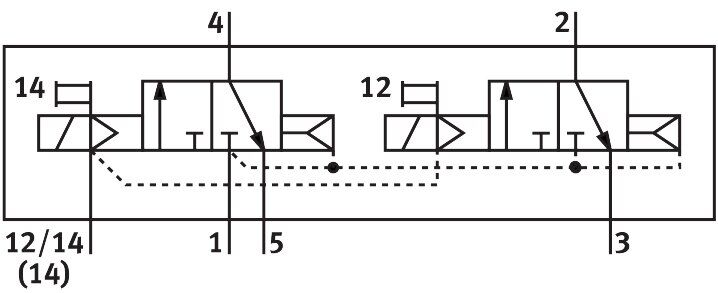

• Symbol00991817
• lapOverlap
• Signal status displayLED
• Pilot pressure0.3 MPa ... 1 MPa
• Pilot pressure3 bar ... 10 bar
• Flow rate of valve600 l/min
• Flow rate of valve on individual sub-base500 l/min
• Valve flow rate, pneumatically linked, flow optimized550 l/min
• Flow rate of pneumatically interlinked valve400 l/min
• Switching time off30 ms
• Switching time on12 ms
• Duty cycle100%
• Max. positive test pulse with 0 signal1700 µs
• Max. negative test pulse with 1 signal1200 µs
• Max. current consumption60 mA
• Nominal operating voltage DC24 V
• Characteristic coil data24 V DC: 1.3 W
• Immunity to surge2.5 kV
• Pollution degree3
• Permissible voltage fluctuations+/- 10 %
• Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
• Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
• Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
• Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27
• Corrosion resistance class CRC0 - No corrosion stress
• LABS (PWIS) conformityVDMA24364-B1/B2-L
• Relative air humidity0 - 90%
• Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]
• Ambient temperature-5 °C ... 50 °C
• Product weight190 g
• Electrical connectionPlug-in To ISO 15407-2
• Type of mountingOn sub-base
• Pilot air port 12/14Sub-base size 18 mm to ISO 15407-2
• Pilot exhaust port 82/84Ducted Not ducted as per standard Either:
• Pneumatic connection, port 1Sub-base size 18 mm to ISO 15407-2
• Pneumatic connection, port 2Sub-base size 18 mm to ISO 15407-2
• Pneumatic connection, port 3Sub-base size 18 mm to ISO 15407-2
• Pneumatic connection, port 4Sub-base size 18 mm to ISO 15407-2
• Pneumatic connection, port 5Sub-base size 18 mm to ISO 15407-2
• Note on materialsRoHS-compliant
• Material sealsFPM HNBR NBR
• Material housingDie-cast aluminium PA
• Material screwsGalvanised steel
