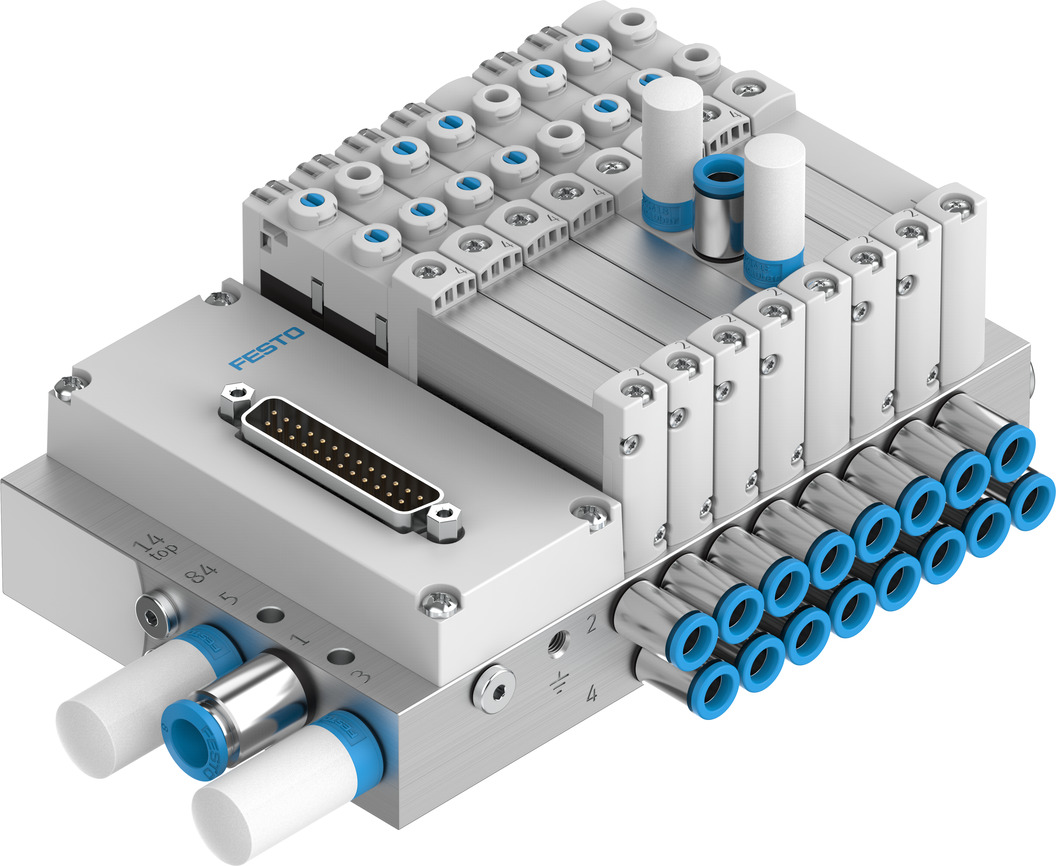

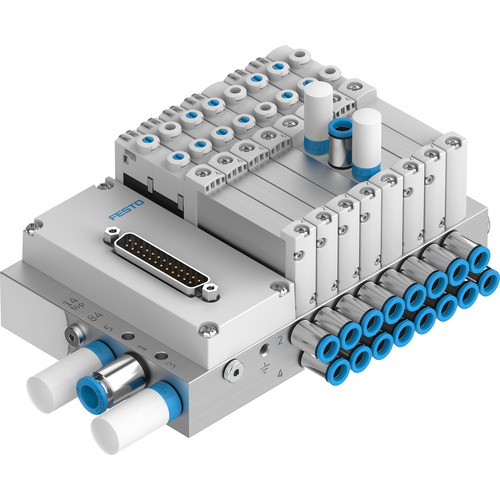

Valve terminal

VTUG-14-MSDR-B1T-25V20-Q12-U-Q6S-20A+HM1

TECHNICAL DATA LINK

Material FESTO number: 573606

Technical Data

• Electrical controlAP interface Individual connection Fieldbus I-Port IO-Link® Multi-pin plug
• Electrical I/O systemno
• Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
• Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]
• Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
• Media temperature-5 °C ... 60 °C
• Ambient temperature-5 °C ... 60 °C
• Storage temperature-10 °C ... 60 °C
• Degree of protectionIP40 IP65 IP67 IP69K NEMA 4X
• Corrosion resistance class CRC2 - Moderate corrosion stress
• Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
• Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27
• Operating pressure-0.09 MPa ... 1 MPa
• Operating pressure-0.9 bar ... 10 bar
• Pilot pressure0.15 MPa ... 0.8 MPa
• Pilot pressure1.5 bar ... 8 bar
• Operating pressure for valve terminal with internal pilot air supply1.5 bar ... 8 bar
• LABS (PWIS) conformityVDMA24364-B1/B2-L
• CE mark (see declaration of conformity)To EU EMC Directive In accordance with EU RoHS Directive
• UKCA marking (see declaration of conformity)To UK instructions for EMC To UK RoHS instructions
• KC markKC-EMV
• ApprovalRCM trademark c UL us - Recognized (OL)
• Certificate issuing authorityUL MH19482
• Note on materialsRoHS-compliant
• Material sealsHNBR NBR
• Valve terminal structureFixed grid
• Max. number of valve positions24
• Max. number of pressure zones13
• Type of actuationElectric
• Valve function2x3/2-way, monostable, closed 2x3/2-way, open, monostable 2x3/2-way, open/closed, monostable 3/2-way, closed, monostable 3/2 open, monostable 5/2 bistable 5/2-way, monostable 5/3-way, pressurised 5/3 exhausted 5/3 closed
• DesignPiston gate valve
• Sealing principleSoft
• Type of pilotingPilot actuated
• Valve size18 mm
• Pilot air supplyExternal Internal
• Max. standard nominal flow rate330 l/min at 10 mm 630 l/min at 14 mm 1200 l/min at 18 mm
• Standard nominal flow rate (standardised to DIN 1343)130 l/min ... 1150 l/min
• Suitability for vacuumyes
• Exhaust-air functionWith flow control option
• pneumatic working portM5 M7 G1/8 G1/4 QS-3 QS-4 QS-6 QS-8 QS-10 QS-5/32 QS-1/8 QS-3/16 QS-1/4 QS-5/16 QS-3/8
• Pneumatic connection, port 1QS-16 QS-1/4 QS-5/16 QS-3/8 QS-1/2
• Pilot air port 12/14G1/8
• Signal status displayLED
• Nominal operating voltage DC24 V
• Permissible voltage fluctuations+/- 10 % +/- 25%
• Nominal pick-up current per solenoid coil47 mA up to 20 ms
• Nominal current with current reduction15.5 mA after 20 ms

VTUG Series VG
VTUG Size 14 14
Multi-pin M
Sub-D plug SD
Reduction of holding current R
Sub-base valve B
24 V DC 1
Manual override push-in/detenting T
25 pins 25
For 12 double-solenoid or 24 single-solenoid V20 valves
12 mm push-in connector Q12
Silencer U
6 mm push-in connectorQ6
Screwed S
5/2-way valve, single 20A solenoid, mechanical spring
H-rail mounting H
Connecting cable multi-pin plug, 2.5 m M1
Due to high demand delivery time up to four weeks
