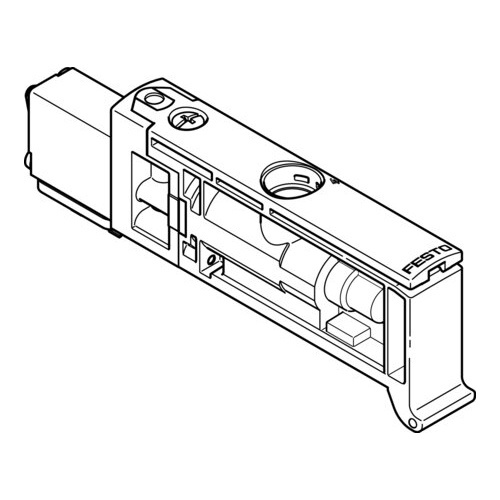

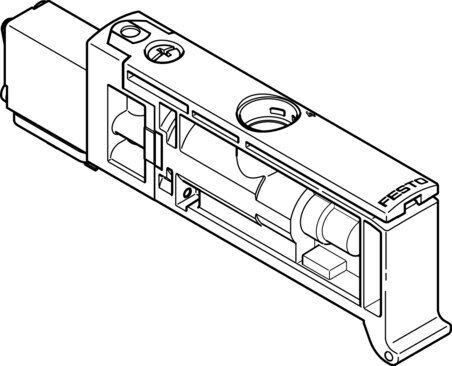

Solenoid valve

Technical Data

• Valve function3/2-way, closed, monostable
• Type of actuationElectric
• Valve size12 mm
• Standard nominal flow rate (standardised to DIN 1343)240 l/min ... 400 l/min
• pneumatic working portQS-4 QS-6
• Operating pressure0.2 MPa ... 0.8 MPa
• Operating pressure2 bar ... 8 bar
• DesignPoppet valve with spring return
• Degree of protectionIP65
• Nominal size4 mm
• Exhaust-air functionWithout flow control option
• Sealing principleSoft
• Mounting positionoptional
• Manual overrideDetenting Non-detenting
• Type of pilotingPilot actuated
• Pilot air supplyExternal
• Flow directionNon-reversible
• Symbol00992123
• Note on operating pressure0 - 0.8 MPa with ext. pilot air 0 - 8 bar with external pilot air
• Pilot pressure0.2 MPa ... 0.8 MPa
• Pilot pressure2 bar ... 8 bar
• Switching time off14 ms
• Switching time on6 ms
• Duty cycle100%
• Max. positive test pulse with 0 signal800 µs
• Max. negative test pulse with 1 signal300 µs
• Characteristic coil data24 V DC: 1.0 W
• Permissible voltage fluctuations+/- 10 %
• Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
• Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
• Vibration resistanceTransport application test with severity level 1 to FN 942017-4 and EN 60068-2-6
• Shock resistanceShock test with severity level 1 to FN 942017-5 and EN 60068-2-27
• Corrosion resistance class CRC0 - No corrosion stress
• LABS (PWIS) conformityVDMA24364-B1/B2-L
• Media temperature-5 °C ... 60 °C
• Sound pressure level85 dB(A)
• Ambient temperature-5 °C ... 60 °C
• Product weight26.3 g
• Electrical connectionVia sub-base
• Type of mountingOn sub-base
• Auxiliary pilot air port 14Sub-base
• Pneumatic connection, port 1Sub-base
• Pneumatic connection, port 3Sub-base
• Pneumatic connection, port 5Sub-base
• Note on materialsRoHS-compliant
• Material sealsNBR TPE-U(PU)
• Material housingPA-reinforced
• Material piston slideWrought aluminium alloy
