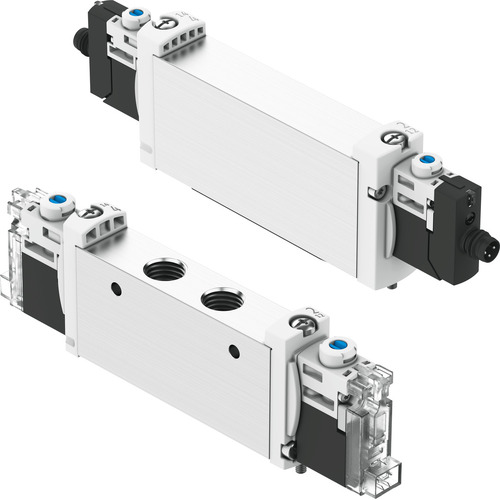

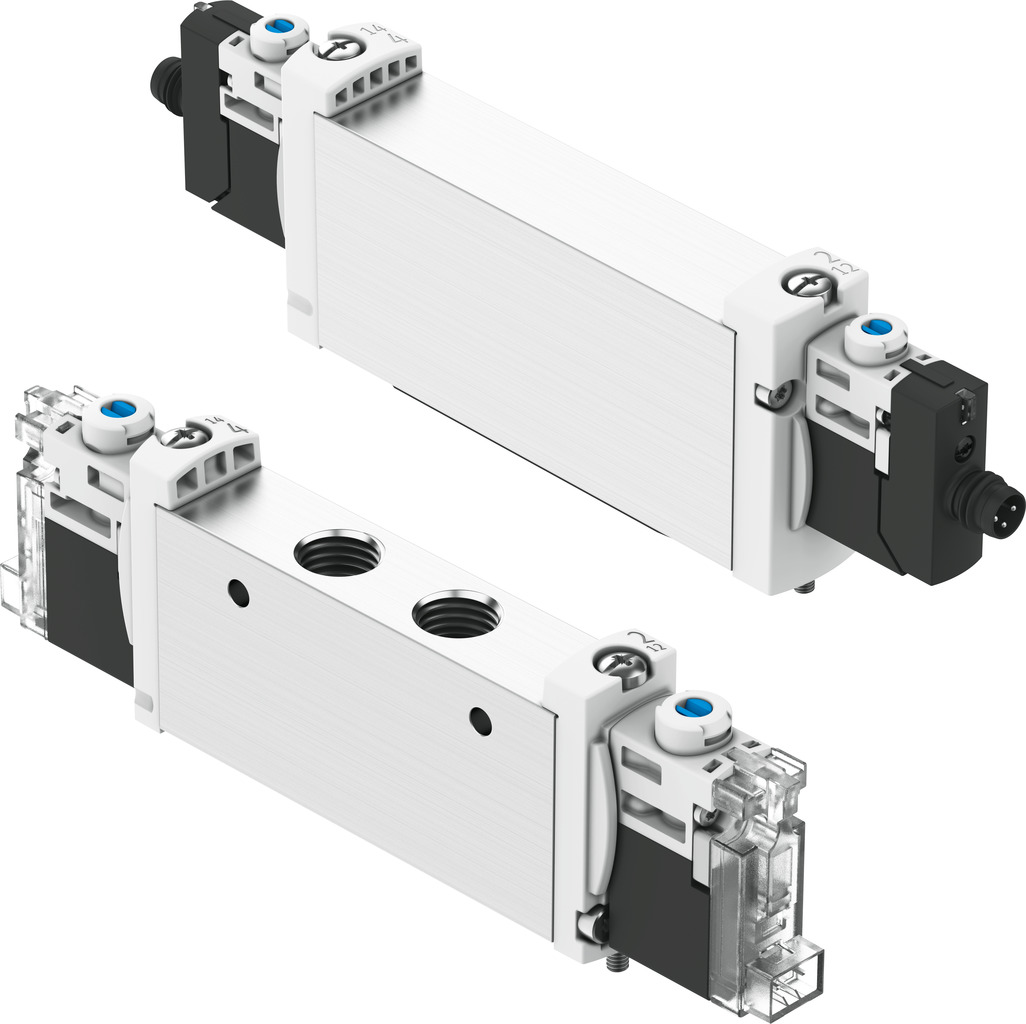

Solenoid valve

VUVG

564212

Technical Data

• Valve function2x3/2-way, monostable, closed 2x3/2-way, open, monostable 2x3/2-way, open/closed, monostable 5/2 bistable 5/2-way, monostable 5/3-way, pressurised 5/3 exhausted 5/3 closed
• Type of actuationElectric
• Valve size10 mm
• Standard nominal flow rate (standardised to DIN 1343)90 l/min ... 1380 l/min
• pneumatic working portFlange M3 M5 M7 G1/8 G1/4 QS-3 QS-4 QS-6 QS-8 QS-10 QS-5/32 QS-1/8 QS-3/16 QS-1/4 QS-5/16 QS-3/8
• Operating voltage12V DC 24V DC 5V DC
• Operating pressure-0.09 MPa ... 1 MPa
• Operating pressure-0.9 bar ... 10 bar
• DesignPiston gate valve Piston slide with sealing ring
• Type of resetMechanical spring Pneumatic spring
• ApprovalRCM trademark c UL us - Recognized (OL)
• CE mark (see declaration of conformity)To EU EMC Directive To EU Low Voltage Directive In accordance with EU RoHS Directive
• UKCA marking (see declaration of conformity)To UK instructions for EMC To UK RoHS instructions To UK regulations for electrical equipment
• Degree of protectionIP40 IP65 With plug socket
• Exhaust-air functionWith flow control option
• Sealing principleSoft
• Mounting positionoptional
• Manual overrideDetenting Non-detenting Covered
• Type of pilotingPilot actuated
• Pilot air supplyExternal Internal
• lapOverlap Indefinite overlap
• Duty cycle100%
• Permissible voltage fluctuations+/- 10 %
• Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
• Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
• Restrictions for environmental and media temperature-5 ... 50° C Without holding current reduction
• Corrosion resistance class CRC0 - No corrosion stress 2 - Moderate corrosion stress
• LABS (PWIS) conformityVDMA24364-B1/B2-L VDMA24364 zone III
• Cleanroom suitability, measured according to ISO 14644-14Class 5 according to ISO 14644-1
• Media temperature-5 °C ... 60 °C
• Ambient temperature-5 °C ... 60 °C
• Electrical connectionVia electrical sub-base
• Type of mountingOn manifold rail With through-hole
• Pilot air port 12/14M3 M5
• Pneumatic connection, port 1M3 M5 M7 G1/8 G1/4
• Pneumatic connection, port 2M3 M5 M7 G1/8 G1/4
• Pneumatic connection, port 3M3 M5 M7 G1/8 G1/4
• Pneumatic connection, port 4M3 M5 M7 G1/8 G1/4
• Pneumatic connection, port 5M3 M5 M7 G1/8 G1/4
• Note on materialsRoHS-compliant
• Material sealsHNBR NBR
• Material housingWrought aluminium alloy
