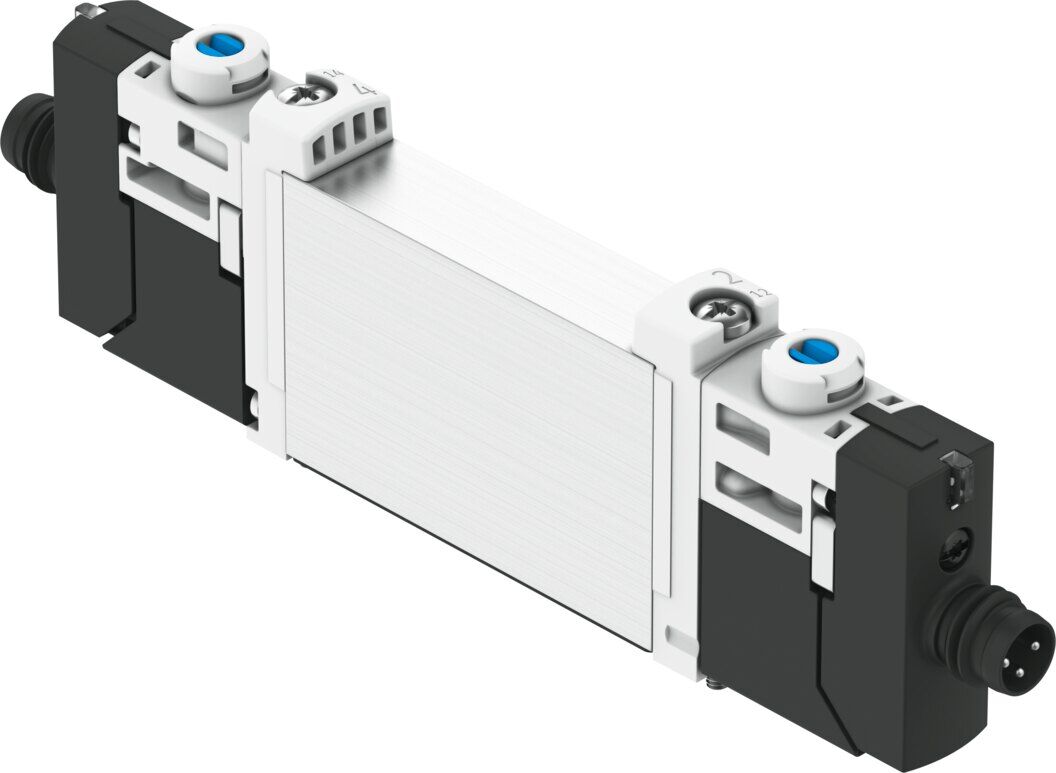

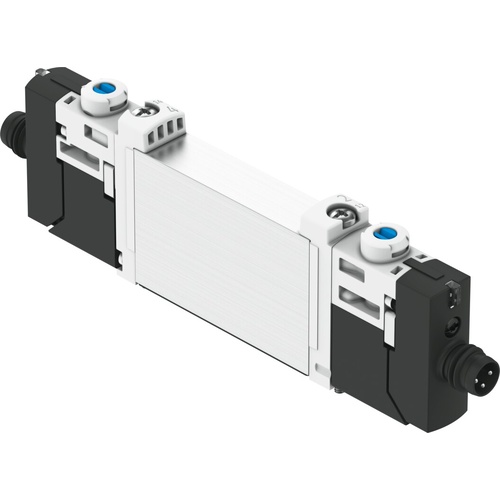

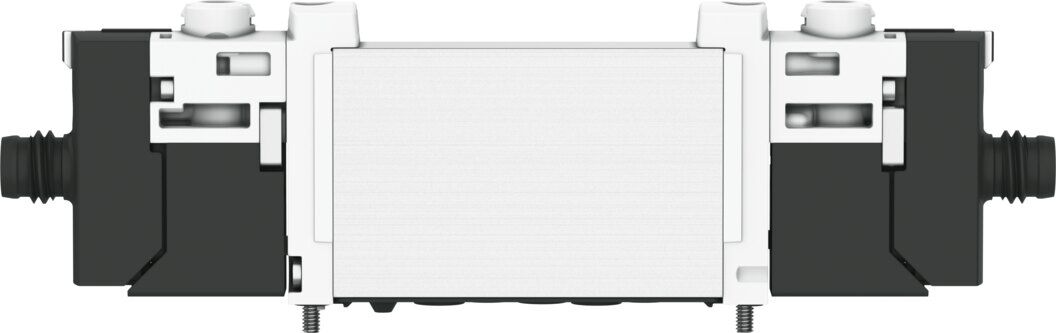

Solenoid valve

Technical Data

• Valve function2x3/2-way, open, monostable
• Type of actuationElectric
• Valve size10 mm
• Standard nominal flow rate (standardised to DIN 1343)150 l/min ... 170 l/min
• pneumatic working portFlange
• Operating voltage24V DC
• Operating pressure0.15 MPa ... 1 MPa
• Operating pressure1.5 bar ... 10 bar
• DesignPiston gate valve
• Type of resetPneumatic spring
• ApprovalRCM trademark c UL us - Recognized (OL)
• CE mark (see declaration of conformity)To EU EMC Directive To EU Low Voltage Directive In accordance with EU RoHS Directive
• UKCA marking (see declaration of conformity)To UK RoHS instructions To UK regulations for electrical equipment
• Degree of protectionIP65 With plug socket
• Nominal size2.7 mm
• Exhaust-air functionWith flow control option
• Sealing principleSoft
• Mounting positionoptional
• Manual overrideDetenting Non-detenting Covered
• Type of pilotingPilot actuated
• Pilot air supplyExternal

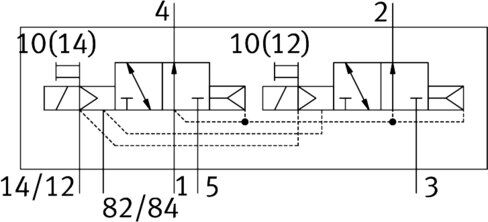

• Symbol00992906
• lapOverlap
• Pilot pressure0.15 MPa ... 0.8 MPa
• Pilot pressure1.5 bar ... 8 bar
• Suitability for vacuumno
• Switching time off15 ms
• Switching time on6 ms
• Duty cycle100%
• Max. positive test pulse with 0 signal700 µs
• Max. negative test pulse with 1 signal900 µs
• Characteristic coil data24 V DC: 1.0 W
• Permissible voltage fluctuations+/- 10 %
• Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
• Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
• Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
• Restrictions for environmental and media temperature-5 ... 50° C Without holding current reduction
• Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27
• Corrosion resistance class CRC2 - Moderate corrosion stress
• LABS (PWIS) conformityVDMA24364-B1/B2-L
• Cleanroom suitability, measured according to ISO 14644-14Class 5 according to ISO 14644-1
• Media temperature-5 °C ... 60 °C
• Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]
• Ambient temperature-5 °C ... 60 °C
• Product weight55 g
• Electrical connection3-pin M8x1 A-encoded to EN 61076-2-104 Plugs
• Type of mountingOn manifold rail
• Note on materialsRoHS-compliant
• Material sealsHNBR NBR
• Material housingWrought aluminium alloy
