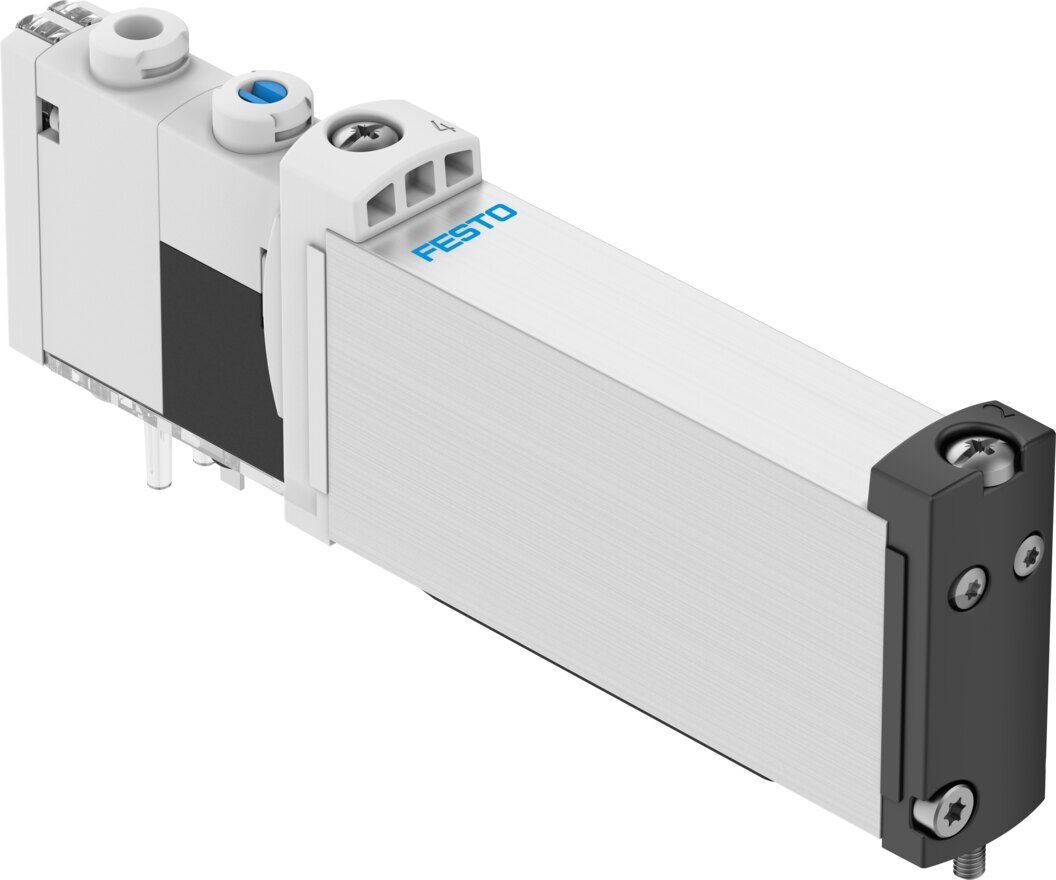

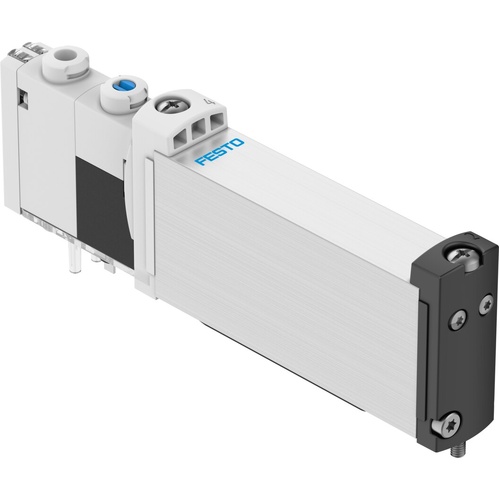

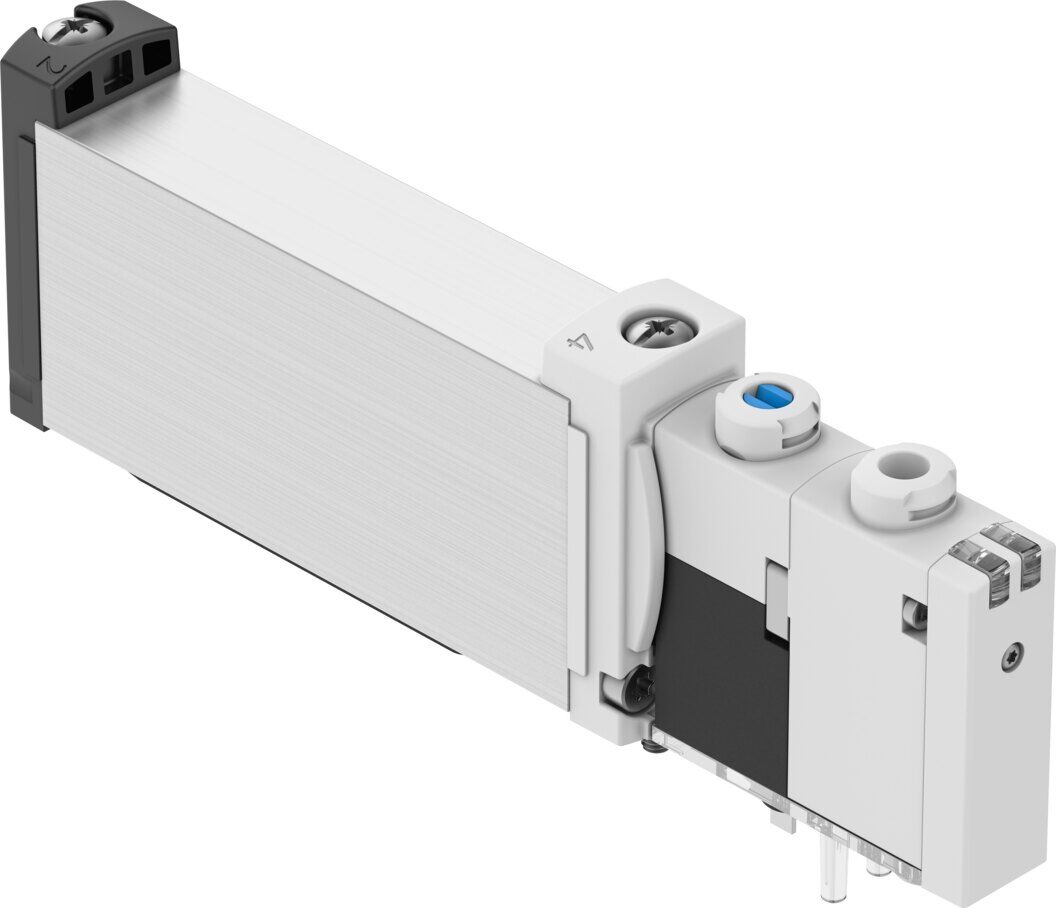

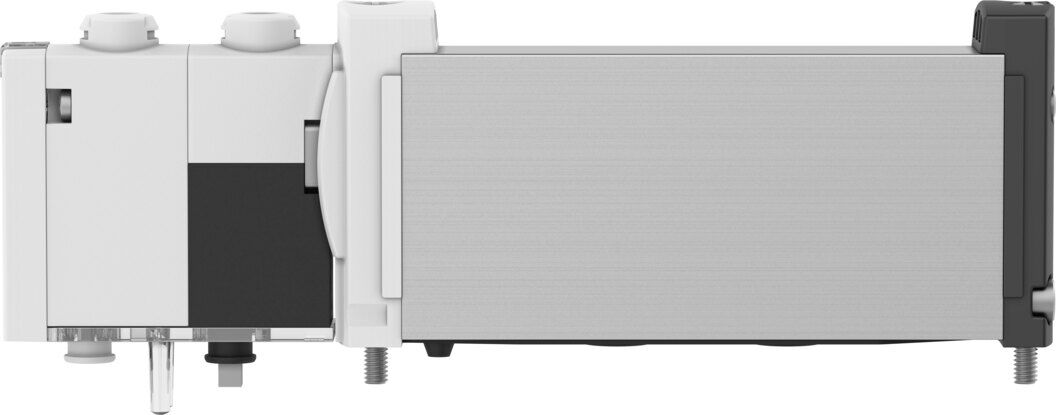

Solenoid valve

Technical Data

• Valve function5/2-way, monostable
• Type of actuationElectric
• Valve size14 mm
• Standard nominal flow rate (standardised to DIN 1343)500 l/min
• pneumatic working portFlange
• Operating voltage24V DC
• Operating pressure-0.09 MPa ... 1 MPa
• Operating pressure-0.9 bar ... 10 bar
• DesignPiston gate valve
• Type of resetPneumatic spring
• Approvalc UL us - Recognized (OL)
• Degree of protectionIP65 IP67
• Exhaust-air functionWith flow control option
• Sealing principleSoft
• Mounting positionoptional
• Manual overrideDetenting Non-detenting
• Type of pilotingPilot actuated
• Pilot air supplyExternal
• Flow directionReversible
• Symbol00991053
• lapOverlap
• Signal status displayLED
• Pilot pressure0.15 MPa ... 0.8 MPa
• Pilot pressure1.5 bar ... 8 bar
• Max. switching frequency3 Hz
• Switching time off26 ms
• Switching time on13 ms
• Duty cycle100%
• Max. positive test pulse with 0 signal1600 µs
• Max. negative test pulse with 1 signal3000 µs
• Characteristic coil data22 V DC: 1.0 W
• Permissible voltage fluctuations+/- 10 %
• Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
• Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
• Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
• Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27
• Corrosion resistance class CRC2 - Moderate corrosion stress
• LABS (PWIS) conformityVDMA24364-B2-L
• Media temperature-5 °C ... 60 °C
• Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]
• Ambient temperature-5 °C ... 60 °C
• Product weight91 g
• Electrical connectionVia sub-base
• Type of mountingOn manifold rail
• Note on materialsRoHS-compliant
• Material sealsHNBR NBR
• Material housingWrought aluminium alloy
