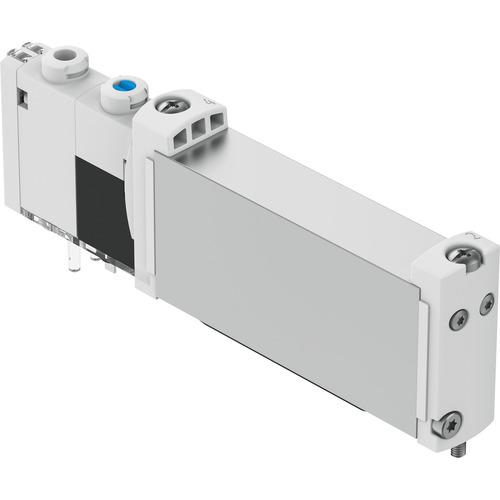

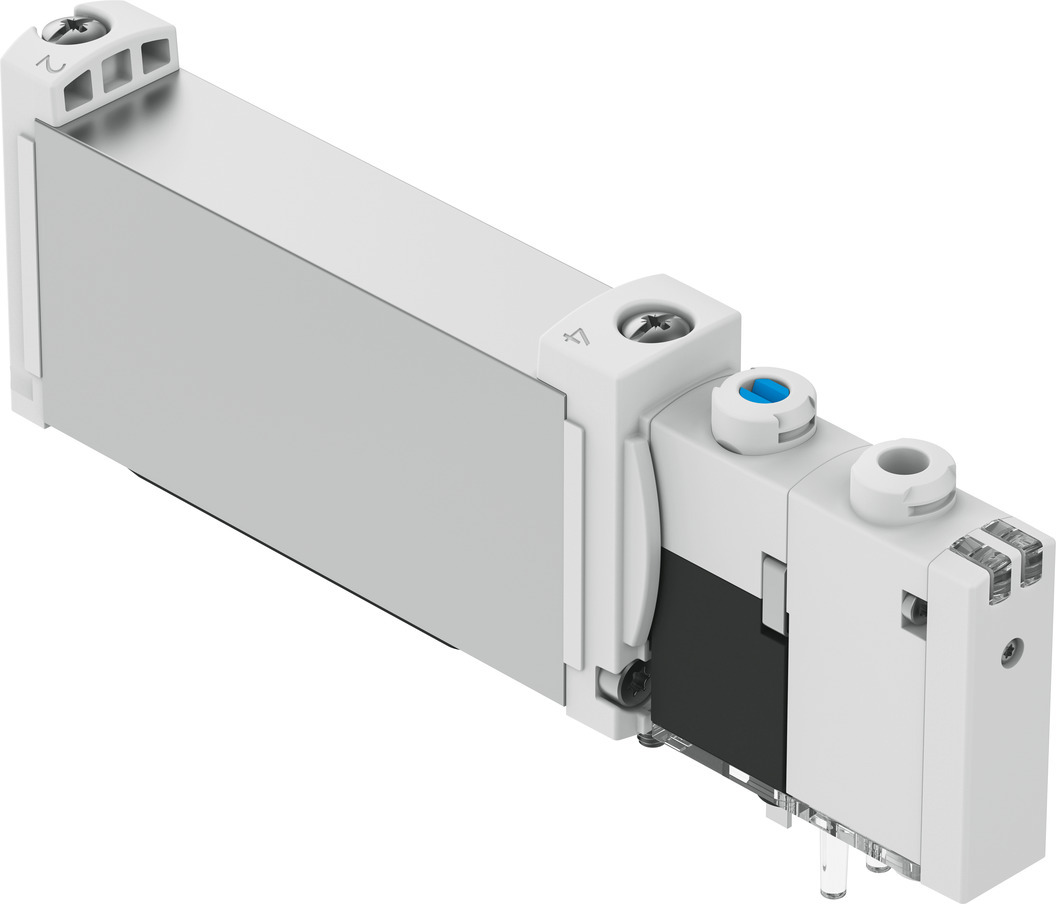

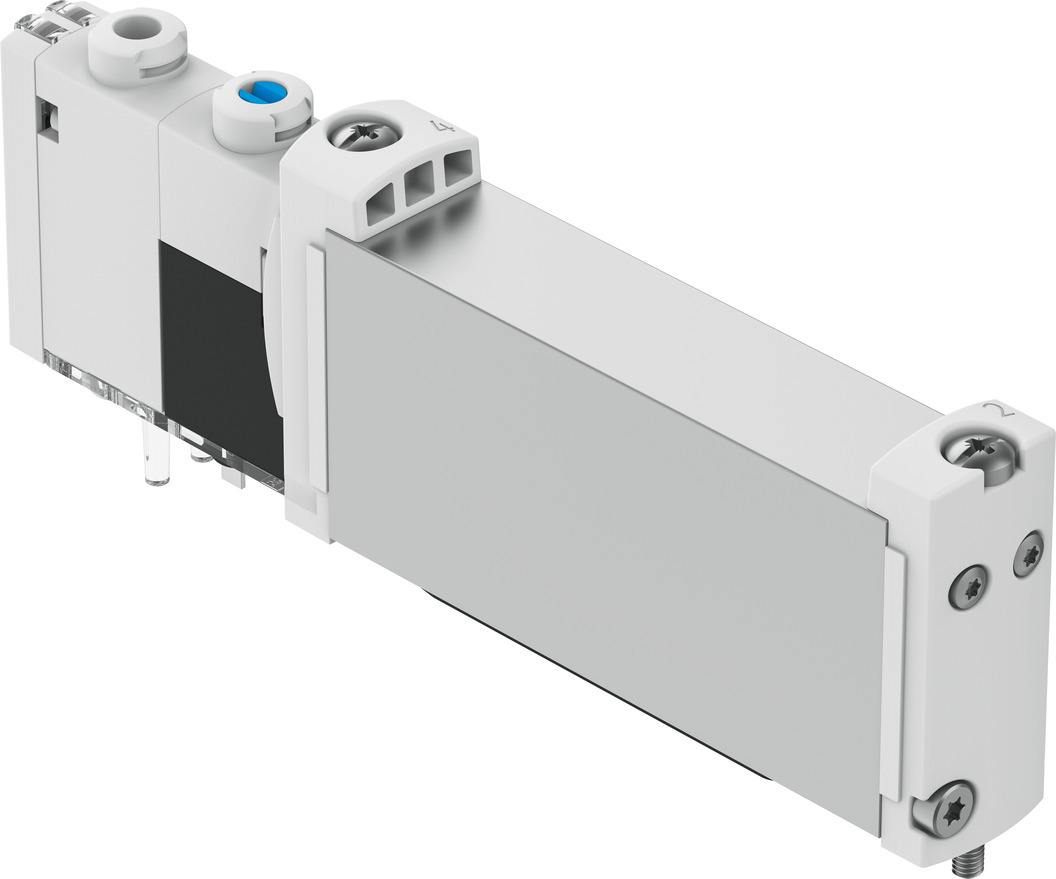

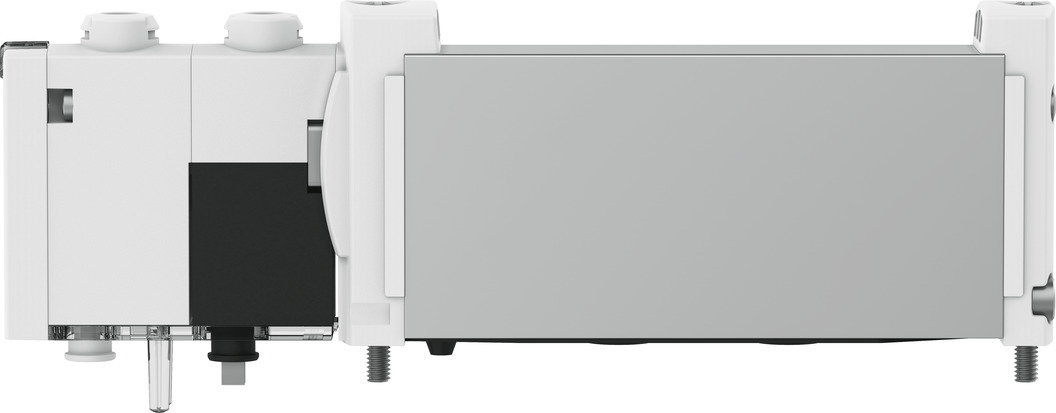

Solenoid valve

VUVG-B14-M52-MZT-F-1T1L

573483

GTIN: 4052568220617

Technical Data

• Valve function5/2-way, monostable
• Type of actuationElectric
• Valve size14 mm
• Standard nominal flow rate (standardised to DIN 1343)500 l/min
• pneumatic working portFlange
• Operating voltage24V DC
• Operating pressure-0.09 MPa ... 0.8 MPa
• Operating pressure-0.9 bar ... 8 bar
• DesignPiston gate valve
• Type of resetMechanical spring
• Approvalc UL us - Recognized (OL)
• Degree of protectionIP65 IP67
• Exhaust-air functionWith flow control option
• Sealing principleSoft
• Mounting positionoptional
• Manual overrideDetenting Non-detenting
• Type of pilotingPilot actuated
• Pilot air supplyExternal
• Flow directionReversible

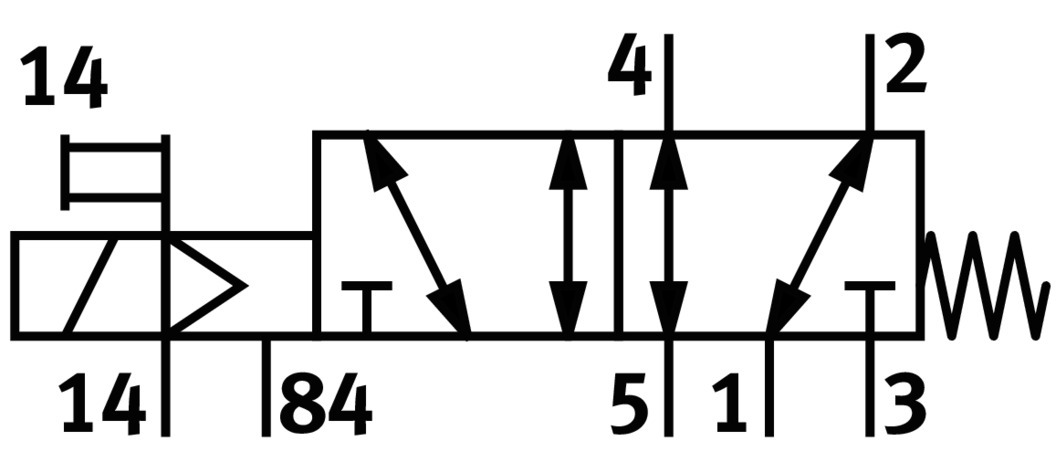

• Symbol00991025
• lapOverlap
• Signal status displayLED
• Pilot pressure0.3 MPa ... 0.8 MPa
• Pilot pressure3 bar ... 8 bar
• Max. switching frequency3 Hz
• Switching time off38 ms
• Switching time on10 ms
• Duty cycle100%
• Max. positive test pulse with 0 signal1600 µs
• Max. negative test pulse with 1 signal3000 µs
• Characteristic coil data22 V DC: 1.0 W
• Permissible voltage fluctuations+/- 10 %
• Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
• Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
• Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
• Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27
• Corrosion resistance class CRC2 - Moderate corrosion stress
• LABS (PWIS) conformityVDMA24364-B1/B2-L
• Media temperature-5 °C ... 60 °C
• Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]
• Ambient temperature-5 °C ... 60 °C
• Product weight89 g
• Electrical connectionVia sub-base
• Type of mountingOn manifold rail
• Note on materialsRoHS-compliant
• Material sealsHNBR NBR
• Material housingWrought aluminium alloy

Downloads

VTUG-G_EN.PDF

Technical data

Reliability datasheet

CAD data

Links

Spare parts

Pieces

Valve function 5/2-way, monostable

Standard nominal flow rate (standardised to DIN 1343) 500 l/min

pneumatic working port Flange

Type of actuation Electric

Technical Data

• Valve function 5/2-way, monostable
• Type of actuation Electric
• Valve size 14 mm
• Standard nominal flow rate (standardised to DIN 1343) 500 l/min
• pneumatic working port Flange
• Operating voltage 24V DC
• Operating pressure -0.09 MPa ... 0.8 MPa
• Operating pressure -0.9 bar ... 8 bar
• Design Piston gate valve
• Type of reset Mechanical spring
• Approvalc UL us - Recognized (OL)
• Degree of protection IP65 IP67
• Exhaust-air function With flow control option
• Sealing principle Soft
• Mounting position optional
• Manual override Detenting Non-detenting
• Type of piloting Pilot actuated
• Pilot air supply External
• Flow direction Reversible
• Symbol 00991025
• lap Overlap
• Signal status display LED
• Pilot pressure 0.3 MPa ... 0.8 MPa
• Pilot pressure 3 bar ... 8 bar
• Max. switching frequency 3 Hz
• Switching time off 38 ms
• Switching time on10 ms
• Duty cycle100%
• Max. positive test pulse with 0 signal 1600 µs
• Max. negative test pulse with 1 signal 3000 µs
• Characteristic coil data 22 V DC: 1.0 W
• Permissible voltage fluctuations +/- 10 %
• Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
• Note on operating and pilot medium Lubricated operation possible (in which case lubricated operation will always be required)
• Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
• Shock resistance Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27
• Corrosion resistance class CRC2 - Moderate corrosion stress
• LABS (PWIS) conformity VDMA24364-B1/B2-L
• Media temperature -5 °C ... 60 °C
• Pilot medium Compressed air to ISO 8573-1:2010 [7:4:4]
• Ambient temperature -5 °C ... 60 °C
• Product weight 89 g
• Electrical connection Via sub-base
• Type of mounting On manifold rail
• Note on materials RoHS-compliant
• Material seals HNBR NBR
• Material housing Wrought aluminium alloy
