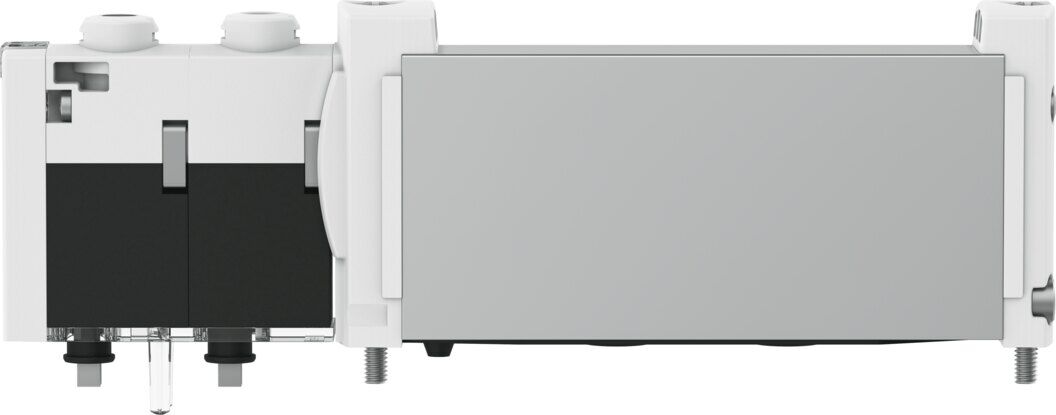

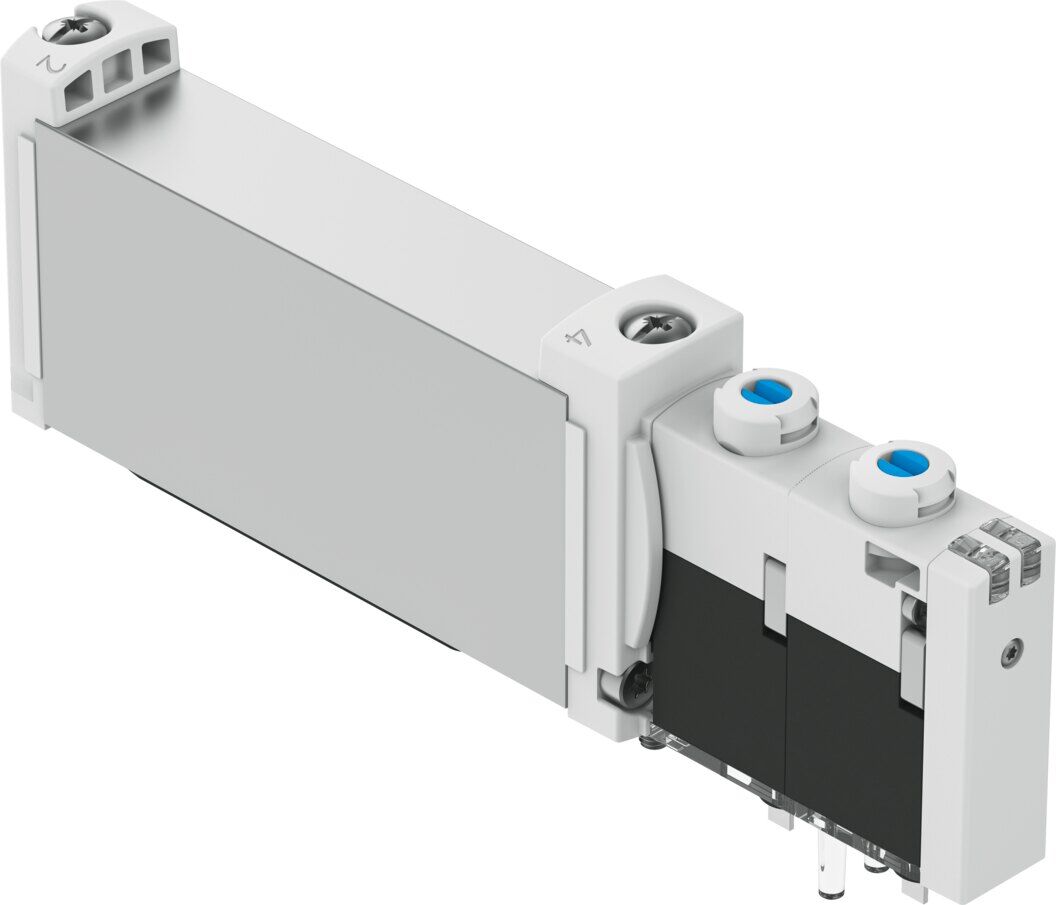

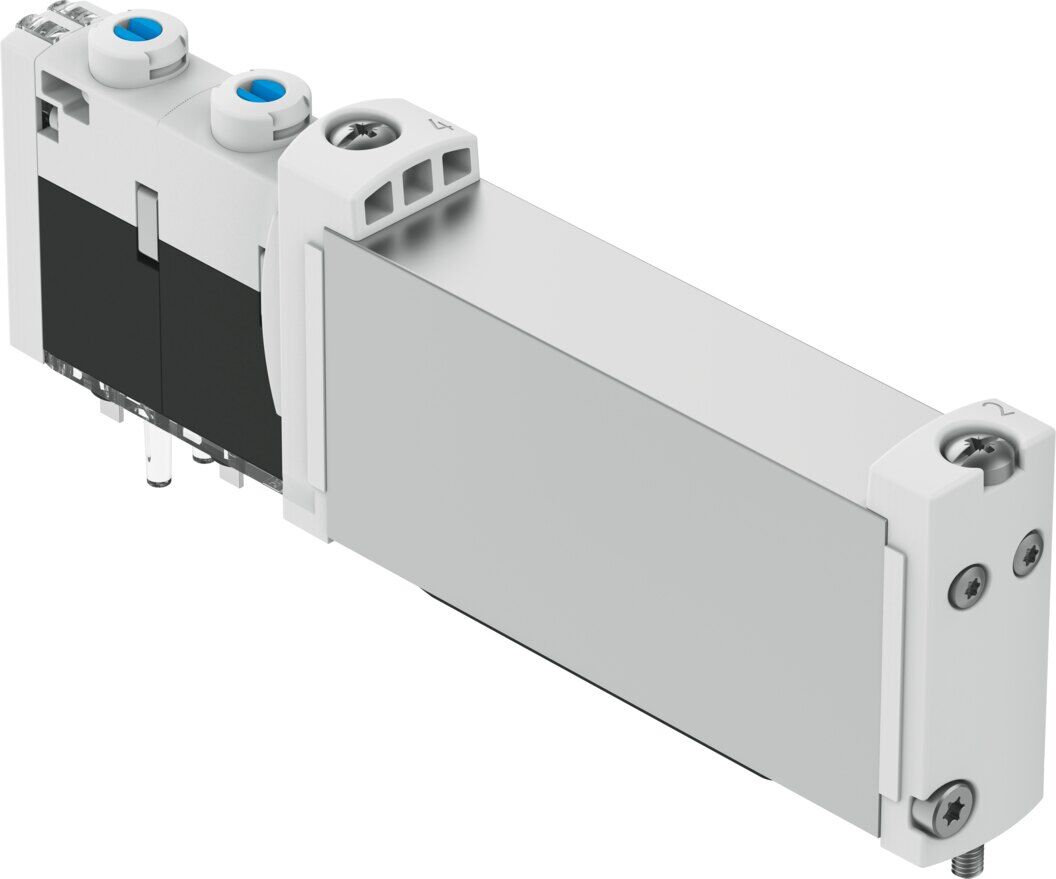

Solenoid valve

VUVG-B14-T32U-AZT-F-1T1L

573477





GTIN: 4052568220563

Valve function
2x3/2-way, open, monostable
Standard nominal flow rate (standardised to DIN 1343)
490 l/min
pneumatic working port
Flange
Type of actuation
Electric



Technical Data

  • Valve function2x3/2-way, open, monostable
  • Type of actuationElectric
  • Valve size14 mm
  • Standard nominal flow rate (standardised to DIN 1343)490 l/min
  • pneumatic working portFlange
  • Operating voltage24V DC
  • Operating pressure0.15 MPa ... 1 MPa
  • Operating pressure1.5 bar ... 10 bar
  • DesignPiston gate valve
  • Type of resetPneumatic spring
  • Approvalc UL us - Recognized (OL)
  • Degree of protectionIP65 IP67
  • Exhaust-air functionWith flow control option
  • Sealing principleSoft
  • Mounting positionoptional
  • Manual overrideDetenting Non-detenting
  • Type of pilotingPilot actuated
  • Pilot air supplyExternal
  • Symbol00992906
  • lapOverlap
  • Signal status displayLED
  • Pilot pressure0.15 MPa ... 0.8 MPa
  • Pilot pressure1.5 bar ... 8 bar
  • Max. switching frequency3 Hz
  • Switching time off29 ms
  • Switching time on10 ms
  • Duty cycle100%
  • Max. positive test pulse with 0 signal1600 µs
  • Max. negative test pulse with 1 signal3000 µs
  • Characteristic coil data22 V DC: 1.0 W
  • Permissible voltage fluctuations+/- 10 %
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
  • Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Media temperature-5 °C ... 60 °C
  • Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]
  • Ambient temperature-5 °C ... 60 °C
  • Product weight102 g
  • Electrical connectionVia sub-base
  • Type of mountingOn manifold rail
  • Note on materialsRoHS-compliant
  • Material sealsHNBR NBR
  • Material housingWrought aluminium alloy
SKU 573477
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
