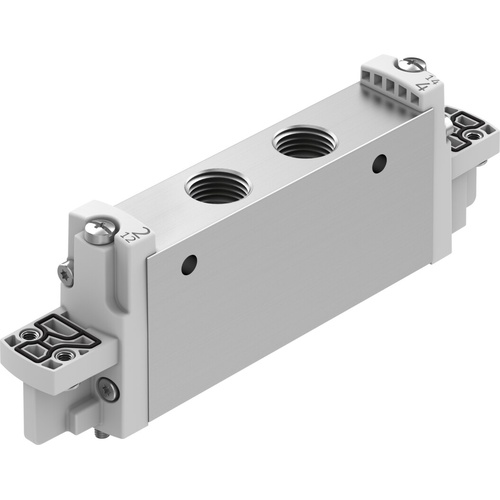

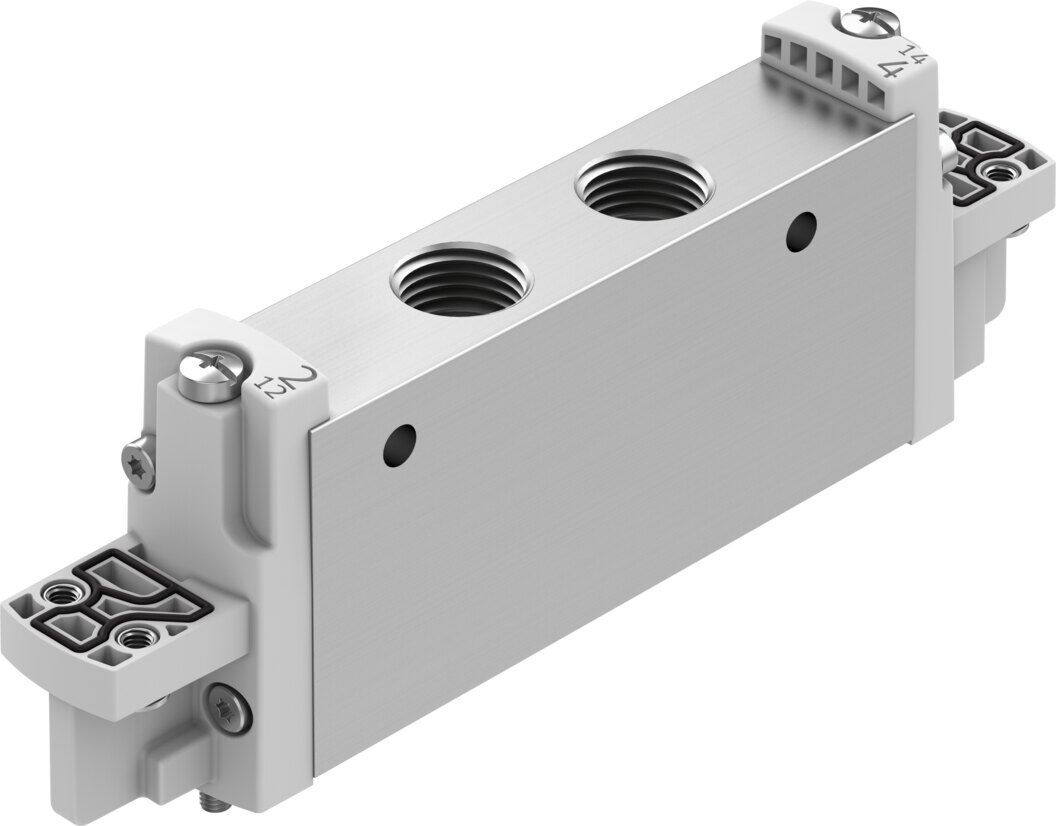

Solenoid valve

Technical Data

• Valve function2x3/2-way, open/closed, monostable
• Type of actuationElectric
• Valve size18 mm
• Standard nominal flow rate (standardised to DIN 1343)920 l/min
• pneumatic working portG1/4
• Operating pressure0.3 MPa ... 0.8 MPa
• Operating pressure3 bar ... 8 bar
• DesignPiston gate valve
• Type of resetMechanical spring
• Approvalc UL us - Recognized (OL)
• CE mark (see declaration of conformity)To EU EMC Directive To EU Low Voltage Directive In accordance with EU RoHS Directive
• UKCA marking (see declaration of conformity)To UK RoHS instructions To UK regulations for electrical equipment
• Certificate issuing authorityUL MH19482
• Degree of protectionIP65 With electric pilot valve and plug socket
• Nominal size5.7 mm
• Exhaust-air functionWith flow control option
• Sealing principleSoft
• Mounting positionoptional
• Type of pilotingPilot actuated
• Pilot air supplyInternal

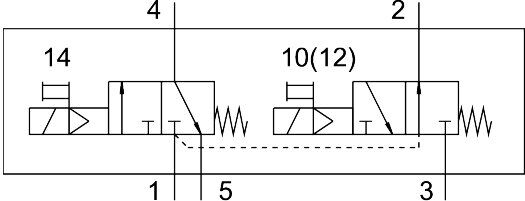

• Symbol00995243
• lapOverlap
• Pilot pressure0.2 MPa ... 0.8 MPa
• Pilot pressure2 bar ... 8 bar
• Switching time off15 ms
• Switching time on16 ms
• Duty cycle100%
• Max. positive test pulse with 0 signal700 µs
• Max. negative test pulse with 1 signal900 µs
• Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
• Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
• Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
• Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27
• Corrosion resistance class CRC2 - Moderate corrosion stress
• LABS (PWIS) conformityVDMA24364-B1/B2-L
• Cleanroom suitability, measured according to ISO 14644-14Class 5 according to ISO 14644-1
• Media temperature-5 °C ... 60 °C
• Ambient temperature-5 °C ... 60 °C
• Product weight140 g
• Electrical connectionVia electric pilot valve
• Type of mountingOn manifold rail With through-hole
• Pneumatic connection, port 1G1/4
• Pneumatic connection, port 2G1/4
• Pneumatic connection, port 4G1/4
• Pneumatic connection, port 5G1/4
• Pilot control interfaceTo ISO 15218
• Note on materialsRoHS-compliant
• Material sealsHNBR NBR
• Material housingWrought aluminium alloy
