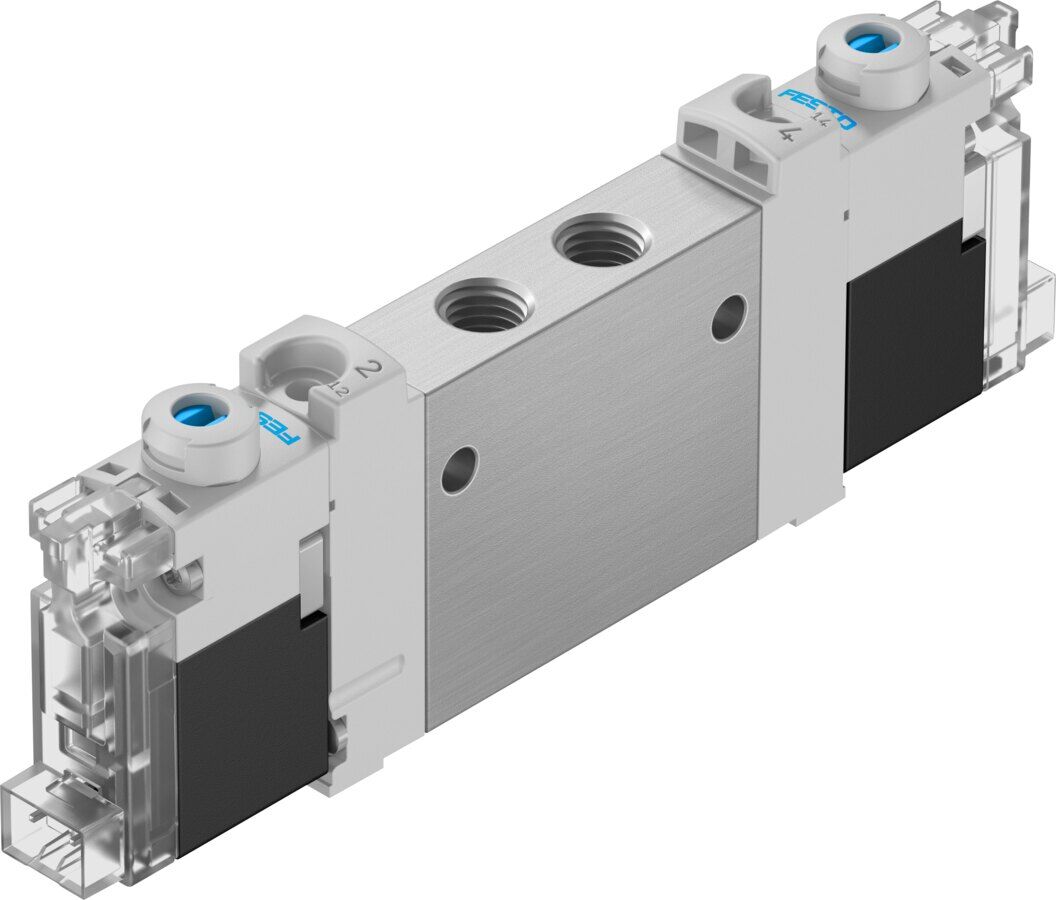

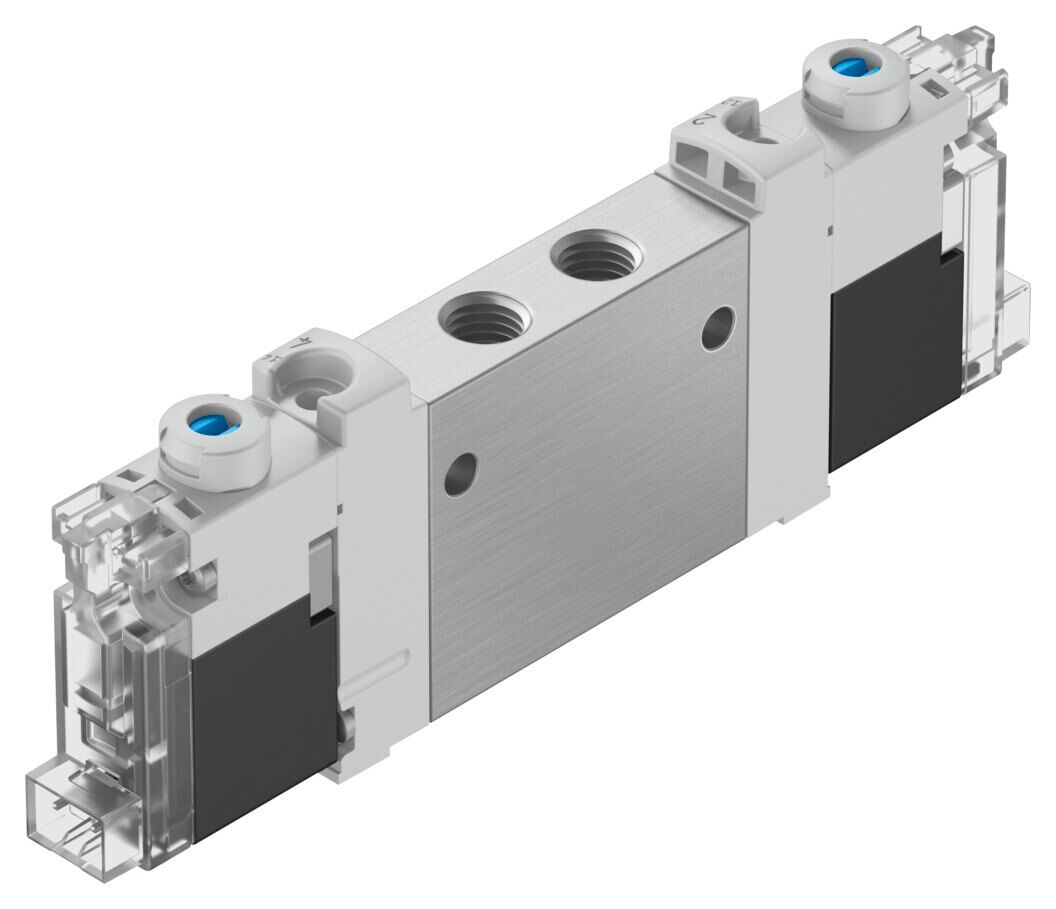

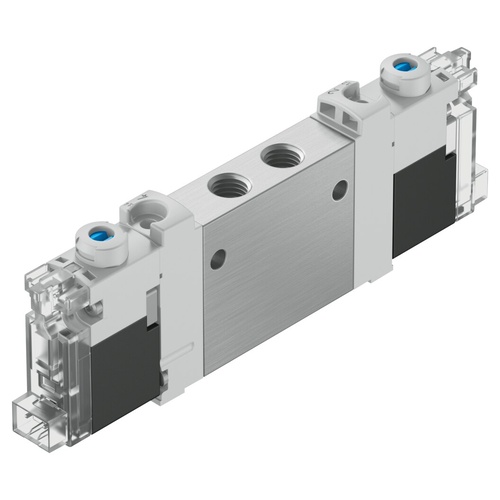

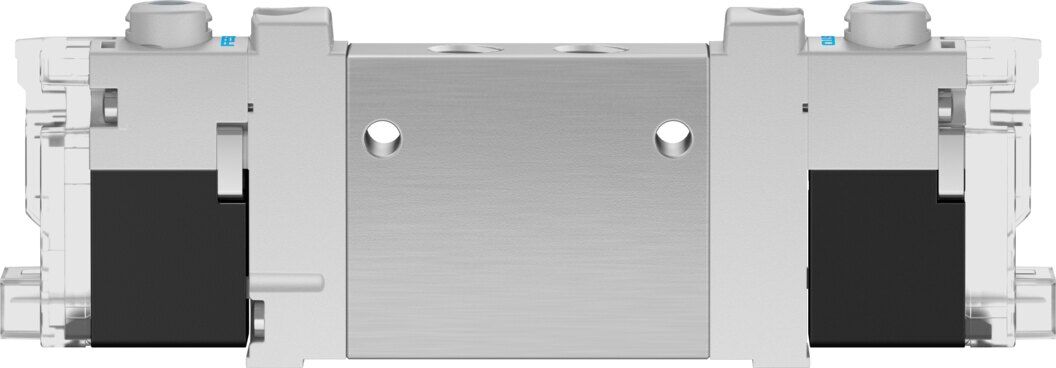

Solenoid valve

Technical Data

• Valve function2x3/2-way, monostable, closed
• Type of actuationElectric
• Valve size10 mm
• Standard nominal flow rate (standardised to DIN 1343)280 l/min
• pneumatic working portM7
• Operating voltage24V DC
• Operating pressure0.15 MPa ... 0.7 MPa
• Operating pressure1.5 bar ... 7 bar
• DesignPiston slide with sealing ring
• Type of resetPneumatic spring
• Approvalc UL us - Recognized (OL)
• Certificate issuing authorityUL MH19482
• Degree of protectionIP40
• Exhaust-air functionWith flow control option
• Sealing principleSoft
• Mounting positionoptional
• Manual overrideDetenting Non-detenting
• Type of pilotingPilot actuated
• Pilot air supplyInternal
• Flow directionNon-reversible

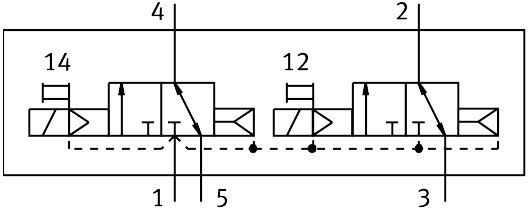

• Symbol00992904
• lapOverlap
• Signal status displayLED
• Max. switching frequency2 Hz
• Switching time off14 ms
• Switching time on12 ms
• Duty cycle100%
• Max. positive test pulse with 0 signal1600 µs
• Max. negative test pulse with 1 signal3000 µs
• Characteristic coil data24 V DC: 0.8 W
• Permissible voltage fluctuations+/- 10 %
• Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
• Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
• Vibration resistanceTransport application test with severity level 1 to FN 942017-4 and EN 60068-2-6
• Shock resistanceShock test with severity level 1 to FN 942017-5 and EN 60068-2-27
• Corrosion resistance class CRC0 - No corrosion stress
• LABS (PWIS) conformityVDMA24364 zone III
• Media temperature-5 °C ... 50 °C
• Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]
• Ambient temperature-5 °C ... 50 °C
• Product weight55 g
• Electrical connectionPlugs
• Type of mountingOn manifold rail With through-hole
• Pneumatic connection, port 2M7
• Pneumatic connection, port 4M7
• Note on materialsRoHS-compliant
• Material sealsHNBR NBR
• Material housingWrought aluminium alloy
