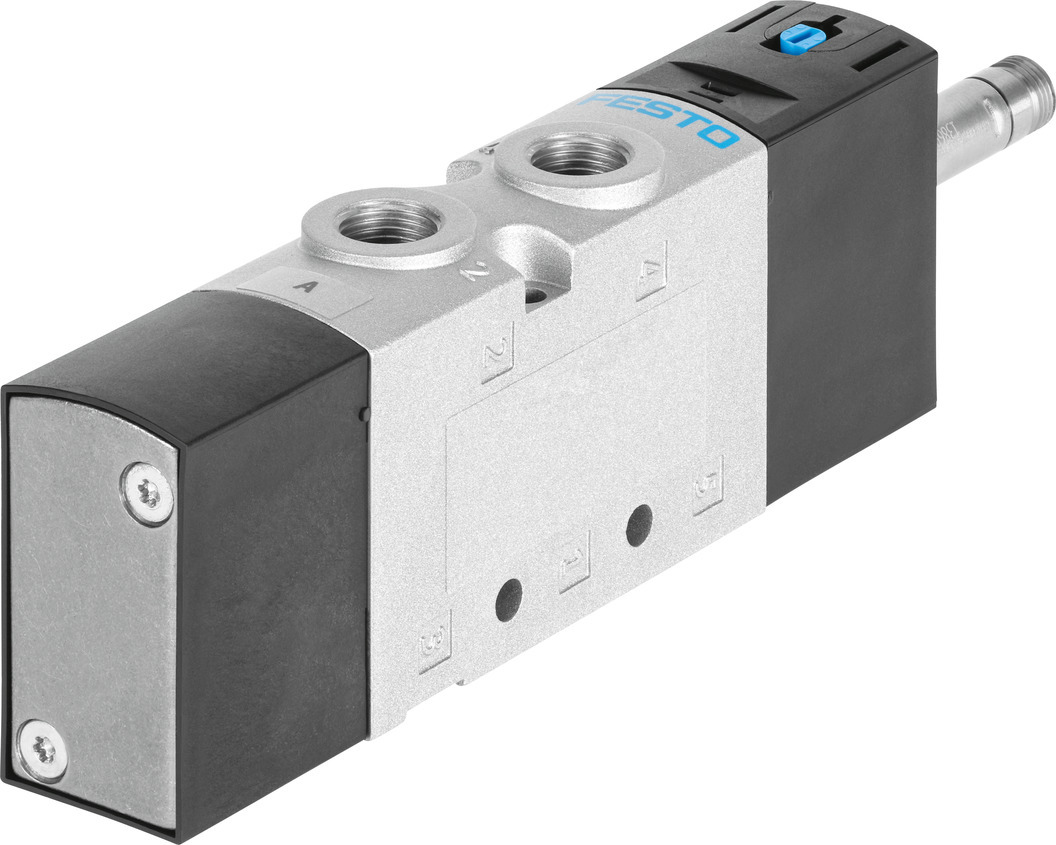

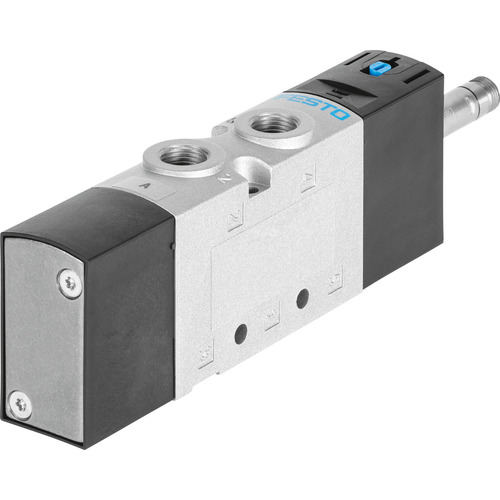

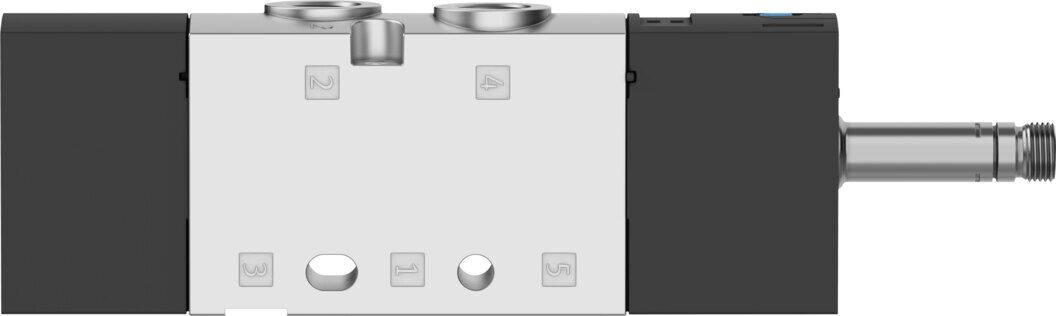

Solenoid valve

VUVS-L20-M52-AD-G18-F7

575249

GTIN: 4052568103644

Downloads

Technical data

Reliability datasheet

Links

Spare parts

Pieces

Valve function 5/2-way, monostable

Standard nominal flow rate 700 l/min

Pneumatic connection, port 1 G1/8

Type of actuation Electric

Technical Data

Valve function5/2-way, monostable
Type of actuationElectric
Valve size21 mm
Standard nominal flow rate700 l/min
pneumatic working portG1/8
Operating pressure0.25 MPa ... 1 MPa
Operating pressure2.5 bar ... 10 bar
DesignPiston gate valve
Type of resetPneumatic spring
Approvalc UL us - Recognized (OL)
Nominal size5.7 mm
Exhaust-air functionWith flow control option
Sealing principleSoft
Mounting positionoptional
Manual overrideDetenting Non-detenting
Type of pilotingPilot actuated
Pilot air supplyInternal
Flow directionNon-reversible

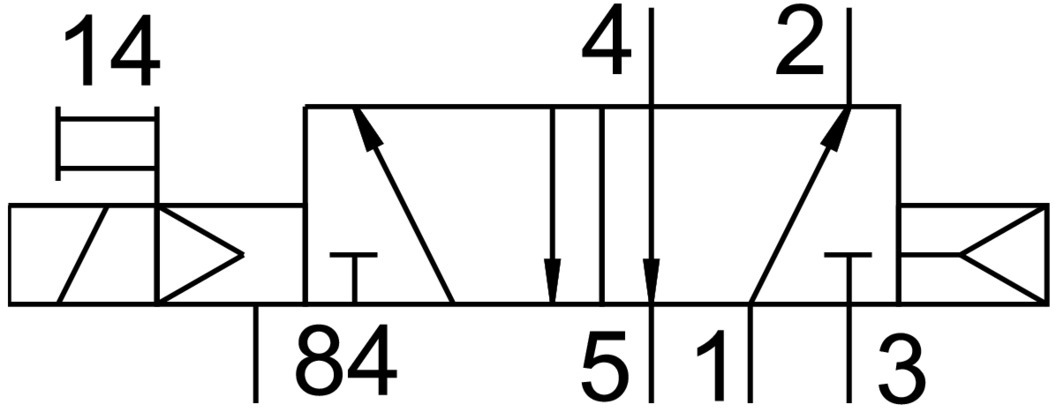

Symbol00991023
lapOverlap
b value0.35
C value2.9 l/sbar
Switching time off29 ms
Switching time on20 ms
Max. positive test pulse with 0 signal1900 µs
Max. negative test pulse with 1 signal2700 µs
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Media temperature-10 °C ... 60 °C
Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Ambient temperature-10 °C ... 60 °C
Product weight188 g
Type of mountingEither: On manifold rail With through-hole
Breather connectionNot ducted
Pilot exhaust port 84M5
Pneumatic connection, port 1G1/8
Pneumatic connection, port 2G1/8
Pneumatic connection, port 3G1/8
Pneumatic connection, port 4G1/8
Pneumatic connection, port 5G1/8
Note on materialsRoHS-compliant
Material sealsHNBR NBR
Material housingDie-cast aluminium Painted
Material piston slideWrought aluminium alloy
Material screwsGalvanised steel
