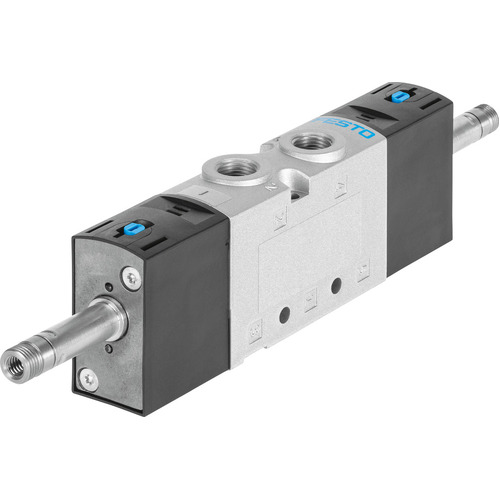

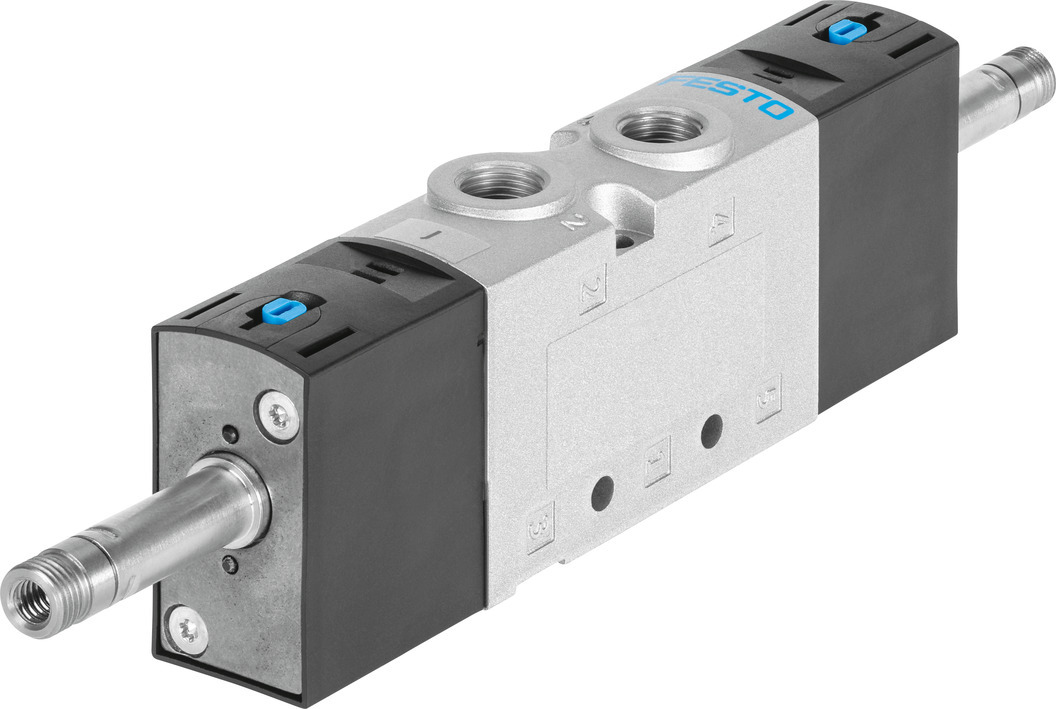

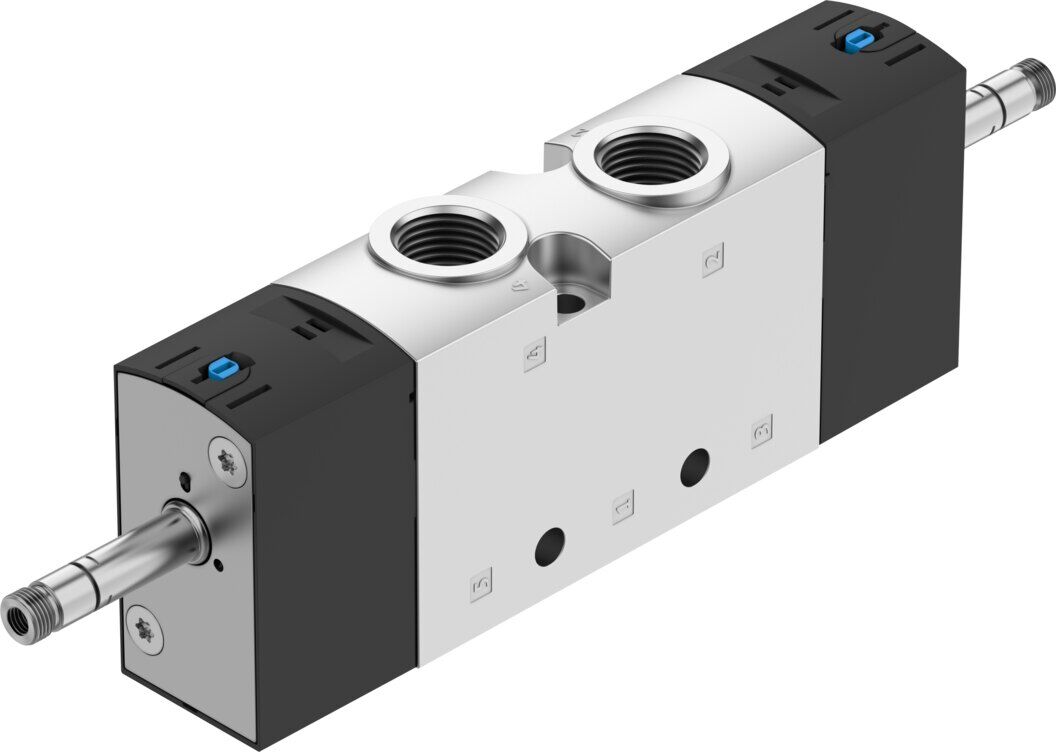

Solenoid valve

VUVS-L30-P53C-MD-G38-F8

575616

GTIN: 4052568261535

Technical Data

• Valve function5/3 closed
• Type of actuationElectric
• Valve size31 mm
• Standard nominal flow rate (standardised to DIN 1343)2000 l/min
• pneumatic working portG3/8
• Operating pressure0.25 MPa ... 1 MPa
• Operating pressure2.5 bar ... 10 bar
• DesignPiston gate valve
• Type of resetMechanical spring
• Approvalc UL us - Recognized (OL)
• Maritime classificationSee certificate
• Certificate issuing authorityDNVGL-TAA000011J
• Nominal size8.9 mm
• Exhaust-air functionWith flow control option
• Sealing principleSoft
• Mounting positionoptional
• Manual overrideDetenting Non-detenting
• Type of pilotingPilot actuated
• Pilot air supplyInternal
• Flow directionNon-reversible

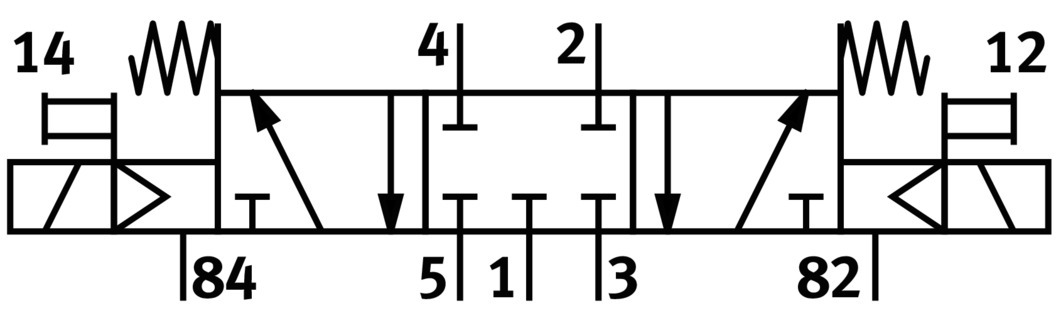

• Symbol00991033
• lapOverlap
• b value0.4
• C value8.9 l/sbar
• Switching time off76 ms
• Switching time on17 ms
• Switching time reversal39 ms
• Max. positive test pulse with 0 signal2000 µs
• Max. negative test pulse with 1 signal3600 µs
• Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
• Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
• Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
• Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27
• Corrosion resistance class CRC2 - Moderate corrosion stress
• LABS (PWIS) conformityVDMA24364-B1/B2-L
• Cleanroom suitability, measured according to ISO 14644-14Class 6 according to ISO 14644-1
• Media temperature-10 °C ... 60 °C
• Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]
• Ambient temperature-10 °C ... 60 °C
• Product weight461 g
• Type of mountingOn manifold rail With through-hole
• Breather connectionNot ducted
• Pilot exhaust port 82M5
• Pilot exhaust port 84M5
• Pneumatic connection, port 1G3/8
• Pneumatic connection, port 2G3/8
• Pneumatic connection, port 3G3/8
• Pneumatic connection, port 4G3/8
• Pneumatic connection, port 5G3/8
• Note on materialsRoHS-compliant
• Material sealsHNBR NBR
• Material housingDie-cast aluminium Painted
• Material piston slideWrought aluminium alloy
• Material screwsNickel-plated steel

Downloads

Product information

Technical data

Reliability datasheet

CAD data

Links

Spare parts

Pieces

Calculate delivery dateAdd to CartCompare

Valve function 5/3 closed

Standard nominal flow rate (standardised to DIN 1343)

2000 l/min Pneumatic connection, port 1 G3/8

Type of actuation Electric

Technical Data

• Valve function 5/3 closed
• Type of actuation Electric
• Valve size 31 mm
• Standard nominal flow rate (standardised to DIN 1343) 2000 l/min
• pneumatic working port G3/8
• Operating pressure 0.25 MPa ... 1 MPa
• Operating pressure 2.5 bar ... 10 bar
• Design Piston gate valve
• Type of reset Mechanical spring
• Approvalc UL us - Recognized (OL)
• Maritime classification See certificate
• Certificate issuing authority DNVGL-TAA000011J
• Nominal size 8.9 mm
• Exhaust-air function With flow control option
• Sealing principle Soft
• Mounting position optional
• Manual override Detenting Non-detenting
• Type of piloting Pilot actuated
• Pilot air supply Internal
• Flow direction Non-reversible
• Symbol 00991033
• lap Overlap
• b value 0.4
• C value 8.9 l/sbar
• Switching time off 76 ms
• Switching time on 17 ms
• Switching time reversal 39 ms
• Max. positive test pulse with 0 signal 2000 µs
• Max. negative test pulse with 1 signal 3600 µs
• Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
• Note on operating and pilot medium Lubricated operation possible (in which case lubricated operation will always be required)
• Vibration resistance Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
• Shock resistance Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27
• Corrosion resistance class CRC2 - Moderate corrosion stress
• Media temperature -10 °C ... 60 °C
• Pilot medium Compressed air to ISO 8573-1:2010 [7:4:4]
• Ambient temperature- 10 °C ... 60 °C
• Product weight 461 g
• Type of mounting Either: On manifold rail With through-hole
• Breather connection Not ducted
• Pilot exhaust port 82M5
• Pilot exhaust port 84M5
• Pneumatic connection, port 1 G3/8
• Pneumatic connection, port 2 G3/8
• Pneumatic connection, port 3 G3/8
• Pneumatic connection, port 4 G3/8
• Pneumatic connection, port 5 G3/8
• Note on materials RoHS-compliant
• Material seals HNBR NBR
• Material housing Die-cast aluminium Painted
• Material piston slide Wrought aluminium alloy
• Material screws Nickel-plated steel
