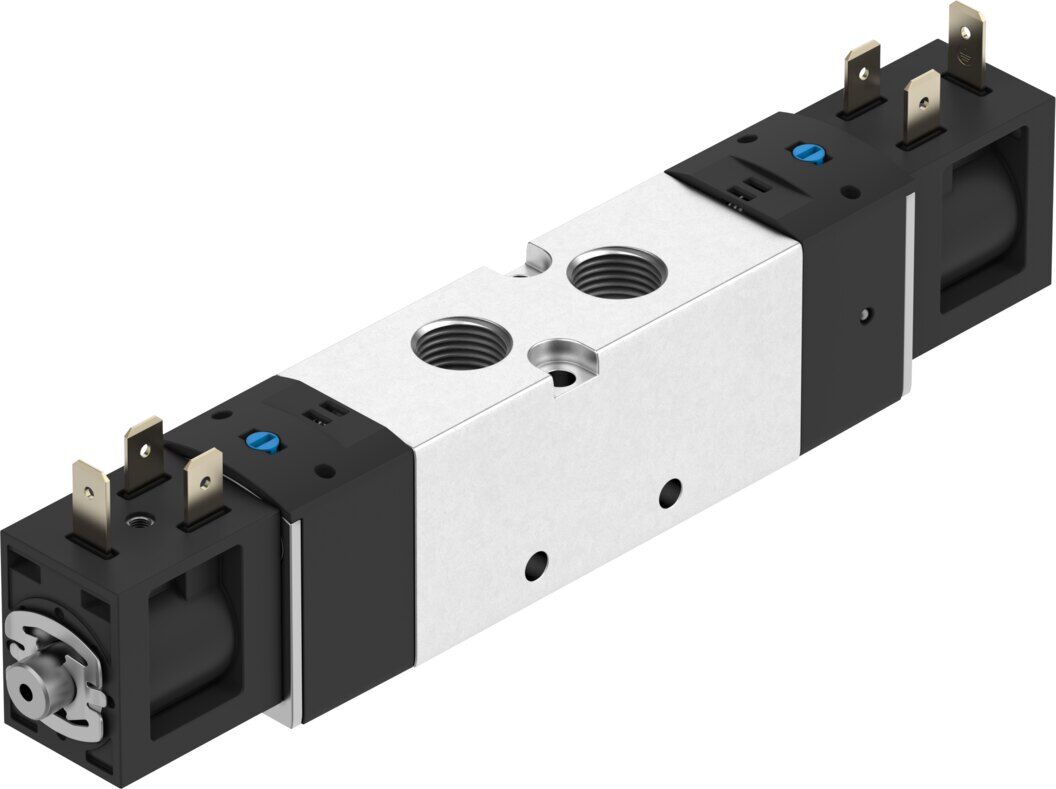

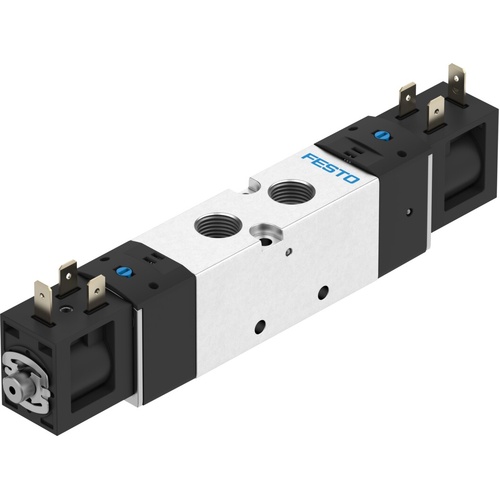

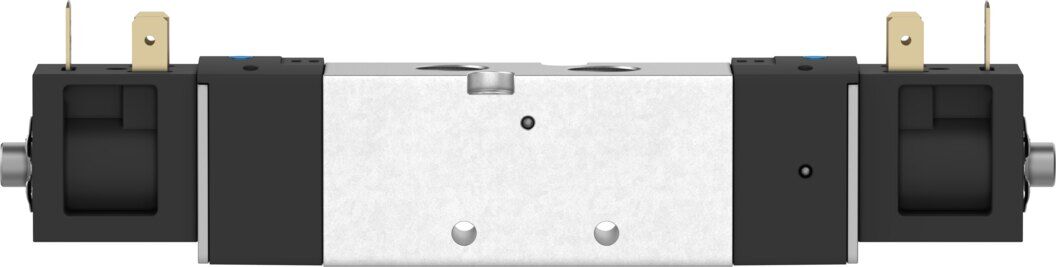

Solenoid valve

Technical Data

• Valve function5/2 bistable
• Type of actuationElectric
• Valve size26.5 mm
• Standard nominal flow rate (standardised to DIN 1343)1000 l/min
• pneumatic working portG1/4
• Operating voltage24V DC
• Operating pressure0.15 MPa ... 0.8 MPa
• Operating pressure1.5 bar ... 8 bar
• DesignPiston gate valve
• Degree of protectionIP65 With plug socket To IEC 60529
• Nominal size6.7 mm
• Exhaust-air functionWith flow control option
• Sealing principleSoft
• Mounting positionoptional
• Manual overrideDetenting Non-detenting
• Type of pilotingPilot actuated
• Pilot air supplyInternal
• Flow directionNon-reversible
• Symbol00991005
• lapOverlap
• b value0.45
• C value3.86 l/sbar
• Switching time reversal12 ms
• Duty cycle100%
• Max. positive test pulse with 0 signal2500 µs
• Max. negative test pulse with 1 signal1100 µs
• Characteristic coil data24 V DC: 3.3 W
• Permissible voltage fluctuations+/- 10 %
• Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
• Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
• Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
• Shock resistanceShock test with severity level 1 to FN 942017-5 and EN 60068-2-27
• Corrosion resistance class CRC1 - Low corrosion stress
• LABS (PWIS) conformityVDMA24364 zone III
• Media temperature-5 °C ... 50 °C
• Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]
• Ambient temperature-5 °C ... 50 °C
• Product weight320 g
• Electrical connectionType B To industry standard (11 mm)
• Type of mountingOn manifold rail With through-hole
• Breather connectionNot ducted
• Pneumatic connection, port 1G1/4
• Pneumatic connection, port 2G1/4
• Pneumatic connection, port 3G1/4
• Pneumatic connection, port 4G1/4
• Pneumatic connection, port 5G1/4
• Note on materialsRoHS-compliant
• Material sealsHNBR NBR
• Material housingWrought aluminium alloy
• Material piston slideWrought aluminium alloy
