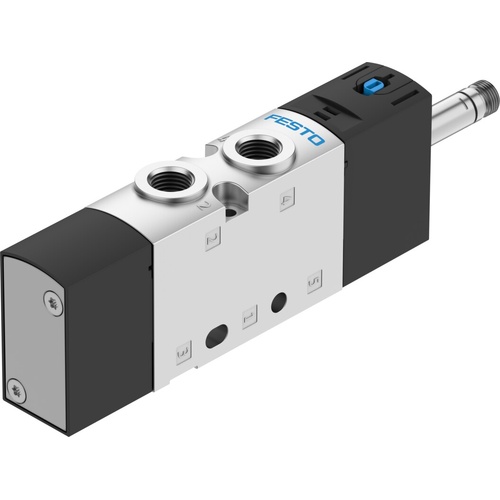

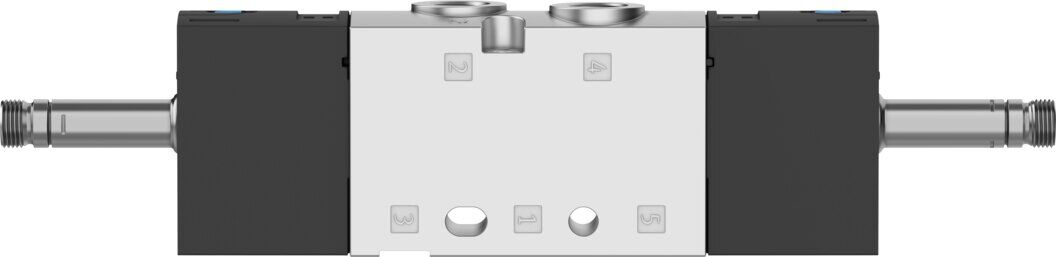

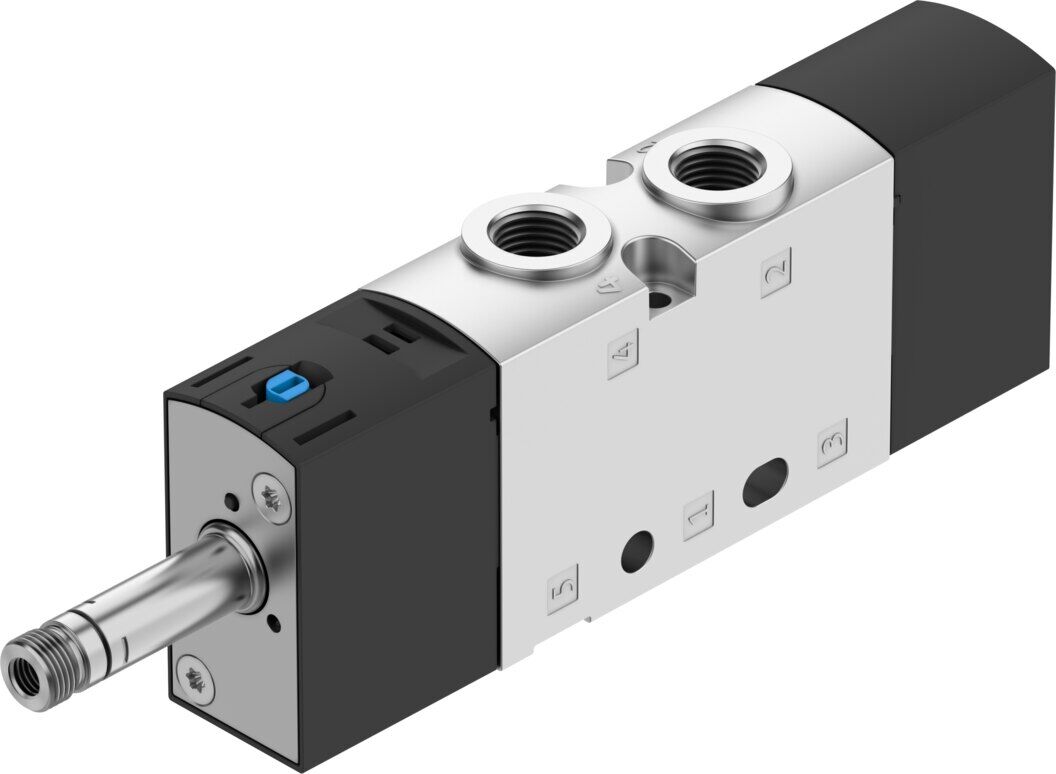

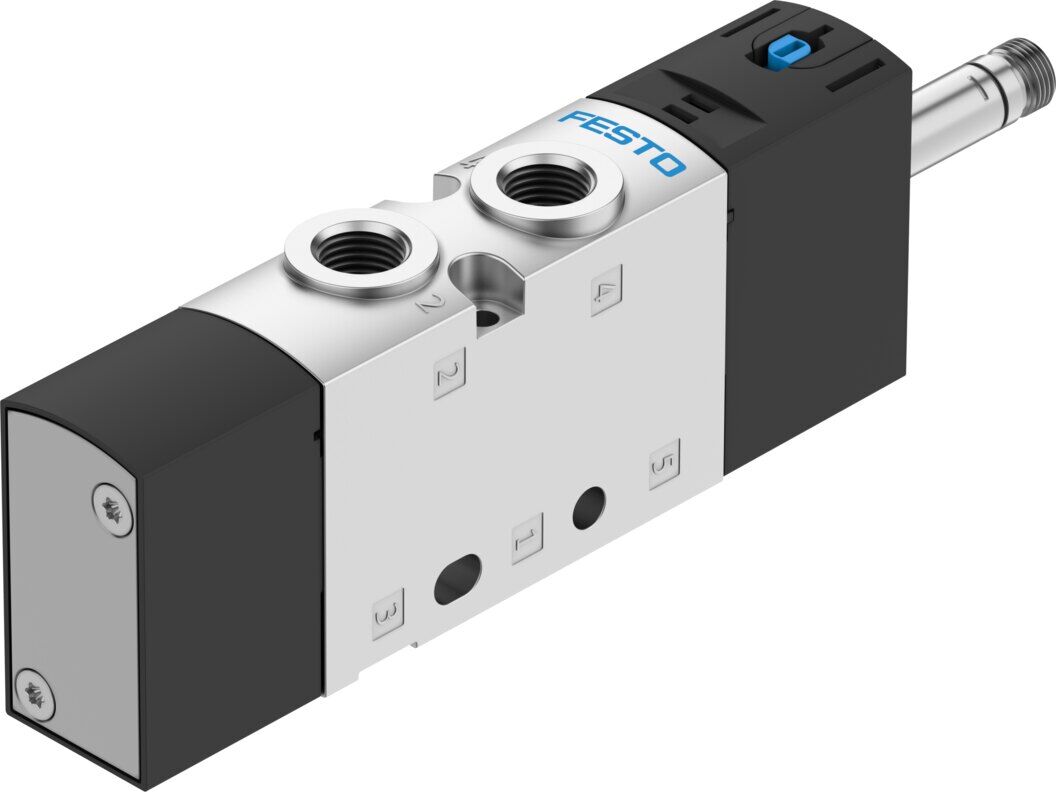

Solenoid valve

Technical Data

• Valve function5/2 bistable
• Type of actuationElectric
• Valve size21 mm
• Standard nominal flow rate (standardised to DIN 1343)500 l/min
• pneumatic working portG1/8
• Operating pressure0.15 MPa ... 1 MPa
• Operating pressure1.5 bar ... 10 bar
• DesignPoppet seat
• Approvalc UL us - Recognized (OL)
• Nominal size5 mm
• Exhaust-air functionWith flow control option
• Sealing principleSoft
• Mounting positionoptional
• Manual overrideDetenting Non-detenting
• Type of pilotingPilot actuated
• Pilot air supplyExternal
• Flow directionNon-reversible

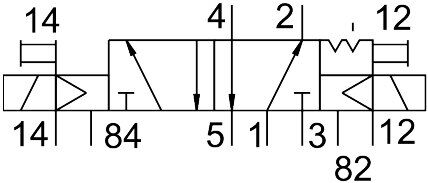

• Symbol00995755
• lapUnderlap
• Pilot pressure1.5 MPa ... 10 MPa
• Pilot pressure15 bar ... 100 bar
• b value0.27
• C value2.1 l/sbar
• Switching time reversal8 ms
• Max. positive test pulse with 0 signal1900 µs
• Max. negative test pulse with 1 signal2700 µs
• Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
• Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
• Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
• Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27
• Corrosion resistance class CRC2 - Moderate corrosion stress
• LABS (PWIS) conformityVDMA24364-B1/B2-L
• Cleanroom suitability, measured according to ISO 14644-14Class 6 according to ISO 14644-1
• Media temperature-10 °C ... 60 °C
• Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]
• Ambient temperature-10 °C ... 60 °C
• Product weight181 g
• Type of mountingOn manifold rail With through-hole
• Breather connectionNot ducted
• Pilot exhaust port 82M5
• Pilot exhaust port 84M5
• Pilot air port 12M5
• Pilot air port 14M5
• Pneumatic connection, port 1G1/8
• Pneumatic connection, port 2G1/8
• Pneumatic connection, port 3G1/8
• Pneumatic connection, port 4G1/8
• Pneumatic connection, port 5G1/8
• Note on materialsRoHS-compliant
• Material sealsHNBR NBR TPE-U(PU)
• Material housingDie-cast aluminium Painted
• Material screwsGalvanised steel
