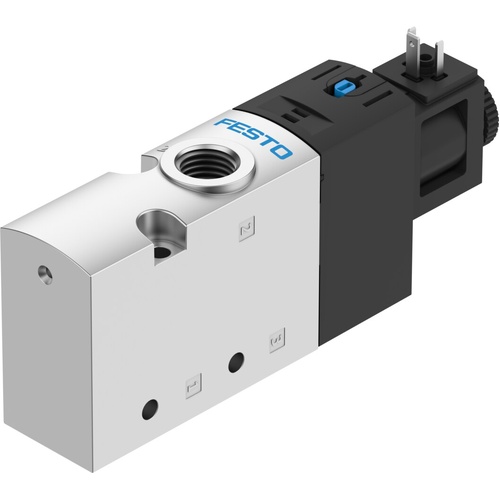

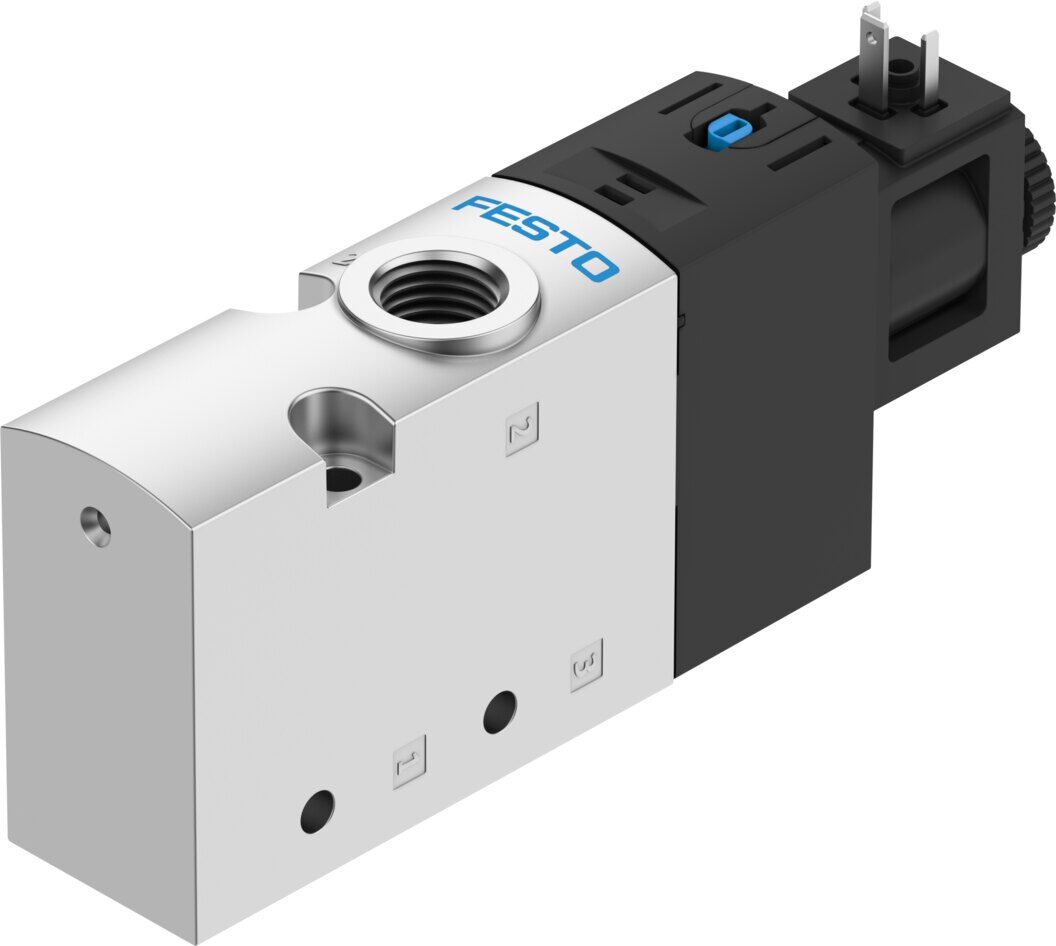

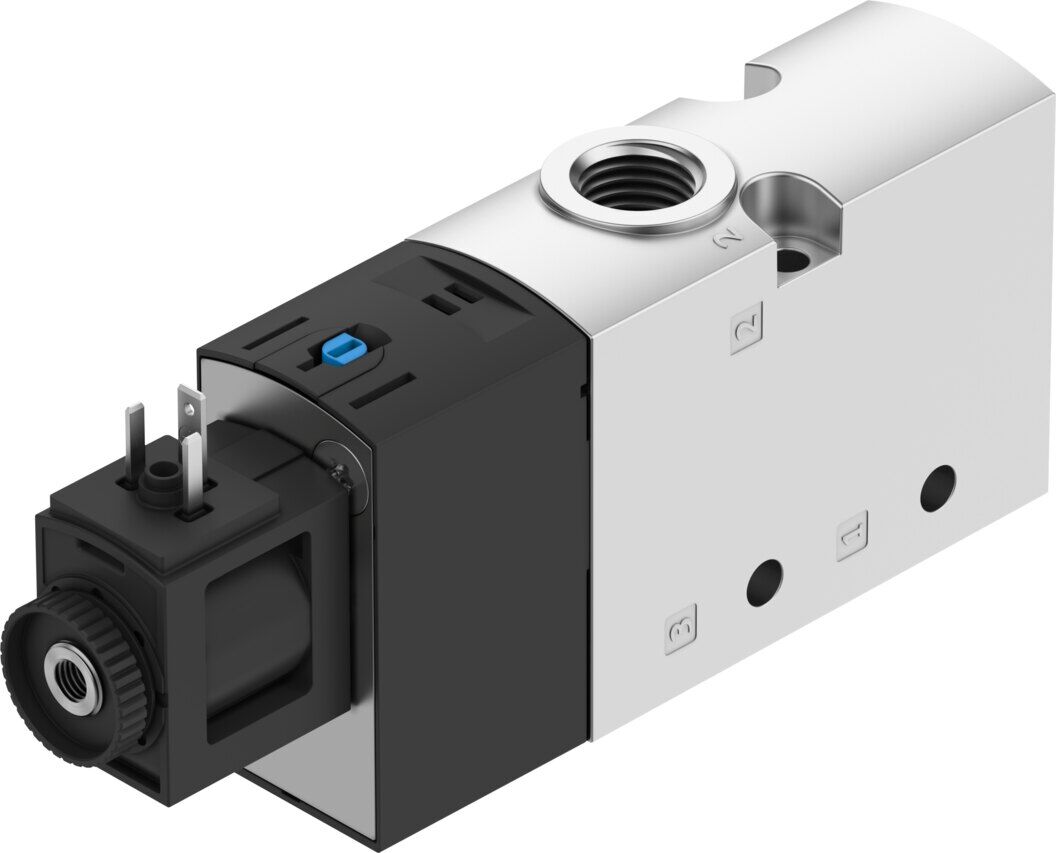

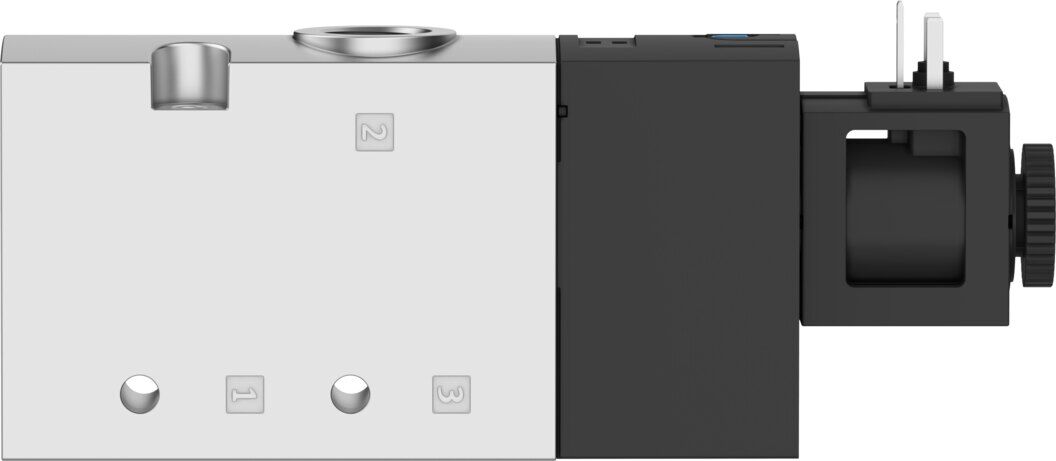

Solenoid valve

Technical Data

• Valve function3/2 open, monostable
• Type of actuationElectric
• Valve size26.5 mm
• Standard nominal flow rate (standardised to DIN 1343)1000 l/min
• pneumatic working portG1/4
• Operating voltage24V DC
• Operating pressure0.25 MPa ... 1 MPa
• Operating pressure2.5 bar ... 10 bar
• DesignPoppet seat
• Type of resetMechanical spring
• Approvalc UL us - Recognized (OL)
• Degree of protectionIP65 With plug socket To IEC 60529
• Nominal size6.6 mm
• Exhaust-air functionWith flow control option
• Sealing principleSoft
• Mounting positionoptional
• Manual overrideDetenting Non-detenting
• Type of pilotingPilot actuated
• Pilot air supplyInternal
• Flow directionNon-reversible
• Symbol00991140
• lapUnderlap
• b value0.3
• C value4.2 l/sbar
• Switching time off27 ms
• Switching time on10 ms
• Duty cycle100%
• Max. positive test pulse with 0 signal2000 µs
• Max. negative test pulse with 1 signal3600 µs
• Characteristic coil data24 V DC: 3.3 W
• Permissible voltage fluctuations+/- 10 %
• Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
• Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
• Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
• Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27
• Corrosion resistance class CRC2 - Moderate corrosion stress
• LABS (PWIS) conformityVDMA24364-B1/B2-L
• Cleanroom suitability, measured according to ISO 14644-14Class 6 according to ISO 14644-1
• Media temperature-5 °C ... 60 °C
• Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]
• Ambient temperature-5 °C ... 60 °C
• Product weight260 g
• Electrical connectionType B To industry standard (11 mm)
• Type of mountingOn manifold rail With through-hole
• Breather connectionNot ducted
• Pilot exhaust port 82M5
• Pneumatic connection, port 1G1/4
• Pneumatic connection, port 2G1/4
• Pneumatic connection, port 3G1/4
• Note on materialsRoHS-compliant
• Material sealsHNBR NBR TPE-U(PU)
• Material housingDie-cast aluminium Painted
• Material screwsGalvanised steel
