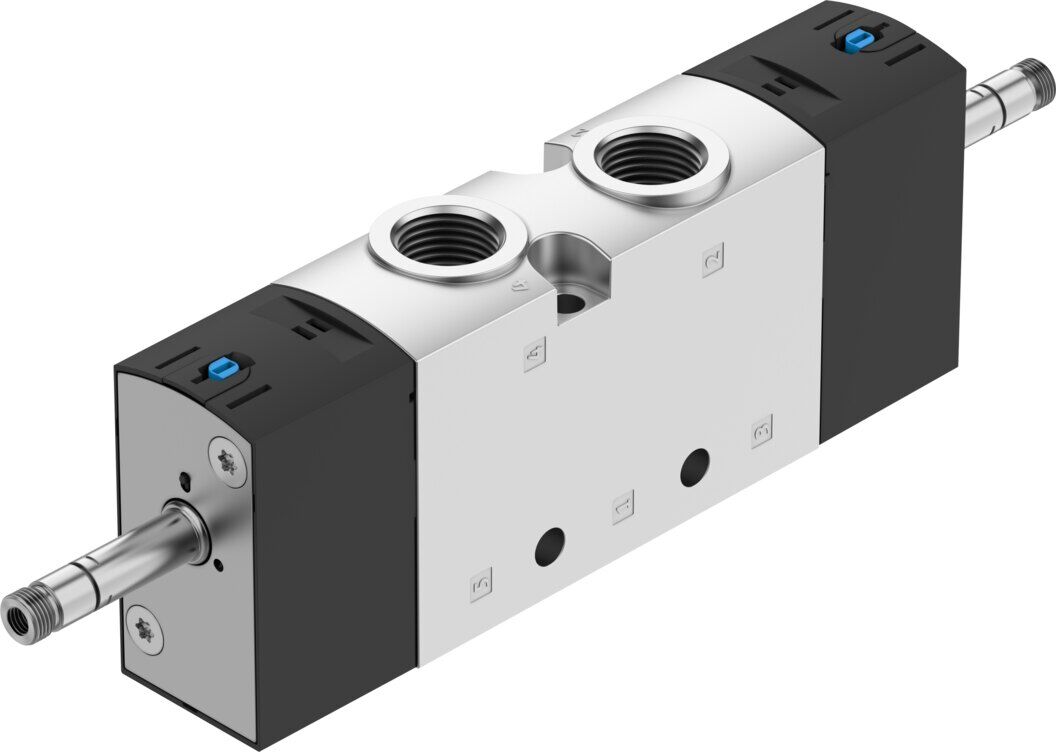

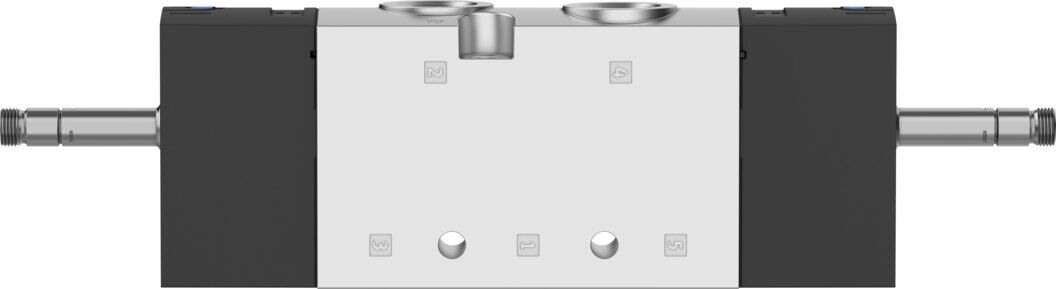

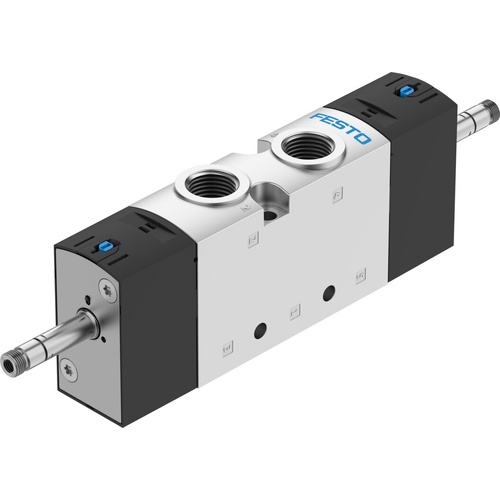

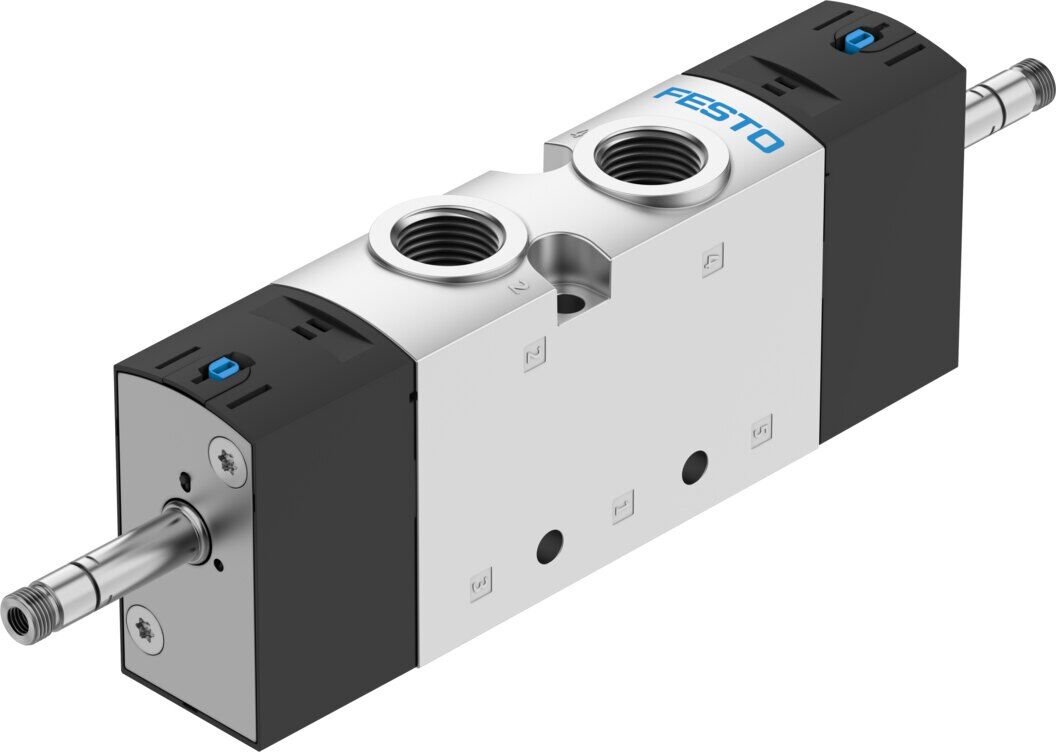

Solenoid valve

Technical Data

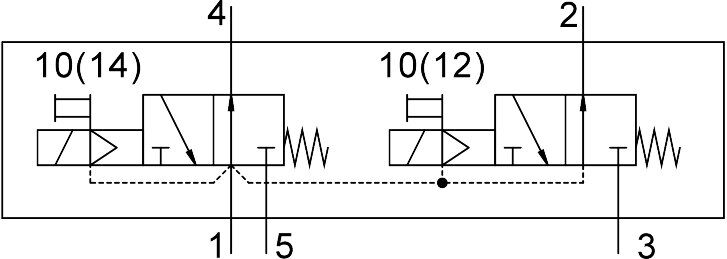

• Valve function2x3/2-way, open, monostable
• Type of actuationElectric
• Valve size31 mm
• Standard nominal flow rate (standardised to DIN 1343)1600 l/min
• pneumatic working portG3/8
• Operating voltageVia solenoid coil, must be ordered separately
• Operating pressure0.25 MPa ... 1 MPa
• Operating pressure2.5 bar ... 10 bar
• DesignPoppet seat
• Type of resetMechanical spring
• Approvalc UL us - Recognized (OL)
• Nominal size7.8 mm
• Exhaust-air functionWith flow control option
• Sealing principleSoft
• Mounting positionoptional
• Manual overrideDetenting Non-detenting
• Type of pilotingPilot actuated
• Pilot air supplyInternal
• Flow directionNon-reversible
• Symbol00995470
• lapUnderlap
• b value0.3
• C value6.7 l/sbar
• Switching time off35 ms
• Switching time on14 ms
• Max. positive test pulse with 0 signal2000 µs
• Max. negative test pulse with 1 signal3600 µs
• Characteristic coil dataSee solenoid coil, to be ordered separately
• Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
• Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
• Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
• Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27
• Corrosion resistance class CRC2 - Moderate corrosion stress
• LABS (PWIS) conformityVDMA24364-B1/B2-L
• Cleanroom suitability, measured according to ISO 14644-14Class 6 according to ISO 14644-1
• Media temperature-10 °C ... 60 °C
• Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]
• Ambient temperature-10 °C ... 60 °C
• Product weight442 g
• Type of mountingOn manifold rail With through-hole
• Breather connectionNot ducted
• Pilot exhaust port 82M5
• Pilot exhaust port 84M5
• Pneumatic connection, port 1G3/8
• Pneumatic connection, port 2G3/8
• Pneumatic connection, port 3G3/8
• Pneumatic connection, port 4G3/8
• Pneumatic connection, port 5G3/8
• Note on materialsRoHS-compliant
• Material sealsHNBR NBR TPE-U(PU)
• Material housingPainted die cast aluminium
• Material piston slideWrought aluminium alloy
• Material screwsGalvanised steel
