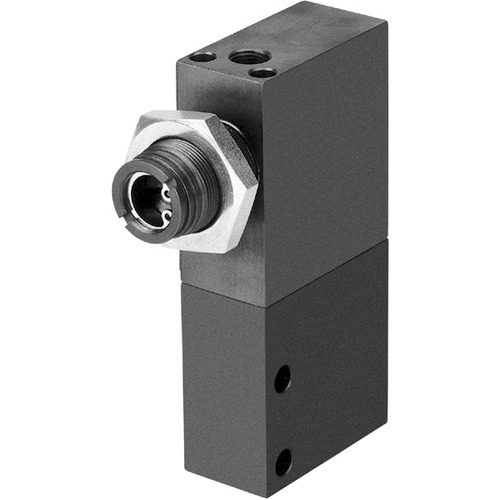

Time delay valve

VZB-3-1/4

3488

GTIN: 4052568008345

Technical Data

  • Symbol00995725
  • Operating pressure0 bar ... 10 bar
  • Standard nominal flow rate (standardised to DIN 1343)600 l/min
  • Adjustable delay time0 s ... 30 s
  • Explosion protectionZone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX)
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • LABS (PWIS) conformityVDMA24364-B2-L
  • Type of mountingWith through-hole
  • Pneumatic connectionG1/8 G1/4
  • Note on materialsRoHS-compliant

Downloads

VZ_DE.PDF

Technical data

Links

Spare parts

Time delay valveTime delay valve

SKU 3488
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
