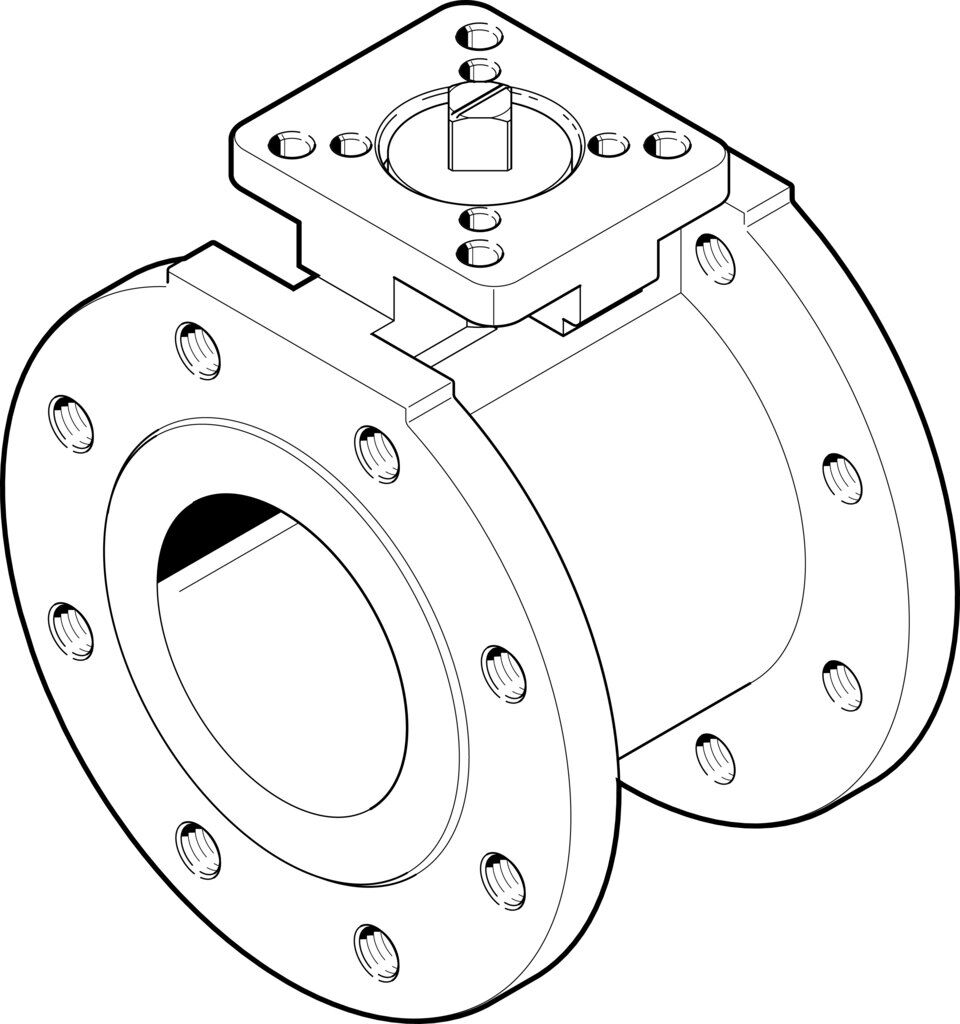

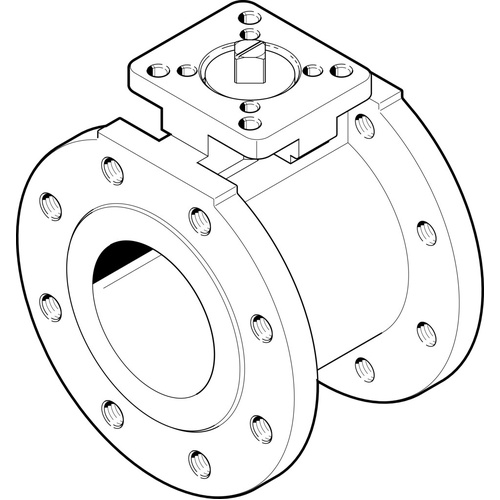

Ball valve

VZBA-1/4"-GGG-63-32L-F0304-V4V4T

1692210





GTIN: 4052568245115

Design
L-bore
Connection Process valve
Rp1/4
Type of actuation
Mechanical

Technical Data

  • DesignL-bore
  • Type of actuationMechanical
  • Sealing principleSoft
  • Mounting positionAny
  • Type of mountingInline installation
  • Connection Process valveRp1/4
  • Switching position indicatorSlot direction = flow direction
  • Flange hole patternF03 F04
  • Inside diameter11.6 mm
  • Nominal size DN8
  • Valve function3/2
  • Manual overrideNone
  • Flow directionReversible
  • Nominal pressure PN63
  • Actuating torque13 Nm
  • Based on standardISO 5211
  • Symbol00991888
  • MediumCompressed air to ISO 8573-1:2010 [-:-:-] Inert gases Water – no steam Neutral fluids Other media on request
  • Media temperature-10 °C ... 200 °C
  • Flow rate Kv L hole4.5 m³/h
  • Note on materialsRoHS compliant
  • LABS (PWIS) conformityVDMA24364 zone III
  • Material housingHigh-alloy stainless steel
  • Material number housing1,4408
  • Material seat sealPTFE, modified
  • Material sealsFluoro rubber PTFE PTFE-reinforced
  • Material ballHigh-alloy stainless steel
  • Material number ball1,4408
  • Material shaftHigh-alloy stainless steel
  • Material number shaft1,4401
  • Product weight700 g
  • Explosion protectionZone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX)
  • Corrosion resistance class CRC3 - high corrosion stress



SKU 1692210
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
