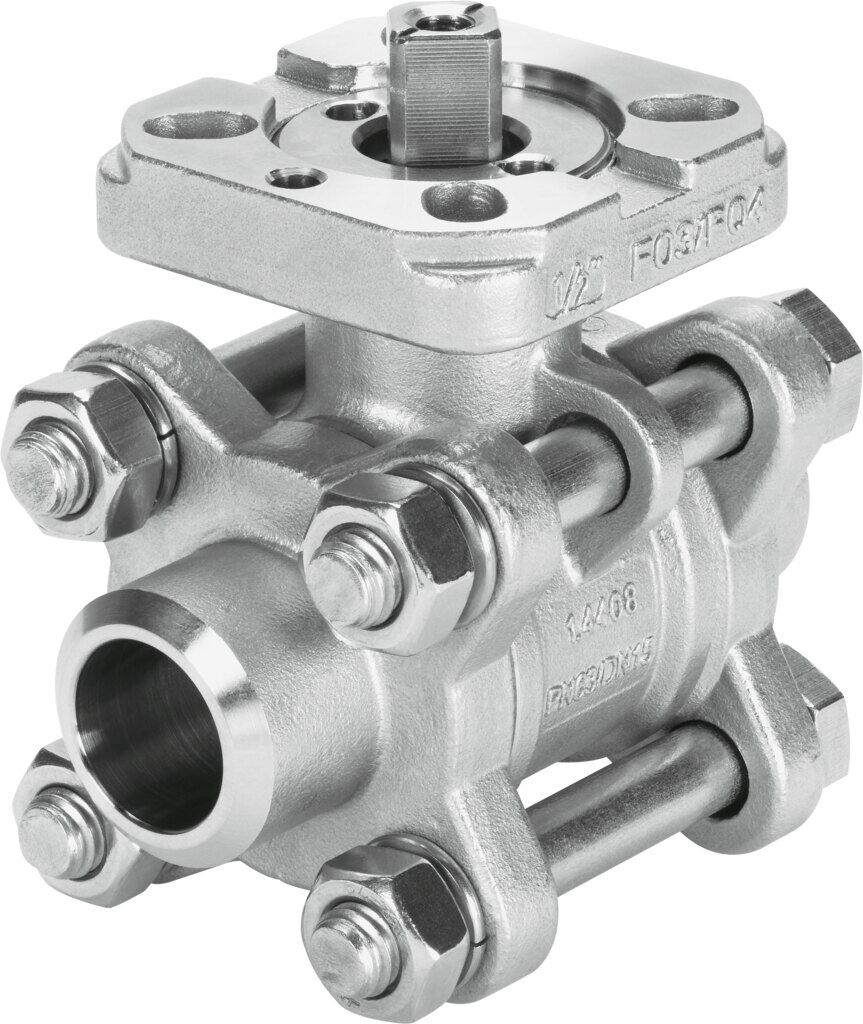

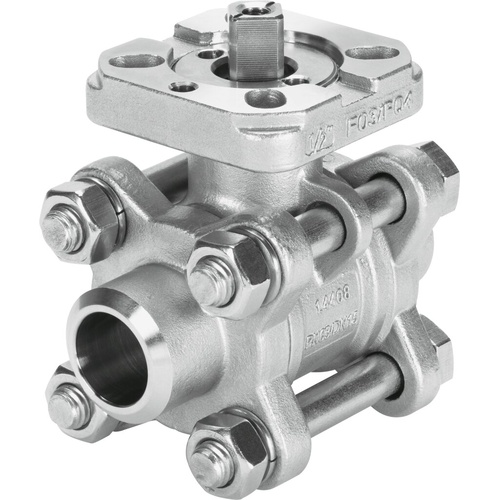

Ball valve

VZBA-2"-WW-63-T-22-F0507-V4V4T

1686699





GTIN: 4052568244989

Design
2-way ball valve
Flow rate Kv
275 m³/h
Connection Process valve
Weld-on ends/weld-on ends
Type of actuation
Mechanical

Technical Data

  • Design2-way ball valve
  • Type of actuationMechanical
  • Sealing principleSoft
  • Mounting positionAny
  • Type of mountingInline installation
  • Connection Process valveWeld-on ends/weld-on ends
  • Switching position indicatorSlot direction = flow direction
  • Flange hole patternF05 F07
  • Inside diameter50 mm
  • Nominal size DN50
  • Valve function2/2
  • Manual overrideNone
  • Flow directionReversible
  • Nominal pressure PN63
  • Actuating torque44 Nm
  • Based on standardISO 5211
  • Symbol00991458
  • MediumCompressed air to ISO 8573-1:2010 [-:-:-] Inert gases Water – no steam Neutral fluids Other media on request
  • Media temperature-10 °C ... 200 °C
  • Flow rate Kv275 m³/h
  • Note on materialsRoHS compliant
  • LABS (PWIS) conformityVDMA24364 zone III
  • Material housingHigh-alloy stainless steel
  • Material number housing1,4408
  • Material sealsFluoro rubber PTFE PTFE-reinforced
  • Material ballHigh-alloy stainless steel
  • Material number ball1,4408
  • Material shaftHigh-alloy stainless steel
  • Material number shaft1,4401
  • Product weight4500 g
  • CE mark (see declaration of conformity)In accordance with EU Pressure Equipment Directive
  • UKCA marking (see declaration of conformity)to UK Pressure Equipment Regulations
  • Explosion protectionZone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX)
  • Corrosion resistance class CRC3 - high corrosion stress



SKU 1686699
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
