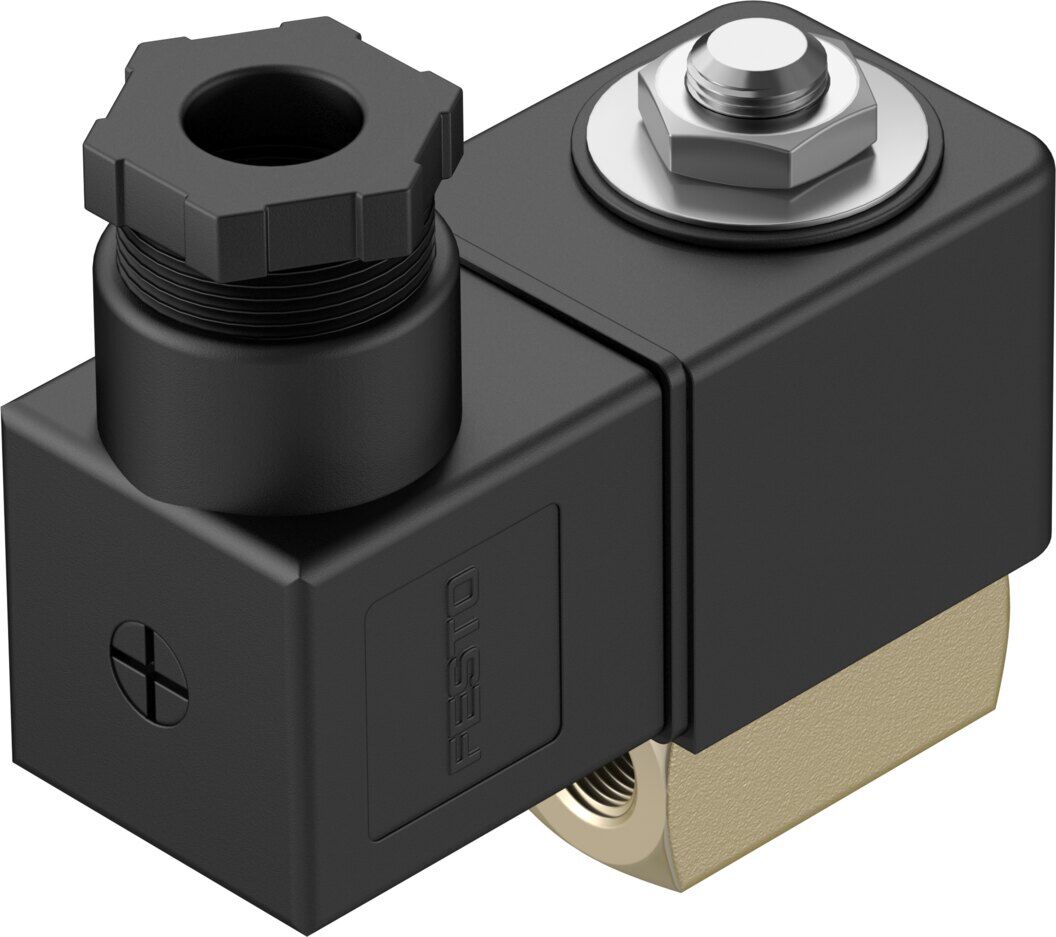

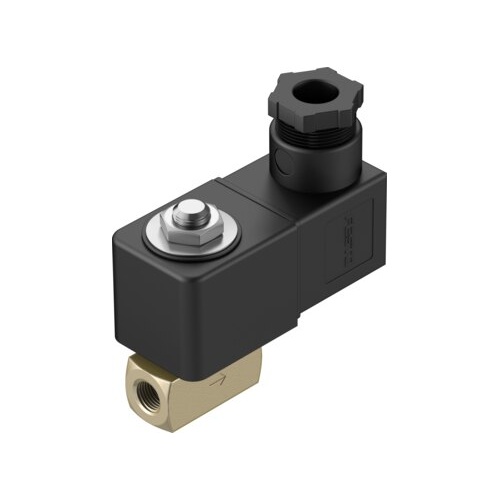

Solenoid valve

VZWD-L-M22C-M-G18-20-V-3AP4-15

1491983





GTIN: 4052568107178

Design
Directly actuated poppet valve
Flow rate Kv
0.13 m³/h
Connection Process valve
G1/8
Type of actuation
Electric

Technical Data

  • DesignDirectly actuated poppet valve
  • Type of actuationElectric
  • Sealing principleSoft
  • Mounting positionoptional
  • Type of mountingIn-line installation
  • Connection Process valveG1/8
  • Electrical connectionPlugs To EN 175301-803 Square design
  • Nominal size2 mm
  • Valve function2/2-way, closed, monostable
  • Manual overrideNone
  • Flow directionNon-reversible
  • MediumCompressed air to ISO 8573-1:2010 [7:4:4] Inert gases Mineral oil Water Neutral fluids Other media on request
  • Nominal pressure PN50
  • Pressure difference0 MPa
  • Pressure difference0 bar
  • Pressure difference0 psi
  • Characteristic coil data230 V AC: 50/60 Hz, pick-up power 10.5 VA, holding power 7.6 VA
  • Insulation material classF
  • Permissible voltage fluctuations+/- 10 %
  • Duty cycle100%
  • Type of resetMechanical spring
  • Type of pilotingDirect
  • Symbol00992979
  • Medium pressure0 MPa ... 1.5 MPa
  • Medium pressure0 bar ... 15 bar
  • Medium pressure0 psi ... 217.5 psi
  • Max. viscosity22 mm²/s
  • Media temperature-10 °C ... 80 °C
  • Ambient temperature-10 °C ... 35 °C
  • Leakage rate to EN 12266-1A
  • Flow rate Kv0.13 m³/h
  • Standard nominal flow rate (standardised to DIN 1343)140 l/min
  • Switching time on25 ms
  • Switching time off10 ms
  • Note on materialsRoHS-compliant
  • LABS (PWIS) conformityVDMA24364 zone III
  • Material housingBrass
  • Material number housingCW614N
  • Material sealsFPM
  • Material plunger tubeHigh-alloy steel
  • Product weight300 g
  • CE mark (see declaration of conformity)To EU Low Voltage Directive
  • UKCA marking (see declaration of conformity)To UK regulations for electrical equipment
  • Degree of protectionIP65
  • Corrosion resistance class CRC1 - Low corrosion stress
  • Max. tightening torque for connecting thread10 Nm
  • Max. tightening torque for coil fastening2 Nm
