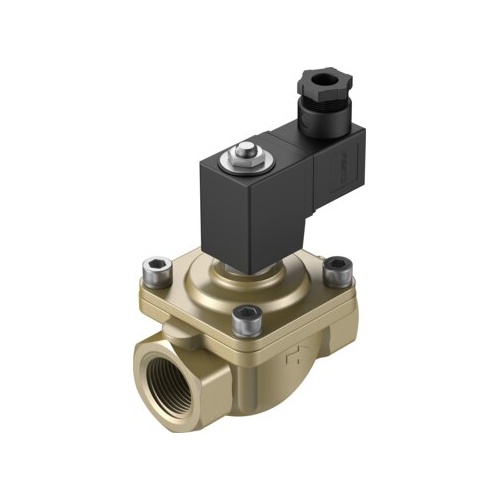

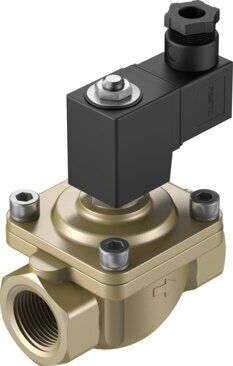

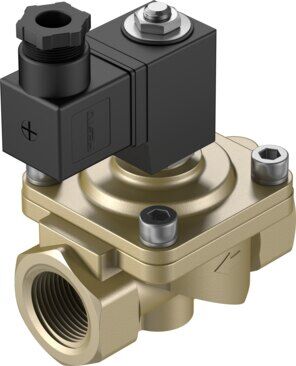

Solenoid valve

VZWF-B-L-M22C-G1-275-2AP4-6

1492210





GTIN: 4052568236106

Design
Diaphragm valve - Force pilot operated
Flow rate Kv
11 m³/h
Connection Process valve
G1
Type of actuation
Electric

Technical Data

  • DesignDiaphragm valve Force pilot operated
  • Type of actuationElectric
  • Sealing principleSoft
  • Mounting positionSolenoid vertical
  • Type of mountingIn-line installation
  • Connection Process valveG1
  • Electrical connectionPlugs To EN 175301-803 Square design
  • Nominal size27.5 mm
  • Valve function2/2-way, closed, monostable
  • Manual overrideNone
  • Flow directionNon-reversible
  • MediumCompressed air to ISO 8573-1:2010 [7:-:-] Inert gases Mineral oil Water Neutral fluids Other media on request
  • Nominal pressure PN40
  • Pressure difference0 MPa
  • Pressure difference0 bar
  • Pressure difference0 psi
  • Characteristic coil data110 V AC: 50/60 Hz, pick-up power 19.0 VA, holding power 16.0 VA
  • Permissible voltage fluctuations+/- 10 %
  • Symbol00992976
  • Medium pressure0 MPa ... 0.6 MPa
  • Medium pressure0 bar ... 6 bar
  • Medium pressure0 psi ... 87 psi
  • Max. viscosity22 mm²/s
  • Media temperature-10 °C ... 80 °C
  • Ambient temperature-10 °C ... 35 °C
  • Leakage rate to EN 12266-1A
  • Flow rate Kv11 m³/h
  • Standard nominal flow rate (standardised to DIN 1343)11750 l/min
  • Switching time on275 ms
  • Switching time off290 ms
  • Note on materialsRoHS-compliant
  • LABS (PWIS) conformityVDMA24364 zone III
  • Material housingCast brass
  • Material number housingCW617N
  • Material sealsNBR
  • Material screwsHigh-alloy stainless steel
  • Material number screw1.4301
  • Product weight1500 g
  • CE mark (see declaration of conformity)In accordance with EU Pressure Equipment Directive To EU Low Voltage Directive
  • UKCA marking (see declaration of conformity)To UK regulations for electrical equipment
  • Degree of protectionIP65
  • Corrosion resistance class CRC1 - Low corrosion stress





SKU 1492210
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
