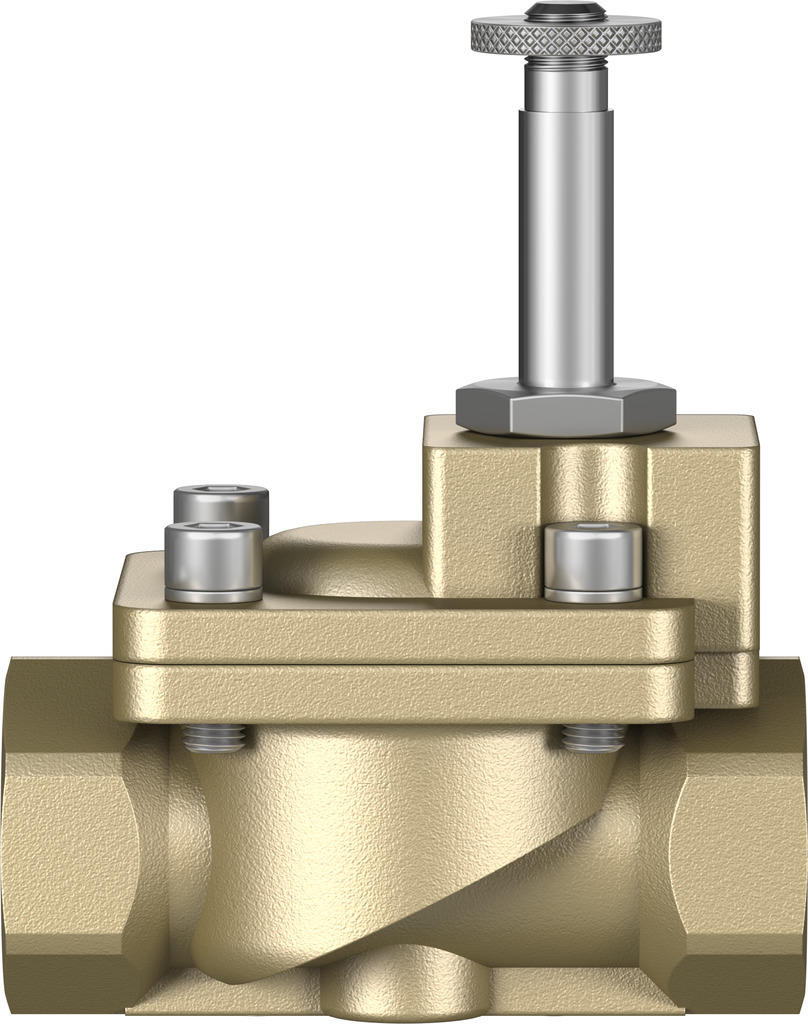

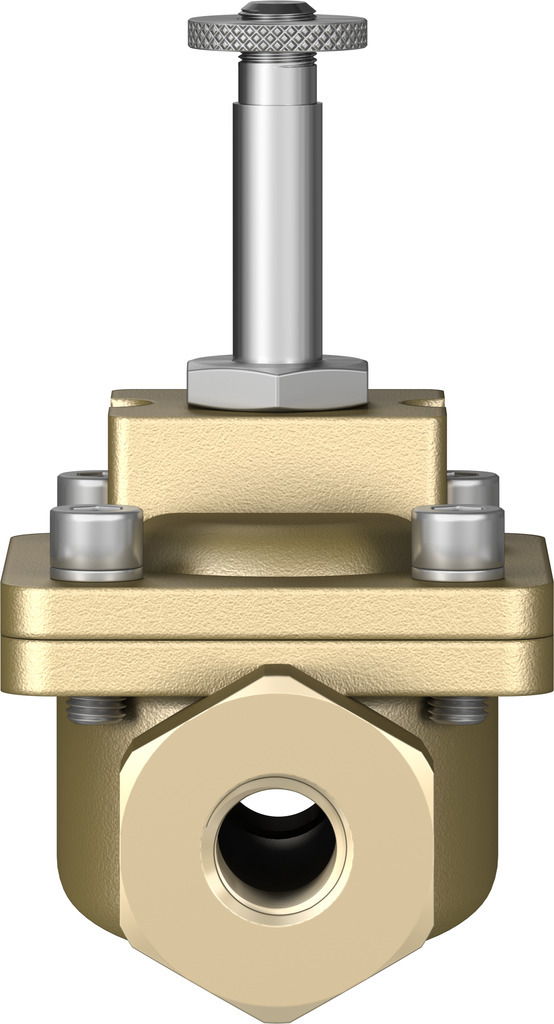

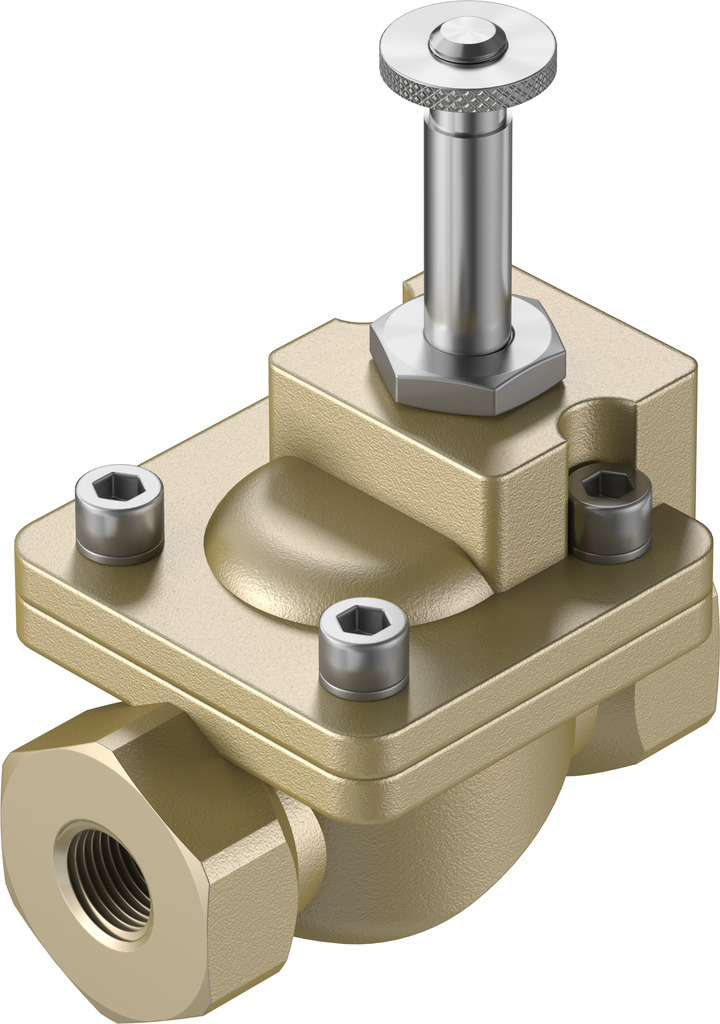

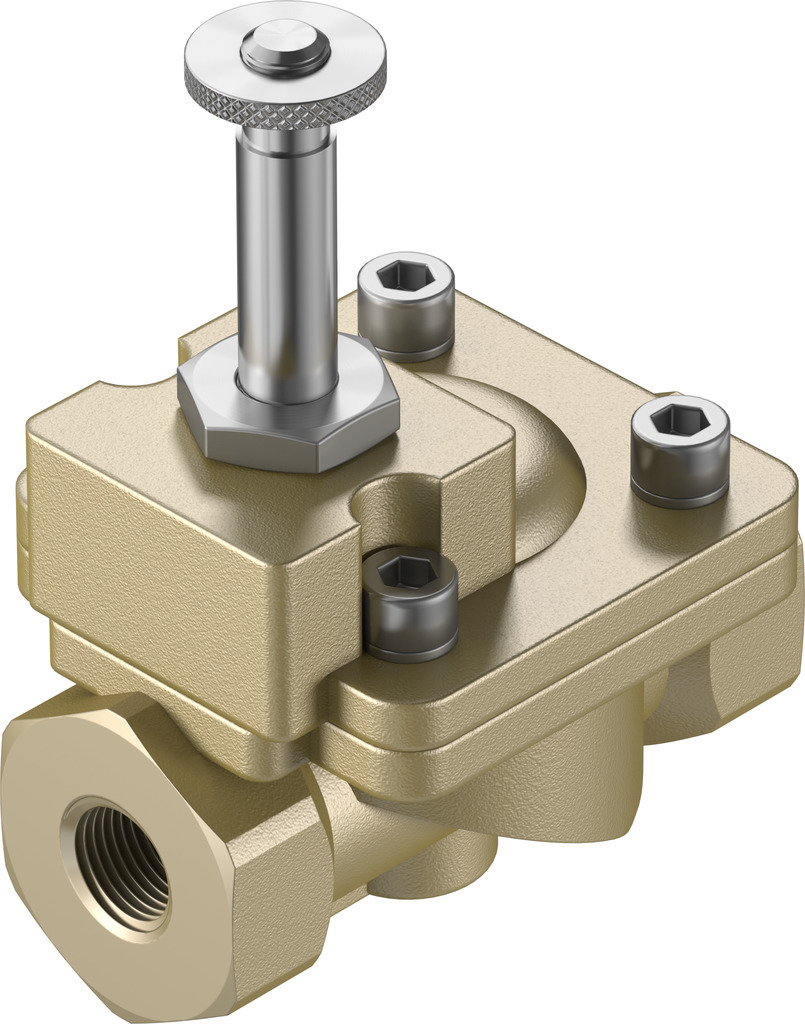

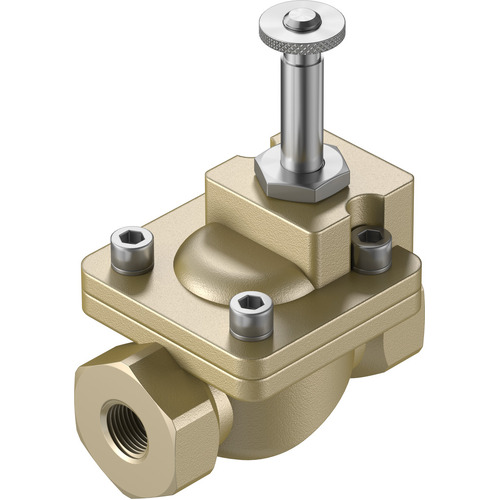

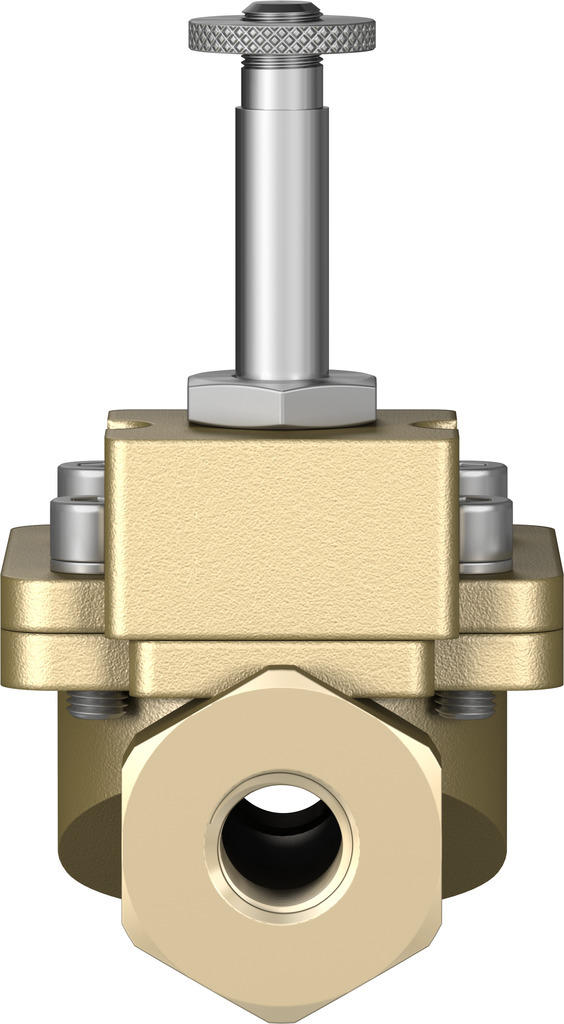

Solenoid valve

VZWM-L-M22C-G14-F4

546146

GTIN: 4052568184407

Technical Data

• Designservo-controlled
• Type of actuationElectric
• Sealing principleSoft
• Mounting positionPreferably vertical
• Type of mountingIn-line installation
• Connection Process valveG1/4
• Electrical connectionSolenoid coil type MD-... , coil can be ordered as an accessory
• Nominal size13.5 mm
• Valve function2/2-way, closed, monostable
• Flow directionNon-reversible
• MediumCompressed air to ISO 8573-1:2010 [7:4:4] Inert gases Water Neutral fluids
• Medium pressure,valve for liquid media0.05 MPa ... 0.6 MPa
• Medium pressure,valve for liquid media0.5 bar ... 6 bar
• Medium pressure,valve for liquid media7.25 psi ... 87 psi
• Medium pressure,valve for gaseous media0.05 MPa ... 1 MPa
• Medium pressure,valve for gaseous media0.5 bar ... 10 bar
• Medium pressure,valve for gaseous media7.25 psi ... 145 psi
• Burst pressure4 MPa
• Burst pressure40 bar
• Burst pressure580 psi
• Overload pressure4 MPa
• Overload pressure40 bar
• Overload pressure580 psi
• Pressure difference0.05 MPa
• Pressure difference0.5 bar
• Pressure difference7.25 psi
• Type of pilotingPilot actuated

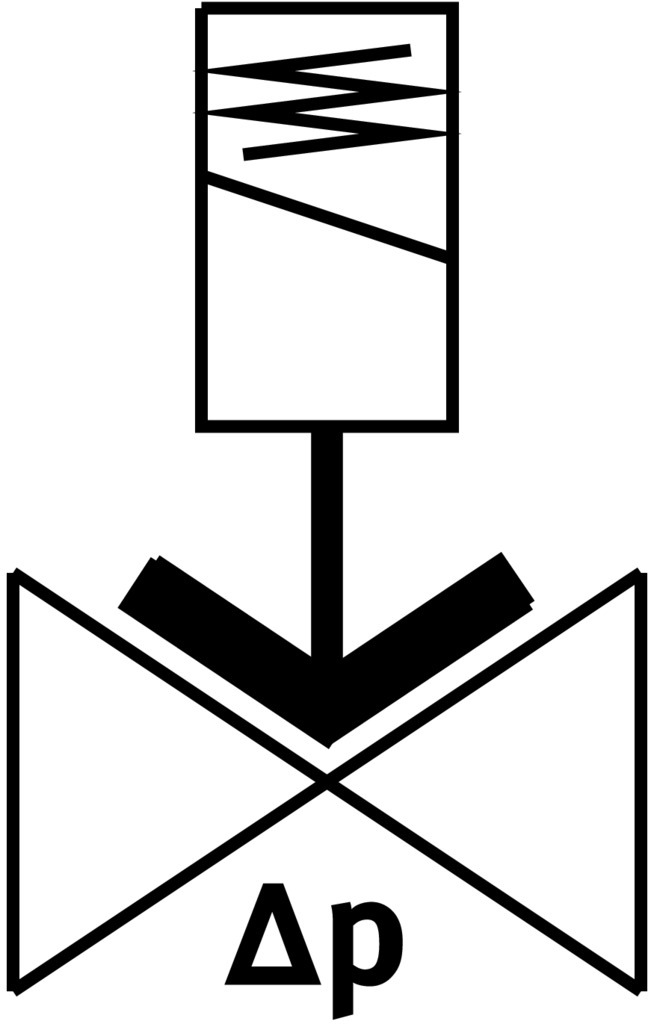

• Symbol00995681
• Max. viscosity22 mm²/s
• Media temperature-10 °C ... 60 °C
• Media temperature for fluids5 °C ... 50 °C
• Ambient temperature-10 °C ... 60 °C
• Flow rate Kv1.6 m³/h
• Standard nominal flow rate (standardised to DIN 1343)1400 l/min
• Switching time on8 ms
• Switch-on time for fluids100 ms
• Switching time off10 ms
• Switch-off time for fluids200 ms
• b value0.3
• C value6 l/sbar
• Note on materialsRoHS-compliant
• LABS (PWIS) conformityVDMA24364 zone III
• Material housingBrass
• Material number housing2.0402
• Material sealsNBR
• Material plunger tubeHigh-alloy steel
• Product weight500 g
• Corrosion resistance class CRC1 - Low corrosion stress
• Max. tightening torque for cover screw20 Nm
• Max. tightening torque for connecting thread35 Nm
• Max. tightening torque for coil fastening0.5 Nm
