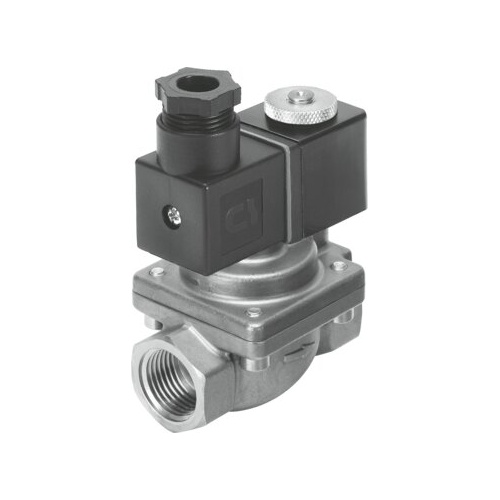

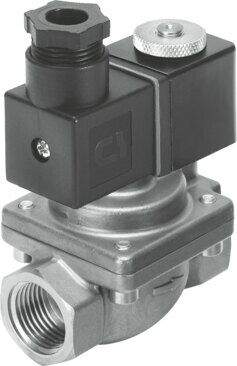

Solenoid valve

VZWP-L-M22C-N12-130-V-1P4-40

1489977





GTIN: 4052568234003

Design
Piloted piston poppet valve
Flow rate Kv
2.5 m³/h
Connection Process valve
1/2 NPT
Type of actuation
Electric

Technical Data

  • DesignPiloted piston poppet valve
  • Type of actuationElectric
  • Sealing principleSoft
  • Mounting positionCoil on top (preferred)
  • Type of mountingIn-line installation
  • Connection Process valve1/2 NPT
  • Electrical connectionPlugs To EN 175301-803 Square design
  • Nominal size13 mm
  • Valve function2/2-way, closed, monostable
  • Manual overrideNone
  • Flow directionNon-reversible
  • MediumCompressed air to ISO 8573-1:2010 [7:4:4] Inert gases Neutral fluids Other media on request
  • Nominal pressure PN40
  • Pressure difference0.05 MPa
  • Pressure difference0.5 bar
  • Pressure difference7.25 psi
  • Characteristic coil data24 V DC: 6.8 W
  • Insulation material classH
  • Permissible voltage fluctuations+/- 10 %
  • Duty cycle100%
  • Type of pilotingPilot actuated
  • Symbol00992974
  • Medium pressure0.05 MPa ... 4 MPa
  • Medium pressure0.5 bar ... 40 bar
  • Medium pressure7.25 psi ... 580 psi
  • Max. viscosity22 mm²/s
  • Media temperature-10 °C ... 80 °C
  • Ambient temperature-10 °C ... 35 °C
  • Leakage rate to EN 12266-1A
  • Flow rate Kv2.5 m³/h
  • Standard nominal flow rate (standardised to DIN 1343)2650 l/min
  • Switching time on100 ms
  • Switching time off250 ms
  • Note on materialsRoHS-compliant
  • LABS (PWIS) conformityVDMA24364 zone III
  • Material housingCast brass
  • Material number housingCW617N
  • Material sealsFPM
  • Material screwsHigh-alloy stainless steel
  • Material number screw1.4301
  • Product weight550 g
  • Degree of protectionIP65
  • Corrosion resistance class CRC1 - Low corrosion stress





SKU 1489977
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
