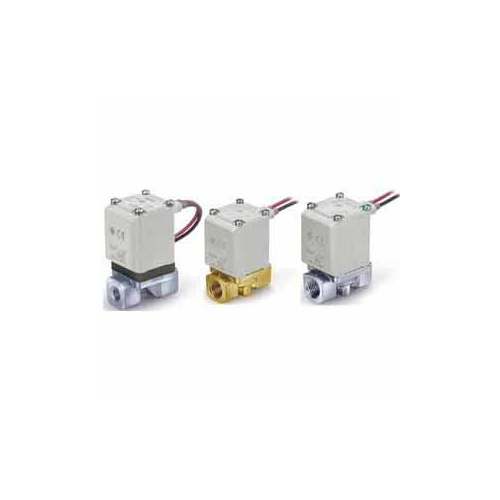

●For air, medium vacuum, water, oil, steam (can be used with heated water.)
●Flow rate : 20% more flow※
●Height : 10% smaller※
●Lightweight: 30% lighter※
●Body material: Aluminum, resin, C37, Stainless steel
●Available with One-touch fittings (resin body)
※Comparison with SMC conventional model
●Manifold type No.: VVX21,VVX22,VVX23

Specifications

Coil Size/Valve TypeSize:Size 3,Valve Type:N.C.
Body Material/Port Size/Orifice DiameterBody Material:C37,Port Size-Orifice Diameter:Size1:1/4,2;Size2:3/8,4;Size3:3/8,5
Voltage/Electrical EntryVoltage:Other Voltages
Electrical Option240 VAC;DIN Terminal,With Light,Surge Voltage Suppressor
Other OptionLow Concentration Ozone Resistant And Applicable To Deionized Water: Not Compliant ; OilFree : Not Compliant ; Special Thread : Rc;One-touch Fitting
Mounting OptionSpecial Electrical Entry Direction/Mounting Holes On The Bottom Side Of The Body
Special Electrical Entry DirectionStandard

Datasheet (PDF)

SKU VX232DZ2HXNB
Brand SMC
