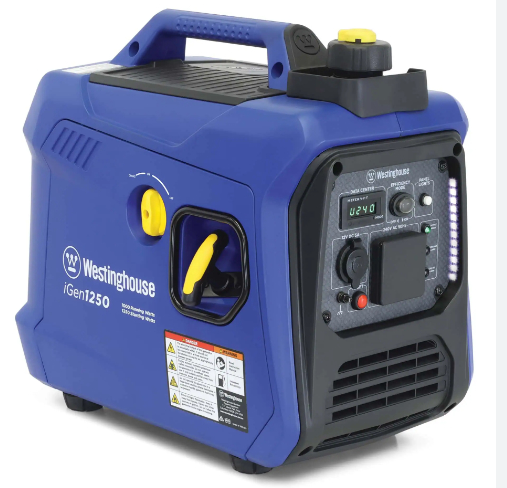

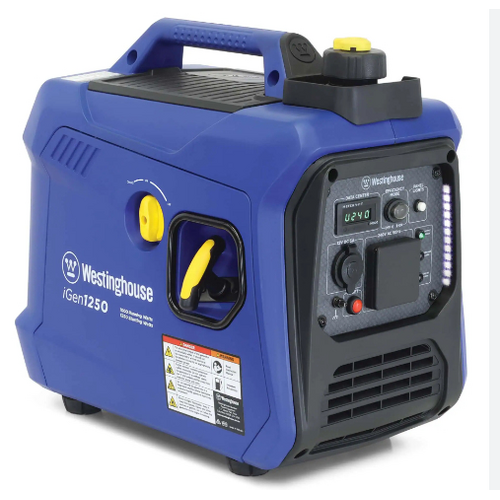

WESTINGHOUSE 1250W Petrol Inverter Generator  iGEN1250

MANUAL / INSTRUCTIONS

Description

The new iGen1250 is the lightest and most compact Westinghouse inverter generator, yet it delivers a class-leading maximum power output of 1,250 Watts. It is an ideal portable power supply for your next camping getaway or for use as a reliable home backup to keep the lights on, fridge running and your phone charged during a blackout. The iGen1250 has all the essential connectivity, safety and operating features that you really need in an easily portable unit.

• Powerful - Highest starting and running power outputs in its class.
• Super Quiet - Low dB noise level ideal for tranquil camping use.
• Long Running - Up to 9.1 hours @ 1/4 load on a single tank of fuel.
• Mains Quality Electricity - Safe to power all your electronic equipment.
• Plug and Play - No assembly required before use, just add petrol.
• Lightweight - Easy to carry 12.5 kg with its ergonomic handle.
• Clean and Efficient - 56 cc, 4-stroke OHV petrol engine with ECO throttle.
• LED Lights - Illuminate control panel for operating at night-time.
• Easy to Maintain - Engine oil and air filter servicing without tools.
• Warranty Protection - 2-year domestic use (conditions apply).
• 240 Volt AC Electrical
• Voltage (V): 240.
• Frequency (Hz): 50.
• Number of Phases: 1.
• Continuous Running Power (W) *: 1,000.
• Maximum Starting Power (W): 1,250.
• Continuous Running Current (A): 4.2.
• Voltage & Waveform Control: Digital Inverter, Pure Sine Wave Output.
• Total Harmonic Distortion (THD): < 2.5%.
• Receptacles: 15 A, IP44.
• Overload Protection: Electronic.
• Overload Indicator: Yes.
• Overload Reset: Push Button.
• Alternator: Brushless, Permanent Magnet.
• Output Ready Indicator: Yes.

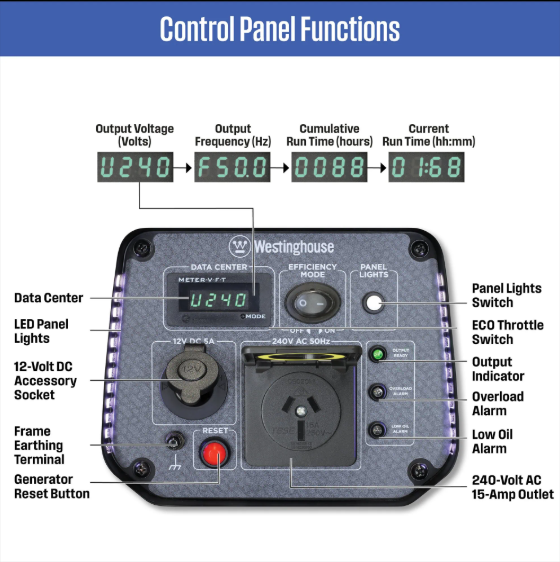

• Data Center Display: Output Voltage & Frequency, Current & Cumulative Run Times.
• Control Panel Lights: LED, Operable While Running.
• Note : * Rated output at 1.0 power factor.cep.
• 12 VOLT DC ELECTRICAL
• Voltage (V): 12.
• Maximum Current: (A) 5.
• Maximum Power (W): 60.
• Receptacle: 5 A, IP44.

Specifications

• 1,250 Starting Watts / 1,000 Running Watts
• Lightweight and Easy to Carry 15 kg with Handle
• Ultra-Silent Running from only 54 dB(A)
• Up to 9 Hours Run Time with 3.0 Litre Fuel Tank
• Digital Inverter Technology – Safe for Electronics
• 54 cc Westinghouse 4-Stroke OHV Petrol Engine
• Compliant with Australian and US Emissions Standards
• 240 Volt AC, 12 Volt DC and USB Fast Charge Outlets
• Plug and Play – Just Add Petrol, No Assembly Required
• 2-Year Domestic Use Warranty (conditions apply)
• Dimensions - 431 x 274 x 409mm (LxWxH)
