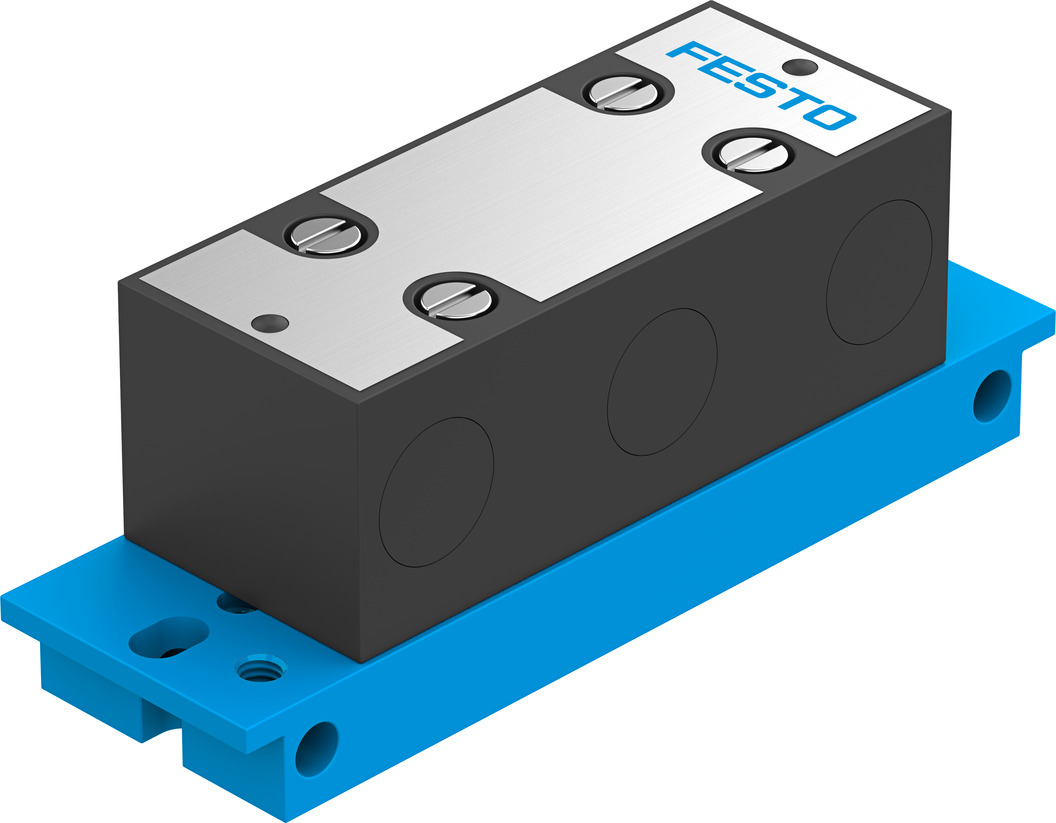

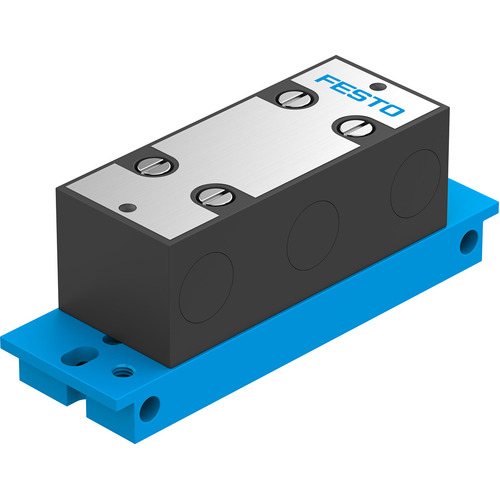

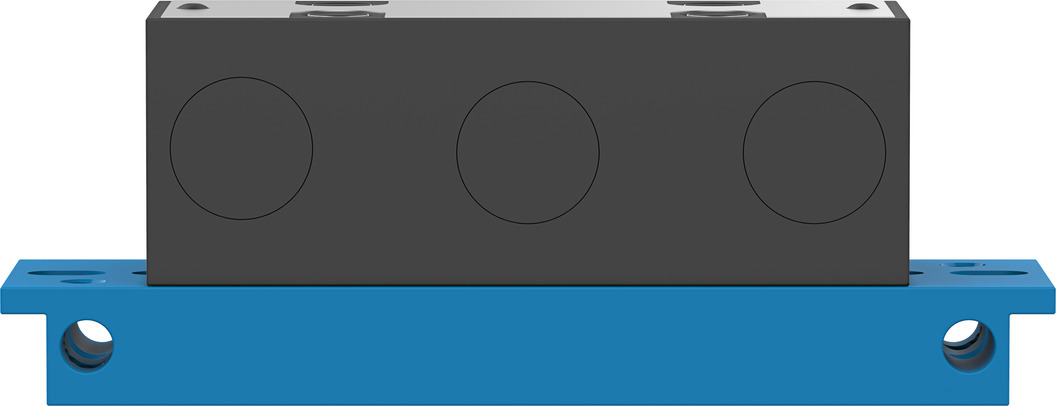

AND block

ZK-PK-3-6/3

4204

Valve function
AND function
Pneumatic connection, port 1
PK-3
Standard nominal flow rate (standardised to DIN 1343)
100 l/min
Operating pressure
1.6 bar - 8 bar

GTIN: 4052568000561

Technical Data

  • Valve functionAND function
  • Pneumatic connection, port 1PK-3
  • Pneumatic connection, port 2PK-3
  • Type of mountingFront panel mounting
  • Standard nominal flow rate (standardised to DIN 1343)100 l/min
  • Operating pressure1.6 bar ... 8 bar
  • Ambient temperature-10 °C ... 60 °C
  • Material housingPOM
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
  • Explosion protectionThe information in the certificate must be observed! Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX)
  • Nominal size2.5 mm
  • Mounting positionoptional

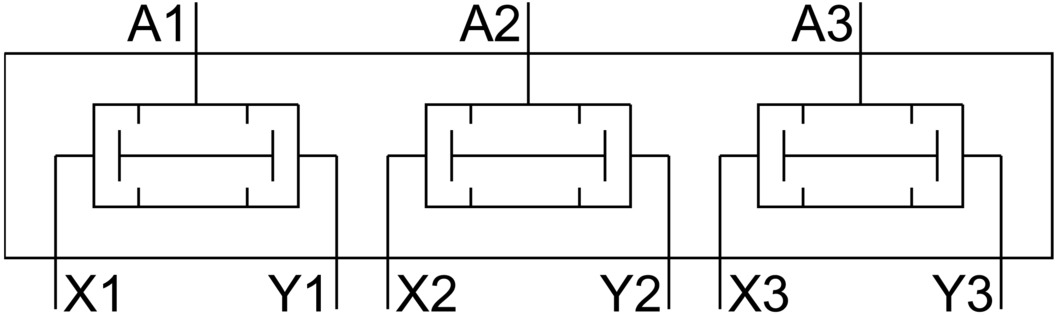

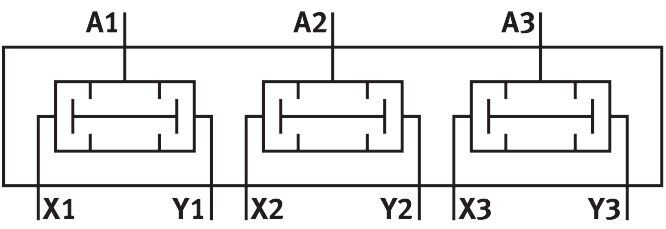

  • Symbol00991462
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Media temperature-10 °C ... 60 °C
  • Product weight85 g
  • Pneumatic connection, port 3PK-3
  • Material sealsNBR

Downloads

M5COMPACT_EN.PDF

Technical data

Links

Spare parts



AND blockAND blockAND blockAND block

SKU 4204
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
