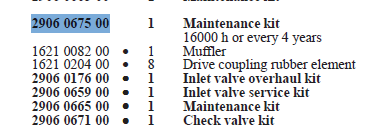

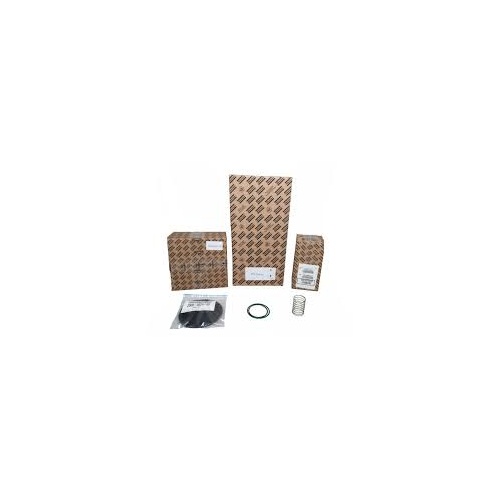

2906 0675 00 KIT, 16000 HRS

KIT, 16000 HRS

Air Filter> LINK

Oil Filter> LINK

Muffler> LINK

Drive Coupling> LINK

Inlet Valve> LINK

Check Valve Kit> LINK

Intercooler Drain Valve> LINK

Atlas Copco Stationary Air Compressors
No. 2930 1343 02
Registration code : APC Z55-90 / 39
Replaces No. 2930 1343 01
2005-08
ZT55, -75, -90
ZR55, -75, -90
Parts list
• Copyright 2005, Atlas Copco Airpower n.v., Antwerp, Belgium.
Any unauthorized use or copying of the contents or any part thereof is prohibited.
This applies in particular to trademarks, model denominations, part numbers and drawings.
• Use only authorized parts. Any damage or malfunction caused by the use
of unauthorized parts is not covered by Warranty or Product Liability.
www.atlascopco.com
From following serial No. onwards :
AIF - 077 453
2 2930 1343 02
Parts list
Contents
Inhoud
Innehåll
Inhaltsverzeichnis
Table des matières
Indice
Indice
Innholdsfortegnelse
Índice
Indholdsfortegnelse
Sisällysluettelo
Gear casing and drive gear
Tandwielkast en aandrijving
Växelhus och drivning
Getriebegehäuse und Antriebsrad
Carter d’engrenages et entraînement
Cárter de engranajes y accionamiento
Scatola ingranaggi e ingranaggio conduttore
Gearkasse og drivhjul
Carter de engrenagens e accioanamento
Girkasse og drivhjul
Vaihteen kotelo ja hihnapyörä ....................................................... 1
Motor, frame and coupling
Motor, frame en koppeling
Motor, ram och koppling
Motor, Rahmen und Kupplung
Moteur, châssis et accouplement
Motor, bastidor y acoplamiento
Motore elettrico, telaio e giunto
Motor, ramme og kobling
Motor, base e acopulamento
Motor, ramme og kopling
Moottori, runko ja kytkin
- ZT ................................................................................................. 2
- ZR ................................................................................................ 3
Mountings on frame
Montageonderdelen op frame
Fästen på ram
Montagekomponenten auf Rahmen
Superstructure sur châssis
Piezas de montaje sobre bastidor
Attacchi sul telaio
Monteringskomp. på ramme
Peças de montagem sobre a base
Fester på ramme
Kiinnikkeet rungossa
- ZT ................................................................................................. 4
Air inlet
Luchtinlaat
Luftintag
Lufteinlaß
Admission d’air
Entrada de aire
Presa d’aria
Luftindsug
Admissão de ar
Luftinnløp
Tuloilma ......................................................................................... 5
Air flow
Luchtstroming
Luftflöde
Luftstrom
Flux d’air
Flujo de aire
Flusso d’aria
Luftflow
Fluxo de ar
Luftstrøm
Ilman virtaus
- ZT Pack ........................................................................................ 6
- ZT Full feature ............................................................................. 7
- ZR ................................................................................................ 8
Air outlet
Luchtuitlaat
Luftutlopp
Luftauslaß
Sortie d’air
Salida de aire
Mandata dell’aria
Luftafgang
Saida de ar
Luftutløp
Paineilm
- ZT Pack ........................................................................................ 9
- ZT Full feature ........................................................................... 10
- ZT Full feature - Regeneration air ............................................. 11
- ZR Full feature ........................................................................... 12
- ZR Full feature - Regeneration air ............................................ 13
Cooler(s)
Koeler(s)
Kylare
Kühler
Refroidisseur(s)
Refrigerador(es)
Refrigeratore(i)
Kølere
Refrigerador(es)
Kjøler(e)
Jäähdyttimet
- ZT ............................................................................................... 14
- ZR .............................................................................................. 15
Drain system
Aftapsysteem
Avtappningssystem
Ablaßsystem
Système de vidange
Sistema de drenaje
Sistema di scarico
Drænsystem
Sistema de drenagem de condensados
Avtappingssystem
Lauhteenpoistojärjestelmä
- ZT Pack ...................................................................................... 16
- ZR Pack...................................................................................... 17
Oil system
Oliesysteem
Oljesystem
Ölsystem
Système d’huile
Sistema de aceite
Sistema dell’olio
Oliesystem
Sistema de óleo
Oljesystem
Voitelujärjestelmä
- ZT ............................................................................................... 18
- ZR .............................................................................................. 19
Water system
Watersysteem
Vattensystem
Wassersystem
Système d’eau
Sistema de agua
Sistema dell’acqua
Vandsystem
Sistema de água
2930 1343 02 3
Parts list
Vannsystem
Vesijärjestelmä
- ZR .............................................................................................. 20
Regulating system
Regelsysteem
Reglersystem
Regelsystem
Système de régulation
Sistema de regulación
Sistema di regolazione
Reguleringssystem
Sistema de regulação
Reguleringssystem
Säätöjärjestelmä
- ZT Pack ...................................................................................... 21
- ZT Full feature ........................................................................... 22
- ZR Pack...................................................................................... 23
- ZR Full feature ........................................................................... 24
Air dryer parts
Luchtdroger onderdelen
Lufttorkaretill
Lufttrockner teille
Piéces du sécheur d’air
Pieza dell secador de aire
Parte d’essiccatore d’aria
Lufttørrertill
Peça de secador de ar
Lufttørkertille
Kuivain
- Mountings on vessel .............................................................. 25
- Pressure vessel and rotor ....................................................... 26
- Motor and drive connections ................................................. 27
- Electronic Water Drain .......................................................... 28
- Cooler - ZT ............................................................................ 29
- Cooler - ZR ............................................................................ 30
Cubicle box
Kast
Skåp
Schaltschrank
Armoire
Armario
Armadio elettrico
Elskab
Quadro
Skap
Kotelo ........................................................................................... 31
Cubicle
Kast
Skåp
Schaltschrank
Armoire
Armario
Armadio elettrico
Elskab
Quadro
Skap
Kotelo
- ZT/R55 500-575V - 1) .......................................................... 32
- ZT/R55 380-460V, ZT/R75 400-575V,
ZT/R90 500-575V - 1) .......................................................... 33
- ZT/R55 200-230V, ZT/R75 380V/60Hz,
ZT/R90 380-460V - 1) .......................................................... 34
- ZT/R55 200-230V/60Hz, ZT/R75 230V/50Hz - IEC - 1) ... 35
- ZT/R75 200V/50Hz - IEC, ZT/R75 220-230V,
ZR90 230V/50Hz - IEC - 1) ................................................. 36
- ZT/R75 200V/60Hz, ZT/R90 220-230V, No motor - 1) ...... 37
- ZT/R55 400V - 440-460V - 500V - 575V - 2) ..................... 38
- ZT/R55 440-460V CSA/UL - 2) ........................................... 39
- ZT/R55 380V, ZT/R75 400V - 440-460V - 500V - 575V,
ZT/R90 500V - 575V - 2) ..................................................... 40
- ZT/R55 200V - 230V - 220-230V, ZT/R75 380V,
ZT/R90 380V - 400V - 440-460V - 2) ................................. 41
- ZT/R55 200V ZT/R75 230V - 220-230V - 2) ...................... 42
- ZT/R75 200V - 220-230V, ZT/R90 200V - 230V -
220-230V - 2) ........................................................................ 43
Bodywork
Carrosserie
Karosseri
Karosserie
Capotage
Carrocería
Cappottatura
Karosseri
Carroceria
Kabinett
Kotelo
- ZT Pack / Full feature ............................................................ 44
- ZR Pack / Full feature ........................................................... 45
- Baffling & extension ZT Full feature ................................... 46
- Baffling ZT Pack.................................................................... 47
- Baffling ZT Full feature ......................................................... 48
- Baffling ZR Pack / Full feature ............................................. 49
Service kits
Service kits
Service kits
Service Kits
Service kits
Service kits
Kit per la manutenzione
Service kits
Conjuntos de reparação
Servicesett
Huoltotarvikesarjat ....................................................................... 50
1) Up to serial No. :
Tot serienummer:
T.o.m. tillverkningsnummer:
Bis Seriennummer:
Jusqu’au numéro de série:
Hasta el número de serie:
Fino al numeri di serie:
Gælder til følgende serienumre:
Até o número de série:
Til følgende serienummer:
Seuraavaan valmistusnumeroon asti, No.:
AIF-085 712
2) From following serial No. onwards:
Geldig vanaf volgend serienummer:
Fr.o.m. tillverkningsnummer:
Gültig ab Seriennummer:
Valable à partir du numéro de série suivant:
A partir del siguiente número de serie:
Dai seguenti numeri di serie in avanti:
Gælder fra følgende serienumre:
A partir do número de série:
Fra og med følgende serienummer:
Alkaen valmistusnumerosta
AIF-085 713
4 2930 1343 02
Parts list
1
61694_01
2930 1343 02 5
Parts list
Gear casing and drive gear 1
Ref. Part number Qty Name Remarks
1035 1 Gear casing
1621 0517 06 ZT55-7.25/60Hz
1621 0517 06 ZR55-7.25/60Hz
1621 0517 05 ZT55-7.5/50Hz
1621 0517 05 ZR55-7.5/50Hz
1621 0517 05 ZT55-8.6/50Hz
1621 0517 05 ZR55-8.6/50Hz
1621 0517 06 ZT55-9/60Hz
1621 0517 06 ZR55-9/60Hz
1621 0517 05 ZT55-10/50Hz
1621 0517 05 ZR55-10/50Hz
1621 0517 06 ZT55-10.4/60Hz
1621 0517 06 ZR55-10.4/60Hz
1621 0517 04 ZT75-7.25/60Hz
1621 0517 04 ZR75-7.25/60Hz
1621 0517 03 ZT75-7.5/50Hz
1621 0517 03 ZR75-7.5/50Hz
1621 0517 03 ZT75-8.6/50Hz
1621 0517 03 ZR75-8.6/50Hz
1621 0517 03 ZT75-9/60Hz
1621 0517 03 ZR75-9/60Hz
1621 0517 02 ZT75-10/50Hz
1621 0517 02 ZR75-10/50Hz
1621 0517 03 ZT75-10.4/60Hz
1621 0517 03 ZR75-10.4/60Hz
1621 0517 04 ZT90-7.25/60Hz
1621 0517 04 ZR90-7.25/60Hz
1621 0517 04 ZT90-7.5/50Hz
1621 0517 04 ZR90-7.5/50Hz
1621 0517 03 ZT90-8.6/50Hz
1621 0517 03 ZR90-8.6/50Hz
1621 0517 02 ZT90-9/60Hz
1621 0517 02 ZR90-9/60Hz
1621 0517 02 ZT90-10/50Hz
1621 0517 02 ZR90-10/50Hz
1621 0517 02 ZT90-10.4/60Hz
1621 0517 02 ZR90-10.4/60Hz
2005 0686 3716 10 1 Plug
2010 0661 1000 32 1 Seal washer
2015 0686 3716 09 1 Plug
2020 0661 1000 31 1 Seal washer
2025 0686 4230 07 1 Plug
2030 9125 6303 00 1 Seal washer
2035 1621 6002 00 1 Level indicator
2040 0603 4104 03 1 Hexagon nipple
2045 1619 6153 04 1 Ball valve
2050 9000 0243 00 1 Hose nipple
2055 0075 4005 51 AR Hose
2060 0347 6105 00 1 Hose clip
2065 1614 8747 00 1 Oil filter
2070 1621 4024 00 1 Nipple
2075 1621 0383 00 1 Valve
2080 1202 5180 00 1 Spring
2085 0335 2120 00 1 Circlip
2090 1621 0137 00 1 Plug
2095 0661 1000 29 1 Seal washer
2100 0581 2024 40 2 Pipe coupling
2105 1621 0512 00 1 Pipe
2110 1621 0527 00 1 Cover
2115 0211 1325 00 3 Cap screw
2120 0663 2135 00 2 O-ring
2125 1202 6255 01 1 Filter element
2130 1621 0975 00 1 Demister
3005 1 Service stage
1616 6722 82 ZT/R55-75 Epoxy
1616 6722 82 ZT/R90 Epoxy
Ref. Part number Qty Name Remarks
1616 6722 81 ZT/R55-75
1616 6722 81 ZT/R90
1616 6731 00 • 1 Diaphragm
3010 0147 1402 03 2 Bolt
3015 0147 1408 03 2 Bolt
3020 0101 1951 50 1 Pin
3025 0663 3132 00 2 O-ring
3030 0663 2107 89 1 O-ring
3035 0663 2103 20 1 O-ring
3040 0686 3716 07 2 Plug
3045 0661 1000 30 2 Seal washer
3050 0686 3716 01 2 Plug
3055 0661 1000 25 2 Seal washer
3060 1 Service stage
1616 6770 82 ZT/R55-75 Epoxy
1616 5851 82 ZT/R90 Epoxy
1616 6770 81 ZT/R55-75
1616 5851 81 ZT/R90
• 1 Diaphragm
1616 5874 00 ZT/R90
3065 0147 1368 03 4 Bolt
3070 0147 1363 03 2 Bolt
3075 0663 2103 19 1 O-ring
3080 0101 1951 50 1 Pin
3085 0663 2107 89 1 O-ring
3090 1 O-ring
0663 3132 00 ZT/R55-75
3095 1 Plug
0686 3716 07 ZT/R55-75
3100 1 Seal washer
0661 1000 30 ZT/R55-75
3105 1 Plug
0686 3716 01 ZT/R55-75
3110 1 Seal washer
0661 1000 25 ZT/R55-75
3115 1 Hose assembly
1621 0550 00 ZT/R90
3120 2 Bolt
0147 1325 03 ZT/R90
3125 1 O-ring
0663 2133 00 ZT/R90
3130 2 Bolt
0147 1323 03 ZT/R90
3135 1 O-ring
0663 2133 00 ZT/R90
3140 1 Pipe
1621 3548 00 ZT/R90
3145 1 Pipe coupling
0580 2404 00 ZT/R90
3150 1 Coupling
0580 0013 32 ZT/R90
3155 1 Seal washer
0661 1000 25 ZT/R90
3160 1 Plug
0686 3716 07 ZT/R90
3165 1 Seal washer
0661 1000 30 ZT/R90
3170 2 Plug
0686 3716 01 ZT/R90
3175 2 Seal washer
0661 1000 25 ZT/R90
4005 1 Gear wheel
1621 0523 04 ZT55-10.4/60Hz,
ZR55-10.4/60Hz
1621 0523 08 ZT55-10/50Hz,
ZR55-10/50Hz
6 2930 1343 02
Parts list
1
61694_01
2930 1343 02 7
Parts list
Gear casing and drive gear 1
Ref. Part number Qty Name Remarks
1621 0523 09 ZT55-7.25/60Hz,
ZR55-7.25/60Hz
1621 0523 12 ZT55-7.5/50Hz,
ZR55-7.5/50Hz
1621 0523 10 ZT55-8.6/50Hz,
ZR55-8.6/50Hz
1621 0523 06 ZT55-9/60Hz,
ZR55-9/60Hz
1621 0523 12 ZT75-10.4/60Hz,
ZR75-10.4/60Hz
1621 0523 15 ZT75-10/50Hz,
ZR75-10/50Hz
1621 0523 16 ZT75-7.25/60Hz,
ZR75-7.25/60Hz
1621 0523 18 ZT75-7.5/50Hz,
ZR75-7.5/50Hz
1621 0523 17 ZT75-8.6/50Hz,
ZR75-8.6/50Hz
1621 0523 13 ZT75-9/60Hz,
ZR75-9/60Hz
1621 0523 16 ZT90-10.4/60Hz,
ZR90-10.4/60Hz
1621 0523 19 ZT90-10/50Hz,
ZR90-10/50Hz
1621 0523 21 ZT90-7.25/60Hz,
ZR90-7.25/60Hz
1621 0523 23 ZT90-7.5/50Hz,
ZR90-7.5/50Hz
1621 0523 21 ZT90-8.6/50Hz,
ZR90-8.6/50Hz
1621 0523 17 ZT90-9/60Hz,
ZR90-9/60Hz
4010 0211 1325 00 8 Cap screw
4015 1 Gear wheel
1621 0524 26 ZT55-10.4/60Hz,
ZR55-10.4/60Hz
1621 0524 21 ZT55-10/50Hz,
ZR55-10/50Hz
1621 0524 21 ZT55-7.25/60Hz,
ZR55-7.25/60Hz
1621 0524 17 ZT55-7.5/50Hz,
ZR55-7.5/50Hz
1621 0524 19 ZT55-8.6/50Hz,
ZR55-8.6/50Hz
1621 0524 24 ZT55-9/60Hz,
ZR55-9/60Hz
1621 0524 15 ZT75-10.4/60Hz,
ZR75-10.4/60Hz
1621 0524 11 ZT75-10/50Hz,
ZR75-10/50Hz
1621 0524 12 ZT75-7.25/60Hz,
ZR75-7.25/60Hz
1621 0524 09 ZT75-7.5/50Hz,
ZR75-7.5/50Hz
1621 0524 10 ZT75-8.6/50Hz,
ZR75-8.6/50Hz
1621 0524 14 ZT75-9/60Hz,
ZR75-9/60Hz
1621 0524 10 ZT90-10.4/60Hz,
ZR90-10.4/60Hz
1621 0524 07 ZT90-10/50Hz,
ZR90-10/50Hz
1621 0524 07 ZT90-7.25/60Hz,
ZR90-7.25/60Hz
1621 0524 05 ZT90-7.5/50Hz,
ZR90-7.5/50Hz
Ref. Part number Qty Name Remarks
1621 0524 06 ZT90-8.6/50Hz,
ZR90-8.6/50Hz
1621 0524 09 ZT90-9/60Hz,
ZR90-9/60Hz
4020 1 Gear wheel
1621 0525 14 ZT55-10.4/60Hz,
ZR55-10.4/60Hz
1621 0525 11 ZT55-10/50Hz,
ZR55-10/50Hz
1621 0525 09 ZT55-7.25/60Hz,
ZR55-7.25/60Hz
1621 0525 07 ZT55-7.5/50Hz,
ZR55-7.5/50Hz
1621 0525 09 ZT55-8.6/50Hz,
ZR55-8.6/50Hz
1621 0525 12 ZT55-9/60Hz,
ZR55-9/60Hz
1621 0525 09 ZT75-10.4/60Hz,
ZR75-10.4/60Hz
1621 0525 07 ZT75-10/50Hz,
ZR75-10/50Hz
1621 0525 04 ZT75-7.25/60Hz,
ZR75-7.25/60Hz
1621 0525 03 ZT75-7.5/50Hz,
ZR75-7.5/50Hz
1621 0525 04 ZT75-8.6/50Hz,
ZR75-8.6/50Hz
1621 0525 08 ZT75-9/60Hz,
ZR75-9/60Hz
1621 0526 11 ZT90-10.4/60Hz,
ZR90-10.4/60Hz
1621 0526 08 ZT90-10/50Hz,
ZR90-10/50Hz
1621 0526 04 ZT90-7.25/60Hz,
ZR90-7.25/60Hz
1621 0526 02 ZT90-7.5/50Hz,
ZR90-7.5/50Hz
1621 0526 05 ZT90-8.6/50Hz,
ZR90-8.6/50Hz
1621 0526 10 ZT90-9/60Hz,
ZR90-9/60Hz
5005 1621 0475 00 1 Drive shaft
5010 0502 1092 01 1 Bearing
5015 1621 0469 00 1 Bushing
5020 0663 2110 03 1 O-ring
5025 1621 0511 00 1 Coupling half
5030 0337 8300 00 1 Parallel key
5035 1621 0468 00 1 Spacer
5040 0147 1407 03 1 Bolt
5045 0502 2111 00 1 Ball bearing
5050 1621 0476 00 1 Seal retainer
5055 0147 1362 03 4 Bolt
5060 0663 6147 00 1 O-ring
5065 1616 5448 00 1 Seal ring
6005 0335 2169 00 1 Int.circlip
6010 1621 1138 00 1 Ring
6015 1621 0513 00 1 Pump element
6020 1621 0515 00 1 Eccentric ring
6025 1621 0518 00 1 Key
6030 1621 0514 00 1 Cover
6035 0147 1362 03 3 Bolt
6040 0663 6143 00 1 O-ring
6045 1621 0516 00 1 Pipe
6050 0663 9742 00 1 O-ring
6055 0101 1951 35 1 Parr. pin
8 2930 1343 02
Parts list
2
61645_08
2930 1343 02 9
Parts list
Motor, frame and coupling - ZT 2
Ref. Part number Qty Name Remarks
1150 1 Motor
1080 4113 61 ZT55 - 200V/50Hz-IEC
1080 4113 62 ZT55 - 230V/50Hz-IEC
1080 4113 63 ZT55 - 400V/50Hz-IEC
1080 4113 65 ZT55 - 500V/50Hz-IEC
1080 4113 86 ZT55 - 200V/60Hz-IEC
1080 4113 76 ZT55 - 200V/60Hz-CSA/UL
1080 4113 85 ZT55 - 220-230V/60Hz-IEC
1080 4113 75 ZT55 - 220-230V/
60Hz-CSA/UL
1080 4113 88 ZT55 - 380V/60Hz-IEC
1080 4113 78 ZT55 - 380V/60Hz-CSA/UL
1080 4113 85 ZT55 - 440-460V/60Hz-IEC
1080 4113 75 ZT55 - 440-460V/
60Hz-CSA/UL
1080 4113 90 ZT55 - 575V/60Hz-IEC
1080 4113 80 ZT55 - 575V/60Hz-CSA/UL
1080 4114 61 ZT75 - 200V/50Hz-IEC
1080 4114 62 ZT75 - 230V/50Hz-IEC
1080 4114 63 ZT75 - 400V/50Hz-IEC
1080 4114 65 ZT75 - 500V/50Hz-IEC
1080 4114 86 ZT75 - 200V/60Hz-IEC
1080 4114 76 ZT75 - 200V/60Hz-CSA/UL
1080 4114 85 ZT75 - 220-230V/60Hz-IEC
1080 4114 75 ZT75 - 220-230V/
60Hz-CSA/UL
1080 4114 88 ZT75 - 380V/60Hz-IEC
1080 4114 78 ZT75 - 380V/60Hz-CSA/UL
1080 4114 85 ZT75 - 440-460V/60Hz-IEC
1080 4114 75 ZT75 - 440-460V/
60Hz-CSA/UL
1080 4114 90 ZT75 - 575V/60Hz-IEC
1080 4114 80 ZT75 - 575V/60Hz-CSA/UL
1080 4162 61 ZT90 - 200V/50Hz-IEC
1080 4162 62 ZT90 - 230V/50Hz-IEC
1080 4162 63 ZT90 - 400V/50Hz-IEC
1080 4162 65 ZT90 - 500V/50Hz-IEC
1080 4162 86 ZT90 - 200V/60Hz-IEC
1080 4162 76 ZT90 - 200V/60Hz-CSA/UL
1080 4162 85 ZT90 - 220-230V/60Hz-IEC
1080 4162 75 ZT90 - 220-230V/
60Hz-CSA/UL
1080 4162 88 ZT90 - 380V/60Hz-IEC
1080 4162 78 ZT90 - 380V/60Hz-CSA/UL
1080 4162 85 ZT90 - 440-460V/60Hz-IEC
1080 4162 75 ZT90 - 440-460V/
60Hz-CSA/UL
Ref. Part number Qty Name Remarks
1080 4162 90 ZT90 - 575V/60Hz-IEC
1080 4162 80 ZT90 - 575V/60Hz-CSA/UL
1160 Bolt
0147 1478 03 8 IEC
0147 1550 03 4 CSA/UL
2005 1 Frame
1621 0792 00 Pack
1621 1199 00 Full feature
3005 1 Coupling housing
1621 0521 00 50Hz, 60Hz IEC
1621 0520 00 60Hz CSA/UL
3010 0147 1402 03 8 Bolt
3015 0663 6176 00 1 O-ring
3020 1621 0522 00 1 Grating
3025 1619 6032 00 1 Nipple
4045 1 Coupling half Motor side
1621 0519 01 ZT55 50Hz, 60Hz IEC
1621 0519 02 ZT75 50Hz, 60Hz IEC
1621 0519 03 ZT90 50Hz, 60Hz IEC
1621 0519 04 ZT55 60Hz CSA/UL
1621 0519 04 ZT75 60Hz CSA/UL
1621 0519 05 ZT90 60Hz CSA/UL
4050 0196 1356 00 • 1 Set screw
4055 1621 0204 00 8 Rubber element
5005 1619 5189 01 2 Rubber buffer
5010 0147 1400 03 4 Bolt
5015 0301 2358 00 4 Washer
5020 0147 1480 03 2 Bolt
5050 1 Motor support
1621 0572 02 ZT55
1621 0572 01 ZT75-90
5055 0147 1401 03 4 Bolt
5060 0301 2358 00 4 Washer
5065 1619 5189 01 1 Rubber buffer
5070 0147 1400 03 2 Bolt
5075 0301 2358 00 2 Washer
5100 1621 0565 00 1 Stud
5105 0266 2114 00 1 Nut
5110 0301 2378 00 1 Washer
6005 1621 0562 00 1 Air filter
1613 9503 00 • 1 Air filter element
6010 0147 1360 03 4 Bolt
6015 0347 6120 00 1 Hose clip
6020 0347 6100 45 1 Hose clamp
6025 1621 0745 00 1 Hose
10 2930 1343 02
Parts list
3
61647_08
2930 1343 02 11
Parts list
Motor, frame and coupling - ZR 3
Ref. Part number Qty Name Remarks
1080 4162 90 ZR90 - 575V/60Hz-IEC
1080 4162 80 ZR90 - 575V/60Hz-CSA/UL
1160 Bolt
0147 1478 03 8 IEC
0147 1550 03 4 CSA/UL
2005 1621 0798 00 1 Frame
3005 1 Coupling housing
1621 0521 00 50Hz, 60Hz IEC
1621 0520 00 60Hz CSA/UL
3010 0147 1402 03 8 Bolt
3015 0663 6176 00 1 O-ring
3020 1621 0522 00 1 Grating
3025 1619 6032 00 1 Nipple
4045 1 Coupling half Motor side
1621 0519 01 ZR55 50Hz, 60Hz IEC
1621 0519 02 ZR75 50Hz, 60Hz IEC
1621 0519 03 ZR90 50Hz, 60Hz IEC
1621 0519 04 ZR55 60Hz CSA/UL
1621 0519 04 ZR75 60Hz CSA/UL
1621 0519 05 ZR90 60Hz CSA/UL
4050 0196 1356 00 • 1 Set screw
4055 1621 0204 00 8 Rubber element
5005 1619 5189 01 2 Rubber buffer
5010 0147 1400 03 4 Bolt
5015 0301 2358 00 4 Washer
5020 1621 0566 00 2 Spacer
5025 0147 1489 03 2 Bolt
5050 1 Motor support
1621 0572 04 ZR55
1621 0572 03 ZR75-90
5055 0147 1401 03 4 Bolt
5060 0301 2358 00 4 Washer
5065 1619 5189 01 1 Rubber buffer
5070 0147 1400 03 2 Bolt
5075 0301 2358 00 2 Washer
5100 1621 0565 00 1 Stud
5105 0266 2114 00 1 Nut
5110 0301 2378 00 1 Washer
6005 1621 0562 00 1 Air filter
1613 9503 00 • 1 Air filter element
6010 0147 1360 03 4 Bolt
6015 0347 6120 00 1 Hose clip
6020 0347 6100 45 1 Hose clamp
6025 1621 0563 00 1 Hose
Ref. Part number Qty Name Remarks
1150 1 Motor
1080 4113 61 ZR55 - 200V/50Hz-IEC
1080 4113 62 ZR55 - 230V/50Hz-IEC
1080 4113 63 ZR55 - 400V/50Hz-IEC
1080 4113 65 ZR55 - 500V/50Hz-IEC
1080 4113 86 ZR55 - 200V/60Hz-IEC
1080 4113 76 ZR55 - 200V/60Hz-CSA/UL
1080 4113 85 ZR55 - 220-230V/60Hz-IEC
1080 4113 75 ZR55 - 220-230V/
60Hz-CSA/UL
1080 4113 88 ZR55 - 380V/60Hz-IEC
1080 4113 78 ZR55 - 380V/60Hz-CSA/UL
1080 4113 85 ZR55 - 440-460V/60Hz-IEC
1080 4113 75 ZR55 - 440-460V/
60Hz-CSA/UL
1080 4113 90 ZR55 - 575V/60Hz-IEC
1080 4113 80 ZR55 - 575V/60Hz-CSA/UL
1080 4114 61 ZR75 - 200V/50Hz-IEC
1080 4114 62 ZR75 - 230V/50Hz-IEC
1080 4114 63 ZR75 - 400V/50Hz-IEC
1080 4114 65 ZR75 - 500V/50Hz-IEC
1080 4114 86 ZR75 - 200V/60Hz-IEC
1080 4114 76 ZR75 - 200V/60Hz-CSA/UL
1080 4114 85 ZR75 - 220-230V/60Hz-IEC
1080 4114 75 ZR75 - 220-230V/
60Hz-CSA/UL
1080 4114 88 ZR75 - 380V/60Hz-IEC
1080 4114 78 ZR75 - 380V/60Hz-CSA/UL
1080 4114 85 ZR75 - 440-460V/60Hz-IEC
1080 4114 75 ZR75 - 440-460V/
60Hz-CSA/UL
1080 4114 90 ZR75 - 575V/60Hz-IEC
1080 4114 80 ZR75 - 575V/60Hz-CSA/UL
1080 4162 61 ZR90 - 200V/50Hz-IEC
1080 4162 62 ZR90 - 230V/50Hz-IEC
1080 4162 63 ZR90 - 400V/50Hz-IEC
1080 4162 65 ZR90 - 500V/50Hz-IEC
1080 4162 86 ZR90 - 200V/60Hz-IEC
1080 4162 76 ZR90 - 200V/60Hz-CSA/UL
1080 4162 85 ZR90 - 220-230V/60Hz-IEC
1080 4162 75 ZR90 - 220-230V/
60Hz-CSA/UL
1080 4162 88 ZR90 - 380V/60Hz-IEC
1080 4162 78 ZR90 - 380V/60Hz-CSA/UL
1080 4162 85 ZR90 - 440-460V/60Hz-IEC
1080 4162 75 ZR90 - 440-460V/
60Hz-CSA/UL
12 2930 1343 02
Parts list
4
61650_10
2930 1343 02 13
Parts list
Mountings on frame - ZT 4
Ref. Part number Qty Name Remarks
1005 1621 0780 00 1 Support
1010 0147 1362 03 6 Bolt
1011 0266 2111 00 2 Nut
1015 1621 0756 00 1 Support
1020 0147 1362 03 6 Bolt
1021 0301 2344 00 4 Washer
1025 1621 0608 00 1 Support
1030 0147 1400 03 4 Bolt
1035 1621 0822 00 1 Support
1040 0147 1400 03 4 Bolt
1041 0301 2358 00 3 Washer
1045 1621 0823 00 1 Support
1050 0147 1400 03 4 Bolt
1055 0301 2358 00 3 Washer
1060 1621 0821 00 1 Plate
1065 1621 0818 00 1 Support
1070 0147 1362 03 3 Bolt
1075 0301 2344 00 3 Washer
Ref. Part number Qty Name Remarks
1080 1621 0820 00 2 Strip
1085 0147 1362 03 2 Bolt
1090 0301 2344 00 2 Washer
1095 0147 1400 03 4 Bolt
1100 0301 2358 00 4 Washer
1105 1621 0819 00 1 Support
1110 0147 1362 03 3 Bolt
1115 0301 2344 00 3 Washer
1120 1621 0820 00 2 Strip
1125 0147 1362 03 2 Bolt
1130 0301 2344 00 2 Washer
1135 0147 1400 03 4 Bolt
1140 0301 2358 00 4 Washer
1145 1621 0815 00 2 Buffer
1150 1621 0817 00 2 Spacer
1155 1621 0816 00 2 Washer
1160 0147 1489 03 2 Bolt
14 2930 1343 02
Parts list
5
61622_02
2930 1343 02 15
Parts list
Air inlet 5
Ref. Part number Qty Name Remarks
1005 1621 0531 00 1 Valve housing
1010 0663 2156 00 1 O-ring
1015 0147 1403 03 4 Bolt
1020 0301 2358 00 2 Washer
1025 1621 0530 00 1 Connection
1030 0663 2106 10 1 O-ring
1035 0147 1364 03 6 Bolt
1040 0301 2344 00 6 Washer
1045 1614 6744 00 1 Valve cover
1050 0147 1364 03 8 Bolt
1055 0301 2344 00 8 Washer
1060 1613 5722 00 1 Valve base
1065 1613 4036 00 1 Membrane
1070 1613 5723 00 1 Gasket
1075 0147 1331 03 2 Bolt
1080 0301 2335 00 2 Washer
1085 1615 3695 00 1 Diaphragm
1090 0500 4510 04 1 Bearing
1095 1614 6745 00 1 Shaft
Ref. Part number Qty Name Remarks
1100 1614 6746 00 1 Valve
1105 0335 1136 00 1 Ext.circlip
1110 1614 6747 00 1 Spring
1115 0335 2101 21 1 Circlips
1120 2250 5629 00 1 Bearing
1125 0653 1100 00 1 Flat gasket
1130 0266 2114 00 1 Nut
1135 0147 1479 03 1 Bolt
1140 1621 0082 00 1 Muffler
1145 0686 3716 01 1 Plug
1150 0661 1000 25 1 Seal washer
1155 0580 0013 32 1 Coupling
1160 0661 1000 25 1 Seal washer
1165 1621 0529 00 1 Pipe
1170 0580 0014 35 1 Pipe coupling
1175 0661 1000 24 1 Seal washer
1180 0686 3716 30 1 Plug
1185 0661 1000 26 1 Seal washer
2020 1089 0428 14 1 Solenoid valve
16 2930 1343 02
Parts list
6
61649_02
2930 1343 02 17
Parts list
Air flow - ZT 6
Ref. Part number Qty Name Remarks
1005 1621 0557 00 1 Silencer housing
1010 0147 1402 03 4 Bolt
1015 0663 2106 48 1 O-ring
1020 1621 0558 00 1 Compensator
1025 0147 1403 03 3 Bolt
1030 0663 2107 50 1 O-ring
1035 0147 1401 03 4 Bolt
1040 0663 2107 25 1 O-ring
1045 1621 0560 00 1 Connection
1050 0663 2107 92 1 O-ring
1055 0663 2107 97 1 O-ring
1060 0211 1402 03 4 Cap screw
1065 1621 0559 00 1 Compensator
1070 0147 1401 03 3 Bolt
1075 0663 2107 15 1 O-ring
1080 0147 1403 03 3 Bolt
1085 0663 3142 00 1 O-ring
1090 1621 0536 00 1 Glass wool
1095 1621 3810 03 1 Insert
1100 0663 3138 00 2 O-ring
1110 1621 0538 00 1 Valve seat
1115 0663 2106 15 1 O-ring
1120 0147 1363 03 3 Bolt
1125 1621 3014 00 1 Spring
1130 1614 7368 00 1 Check valve
1140 0663 2108 26 1 O-ring
1145 0663 2106 58 1 O-ring
1150 0147 1402 03 5 Bolt
1155 0663 2107 80 1 O-ring
1160 0147 1383 03 1 Bolt
1165 0663 9870 00 1 O-ring
1170 1621 3238 00 1 Spacer
1175 1614 6482 00 1 Swirler
1180 1621 3487 00 1 Impinger
1185 1621 3237 00 1 Plate
1190 0147 1962 65 4 Bolt
1195 1621 3236 00 4 Rod
1200 1621 3229 00 1 Valve base
1205 0663 7555 00 1 O-ring
Ref. Part number Qty Name Remarks
1210 0147 1402 03 4 Bolt
1215 0686 3716 01 1 Plug
1220 0661 1000 25 1 Seal washer
1621 0556 80 1 Valve housing
2005 1621 0556 00 • 1 Valve housing
2010 0500 4510 11 • 1 Bearing
3005 0830 1008 22 1 Safety valve
3010 0661 1000 31 1 Seal washer
3015 1 Safety valve
0830 1008 06 ZT55 7.25/60Hz
ZT55 7.5/50Hz
ZT55 8.6/50Hz
ZT75 7.25/60Hz
ZT75 7.5/50Hz
ZT75 8.6/50Hz
ZT90 7.5/50Hz
ZT90 8.6/50Hz
0830 1008 11 ZT55 10.4/60Hz
ZT55 10/50Hz
ZT55 9/60Hz
ZT75 10.4/60Hz
ZT75 10/50Hz
ZT75 9/60Hz
ZT90 10.4/60Hz
ZT90 10/50Hz
ZT90 7.25/60Hz
ZT90 9/60Hz
3020 0661 1000 29 1 Seal washer
4005 1621 0548 00 1 Compensator
4010 0663 2106 99 1 O-ring
4015 0147 1401 03 4 Bolt
4020 0147 1401 03 2 Bolt
4025 0147 1413 03 1 Bolt
4030 0663 2107 79 1 O-ring
4035 1621 0555 00 1 Connection
4040 0663 2106 58 1 O-ring
4045 0147 1402 03 4 Bolt
4050 0686 3716 01 2 Plug
4055 0653 1070 00 2 Flat gasket
18 2930 1343 02
Parts list
7
61952_02
2930 1343 02 19
Parts list
Air flow - ZT Full feature 7
Ref. Part number Qty Name Remarks
1005 0663 3142 00 1 O-ring
1006 0147 1402 03 4 Bolt
1007 1621 1290 00 1 Pipe
1050 0663 3143 00 1 O-ring
1055 0147 1476 03 2 Bolt
1060 1613 9370 83 1 Water separator
0663 2111 27 • 1 O-ring
0663 2133 00 • 1 O-ring
0663 6136 00 • 1 O-ring
0663 6147 00 • 1 O-ring
1065 0663 3143 00 1 O-ring
1070 1621 0896 00 1 Plate
1075 0663 2139 00 1 O-ring
1080 1621 0897 00 1 Flange
1085 0211 1477 03 2 Cap screw
Ref. Part number Qty Name Remarks
1090 0211 1403 03 2 Cap screw
1110 0663 2106 14 1 O-ring
1115 1621 1271 00 1 Pipe
1120 0147 1403 03 4 Bolt
1125 0663 2106 14 1 O-ring
1130 0147 1402 03 4 Bolt
1135 1621 1272 00 1 Pipe
1140 0663 2106 14 1 O-ring
1145 0147 1402 03 4 Bolt
1150 0147 1367 03 2 Bolt
1155 0266 2111 00 2 Nut
1160 0663 2106 14 1 O-ring
1165 0147 1404 03 4 Bolt
1170 0266 2112 00 4 Nut
20 2930 1343 02
Parts list
8
61695_02
2930 1343 02 21
Parts list
Air flow - ZR 8
Ref. Part number Qty Name Remarks
1005 1621 0540 00 1 Pipe
1010 0663 2107 92 1 O-ring
1015 0686 3716 01 1 Plug
1020 0653 1070 00 1 Flat gasket
1025 0211 1405 03 4 Cap screw
1026 0301 2358 00 4 Washer
1030 0663 2107 97 1 O-ring
1035 1621 0539 00 1 Silencer
1040 0663 2107 92 1 O-ring
1045 0147 1375 03 3 Bolt
1050 0663 3138 00 2 O-ring
1055 1621 3810 03 1 Insert
1060 1621 0536 00 1 Glass wool
1070 0663 2107 75 1 O-ring
1075 0147 1402 03 2 Bolt
1080 1621 0538 00 1 Valve seat
1085 0147 1363 03 3 Bolt
1090 0663 2106 15 1 O-ring
1095 1621 3014 00 1 Spring
1100 1614 7368 00 1 Check valve
1110 0147 1417 03 4 Bolt
1115 0663 2107 80 1 O-ring
1120 1621 3071 00 1 Cover
1125 0663 2107 86 1 O-ring
1130 0147 1362 03 2 Bolt
1621 0537 80 1 Valve housing
2005 1621 0537 00 • 1 Valve housing
2010 0500 4510 11 • 1 Bearing
3005 1621 0532 00 1 Pipe
3010 0663 2106 99 1 O-ring
3015 0147 1402 03 2 Bolt
3020 0147 1413 03 2 Bolt
3025 0663 2107 25 1 O-ring
3030 0147 1363 03 2 Bolt
Ref. Part number Qty Name Remarks
3035 0147 1371 03 2 Bolt
3040 1621 0534 00 1 Pipe
3045 1621 0533 00 1 Pipe end
3050 0108 1196 00 1 Spring pin
3055 0663 2148 00 2 O-ring
3060 0147 1404 03 4 Bolt
3065 0663 2148 00 1 O-ring
3070 0147 1402 03 4 Bolt
3075 0686 3716 01 1 Plug
3080 0661 1000 25 1 Seal washer
3085 0686 3716 30 1 Plug
3090 0661 1000 26 1 Seal washer
4005 0830 1008 22 1 Safety valve
4010 0661 1000 31 1 Seal washer
4015 1 Safety valve
0830 1008 06 ZR55 7.25/60Hz
ZR55 7.5/50Hz
ZR55 8.6/50Hz
ZR75 7.25/60Hz
ZR75 7.5/50Hz
ZR75 8.6/50Hz
ZR90 7.5/50Hz
ZR90 8.6/50Hz
0830 1008 11 ZR55 10/50Hz
ZR55 10.4/60Hz
ZR55 9/60Hz
ZR75 10.4/60Hz
ZR75 10/50Hz
ZR75 9/60Hz
ZR90 10.4/60Hz
ZR90 10/50Hz
ZR90 7.25/60Hz
ZR90 9/60Hz
4020 0661 1000 29 1 Seal washer
22 2930 1343 02
Parts list
9
61672_02
2930 1343 02 23
Parts list
Air outlet - ZT Pack 9
Ref. Part number Qty Name Remarks
1005 1621 0600 00 1 Pipe
1010 0663 3142 00 1 O-ring
1015 0147 1402 03 4 Bolt
1020 1613 9370 83 1 Water separator
0663 2111 27 • 1 O-ring
0663 2133 00 • 1 O-ring
0663 6136 00 • 1 O-ring
0663 6147 00 • 1 O-ring
1025 0147 1477 03 2 Bolt
1030 0663 3143 00 1 O-ring
1040 1621 0601 00 1 Pipe
1045 0147 1476 03 2 Bolt
1050 0663 3143 00 1 O-ring
1055 1 Compensator
1621 3003 00 DIN
1621 3004 00 ANSI
Ref. Part number Qty Name Remarks
1060 0147 1481 03 4 Bolt
1065 0266 2114 00 4 Nut
1085 0686 3716 01 1 Plug
1090 0661 1000 25 1 Seal washer
1095 0686 3716 02 1 Plug
1100 0661 1000 27 1 Seal washer
1110 1621 0722 00 1 Support
1115 0147 1362 03 2 Bolt
1120 0301 2344 00 2 Washer
1125 0266 2111 00 2 Nut
1130 1621 0779 00 1 Support
1135 0147 1362 03 2 Bolt
1140 0266 2111 00 2 Nut
1145 0147 1474 03 2 Bolt
24 2930 1343 02
Parts list
10 Air outlet - ZT Full feature
Ref. Part number Qty Name Remarks
1020 1 Compensator
1621 3003 00 DIN
1621 3004 00 ANSI
1025 0147 1480 03 4 Bolt
1030 0266 2114 00 4 Nut
1040 1621 1251 00 1 Pipe
1045 0147 1480 03 4 Bolt
61956_02
Ref. Part number Qty Name Remarks
1050 0266 2114 00 4 Nut
1055 0663 3142 00 1 O-ring
1060 1621 0722 00 1 Support
1065 0147 1362 03 2 Bolt
1070 0301 2344 00 2 Washer
1075 0266 2111 00 2 Nut
2930 1343 02 25
Parts list
Air outlet - ZT Full feature - Regeneration air 11
Ref. Part number Qty Name Remarks
1005 0661 1000 30 1 Seal washer
1010 0580 0220 00 1 Straight coupling
1015 1621 0908 00 1 Pipe
1020 0580 0220 00 1 Straight coupling
1025 0661 1000 30 1 Seal washer
1030 1619 6153 06 1 Ball valve
1035 0661 1000 30 1 Seal washer
1040 0580 0220 00 1 Straight coupling
1045 1621 0908 00 1 Pipe
1050 0580 0220 00 1 Straight coupling
1055 0661 1000 30 1 Seal washer
2005 0663 2107 86 1 O-ring
Ref. Part number Qty Name Remarks
2010 1621 1283 00 1 Pipe assy 1-2)
1621 1279 00 • 1 Pipe
2015 0147 1363 03 2 Bolt
2020 0663 2108 08 1 O-ring
2030 0147 1402 03 2 Bolt
1-2) Lined with / Bekleed met / Beklädd med / Ausgekleidet
mit / Garnir de / Rivestido de / Allineato con / Foret
med / Revestido com / Kledd med / Vuorattu :
1) Rockwool Lapinus Insulation type 810 D 48mm th
30mm self-adhesive
2) Adhesive alu-tape Type MACFOIL AF 118 ( MACTAC)
61955_02
26 2930 1343 02
Parts list
12 Air outlet ZR - Full feature
Ref. Part number Qty Name Remarks
1005 1621 1266 00 1 Pipe
1006 0663 3142 00 1 O-ring
1008 0147 1403 03 4 Bolt
1009 0266 2212 00 4 Nut
1020 1 Compensator
1621 3003 00 DIN
1621 3004 00 ANSI
61957_02
Ref. Part number Qty Name Remarks
1025 0147 1480 03 4 Bolt
1030 0266 2114 00 4 Nut
1035 1621 1288 00 1 Support
2930 1343 02 27
Parts list
Air outlet - ZR Full feature - Regeneration air 13
Ref. Part number Qty Name Remarks
1005 1621 0875 00 1 Pipe
1010 0663 2144 00 1 O-ring
1015 0147 1363 03 4 Bolt
1020 0663 6136 00 1 O-ring
1025 1621 0882 00 1 Pipe
1030 0147 1364 03 4 Bolt
1035 0663 3142 00 1 O-ring
1040 1621 0881 00 1 Pipe
1045 0147 1404 03 4 Bolt
1050 0266 2112 00 4 Nut
1055 0147 1402 03 2 Bolt
2005 1621 0885 00 1 Pipe assy 1, 2)
1621 0880 00 • 1 Pipe
2010 0663 2107 86 1 O-ring
2015 0147 1363 03 2 Bolt
61958_02
Ref. Part number Qty Name Remarks
2020 1621 1284 00 1 Pipe assy 1, 2)
1621 1282 00 • 1 Pipe
2025 0663 3142 00 1 O-ring
2030 0147 1404 03 4 Bolt
2035 0266 2112 00 4 Nut
2045 0663 2108 08 1 O-ring
2050 0147 1402 03 2 Bolt
1-2) Lined with / Bekleed met / Beklädd med / Ausgekleidet
mit / Garnir de / Rivestido de / Allineato con / Foret
med / Revestido com / Kledd med /
Vuorattu :
1) Rockwool Lapinus Insulation type 810 D 48mm th
30mm self-adhesive
2) Adhesive alu-tape Type MACFOIL AF 118 ( MACTAC)
28 2930 1343 02
Parts list
14
61665_04
2930 1343 02 29
Parts list
Coolers - ZT 14
Ref. Part number Qty Name Remarks
1005 0686 3716 07 2 Plug
1010 0661 1000 30 2 Seal washer
1015 0147 1402 03 2 Bolt
2005 1621 0713 00 1 Fan cowl
2010 1621 0715 00 1 Plate
2020 1619 2766 00 10 Bolt
2025 1621 1019 00 AR Seal
2030 1621 0781 00 2 Plate
2035 0147 1360 03 6 Bolt
2045 1621 0751 01 1 Cooler
2050 0147 1360 03 6 Bolt
2055 0301 2344 00 6 Washer
2060 1621 0757 00 1 Seal trip
2065 1621 0751 02 1 Cooler
2070 0147 1360 03 6 Bolt
2075 0301 2344 00 6 Washer
2080 1621 0805 00 1 Plate
2085 1202 7555 00 AR Seal
2090 0147 1360 03 2 Bolt
2095 0301 2344 00 2 Washer
2100 0266 2111 00 2 Nut
2125 0147 1413 03 2 Bolt
2130 0663 3142 00 1 O-ring
2135 0147 1413 03 4 Bolt
2140 1621 0609 00 1 Plate
2145 0147 1360 03 2 Bolt
2150 0301 2344 00 4 Washer
2155 0266 2111 00 2 Nut
2160 1621 0732 00 1 Oil cooler
2165 0686 3716 01 1 Plug
2170 0661 1000 25 1 Seal washer
2175 0147 1360 03 4 Bolt
2180 0301 2344 00 4 Washer
2185 0686 3716 35 1 Plug
2190 0661 1000 29 1 Seal washer
1621 0731 80 1 Cooler
3005 1621 0730 00 • 1 Manifold
3010 1621 0731 00 • 1 Cooler
3015 0663 2107 97 • 6 O-ring
3020 0147 1362 03 • 7 Bolt
Ref. Part number Qty Name Remarks
4010 1 Fan assembly
1613 9488 08 ZT55 200V/50Hz
1613 9488 15 ZT55 200V/60Hz
1613 9488 11 ZT55 220-230V/60Hz
1613 9488 01 ZT55 230V/50Hz
1613 9488 11 ZT55 380V/60Hz
1613 9488 01 ZT55 400V/50Hz
1613 9488 11 ZT55 440-460V/60Hz
1613 9488 03 ZT55 500V/50Hz
1613 9488 12 ZT55 575V/60Hz
1613 9489 01 ZT75 200V/50Hz
1613 9489 13 ZT75 200V/60Hz
1613 9489 11 ZT75 220-230V/60Hz
1613 9489 02 ZT75 230V/50Hz
1613 9489 11 ZT75 380V/60Hz
1613 9489 02 ZT75 400V/50Hz
1613 9489 11 ZT75 440-460V/60Hz
1613 9489 04 ZT75 500V/50Hz
1613 9489 12 ZT75 575V/60Hz
1613 9489 01 ZT90 200V/50Hz
1613 9489 13 ZT90 200V/60Hz
1613 9489 11 ZT90 220-230V/60Hz
1613 9489 02 ZT90 230V/50Hz
1613 9489 11 ZT90 380V/60Hz
1613 9489 02 ZT90 400V/50Hz
1613 9489 11 ZT90 440-460V/60Hz
1613 9489 04 ZT90 500V/50Hz
1613 9489 12 ZT90 575V/60Hz
5005 0147 1329 03 4 Bolt
5010 0301 2335 00 4 Washer
5015 1621 0636 00 2 Stiffener
5020 1619 2766 00 8 Bolt
5025 0698 0153 00 1 Rubber ring
4 Silencing foam 1)
1) Lined with / Bekleed met / Beklädd med / Ausgekleidet
mit / Garnir de / Rivestido de / Allineato con / Foret
med / Revestido com / Kledd med / Vuorattu :
Foam : 0395 6001 67 (AR) 30 x 2040 x 1650 selfadhesive
30 2930 1343 02
Parts list
15
61699_04
2930 1343 02 31
Parts list
Coolers - ZR 15
Ref. Part number Qty Name Remarks
1005 0101 1951 53 2 Pin
1010 0147 1402 03 5 Bolt
2010 1 Cooler core
1621 0505 02 As
1621 0505 08 PED
2015 0663 2111 73 1 O-ring
2020 1 Cooler core
1621 0506 02 As
1621 0506 08 PED
2025 0663 2107 26 1 O-ring
2035 1621 0495 00 1 Water separator
2040 1621 0496 00 1 Gasket
2045 0147 1960 58 4 Bolt
2050 0301 2135 01 1 Washer
2055 1621 0497 00 1 Water separator
2060 0147 1960 58 4 Bolt
2065 0301 2135 01 1 Washer
2070 0663 2153 00 1 O-ring
2075 1621 0493 00 1 Seal ring
2080 0663 6156 00 2 O-ring
2085 0663 6156 00 1 O-ring
2090 1621 0494 00 1 Seal ring
2095 0663 2107 32 2 O-ring
2100 0101 1951 51 4 Pin
2105 1621 0528 00 4 Ring
2110 0147 1962 33 10 Bolt
2115 1079 9905 49 1 Label
1 Cooler shell
1621 0479 82 As
1621 0479 80 PED
3005 • 1 Cooler shell
1621 0479 02 As
1621 0479 08 PED
3010 • 1 Cover
1621 0480 02 As
1621 0480 08 PED
Ref. Part number Qty Name Remarks
3015 0663 2107 75 • 1 O-ring
3020 0147 1962 31 • 6 Bolt
3025 • 1 Cover
1621 0481 02 As
1621 0481 08 PED
3030 0663 2107 93 • 1 O-ring
3035 0147 1962 31 • 6 Bolt
3040 0686 3716 01 • 2 Plug
3045 0661 1000 25 • 2 Seal washer
3050 0686 3716 01 • 2 Plug
3055 0661 1000 25 • 2 Seal washer
3060 • 1 Flange
1621 3354 02 As
1621 3071 00 CE
3065 0663 2107 86 • 1 O-ring
3070 0147 1962 29 • 2 Bolt
3075 • 1 Flange
1621 3354 02 As
1621 3071 00 CE
3080 0663 2107 86 • 1 O-ring
3085 0147 1962 29 • 2 Bolt
1621 0487 82 1 Water separator
4005 1621 0487 02 • 1 Water separator
4045 1621 3330 02 • 1 Cover
4050 0663 2148 00 • 1 O-ring
4055 0147 1962 31 • 4 Bolt
4060 0686 3716 01 • 1 Plug
4065 0661 1000 25 • 1 Seal washer
4070 1621 0491 02 • 2 Cover
4075 1621 0498 00 • 2 Plate
4080 0147 1958 33 • 2 Hex. head screw
4085 0663 6147 00 • 2 O-ring
4090 0147 1962 30 • 8 Bolt
32 2930 1343 02
Parts list
16 Drain system - ZT Pack
Ref. Part number Qty Name Remarks
1005 0661 1000 27 1 Seal washer
1010 0580 0500 26 1 Male adapter
1015 0580 0525 06 1 Straight pipe coupling
1025 0661 1000 27 1 Seal washer
1030 0347 6104 00 1 Hose clamp
1035 0075 4005 56 AR Hose
1040 0347 6104 00 1 Hose clamp
1045 0571 0020 38 1 Hose nipple
1050 0661 1000 27 1 Seal washer
1055 8204 0940 34 1 Valve
1060 1503 2564 04 1 Nipple
1065 0661 1000 27 1 Seal washer
1070 0580 0500 26 1 Male adapter
1075 0580 0525 06 1 Straight pipe coupling
61651_06
Ref. Part number Qty Name Remarks
1085 0661 1000 27 1 Seal washer
1090 0347 6104 00 1 Hose clamp
1095 0075 4005 56 AR Hose
1100 0347 6104 00 1 Hose clamp
1105 0571 0020 38 1 Hose nipple
1110 0661 1000 27 1 Seal washer
1115 0686 3716 01 1 Plug
1120 0661 1000 25 1 Seal washer
1130 0686 3716 02 1 Plug
1135 0661 1000 27 1 Seal washer
2010 1621 0746 00 1 Cable
2020 2 Drain
1621 0789 00 230V/50Hz
1621 0791 00 115V/60Hz C, U
2930 1343 02 33
Parts list
Drain system - ZR Pack 17
Ref. Part number Qty Name Remarks
1005 0661 1000 27 1 Seal washer
1010 1621 0811 00 1 Nipple
1015 0663 2108 84 1 O-ring
1020 1621 0810 00 1 Connection
1025 1621 0828 00 1 Support
1030 0324 1154 00 4 Spacer
1035 0301 2335 00 4 Washer
1040 0147 1327 03 4 Bolt
1045 0347 6104 00 1 Hose clamp
1050 0075 4005 56 AR Hose
1055 0347 6104 00 1 Hose clamp
1060 0571 0020 38 1 Hose nipple
1065 0661 1000 27 1 Seal washer
1075 8204 0940 34 1 Valve
1080 1503 2564 04 1 Nipple
1085 0661 1000 27 1 Seal washer
Ref. Part number Qty Name Remarks
1090 1621 0811 00 1 Nipple
1095 0663 2108 84 1 O-ring
1100 1621 0810 00 1 Connection
1105 1621 0828 00 1 Support
1110 0324 1154 00 4 Spacer
1115 0301 2335 00 4 Washer
1120 0147 1327 03 4 Bolt
1125 0347 6104 00 1 Hose clamp
1130 0075 4005 56 AR Hose
1135 0347 6104 00 1 Hose clamp
1140 0571 0020 38 1 Hose nipple
1145 0661 1000 27 1 Seal washer
2010 1621 0746 00 1 Cable
2020 2 Drain
1621 0789 00 230V 50HZ
1621 0791 00 115V 60HZ CSA-UL
61652_06
34 2930 1343 02
Parts list
18 Oil system - ZT
Ref. Part number Qty Name Remarks
1005 1621 0574 00 1 Pipe
1010 0663 2135 00 1 O-ring
1015 0147 1402 03 2 Bolt
1020 0301 2358 00 2 Washer
1025 0663 2135 00 1 O-ring
1030 0147 1411 03 2 Bolt
1035 0301 2358 00 2 Washer
1040 1621 0575 00 1 Pipe
1045 0663 2135 00 1 O-ring
1050 0147 1411 03 2 Bolt
1055 0301 2358 00 2 Washer
1060 0663 2135 00 1 O-ring
1065 0147 1413 03 2 Bolt
61655_05
Ref. Part number Qty Name Remarks
1070 0301 2358 00 2 Washer
1075 0686 3716 01 1 Plug
1080 0661 1000 25 1 Seal washer
1085 1621 0576 00 1 Hose assembly
1090 0663 2135 00 1 O-ring
1095 0147 1363 03 2 Bolt
1100 1621 0890 00 1 Nipple
1105 0661 1000 30 1 Seal washer
1110 1621 0577 00 1 Hose assembly
1115 0663 2135 00 1 O-ring
1120 0147 1411 03 2 Bolt
1125 1621 0890 00 1 Nipple
1130 0661 1000 30 1 Seal washer
2930 1343 02 35
Parts list
Oil system - ZR 19
Ref. Part number Qty Name Remarks
1005 1621 0543 00 1 Manifold
1010 0686 3716 35 1 Plug
1015 0661 1000 29 1 Seal washer
1020 0211 1402 03 2 Cap screw
1025 0301 2358 00 2 Washer
1030 0663 2135 00 1 O-ring
1035 1 Pipe
1621 0541 01 ZR55-7.5/50Hz,
ZR90-7.5/50Hz,
ZR55-8.6/50Hz,
ZR55-10/50Hz,
ZR55-7.25/60Hz,
ZR75-7.25/60Hz,
ZR90-7.25/60Hz,
ZR55-9/60Hz,
ZR55-10.4/60Hz
1621 0541 02 ZR75-7.5/50Hz,
ZR75-8.6/50Hz,
ZR90-8.6/50Hz,
ZR75-10/50Hz,
ZR90-10/50Hz,
ZR75-9/60Hz,
ZR90-9/60Hz,
ZR75-10.4/60Hz,
ZR90-10.4/60Hz
Ref. Part number Qty Name Remarks
1040 0147 1363 03 2 Bolt
1045 0663 2135 00 1 O-ring
1050 0147 1363 03 2 Bolt
1055 0663 2135 00 1 O-ring
1060 0147 1411 03 2 Bolt
1065 0301 2358 00 2 Washer
1070 0663 2135 00 1 O-ring
1075 1621 0544 01 1 Oil cooler
1080 0147 1325 03 3 Bolt
1085 0663 2133 00 4 O-ring
1090 0686 3716 01 1 Plug
1095 0661 1000 25 1 Seal washer
1100 1621 0542 00 1 Pipe
1105 0663 2135 00 1 O-ring
1110 0147 1402 03 2 Bolt
1115 0301 2358 00 2 Washer
1120 0663 2135 00 1 O-ring
1125 0147 1402 03 2 Bolt
1130 0301 2358 00 2 Washer
1135 0686 3716 30 4 Plug
1140 0661 1000 26 4 Seal washer
61668_05
36 2930 1343 02
Parts list
20
61676_06
2930 1343 02 37
Parts list
Water system - ZR 20
Ref. Part number Qty Name Remarks
1005 1621 0575 00 1 Pipe
1010 0663 2135 00 1 O-ring
1015 0147 1411 03 2 Bolt
1020 0301 2358 00 2 Washer
1025 0663 2135 00 1 O-ring
1030 0147 1413 03 2 Bolt
1035 0301 2358 00 2 Washer
1040 0686 3716 01 1 Plug
1045 0661 1000 25 1 Seal washer
1050 1621 0590 00 1 Pipe
1055 0147 1413 03 2 Bolt
1060 0301 2358 00 2 Washer
1065 0663 2135 00 1 O-ring
1070 1621 3045 00 1 Flange
1075 0663 2107 86 2 O-ring
1080 0147 1365 03 2 Bolt
Ref. Part number Qty Name Remarks
1085 0301 2358 00 2 Washer
1090 0686 3716 30 1 Plug
1095 0661 1000 26 1 Seal washer
1100 0686 3716 35 1 Plug
1105 0661 1000 29 1 Seal washer
1110 0686 3716 07 2 Plug
1115 0661 1000 30 2 Seal washer
2005 1 Compensator
1610 8494 00 DIN
1621 0589 00 ANSI
2010 0147 1476 03 4 Bolt
2020 1 Compensator
1610 8494 00 DIN
1621 0589 00 ANSI
2025 0147 1476 03 4 Bolt
38 2930 1343 02
Parts list
21
61677_09
2930 1343 02 39
Parts list
Regulating system - ZT Pack 21
Ref. Part number Qty Name Remarks
1010 1621 0612 03 1 Wire harness
1030 0346 1000 19 1 Pipe clamp
1040 0266 2110 00 1 Nut
1050 0147 1322 03 1 Bolt
2010 1900 0710 31 1 Regulator
2030 0160 6059 00 4 Screw
2040 0301 2315 00 4 Washer
2300 1089 0575 45 1 Press. transducer
2310 1089 0575 44 1 Press. transducer
2312 1621 0148 00 1 Nipple
2313 0661 1000 25 1 Seal washer
2314 1621 0148 00 1 Nipple
2315 0661 1000 25 1 Seal washer
2320 1089 0575 44 1 Press. transducer
2331 1621 0148 00 1 Nipple
2336 0661 1000 25 1 Seal washer
2340 1089 0575 33 1 Press.transducer
2341 1621 0148 00 1 Nipple
2342 0661 1000 25 1 Seal washer
2349 1089 0574 07 1 Temp. sensor
Ref. Part number Qty Name Remarks
2350 1089 0574 07 1 Temp. sensor
2351 1089 0574 07 1 Temp. sensor
2353 1089 0574 07 1 Temp. sensor
3005 0580 2014 06 1 Pipe coupling
3010 1621 0740 00 1 Pipe
3020 0580 0014 34 1 Pipe coupling
3025 0661 1000 24 1 Seal washer
4005 0580 0013 32 1 Coupling
4010 0661 1000 25 1 Seal washer
4015 1621 0673 00 1 Pipe
4020 0580 0013 32 1 Coupling
4025 0661 1000 25 1 Seal washer
4030 1621 0734 00 1 Flange
4035 1621 0735 00 1 Filter element
4040 0663 2132 00 1 O-ring
4045 1621 0736 00 1 Flange
4050 0147 1249 03 2 Bolt
4055 0603 4200 08 1 Hexagon nipple
4060 0661 1000 25 2 Seal washer
40 2930 1343 02
Parts list
22
61950_09
2930 1343 02 41
Parts list
Regulating system - ZT Full feature 22
Ref. Part number Qty Name Remarks
1010 1621 0612 23 1 Wire harness
1030 0346 1000 19 2 Pipe clamp
1035 0333 3127 01 3 Lock washer
1040 0266 2110 00 3 Nut
1045 0301 2335 00 3 Washer
1050 0147 1322 03 2 Bolt
1270 1621 1276 00 1 Cable
2010 1900 0710 31 1 Regulator
2030 0160 6059 00 4 Screw
2040 0301 2315 00 4 Washer
2300 1089 0575 45 1 Press. Transducer
2310 1089 0575 44 1 Press. Transducer
2312 1621 0148 00 1 Nipple
2313 0661 1000 25 1 Seal washer
2314 1621 0148 00 1 Nipple
2315 0661 1000 25 1 Seal washer
2320 1089 0575 44 1 Press. Transducer
2331 1621 0148 00 1 Nipple
2336 0661 1000 25 1 Seal washer
2340 1089 0575 33 1 Press. Transducer
2341 1621 0148 00 1 Nipple
2342 0661 1000 25 1 Seal washer
2349 1089 0574 40 1 Temp. sensor
Ref. Part number Qty Name Remarks
2350 1089 0574 40 1 Temp. sensor
2351 1089 0574 40 1 Temp. sensor
2353 1089 0574 40 1 Temp. sensor
3349 1089 0574 40 1 Temp. sensor
3350 1089 0574 40 1 Temp. sensor
3351 1089 0574 40 1 Temp. sensor
4005 0580 2014 06 1 Pipe coupling
4010 1621 0740 00 1 Pipe
4020 0580 0014 34 1 Pipe coupling
4025 0661 1000 24 1 Seal washer
5005 0580 0013 32 1 Coupling
5010 0661 1000 25 1 Seal washer
5015 1621 0916 00 1 Pipe
5020 0580 0013 32 1 Coupling
5025 0661 1000 25 1 Seal washer
5030 1621 0734 00 1 Flange
5035 1621 0735 00 1 Filter element
5040 0663 2132 00 1 O-ring
5045 1621 0736 00 1 Flange
5050 0147 1249 03 2 Bolt
5055 0603 4200 08 1 Hexagon nipple
5060 0661 1000 25 2 Seal washer
42 2930 1343 02
Parts list
23
61678_09
2930 1343 02 43
Parts list
Regulating system - ZR Pack 23
Ref. Part number Qty Name Remarks
1010 1621 0612 01 1 Wire harness
1030 0346 1000 19 2 Pipe clamp
1040 0266 2110 00 2 Nut
1050 0147 1322 03 2 Bolt
1110 0697 9807 00 3 Nut
2010 1900 0710 31 1 Regulator
2030 0160 6059 00 4 Screw
2040 0301 2315 00 4 Washer
2300 1089 0575 45 1 Press. transducer
2310 1089 0575 44 1 Press. transducer
2312 1621 0148 00 1 Nipple
2313 0661 1000 25 1 Seal washer
2314 1621 0148 00 1 Nipple
2315 0661 1000 25 1 Seal washer
2320 1089 0575 44 1 Press. transducer
2331 1621 0148 00 1 Nipple
2336 0661 1000 25 1 Seal washer
2340 1089 0575 33 1 Press.transducer
2341 1621 0148 00 1 Nipple
2342 0661 1000 25 1 Seal washer
2349 1089 0574 07 1 Temp. sensor
Ref. Part number Qty Name Remarks
2350 1089 0574 07 1 Temp. sensor
2351 1089 0574 07 1 Temp. sensor
2353 1089 0574 07 1 Temp. sensor
3349 1089 0574 07 1 Temp. sensor
3350 1089 0574 07 1 Temp. sensor
3351 1089 0574 07 1 Temp. sensor
4005 0580 0013 32 1 Coupling
4010 0661 1000 25 1 Seal washer
4015 1621 0977 00 1 Pipe
4020 0580 0014 34 1 Pipe coupling
4025 0661 1000 24 1 Seal washer
5005 0580 0013 32 1 Coupling
5010 0661 1000 25 1 Seal washer
5015 1621 0738 00 1 Pipe
5020 0580 0013 32 1 Coupling
5025 0661 1000 25 1 Seal washer
5030 1621 0736 00 1 Flange
5035 1621 0735 00 1 Filter element
5040 0663 2132 00 1 O-ring
5045 0147 1249 03 2 Bolt
44 2930 1343 02
Parts list
24
61968_09
2930 1343 02 45
Parts list
Regulating system - ZR Full feature 24
Ref. Part number Qty Name Remarks
1010 1621 0612 21 1 Wire harness
1030 0346 1000 19 2 Pipe clamp
1035 0333 3127 01 3 Lock washer
1040 0266 2110 00 3 Nut
1045 0301 2335 00 3 Washer
1050 0147 1322 03 2 Bolt
2010 1900 0710 31 1 Regulator
2030 0160 6059 00 4 Screw
2040 0301 2315 00 4 Washer
2300 1089 0575 45 1 Press. Transducer
2310 1089 0575 44 1 Press. Transducer
2312 1621 0148 00 1 Nipple
2313 0661 1000 25 1 Seal washer
2314 1621 0148 00 1 Nipple
2315 0661 1000 25 1 Seal washer
2320 1089 0575 44 1 Press. transducer
2331 1621 0148 00 1 Nipple
2336 0661 1000 25 1 Seal washer
2340 1089 0575 33 1 Press.transducer
2341 1621 0148 00 1 Nipple
2342 0661 1000 25 1 Seal washer
2349 1089 0574 40 1 Temp. sensor
2350 1089 0574 40 1 Temp. sensor
2351 1089 0574 40 1 Temp. sensor
Ref. Part number Qty Name Remarks
2353 1089 0574 40 1 Temp. sensor
3349 1089 0574 40 1 Temp. sensor
3350 1089 0574 40 1 Temp. sensor
3351 1089 0574 40 1 Temp. sensor
4349 1089 0574 40 1 Temp. sensor
4350 1089 0574 40 1 Temp. sensor
4351 1089 0574 40 1 Temp. sensor
5005 0580 0013 32 1 Coupling
5010 0661 1000 25 1 Seal washer
5015 1621 0977 00 1 Pipe
5020 0580 0014 34 1 Pipe coupling
5025 0661 1000 24 1 Seal washer
6005 0580 0013 32 1 Coupling
6010 0661 1000 25 1 Seal washer
6015 1621 0915 00 1 Pipe
6020 0580 0013 32 1 Coupling
6025 0661 1000 25 1 Seal washer
6030 1621 0734 00 1 Flange
6035 1621 0735 00 1 Filter element
6040 0663 2132 00 1 O-ring
6045 1621 0736 00 1 Flange
6050 0147 1249 03 2 Bolt
6055 0603 4200 08 1 Hexagon nipple
6060 0661 1000 25 2 Seal washer
46 2930 1343 02
Parts list
25
61944_17
2930 1343 02 47
Parts list
Air dryer parts - Mountings on vessel 25
Ref. Part number Qty Name Remarks
1010 1617 5880 00 1 Demister
1020 1617 5573 00 1 Sealing ring
1030 0216 1957 49 6 Hex sock. screw
1070 0653 1062 00 2 Gasket
1080 0072 5551 05 AR Cu pipe
1090 0581 0016 01 2 Pipe coupling
1100 1617 5562 80 1 Sealing sector, assy
1110 1617 5566 00 1 Seal ring
1120 1617 5574 00 1 Spring
1130 0335 1162 00 1 Circlip
1140 1617 5556 00 1 Pipe
1150 1617 5602 00 1 Strainer
1160 0663 3142 00 1 O-ring
1170 0663 2107 80 1 O-ring
1180 0147 1402 03 2 Hex. head screw
1190 0301 2358 00 2 Plain washer
1200 1617 5665 00 1 Regen. cover
1210 1617 5697 00 1 Valve stem
1220 0653 1056 00 2 Gasket
1230 0261 2112 00 1 Hexagon nut
1240 1202 4100 00 1 Cap nut
1250 1617 5696 00 1 Ring
1280 0147 1499 12 1 Hex. head screw
1290 1617 5568 00 1 Pin
1300 0371 1100 19 1 Lift. eye bolt
1310 1202 2339 00 1 Patent plate
1320 0129 3103 00 4 Blind rivet
1330 1617 5664 00 1 Data plate
Ref. Part number Qty Name Remarks
1340 0129 3103 00 4 Blind rivet
1350 0560 0200 16 2 Elbow
1360 0852 0010 29 2 Ball valve
1400 0821 0408 00 1 Stop valve
1410 Hex. nipple
0603 4108 03 2 ZT
0603 4108 03 3 ZR
1420 1621 1291 00 1 Flange
1430 1 Elbow
0560 0200 63 ZT
1440 0564 3308 04 1 Tee
1450 0686 3716 10 1 Plug
1460 0653 1254 00 1 Cu washer
2020 1202 2227 00 1 Label
2030 1619 7420 00 1 Decal
1 Connection set
1603 5002 40 ZT55, ZR55
1603 5002 30 ZT75, ZR75
1603 5002 41 ZT90, ZR90
3010 1617 5557 00 • 1 Ejector
3020 0211 1363 03 • 4 Hex sock. screw
3030 0663 7136 00 • 2 O-ring
3050 1617 5569 00 • 1 Nozzle
3060 0657 5823 00 • 1 Gasket
3070 • 1 Nozzle
1617 5129 01 ZT55, ZR55
1617 5690 01 ZT75, ZR75
1617 5690 02 ZT90, ZR90
48 2930 1343 02
Parts list
26
61945_17
2930 1343 02 49
Parts list
Air dryer parts - Pressure vessel and rotor 26
Ref. Part number Qty Name Remarks
1010 1617 5552 19 1 Rotor
1020 1617 5380 10 1 Seal ring
1617 5323 00 • AR Seal ring
1030 1617 5603 00 1 Ring
2020 1 Safety valve
0830 1007 24 CE
0830 1008 11 Lloyd’s, DIR, UDT,
Asme, CRN, China,
Japan
2030 0653 1162 00 2 Gasket
2040 1202 8854 00 2 Sight glass
2050 0653 1100 00 2 Gasket
2060 0686 3716 35 1 Plug
1 Vessel
1617 5558 80 Japan
1617 5558 84 China
1617 5558 86 CE
1617 5558 86 Asme, CRN
1617 5558 88 Lloyd’s, DIR, UDT
Ref. Part number Qty Name Remarks
3010 1617 5558 00 • 1 Lower cover
3020 1617 5559 00 • 1 Upper cover
3030 0663 2103 25 • 1 O-ring
3040 0147 1405 03 • 13 Bolt
3050 0211 1405 03 • 1 Bolt
3060 0301 2358 00 • 14 Washer
3070 1617 5615 00 • 1 Support
3080 0147 1400 03 • 6 Hex. head screw
3090 0301 2358 00 • 6 Washer
3100 1617 5561 00 • 1 Drain plate
3110 0663 2106 60 • 1 O-ring
3120 0147 1960 58 • 2 Hex. head screw
3130 0333 3127 01 • 2 Washer
3140 1617 5560 00 • 1 Cover plate
3150 0147 1364 03 • 8 Hex. head screw
3160 0301 2344 00 • 8 Washer
50 2930 1343 02
Parts list
27 Air dryer parts - Motor and drive connections
Ref. Part number Qty Name Remarks
1010 1 Motor
1617 5570 01 230V/50-60Hz - IEC
1617 5570 02 115V/60Hz - CSA/UL
1020 1617 5564 00 1 Adapter pin
1030 0196 1552 02 1 Set screw
1040 1617 5565 00 1 Flange motor
1050 1617 5571 00 1 Seal
1070 0211 1325 03 4 Hex sock. screw
61946_07
Ref. Part number Qty Name Remarks
2010 0663 9872 00 1 O-ring
2020 0211 1366 03 4 Hex sock. screw
2030 0301 2344 00 4 Plain washer
2040 1617 5563 00 1 Gear wheel
2050 0337 0009 28 1 Parallel key
2060 0147 1958 32 1 Hex. head screw
2070 1617 5846 00 1 Washer
3040 1088 1001 02 1 Warning mark
3050 1503 0786 00 1 Rotation arrow
2930 1343 02 51
Parts list
Air dryer parts - Electronic Water Drain 28
Ref. Part number Qty Name Remarks
1010 2 EWD330C
1613 8810 05 230V/50-60Hz - IEC
1613 8810 06 115V/60Hz - CSA/UL
1020 1617 5786 00 1 Connection cable
2010 0661 1033 00 12 Seal washer
2020 0581 0000 71 4 Pipe coupling
2030 0070 6002 13 AR Plastic tube
Ref. Part number Qty Name Remarks
2040 1617 5473 80 2 Pipe coupling
2050 0070 6002 06 AR Plastic tube
2060 0581 0000 53 2 Pipe coupling
2080 0347 6103 00 2 Hose clamp
2090 0070 6002 14 AR Plastic tube
2100 0070 6002 14 AR Plastic tube
61947_07
52 2930 1343 02
Parts list
29
61948_04
2930 1343 02 53
Parts list
Air dryer parts - Cooler - ZT 29
Ref. Part number Qty Name Remarks
1010 1617 5604 00 1 Flange
1020 1614 6256 00 1 O-ring cooler
1030 0147 1402 03 4 Hex. head screw
1040 0301 2358 00 4 Plain washer
1050 0663 7136 00 1 O-ring
1070 1621 0888 00 1 Flange
1080 1614 6256 00 1 O-ring cooler
1090 0147 1403 03 4 Hex. head screw
1100 1621 0891 00 1 Flange
1110 0663 7139 00 1 O-ring
1120 0147 1402 03 2 Hex. head screw
1150 1621 1270 00 1 Pipe
1170 0147 1402 03 2 Hex. head screw
1200 1621 0739 00 1 Pipe
1210 0663 3142 00 1 O-ring
1220 0147 1402 03 4 Hex. head screw
1230 0147 1400 03 2 Hex. head screw
2010 0147 1362 03 4 Bolt
1613 9323 81 1 Cooler ass’y
3010 1614 7623 00 • 1 Cooler
3015 1614 7628 00 • 1 Air duct
3030 1619 2795 00 • AR Rubber strip
Ref. Part number Qty Name Remarks
3035 1619 2795 00 • AR Rubber strip
3040 0147 1322 03 • 3 Bolt
3045 0300 8019 00 • 3 Washer
3050 0147 1322 03 • 3 Bolt
3055 0300 8019 00 • 3 Washer
3060 1619 5337 01 • 4 Bolt
3065 0303 1274 01 • 4 Washer
3075 1503 0786 00 • 1 Rotation arrow
3080 1614 3269 00 • 1 Label
3085 1621 0900 00 • 2 Support
3090 0147 1360 03 • 8 Bolt
3091 0301 2344 00 • 8 Washer
3095 1621 0901 00 • 1 Duct
3096 1202 6584 00 • AR Seal
3100 1202 6584 00 • AR Seal
3101 1202 6584 00 • AR Seal
3105 1621 1278 00 • 2 Support
3110 0147 1362 03 • 4 Bolt
1613 9323 11 1 Fan assembly
4010 1080 4053 61 • 1 Motor
4020 1613 8218 00 • 1 Grating fan
4030 1613 7454 00 • 1 Fan
54 2930 1343 02
Parts list
30 Air dryer parts - Cooler - ZR
Ref. Part number Qty Name Remarks
1020 0147 1403 03 4 Hex. head screw
1030 0301 2358 00 4 Plain washer
1040 0211 1403 03 8 Hex sock. screw
1050 2252 9293 00 2 Flange
1060 0663 7135 00 2 O-ring
1100 1617 5567 00 1 Connection
1110 0663 7136 00 1 O-ring
1120 0663 7139 00 1 O-ring
1130 0147 1402 03 4 Hex. head screw
1140 0301 2358 00 4 Plain washer
61949_04
Ref. Part number Qty Name Remarks
1200 1621 1269 00 1 Pipe
1210 0663 3142 00 1 O-ring
1220 0147 1402 03 4 Hex. head screw
1614 7667 51 1 Cooler
2010 1614 7665 51 • 1 Tubestack
2020 1614 7666 00 • 1 Water box
2030 1614 6250 00 • 1 Return box
2040 1614 6257 00 • 1 Leakage ring
2050 1614 6256 00 • 4 O-ring
2930 1343 02 55
Parts list
Cubicle box 31
Ref. Part number Qty Name Remarks
1020 1619 2766 00 4 Bolt
1030 1088 0495 02 1 Gasket
1040 1202 8610 00 1 Flange
1050 0147 1360 03 2 Bolt
1070 1 Screen
1621 0981 00 IEC
1080 4 Bolt
0147 1322 03 IEC
Ref. Part number Qty Name Remarks
1621 0657 80 1 Cubicle
2005 • 1 Cubicle
2010 1621 0777 00 • 1 Plate
2015 1202 6584 00 • AR Seal
2020 1619 3843 00 • AR Seal
2025 0147 1322 03 • 4 Bolt
61679_12
56 2930 1343 02
Parts list
32
61654_12
2930 1343 02 57
Parts list
Cubicle - ZT/R55 500-575V - 1) 32
Ref. Part number Qty Name Remarks
1 Cubicle
1900 3012 05 ZR55 - 500V/50Hz - IEC
1900 3013 05 ZR55 - 575V/60Hz - CSA/UL
1900 3012 05 ZR55 - 575V/60Hz - IEC
1900 3012 25 ZT55 - 500V/50Hz - IEC
1900 3013 25 ZT55 - 575V/60Hz - CSA/UL
1900 3012 25 ZT55 - 575V/60Hz - IEC
1005 1089 9526 75 • 1 Circuit breaker
1010 1089 9526 05 • 1 Circuit breaker
1015 1089 9526 70 • 1 Circuit breaker
1020 1089 9512 26 • 1 Thermal Relay
1025 1089 9489 30 • 1 Aux relay loading
1030 2 L/D Contactor
1089 9489 19 • IEC
1089 9489 39 • CSA/UL
1035 1 Y Contactor
1089 9489 17 • IEC
1089 9489 37 • CSA/UL
1040 1 Contactor
1089 9489 31 • ZT CSA/UL
1089 9489 11 • ZT IEC
1045 1089 9489 83 • 1 Y/D connections
1050 1089 9489 05 • 1 Auxilliary contact
1055 1089 9489 02 • 2 Auxilliary contact
1060 1089 9489 81 • 3 Auxilliary terminal
1065 1089 9551 24 • 1 Circuit breaker
1070 1089 9551 22 1 Circuit breaker
• ZT
1075 1089 9551 99 Circuit breaker
• ZT
1080 1089 9513 01 • 1 Emergency stop
1085 1089 9513 02 • 1 Contact block
1090 1089 9514 08 • 1 Main transformer
1095 1089 9514 01 • 1 Transformer
1100 1079 9906 09 • 1 Label
1105 9823 1899 01 • 1 Service diagram
1110 1 Dataplate
1613 6639 02 • IEC
1614 8949 01 • CSA/UL
Ref. Part number Qty Name Remarks
1115 1079 9901 68 • 1 Label
1120 1 Label
1079 9911 01 • CSA/UL
1125 1089 0577 14 • 6 Power Terminals
1130 1088 0031 13 • 1 Connector
1135 1088 0031 29 • 1 Connector
1140 1088 0031 49 • 1 Connector
1145 1088 0031 30 • 1 Connector
1150 1088 0031 03 • 1 Connector
1155 1088 0031 03 • 1 Connector
1160 1088 0031 05 • 1 Connector
1165 1088 0031 05 • 1 Connector
1170 1088 0031 05 • 1 Connector
1175 1088 0031 05 • 1 Connector
1180 1089 0577 12 • 83 Terminals
1185 1089 0577 31 • 7 Earth Terminals
1190 • 2 Mounting clips
1195 • AR Wiring channel
1200 • AR Mounting rail
1205 • AR PE rail
1210 • 1 Secondary mounting plate
1215 <<< >>> • 1 Cubicle box
1) Up to serial No. :
Tot serienummer:
T.o.m. tillverkningsnummer:
Bis Seriennummer:
Jusqu’au numéro de série:
Hasta el número de serie:
Fino al numeri di serie:
Gælder til følgende serienumre:
Até o número de série:
Til følgende serienummer:
Seuraavaan valmistusnumeroon asti, No.:
AIF-085 712
58 2930 1343 02
Parts list
33
61970_12
2930 1343 02 59
Parts list
Cubicle - ZT/R55 380-460V, ZT/R75 400-575V, ZT/R90 500-575V - 1) 33
Ref. Part number Qty Name Remarks
1 Cubicle
1900 3013 07 ZR55 - 380V/60Hz - CSA/UL
1900 3012 07 ZR55 - 380V/60Hz - IEC
1900 3012 06 ZR55 - 400V/50Hz - IEC
1900 3013 06 ZR55 - 440-460V/60Hz -
CSA/UL
1900 3012 06 ZR55 - 440-460V/60Hz - IEC
1900 3012 07 ZR75 - 400V/50Hz - IEC
1900 3013 07 ZR75 - 440-460V/60Hz -
CSA/UL
1900 3012 07 ZR75 - 440-460V/60Hz - IEC
1900 3012 07 ZR75 - 500V/50Hz - IEC
1900 3013 06 ZR75 - 575V/60Hz - CSA/UL
1900 3012 06 ZR75 - 575V/60Hz - IEC
1900 3012 07 ZR90 - 500V/50Hz - IEC
1900 3013 07 ZR90 - 575V/60Hz - CSA/UL
1900 3012 07 ZR90 - 575V/60Hz - IEC
1900 3013 27 ZT55 - 380V/60Hz - CSA/UL
1900 3012 27 ZT55 - 380V/60Hz - IEC
1900 3012 26 ZT55 - 400V/50Hz - IEC
1900 3013 26 ZT55 - 440-460V/60Hz -
CSA/UL
1900 3012 26 ZT55 - 440-460V/60Hz - IEC
1900 3012 28 ZT75 - 400V/50Hz - IEC
1900 3013 28 ZT75 - 440-460V/60Hz -
CSA/UL
1900 3012 28 ZT75 - 440-460V/60Hz - IEC
1900 3012 27 ZT75 - 500V/50Hz - IEC
1900 3013 26 ZT75 - 575V/60Hz - CSA/UL
1900 3012 26 ZT75 - 575V/60Hz - IEC
1900 3012 27 ZT90 - 500V/50Hz - IEC
1900 3013 27 ZT90 - 575V/60Hz - CSA/UL
1900 3012 27 ZT90 - 575V/60Hz - IEC
1005 • 1 Circuit breaker
1089 9526 75 IEC
1089 9526 76 CSA/UL
1010 1089 9526 05 • 1 Circuit breaker
1015 1089 9526 70 • 1 Circuit breaker
1020 • 1 Thermal Relay
1089 9512 31 ZR/ZT55 - 400V/50Hz - IEC,
ZR/ZT55 - 440-460V/60Hz -
IEC,
ZR/ZT75 - 575V/60Hz -
CSA/UL
1089 9512 33 ZR/ZT55 - 380V/60Hz - IEC,
ZR/ZT75 - 400V/50Hz - IEC,
ZR/ZT75 - 440-460V/60Hz -
IEC,
ZR/ZT75 - 500V/50Hz -
CSA/UL,
ZR/ZT90 - 500V/50Hz -
CSA/UL,
ZR/ZT90 - 575V/60Hz -
CSA/UL
1025 1089 9489 30 • 1 Aux relay loading
1030 • 2 L/D - Contactor
1089 9489 21 IEC
1089 9489 41 CSA/UL
1035 • 1 Y - Contactor
1089 9489 20 IEC
1089 9489 40 CSA/UL
1040 1089 9489 84 • 1 Y/D - Connections
1045 1089 9489 92 • 1 Y point
1050 1089 9489 05 • 1 Auxilliary - Contact
Ref. Part number Qty Name Remarks
1055 1089 9489 02 • 1 Auxilliary - Contact
1060 1089 9489 01 • 1 Auxilliary - Contact
1065 1089 9489 82 • 3 Auxilliary terminal
1070 1089 9489 99 • 1 Extra - Connection - Contactor
1075 • 1 Contactor
1089 9489 11 ZT - IEC
1089 9489 31 ZT - CSA/UL
1080 • 1 Circuit breaker
1089 9551 25 ZR/ZT55 - 380V/60Hz - IEC,
ZR/ZT55 - 400V/50Hz - IEC,
ZR/ZT55 - 440-460V/60Hz -
IEC,
ZR/ZT75 - 400V/50Hz - IEC,
ZR/ZT75 - 440-460V/60Hz -
IEC,
ZR/ZT75 - 500V/50Hz - IEC,
ZR/ZT75 - 575V/60Hz - IEC,
ZR/ZT90 - 500V/50Hz - IEC,
ZR/ZT90 - 575V/60Hz - IEC
ZR55 - 380V/60Hz - CSA/UL,
ZR55/75 - 440-460V/60Hz -
CSA/UL,
ZR75/90 - 575V/60Hz -
CSA/UL
1089 9551 26 ZT55 - 440-460V/60Hz -
CSA/UL,
ZT75 - 575V/60Hz - CSA/UL
1089 9551 27 ZT55 - 380V/60Hz - CSA/UL,
ZT75 - 440-460V/60Hz -
CSA/UL,
ZT90 - 575V/60Hz - CSA/UL
1085 • 1 Circuit breaker
1089 9551 22 ZT55 - 380V/60Hz - IEC,
ZT55 - 400V/50Hz - IEC,
ZT55 - 440-460V/60Hz - IEC,
ZT75/90 - 500V/50Hz - IEC,
ZT75/90 - 575V/60Hz - IEC
ZT55 - 380V/60Hz - CSA/UL,
ZT55 - 440-460V/60Hz -
CSA/UL,
ZT75/90 - 575V/60Hz -
CSA/UL
1089 9551 39 ZT75 - 400V/50Hz - IEC,
ZT75 - 440-460V/60Hz - IEC
ZT75 - 440-460V/60Hz -
CSA/UL
1090 • 1 Circuit breaker
1089 9551 99 ZT
1095 1089 9513 01 • 1 Em stop push button
1100 1089 9513 02 • 1 Contact block
1105 1089 9514 09 • 1 Main transformer
1110 1089 9514 01 • 1 Transformer
1115 1079 9906 09 • 1 Label
1120 9823 1899 01 • 1 Service diagram A3
1125 • 1 Dataplate
1613 6639 02 IEC
1614 8949 01 CSA/UL
1130 1079 9901 68 • 1 Label
1135 • 1 Label
1079 9911 01 CSA/UL
1140 1089 0577 15 • 6 Power Terminals
1145 1088 0031 13 • 1 Connector
1150 1088 0031 29 • 1 Connector
1155 1088 0031 49 • 1 Connector
60 2930 1343 02
Parts list
33
61970_12
2930 1343 02 61
Parts list
Cubicle - ZT/R55 380-460V, ZT/R75 400-575V, ZT/R90 500-575V - 1) 33
Ref. Part number Qty Name Remarks
1160 1088 0031 30 • 1 Connector
1165 1088 0031 03 • 1 Connector
1170 1088 0031 03 • 1 Connector
1175 1088 0031 05 • 1 Connector
1180 1088 0031 05 • 1 Connector
1185 1088 0031 05 • 1 Connector
1190 1088 0031 05 • 1 Connector
1195 1089 0577 12 • 83 Terminals
1200 1089 0577 31 • 7 Earth Terminals
1205 • 2 Mounting - Clips
1210 • AR Wiring - Channel
1215 • AR Mounting rail
1220 • AR PE rail
1225 • 1 Secondary mounting plate
1230 <<< >>> • 1 Cubicle box
1) Up to serial No. :
Tot serienummer:
T.o.m. tillverkningsnummer:
Bis Seriennummer:
Jusqu’au numéro de série:
Hasta el número de serie:
Fino al numeri di serie:
Gælder til følgende serienumre:
Até o número de série:
Til følgende serienummer:
Seuraavaan valmistusnumeroon asti, No.:
AIF-085 712
62 2930 1343 02
Parts list
34
61971_12
2930 1343 02 63
Parts list
Cubicle - ZT/R55 200-230V, ZR/T75 380V/60Hz, ZT/R90 380-460V - 1) 34
Ref. Part number Qty Name Remarks
1 Cubicle
1900 3012 08 ZR55 - 200V/50Hz - IEC
1900 3013 08 ZR55 - 220-230V/60Hz -
CSA/UL
1900 3012 08 ZR55 - 220-230V/60Hz - IEC
1900 3012 08 ZR55 - 230V/50Hz - IEC
1900 3013 08 ZR75 - 380V/60Hz - CSA/UL
1900 3012 08 ZR75 - 380V/60Hz - IEC
1900 3013 08 ZR90 - 380V/60Hz - CSA/UL
1900 3012 08 ZR90 - 380V/60Hz - IEC
1900 3012 08 ZR90 - 400V/50Hz - IEC
1900 3013 08 ZR90 - 440-460V/60Hz -
CSA/UL
1900 3012 08 ZR90 - 440-460V/60Hz - IEC
1900 3012 30 ZT55 - 200V/50Hz - IEC
1900 3013 29 ZT55 - 220-230V/60Hz -
CSA/UL
1900 3012 29 ZT55 - 220-230V/60Hz - IEC
1900 3012 29 ZT55 - 230V/50Hz - IEC
1900 3013 29 ZT75 - 380V/60Hz - CSA/UL
1900 3012 29 ZT75 - 380V/60Hz - IEC
1900 3013 29 ZT90 - 380V/60Hz - CSA/UL
1900 3012 29 ZT90 - 380V/60Hz - IEC
1900 3012 29 ZT90 - 400V/50Hz - IEC
1900 3013 29 ZT90 - 440-460V/60Hz -
CSA/UL
1900 3012 29 ZT90 - 440-460V/60Hz - IEC
1005 • 1 Circuit breaker
1089 9526 76 IEC
1089 9526 78 CSA/UL
1010 1089 9526 05 • 1 Circuit breaker
1015 1089 9526 70 • 1 Circuit breaker
1020 1089 9512 36 • 1 Thermal Relay
1025 1089 9489 30 • 1 Aux relay loading
1030 • 2 L/D Contactor
1089 9489 22 IEC
1089 9489 42 CSA/UL
1035 • 1 Y Contactor
1089 9489 21 IEC
ZR - CSA/UL
1089 9489 41 ZT - CSA/UL
1040 • 1 Y/D connections
1045 1089 9489 92 • 1 Y point
1050 1089 9489 01 • Auxilliary contact
3 ZR
3 ZT55 - 200V/50Hz - IEC
2 ZT, except ZT55 -
200V/50Hz - IEC
1055 1089 9489 09 • 1 Auxilliary contact
1060 • 1 Auxilliary contact
1089 9489 02 ZT
1065 1089 9489 07 • Terminal shrouds
1070 • 1 Extra connection contactor
1089 9489 99 IEC
1089 9489 99 ZT - CSA/UL
1075 • 1 Contactor
1089 9489 12 ZT
Ref. Part number Qty Name Remarks
1080 1089 9551 28 • 1 Circuit breaker
1085 • 1 Circuit breaker
1089 9551 11 ZT55 - 200V/50Hz - IEC
1089 9551 39 ZT, except ZT55 -
200V/50Hz - IEC
1090 • 1 Circuit breaker
1089 9551 99 ZT, except ZT55 -
200V/50Hz - IEC
1095 • 1 Auxilliary contact
1089 9551 97 ZT55 - 200V/50Hz - IEC
1100 1089 9513 01 • 1 Em stop push button
1105 1089 9513 02 • 1 Contact block
1110 1089 9514 03 • 1 Main transformer
1115 1089 9514 01 • 1 Transformer
1120 1079 9906 09 • 1 Label
1125 9823 1899 01 • 1 Service diagram A3
1130 • 1 Dataplate
1613 6639 02 IEC
1614 8949 01 CSA/UL
1135 1079 9901 68 • 1 Label
1140 • 1 Label
1079 9911 01 CSA/UL
1145 • 6 Power Terminals
1089 0577 15 ZT55 - 200V/50Hz - IEC
1089 0577 10 Except ZT55 - 200V/50Hz -
IEC
1150 1088 0031 13 • 1 Connector
1155 1088 0031 29 • 1 Connector
1160 1088 0031 49 • 1 Connector
1165 1088 0031 30 • 1 Connector
1170 1088 0031 03 • 1 Connector
1175 1088 0031 03 • 1 Connector
1180 1088 0031 05 • 1 Connector
1185 1088 0031 05 • 1 Connector
1190 1088 0031 05 • 1 Connector
1195 1088 0031 05 • 1 Connector
1200 1089 0577 12 • 83 Terminals
1205 1089 0577 31 • 7 Earth Terminals
1210 • 2 Mounting clips
1215 • AR Wiring channel
1220 • AR Mounting rail
1225 • AR PE rail
1230 • 1 Secondary mounting plate
1235 <<< >>> • 1 Cubicle box
1) Up to serial No. :
Tot serienummer:
T.o.m. tillverkningsnummer:
Bis Seriennummer:
Jusqu’au numéro de série:
Hasta el número de serie:
Fino al numeri di serie:
Gælder til følgende serienumre:
Até o número de série:
Til følgende serienummer:
Seuraavaan valmistusnumeroon asti, No.:
AIF-085 712
64 2930 1343 02
Parts list
35
61972_12
2930 1343 02 65
Parts list
Cubicle - ZT/R55 200-230V/60Hz, ZT/R75 230V/50Hz - IEC - 1) 35
Ref. Part number Qty Name Remarks
1 Cubicle
1900 3013 09 ZR55 - 200V/60Hz - CSA/UL
1900 3012 09 ZR55 - 200V/60Hz - IEC
1900 3012 09 ZR75 - 230V/50Hz - IEC
1900 3013 30 ZT55 - 200V/60Hz - CSA/UL
1900 3012 32 ZT55 - 200V/60Hz - IEC
1900 3012 32 ZT75 - 230V/50Hz - IEC
1005 • 1 Circuit breaker
1089 9526 76 IEC
1089 9526 78 CSA/UL
1010 1089 9526 05 • 1 Circuit breaker
1015 1089 9526 70 • 1 Circuit breaker
1020 1089 9512 38 • 1 Thermal Relay
1025 1089 9489 30 • 1 Aux relay loading
1030 1089 9489 23 • 2 L/D Contactor
1035 1089 9489 22 • 1 Y Contactor
1040 1089 9489 86 • 1 Y/D connections
1045 1089 9489 93 • 1 Y point
1050 1089 9489 01 • 3 Auxilliary contact
1055 1089 9489 09 • 1 Auxilliary contact
1065 • 1 Contactor
1089 9489 12 ZT
1070 1089 9551 28 • 1 Circuit breaker
1075 • 1 Circuit breaker
1089 9551 11 ZT
1080 • 1 Auxilliary contact
1089 9551 97 ZT
1085 1089 9513 01 • 1 Em stop push button
1090 1089 9513 02 • 1 Contact block
1095 1089 9514 03 • 1 Main transformer
1100 1089 9514 01 • 1 Transformer
1105 1079 9906 09 • 1 Label
1110 9823 1899 01 • 1 Service diagram A3
1115 • 1 Dataplate
1613 6639 02 IEC
1614 8949 01 CSA/UL
Ref. Part number Qty Name Remarks
1120 1079 9901 68 • 1 Label
1125 • 1 Label
1079 9911 01 CSA/UL
1130 1089 0577 15 • 6 Power Terminals
1135 1088 0031 13 • 1 Connector
1140 1088 0031 29 • 1 Connector
1145 1088 0031 49 • 1 Connector
1150 1088 0031 30 • 1 Connector
1155 1088 0031 03 • 1 Connector
1160 1088 0031 03 • 1 Connector
1165 1088 0031 05 • 1 Connector
1170 1088 0031 05 • 1 Connector
1175 1088 0031 05 • 1 Connector
1180 1088 0031 05 • 1 Connector
1185 1089 0577 12 • 83 Terminals
1190 1089 0577 31 • 7 Earth Terminals
1195 • 2 Mounting clips
1200 • AR Wiring channel
1205 • AR Mounting rail
1210 • AR PE rail
1215 • 1 Secondary mounting plate
1220 <<< >>> • 1 Cubicle box
1) Up to serial No. :
Tot serienummer:
T.o.m. tillverkningsnummer:
Bis Seriennummer:
Jusqu’au numéro de série:
Hasta el número de serie:
Fino al numeri di serie:
Gælder til følgende serienumre:
Até o número de série:
Til følgende serienummer:
Seuraavaan valmistusnumeroon asti, No.:
AIF-085 712
66 2930 1343 02
Parts list
36
61973_12
2930 1343 02 67
Parts list
Cubicle - ZT/R75 200V/50Hz - IEC, ZT/R75 220-230V, ZR90 230V/50Hz - IEC - 1) 36
Ref. Part number Qty Name Remarks
1 Cubicle
1900 3012 10 ZR75 - 200V/50Hz - IEC
1900 3013 10 ZR75 - 220-230V/60Hz -
CSA/UL
1900 3012 10 ZR75 - 220-230V/60Hz - IEC
1900 3012 10 ZR90 - 230V/50Hz - IEC
1900 3012 34 ZT75 - 200V/50Hz - IEC
1900 3013 31 ZT75 - 220-230V/60Hz -
CSA/UL
1900 3012 34 ZT75 - 220-230V/60Hz - IEC
1900 3012 34 ZT75 - 230V/50Hz - IEC
1005 • 1 Circuit breaker
1089 9526 77 IEC
1089 9526 80 CSA/UL
1010 1089 9526 05 • 1 Circuit breaker
1015 1089 9526 70 • 1 Circuit breaker
1020 1089 9512 40 • 1 Thermal Relay
1025 1089 9553 85 • 1 Th. Relay/contactor connect
1030 1089 9489 30 • 1 Aux relay loading
1035 • 2 L/D Contactor
1089 9489 24 IEC
1089 9489 44 CSA/UL
1040 1089 9489 23 • 1 Y Contactor
1045 • 1 Y/D connections
1050 1089 9489 93 • 1 Y point
1055 1089 9489 01 • 3 Auxilliary contact
1060 1089 9489 09 • 1 Auxilliary contact
1075 • 1 Contactor
1089 9489 13 ZT
1080 • 1 Circuit breaker
1089 9551 12 IEC,
ZR - CSA/UL
1089 9551 28 ZT - CSA/UL
1085 • 1 Circuit breaker
1089 9551 11 ZT
1090 • 1 Auxilliary contact
1089 9551 97 ZT
1095 1089 9513 01 • 1 Em stop push button
1100 1089 9513 02 • 1 Contact block
1105 1089 9514 10 • 1 Main transformer
1110 1089 9514 01 • 1 Transformer
Ref. Part number Qty Name Remarks
1115 1079 9906 09 • 1 Label
1120 9823 1899 01 • 1 Service diagram A3
1125 • 1 Dataplate
1613 6639 02 IEC
1614 8949 01 CSA/UL
1130 1079 9901 68 • 1 Label
1135 • 1 Label
1079 9911 01 CSA/UL
1140 1089 0577 10 • 6 Power Terminals
1145 1088 0031 13 • 1 Connector
1150 1088 0031 29 • 1 Connector
1155 1088 0031 49 • 1 Connector
1160 1088 0031 30 • 1 Connector
1165 1088 0031 03 • 1 Connector
1170 1088 0031 03 • 1 Connector
1175 1088 0031 05 • 1 Connector
1180 1088 0031 05 • 1 Connector
1185 1088 0031 05 • 1 Connector
1190 1088 0031 05 • 1 Connector
1195 1089 0577 12 • 83 Terminals
1200 1089 0577 31 • 7 Earth Terminals
1205 • 2 Mounting clips
1210 • AR Wiring channel
1215 • AR Mounting rail
1220 • AR PE rail
1225 • 1 Secondary mounting plate
1230 <<< >>> • 1 Cubicle
1) Up to serial No. :
Tot serienummer:
T.o.m. tillverkningsnummer:
Bis Seriennummer:
Jusqu’au numéro de série:
Hasta el número de serie:
Fino al numeri di serie:
Gælder til følgende serienumre:
Até o número de série:
Til følgende serienummer:
Seuraavaan valmistusnumeroon asti, No.:
AIF-085 712
68 2930 1343 02
Parts list
37
61974_12
2930 1343 02 69
Parts list
Cubicle - ZT/R75 200V/60Hz, ZT/R90 220-230V, No motor - 1) 37
Ref. Part number Qty Name Remarks
1 Cubicle
1900 3013 11 ZR75 - 200V/60Hz - CSA/UL
1900 3012 11 ZR75 - 200V/60Hz - IEC
1900 3012 12 ZR90 - 200V/50Hz - IEC
1900 3013 12 ZR90 - 200V/60Hz - CSA/UL
1900 3012 12 ZR90 - 200V/60Hz - IEC
1900 3013 12 ZR90 - 220-230V/60Hz -
CSA/UL
1900 3012 12 ZR90 - 220-230V/60Hz - IEC
1900 3013 32 ZT75 - 200V/60Hz - CSA/UL
1900 3012 35 ZT75 - 200V/60Hz - IEC
1900 3012 36 ZT90 - 200V/50Hz - IEC
1900 3013 33 ZT90 - 200V/60Hz - CSA/UL
1900 3012 36 ZT90 - 200V/60Hz - IEC
1900 3013 33 ZT90 - 220-230V/60Hz -
CSA/UL
1900 3012 36 ZT90 - 220-230V/60Hz - IEC
1900 3012 15 No motor - IEC
1900 3013 15 No motor - CSA/UL
1005 • 1 Circuit breaker
1089 9526 78 IEC
1089 9526 80 CSA/UL
1010 1089 9526 05 • 1 Circuit breaker
1015 1089 9526 70 • 1 Circuit breaker
1020 • 1 Thermal Relay
1089 9512 40 ZR/ZT75 - 200V/60Hz - IEC,
ZR/ZT75 - 200V/60Hz -
CSA/UL,
ZT90 - 200V/60Hz - CSA/UL,
ZT90 - 220-230V/60Hz -
CSA/UL
1089 9512 41 ZR/ZT90 - 200V/50Hz - IEC,
ZR/ZT90 - 200V/60Hz - IEC,
ZR/ZT90 - 220-230V/60Hz -
IEC,
ZR90 - 200V/60Hz - CSA/UL,
ZR90 - 220-230V/60Hz -
CSA/UL
1025 • 1 Th. Relay/contactor - Connect
1089 9553 85 Except „No motor“
1030 1089 9489 30 • 1 Aux relay loading
1035 • 2 L/D - Contactor
1089 9489 25 Except „No motor“
1040 • 1 Y - Contactor
1089 9489 24 Except „No motor“
1045 • 1 Y/D - Connections
1089 9489 88 Except „No motor“
1050 • 1 Y point
1089 9489 94 Except „No motor“
1055 • 3 Auxilliary - Contact
1089 9489 01 Except „No motor“
1060 • 1 Auxilliary - Contact
1089 9489 09 Except „No motor“
1065 • 1 Aux relay - Compressor
1089 9489 31 No motor - CSA/UL
Ref. Part number Qty Name Remarks
1070 • 2 Auxilliary - Contact
1089 9489 03 No motor - CSA/UL
1080 • 1 Contactor
1089 9489 13 ZT, except „No motor“
1085 1089 9551 12 • 1 Circuit breaker
1090 • 1 Circuit breaker
1089 9551 11 ZT, except „No motor“
1095 • 1 Auxilliary - Contact
1089 9551 97 ZT, except „No motor“
1100 1089 9513 01 • 1 Em stop push button
1105 1089 9513 02 • 1 Contact block
1110 1089 9514 14 • 1 Main transformer
1115 1089 9514 01 • 1 Transformer
1120 1079 9906 09 • 1 Label
1125 9823 1899 01 • 1 Service diagram A3
1130 • 1 Dataplate
1613 6639 02 IEC
1614 8949 01 CSA/UL
1135 1079 9901 68 • 1 Label
1140 1079 9911 01 • 1 Label
CSA/UL
1145 • 6 Power Terminals
1089 0577 10 Except „No motor“
1150 1088 0031 13 • 1 Connector
1155 1088 0031 29 • 1 Connector
1160 1088 0031 49 • 1 Connector
1165 1088 0031 30 • 1 Connector
1170 1088 0031 03 • 1 Connector
1175 1088 0031 03 • 1 Connector
1180 1088 0031 05 • 1 Connector
1185 1088 0031 05 • 1 Connector
1190 1088 0031 05 • 1 Connector
1195 1088 0031 05 • 1 Connector
1200 1089 0577 12 • 83 Terminals
1205 1089 0577 31 • 7 Earth Terminals
1210 • 2 Mounting - Clips
1215 • AR Wiring - Channel
1220 • AR Mounting rail
1225 • 1 PE rail
1230 • 1 Secondary mounting plate
1235 <<< >>> • 1 Cubicle box
1) Up to serial No. :
Tot serienummer:
T.o.m. tillverkningsnummer:
Bis Seriennummer:
Jusqu’au numéro de série:
Hasta el número de serie:
Fino al numeri di serie:
Gælder til følgende serienumre:
Até o número de série:
Til følgende serienummer:
Seuraavaan valmistusnumeroon asti, No.:
AIF-085 712
70 2930 1343 02
Parts list
38
62912_12
2930 1343 02 71
Parts list
Ref. Part number Qty Name Remarks
1 Cubicle
1900 3025 05 ZR55 - 500V/50Hz - IEC
1900 3025 05 ZR55 - 575V/60Hz - IEC
1900 3025 06 ZR55 - 400V/50Hz - IEC
1900 3025 06 ZR55 - 440-460V/60Hz - IEC
1900 3025 25 ZT55 - 500V/50Hz - IEC
1900 3025 25 ZT55 - 575V/60Hz - IEC
1900 3025 26 ZT55 - 400V/50Hz - IEC
1900 3025 27 ZT55 - 440-460V/60Hz - IEC
1900 3026 05 ZR55 - 575V/60Hz - CSA/UL
1900 3026 25 ZT55 - 575V/60Hz - CSA/UL
1010 1089 9526 05 • 1 Circuit breaker
1015 1089 9526 70 • 1 Circuit breaker
1020 1089 9489 30 • 1 Contatcor
1025 1089 9513 01 • 1 Button
1030 1089 9513 02 • 1 Contact block
1035 1089 9526 73 • 1 Circuit breaker
1040 • 1 Overload relay
1089 9512 27 ZR55 - 400V/50Hz - IEC
1089 9512 27 ZR55 - 440-460V/60Hz - IEC
1089 9512 26 ZR55 - 500V/50Hz - IEC
1089 9512 26 ZR55 - 575V/60Hz - IEC
1089 9512 26 ZT55 - 500V/50Hz - IEC
1089 9512 26 ZT55 - 575V/60Hz - IEC
1089 9512 26 ZT55 - 400V/50Hz - IEC
1089 9512 26 ZT55 - 440-460V/60Hz - IEC
1089 9512 26 ZR55 - 575V/60Hz - CSA/UL
1089 9512 26 ZT55 - 575V/60Hz - CSA/UL
1045 • 2 L/D Contactor
1089 9489 37 ZR55 - 575V/60Hz - CSA/UL
1089 9489 37 ZT55 - 575V/60Hz - CSA/UL
1089 9489 18 ZR55 - 500V/50Hz - IEC
1089 9489 18 ZR55 - 575V/60Hz - IEC
1089 9489 18 ZR55 - 400V/50Hz - IEC
1089 9489 18 ZR55 - 440-460V/60Hz - IEC
1089 9489 18 ZT55 - 500V/50Hz - IEC
1089 9489 18 ZT55 - 575V/60Hz - IEC
1089 9489 18 ZT55 - 400V/50Hz - IEC
1089 9489 18 ZT55 - 440-460V/60Hz - IEC
1050 • 1 Y Contactor
1089 9489 36 ZR55 - 575V/60Hz - CSA/UL
1089 9489 36 ZT55 - 575V/60Hz - CSA/UL
1089 9489 16 ZR55 - 500V/50Hz - IEC
1089 9489 16 ZR55 - 575V/60Hz - IEC
1089 9489 16 ZR55 - 400V/50Hz - IEC
1089 9489 16 ZR55 - 440-460V/60Hz - IEC
1089 9489 16 ZT55 - 500V/50Hz - IEC
1089 9489 16 ZT55 - 575V/60Hz - IEC
1089 9489 16 ZT55 - 400V/50Hz - IEC
1089 9489 16 ZT55 - 440-460V/60Hz - IEC
1055 1089 9489 83 • 1 Y/D connection
1060 • 1 Terminal block
1089 9602 03 ZR55 - 500V/50Hz - IEC
1089 9602 03 ZR55 - 575V/60Hz - IEC
1089 9602 03 ZR55 - 400V/50Hz - IEC
1089 9602 03 ZR55 - 440-460V/60Hz - IEC
1089 9602 03 ZT55 - 500V/50Hz - IEC
1089 9602 03 ZT55 - 575V/60Hz - IEC
1089 9602 03 ZT55 - 400V/50Hz - IEC
1089 9602 03 ZT55 - 440-460V/60Hz - IEC
1065 1089 9489 05 • 1 Auxilliary contact
1070 1089 9489 02 • 3 Contact block
1075 • 1 Contact block
1089 9489 03 ZR55 - 500V/50Hz - IEC
1089 9489 03 ZR55 - 575V/60Hz - IEC
Cubicle - ZT/R55 400V - 440-460V - 500V - 575V - 2) 38
Ref. Part number Qty Name Remarks
1089 9489 03 ZT55 - 500V/50Hz - IEC
1089 9489 03 ZT55 - 575V/60Hz - IEC
1089 9489 03 ZT55 - 400V/50Hz - IEC
1089 9489 03 ZT55 - 440-460V/60Hz - IEC
1089 9489 03 ZR55 - 575V/60Hz - CSA/UL
1089 9489 03 ZT55 - 575V/60Hz - CSA/UL
1080 • 1 Circuit breaker
1089 9551 04 ZR55 - 500V/50Hz - IEC
1089 9551 04 ZR55 - 575V/60Hz - IEC
1089 9551 04 ZT55 - 500V/50Hz - IEC
1089 9551 04 ZT55 - 575V/60Hz - IEC
1089 9551 04 ZR55 - 575V/60Hz - CSA/UL
1089 9551 04 ZT55 - 575V/60Hz - CSA/UL
1089 9551 05 ZR55 - 400V/50Hz - IEC
1089 9551 05 ZR55 - 440-460V/60Hz - IEC
1089 9551 05 ZT55 - 400V/50Hz - IEC
1089 9551 05 ZT55 - 440-460V/60Hz - IEC
1085 • 1 Contactor
1089 9489 11 ZT55 - 500V/50Hz - IEC
1089 9489 11 ZT55 - 575V/60Hz - IEC
1089 9489 11 ZT55 - 400V/50Hz - IEC
1089 9489 11 ZT55 - 440-460V/60Hz - IEC
1089 9489 31 ZT55 - 575V/60Hz - CSA/UL
1090 • 1 Circuit breaker
1089 9551 10 ZT55 - 400V/50Hz - IEC
1089 9551 22 ZT55 - 500V/50Hz - IEC
1089 9551 22 ZT55 - 575V/60Hz - IEC
1089 9551 22 ZT55 - 440-460V/60Hz - IEC
1089 9551 22 ZT55 - 575V/60Hz - CSA/UL
1091 • 1 Aux. contactor
1089 9551 97 ZT55 - 400V/50Hz - IEC
1095 1089 9514 08 • 1 Transformer
1100 1089 9514 01 • 1 Transformer
1105 1079 9906 09 • 1 Label
1110 9823 1899 51 • 1 Service diagram
1115 • 1 Dataplate
1613 6639 02 IEC
1614 8949 01 CSA/UL
1120 1088 0031 13 • 1 Connector 13p 2X9
1125 1088 0031 29 • 1 Connector 9p 2X10
1130 1088 0031 49 • 1 Connector 9p 2X11
1135 1088 0031 30 • 1 Connector 10p 2X12
1140 1088 0031 03 • 3 Connector 3p 1X11-1X12-
1X20
1145 1088 0031 05 • 5 Connector 5p 1X13-1X14-
1X15-1X16-1X17
1150 1088 0031 02 • 4 Connector 2p 1X18-1X19-
1X21-1X22
1155 1089 9398 13 • 24 Terminal block
1160 1089 9398 14 • 3 Earth Terminals
1165 1089 9398 34 • 1 Terminal block
1180 • 1 Label type 1
1079 9911 01 ZR55 - 575V/60Hz - CSA/UL
1079 9911 01 ZT55 - 575V/60Hz - CSA/UL
1 Option Fan dryer
1900 3004 06 ZT55 - 500V/50Hz - IEC
1900 3004 06 ZT55 - 575V/60Hz - IEC
1900 3004 07 ZT55 - 400V/50Hz - IEC
1900 3004 07 ZT55 - 440-460V/60Hz - IEC
1900 3004 25 ZT55 - 575V/60Hz - CSA/UL
2010 • 1 Contactor
1089 9489 11 ZT55 - 500V/50Hz - IEC
1089 9489 11 ZT55 - 575V/60Hz - IEC
1089 9489 11 ZT55 - 400V/50Hz - IEC
72 2930 1343 02
Parts list
38
62912_12
2930 1343 02 73
Parts list
Ref. Part number Qty Name Remarks
1089 9489 11 ZT55 - 440-460V/60Hz - IEC
1089 9489 31 ZT55 - 575V/60Hz - CSA/UL
2020 • 1 Circuit breaker
1089 9551 07 ZT55 - 500V/50Hz - IEC
1089 9551 07 ZT55 - 575V/60Hz - IEC
1089 9551 07 ZT55 - 575V/60Hz - CSA/UL
1089 9551 08 ZT55 - 400V/50Hz - IEC
1089 9551 08 ZT55 - 440-460V/60Hz - IEC
2030 1089 9551 97 • 1 Auxilliary contact
1 Option Gear motor dryer
1900 3004 02 IEC
1900 3004 22 CSA/UL
3010 • 1 Circuit breaker
1089 9526 71 IEC
1089 9526 73 CSA/UL
3020 1088 0031 63 • 1 Connector 1X20
3030 1088 0031 03 • 1 Connector 1X20
3040 1088 0031 05 • 3 Connector 1X15-1X16-
1X17
2) From following serial No. onwards:
Geldig vanaf volgend serienummer:
Fr.o.m. tillverkningsnummer:
Gültig ab Seriennummer:
Valable à partir du numéro de série suivant:
A partir del siguiente número de serie:
Dai seguenti numeri di serie in avanti:
Gælder fra følgende serienumre:
A partir do número de série:
Fra og med følgende serienummer:
Alkaen valmistusnumerosta
AIF-085 713
Cubicle - ZT/R55 400V - 440-460V - 500V - 575V - 2) 38
74 2930 1343 02
Parts list
39
62913_12
2930 1343 02 75
Parts list
Cubicle - ZT/R55 - 440-460V - CSA/UL - 2) 39
Ref. Part number Qty Name Remarks
1 Cubicle
1900 3026 06 ZR55 - 440-460V/60Hz -
CSA/UL
1900 3026 26 ZT55 - 440-460V/60Hz -
CSA/UL
1010 1089 9526 05 • 1 Circuit breaker
1015 1089 9526 70 • 1 Circuit breaker
1020 1089 9489 30 • 1 Aux relay loading
1025 1089 9513 01 • 1 Em stop push button
1030 1089 9513 02 • 1 Contact block
1035 1089 9526 73 • 1 Circuit breaker
1040 1089 9512 27 • 1 Overload relay
1045 1089 9489 38 • 2 L/D Contactor
1050 1089 9489 36 • 1 Y Contactor
1055 1089 9489 83 • 1 Y/D connections
1065 1089 9489 05 • 1 Auxilliary contact
1070 1089 9489 02 • 3 Auxilliary contact
1075 1089 9489 03 • 1 Auxilliary contact
1080 1089 9551 05 • 1 Circuit breaker
1085 • 1 Contactor
1089 9489 31 ZT55 - 440-460V/60Hz -
CSA/UL
1090 • 1 Circuit breaker
1089 9551 22 ZT55 - 440-460V/60Hz -
CSA/UL
1095 1089 9514 08 • 1 Transformer
1100 1089 9514 01 • 1 Transformer
1105 1079 9906 09 • 1 Label
1110 9823 1899 51 • 1 Service diagram
1115 1614 8949 01 • 1 Dataplate
1120 1088 0031 13 • 1 Connector 13p 2X9
1125 1088 0031 29 • 1 Connector 9p 2X10
1130 1088 0031 49 • 1 Connector 9p 2X11
1135 1088 0031 30 • 1 Connector 10p 2X12
1140 1088 0031 03 • 3 Connector 3p
1X11-1X12-1X20
1145 1088 0031 05 • 5 Connector 5p
1X13-1X14-1X15-1X16-1X17
1150 1088 0031 02 • 4 Connector 2p
1X18-1X19-1X21-1X22
Ref. Part number Qty Name Remarks
1155 1089 9398 13 • 24 Terminals
1160 1089 9398 14 • 3 Earth Terminals
1165 1089 9398 34 • 1 Y Connection
1180 1079 9911 01 • 1 Label type 1
1 Option Fan dryer
1900 3004 26 ZT55 - 440-460V/60Hz -
CSA/UL
2010 • 1 Contactor
1089 9489 31 ZT55 - 440-460V/60Hz -
CSA/UL
2020 • 1 Circuit breaker
1089 9551 08 ZT55 - 440-460V/60Hz -
CSA/UL
2030 • 1 Auxilliary contact
1089 9551 97 ZT55 - 440-460V/60Hz -
CSA/UL
1 Option Gear motor dryer
1900 3004 22 ZT55 - 440-460V/60Hz -
CSA/UL
3010 1089 9526 73 • 1 Circuit breaker
3020 1088 0031 63 • 1 Connector 1X20
3030 1088 0031 03 • 1 Connector 1X20
3040 1088 0031 05 • 3 Connector
1X15-1X16-
1X17
2) From following serial No. onwards:
Geldig vanaf volgend serienummer:
Fr.o.m. tillverkningsnummer:
Gültig ab Seriennummer:
Valable à partir du numéro de série suivant:
A partir del siguiente número de serie:
Dai seguenti numeri di serie in avanti:
Gælder fra følgende serienumre:
A partir do número de série:
Fra og med følgende serienummer:
Alkaen valmistusnumerosta
AIF-085 713
76 2930 1343 02
Parts list
40
62918_12
2930 1343 02 77
Parts list
Cubicle - ZT/R55 380V, ZT/R75 400V - 440-460V - 500V - 575V, ZT/R90 500V - 575V - 2)
Ref. Part number Qty Name Remarks
1 Cubicle
1900 3025 07 ZR75 - 575V/60Hz - IEC
1900 3025 08 ZR75 - 400V/50Hz - IEC
1900 3025 08 ZR75 - 500V/50Hz - IEC
1900 3025 08 ZR55 - 380V/60Hz - IEC
1900 3025 08 ZR75 - 440-460V/60Hz - IEC
1900 3025 09 ZR90 - 500V/50Hz - IEC
1900 3025 09 ZR90 - 575V/60Hz - IEC
1900 3025 28 ZT75 - 575V/60Hz - IEC
1900 3025 29 ZT75 - 500V/50Hz - IEC
1900 3025 29 ZT55 - 380V/60Hz - IEC
1900 3025 30 ZT75 - 400V/50Hz - IEC
1900 3025 30 ZT75 - 440-460V/60Hz - IEC
1900 3025 31 ZT90 - 500V/50Hz - IEC
1900 3025 31 ZT90 - 575V/60Hz - IEC
1900 3026 07 ZR75 - 575V/60Hz - CSA/UL
1900 3026 08 ZR55 - 380V/60Hz - CSA/UL
1900 3026 08 ZR75 - 440-460V/60Hz -
CSA/UL
1900 3026 08 ZR90 - 575V/60Hz - CSA/UL
1900 3026 27 ZT75 - 575V/60Hz - CSA/UL
1900 3026 28 ZT55 - 380V/60Hz - CSA/UL
1900 3026 28 ZT90 - 575V/60Hz - CSA/UL
1900 3026 29 ZT75 - 440-460V/60Hz -
CSA/UL
1010 1089 9526 05 • 1 Circuit breaker
1015 1089 9526 70 • 1 Circuit breaker
1020 1089 9489 30 • 1 Contatcor
1025 1089 9513 01 • 1 Button
1030 1089 9513 02 • 1 Contact block
1035 • 1 Circuit breaker
1089 9526 73 ZR75 - 575V/60Hz - IEC
1089 9526 73 ZR75 - 400V/50Hz - IEC
1089 9526 73 ZR75 - 500V/50Hz - IEC
1089 9526 73 ZR55 - 380V/60Hz - IEC
1089 9526 73 ZR75 - 440-460V/60Hz - IEC
1089 9526 73 ZR90 - 500V/50Hz - IEC
1089 9526 73 ZR90 - 575V/60Hz - IEC
1089 9526 73 ZT75 - 575V/60Hz - IEC
1089 9526 73 ZT75 - 500V/50Hz - IEC
1089 9526 73 ZT55 - 380V/60Hz - IEC
1089 9526 73 ZT75 - 400V/50Hz - IEC
1089 9526 73 ZT75 - 440-460V/60Hz - IEC
1089 9526 73 ZT90 - 500V/50Hz - IEC
1089 9526 73 ZT90 - 575V/60Hz - IEC
1089 9526 74 ZR75 - 575V/60Hz - CSA/UL
1089 9526 74 ZT75 - 575V/60Hz - CSA/UL
1089 9526 75 ZR55 - 380V/60Hz - CSA/UL
1089 9526 75 ZR75 - 440-460V/60Hz -
CSA/UL
1089 9526 75 ZR90 - 575V/60Hz - CSA/UL
1089 9526 75 ZT55 - 380V/60Hz - CSA/UL
1089 9526 75 ZT90 - 575V/60Hz - CSA/UL
1089 9526 75 ZT75 - 440-460V/60Hz -
CSA/UL
1040 • 1 Overload relay
1089 9512 31 ZR75 - 575V/60Hz - IEC
1089 9512 31 ZT75 - 575V/60Hz - IEC
1089 9512 31 ZR75 - 575V/60Hz - CSA/UL
1089 9512 31 ZT75 - 575V/60Hz - CSA/UL
1089 9512 33 ZR75 - 400V/50Hz - IEC
1089 9512 33 ZR75 - 500V/50Hz - IEC
1089 9512 33 ZR55 - 380V/60Hz - IEC
1089 9512 33 ZR75 - 440-460V/60Hz - IEC
1089 9512 33 ZR90 - 500V/50Hz - IEC
Ref. Part number Qty Name Remarks
1089 9512 33 ZR90 - 575V/60Hz - IEC
1089 9512 33 ZT75 - 500V/50Hz - IEC
1089 9512 33 ZT55 - 380V/60Hz - IEC
1089 9512 33 ZT75 - 400V/50Hz - IEC
1089 9512 33 ZT75 - 440-460V/60Hz -
IEC
1089 9512 33 ZT90 - 500V/50Hz - IEC
1089 9512 33 ZT90 - 575V/60Hz - IEC
1089 9512 33 ZR55 - 380V/60Hz -
CSA/UL
1089 9512 33 ZR75 - 440-460V/60Hz -
CSA/UL
1089 9512 33 ZR90 - 575V/60Hz -
CSA/UL
1089 9512 33 ZT55 - 380V/60Hz -
CSA/UL
1089 9512 33 ZT90 - 575V/60Hz -
CSA/UL
1089 9512 33 ZT75 - 440-460V/60Hz -
CSA/UL
1045 • 2 L/D Contactor
1089 9489 20 ZR75 - 575V/60Hz - IEC
1089 9489 20 ZR75 - 400V/50Hz - IEC
1089 9489 20 ZR75 - 500V/50Hz - IEC
1089 9489 20 ZR55 - 380V/60Hz - IEC
1089 9489 20 ZR75 - 440-460V/60Hz -
IEC
1089 9489 20 ZT75 - 575V/60Hz - IEC
1089 9489 20 ZT75 - 500V/50Hz - IEC
1089 9489 20 ZT55 - 380V/60Hz - IEC
1089 9489 20 ZT75 - 400V/50Hz - IEC
1089 9489 20 ZT75 - 440-460V/60Hz -
IEC
1089 9489 21 ZR90 - 500V/50Hz - IEC
1089 9489 21 ZR90 - 575V/60Hz - IEC
1089 9489 21 ZT90 - 500V/50Hz - IEC
1089 9489 21 ZT90 - 575V/60Hz - IEC
1089 9489 40 ZR75 - 575V/60Hz -
CSA/UL
1089 9489 40 ZR55 - 380V/60Hz -
CSA/UL
1089 9489 40 ZR75 - 440-460V/60Hz -
CSA/UL
1089 9489 40 ZR90 - 575V/60Hz -
CSA/UL
1089 9489 40 ZT75 - 575V/60Hz -
CSA/UL
1089 9489 40 ZT55 - 380V/60Hz -
CSA/UL
1089 9489 40 ZT90 - 575V/60Hz -
CSA/UL
1089 9489 40 ZT75 - 440-460V/60Hz -
CSA/UL
1050 • 1 Y Contactor
1089 9489 17 ZR75 - 575V/60Hz - IEC
1089 9489 17 ZR75 - 400V/50Hz - IEC
1089 9489 17 ZR75 - 500V/50Hz - IEC
1089 9489 17 ZR55 - 380V/60Hz - IEC
1089 9489 17 ZR75 - 440-460V/60Hz -
IEC
1089 9489 17 ZT75 - 575V/60Hz - IEC
1089 9489 17 ZT75 - 500V/50Hz - IEC
1089 9489 17 ZT55 - 380V/60Hz - IEC
1089 9489 17 ZT75 - 400V/50Hz - IEC
40
78 2930 1343 02
Parts list
40
62918_12
2930 1343 02 79
Parts list
Ref. Part number Qty Name Remarks
1089 9489 17 ZT75 - 440-460V/60Hz - IEC
1089 9489 18 ZR90 - 500V/50Hz - IEC
1089 9489 18 ZR90 - 575V/60Hz - IEC
1089 9489 18 ZT90 - 500V/50Hz - IEC
1089 9489 18 ZT90 - 575V/60Hz - IEC
1089 9489 37 ZR75 - 575V/60Hz - CSA/UL
1089 9489 37 ZR55 - 380V/60Hz - CSA/UL
1089 9489 37 ZR75 - 440-460V/60Hz -
CSA/UL
1089 9489 37 ZR90 - 575V/60Hz - CSA/UL
1089 9489 37 ZT75 - 575V/60Hz - CSA/UL
1089 9489 37 ZT55 - 380V/60Hz - CSA/UL
1089 9489 37 ZT90 - 575V/60Hz - CSA/UL
1089 9489 37 ZT75 - 440-460V/60Hz -
CSA/UL
1055 1089 9489 84 • 1 Y/D connections
1060 • 2 Auxilliary contact
1089 9602 02 ZR90 - 500V/50Hz - IEC
1089 9602 02 ZR90 - 575V/60Hz - IEC
1089 9602 02 ZT90 - 500V/50Hz - IEC
1089 9602 02 ZT90 - 575V/60Hz - IEC
1065 1089 9489 05 • 1 Auxilliary contact
1070 • 3 Auxilliary contact
1089 9602 01 ZR90 - 500V/50Hz - IEC
1089 9602 01 ZR90 - 575V/60Hz - IEC
1089 9602 01 ZT90 - 500V/50Hz - IEC
1089 9602 01 ZT90 - 575V/60Hz - IEC
1089 9489 02 ZR75 - 575V/60Hz - IEC
1089 9489 02 ZR75 - 400V/50Hz - IEC
1089 9489 02 ZR75 - 500V/50Hz - IEC
1089 9489 02 ZR55 - 380V/60Hz - IEC
1089 9489 02 ZR75 - 440-460V/60Hz - IEC
1089 9489 02 ZT75 - 575V/60Hz - IEC
1089 9489 02 ZT75 - 500V/50Hz - IEC
1089 9489 02 ZT55 - 380V/60Hz - IEC
1089 9489 02 ZT75 - 400V/50Hz - IEC
1089 9489 02 ZT75 - 440-460V/60Hz - IEC
1089 9489 02 ZR75 - 575V/60Hz - CSA/UL
1089 9489 02 ZR55 - 380V/60Hz - CSA/UL
1089 9489 02 ZR75 - 440-460V/60Hz -
CSA/UL
1089 9489 02 ZR90 - 575V/60Hz - CSA/UL
1089 9489 02 ZT75 - 575V/60Hz - CSA/UL
1089 9489 02 ZT55 - 380V/60Hz - CSA/UL
1089 9489 02 ZT90 - 575V/60Hz - CSA/UL
1089 9489 02 ZT75 - 440-460V/60Hz -
CSA/UL
1075 • 1 Contact block
1089 9489 03 ZR75 - 575V/60Hz - IEC
1089 9489 03 ZT75 - 575V/60Hz - IEC
1089 9489 03 ZT75 - 500V/50Hz - IEC
1089 9489 03 ZT55 - 380V/60Hz - IEC
1089 9489 03 ZT75 - 400V/50Hz - IEC
1089 9489 03 ZT75 - 440-460V/60Hz - IEC
1080 • 1 Circuitbreaker
1089 9551 05 ZT75 - 575V/60Hz - CSA/UL
1089 9551 05 ZR75 - 575V/60Hz - IEC
1089 9551 05 ZR75 - 400V/50Hz - IEC
1089 9551 05 ZR75 - 500V/50Hz - IEC
1089 9551 05 ZR55 - 380V/60Hz - IEC
1089 9551 05 ZR75 - 440-460V/60Hz - IEC
1089 9551 05 ZT75 - 575V/60Hz - IEC
1089 9551 05 ZT90 - 500V/50Hz - IEC
1089 9551 05 ZT90 - 575V/60Hz - IEC
Ref. Part number Qty Name Remarks
1089 9551 05 ZR75 - 575V/60Hz - CSA/UL
1089 9551 06 ZT55 - 380V/60Hz - CSA/UL
1089 9551 06 ZT90 - 575V/60Hz - CSA/UL
1089 9551 06 ZT75 - 440-460V/60Hz - CSA/
UL
1089 9551 06 ZR90 - 500V/50Hz - IEC
1089 9551 06 ZR90 - 575V/60Hz - IEC
1089 9551 06 ZT75 - 500V/50Hz - IEC
1089 9551 06 ZT55 - 380V/60Hz - IEC
1089 9551 06 ZT75 - 400V/50Hz - IEC
1089 9551 06 ZT75 - 440-460V/60Hz - IEC
1089 9551 06 ZR55 - 380V/60Hz - CSA/UL
1089 9551 06 ZR75 - 440-460V/60Hz - CSA/
UL
1089 9551 06 ZR90 - 575V/60Hz - CSA/UL
1085 • 1 Contactor
1089 9489 11 ZT75 - 575V/60Hz - IEC
1089 9489 11 ZT75 - 500V/50Hz - IEC
1089 9489 11 ZT55 - 380V/60Hz - IEC
1089 9489 11 ZT75 - 400V/50Hz - IEC
1089 9489 11 ZT75 - 440-460V/60Hz - IEC
1089 9489 11 ZT90 - 500V/50Hz - IEC
1089 9489 11 ZT90 - 575V/60Hz - IEC
1089 9489 31 ZT75 - 575V/60Hz - CSA/UL
1089 9489 31 ZT55 - 380V/60Hz - CSA/UL
1089 9489 31 ZT90 - 575V/60Hz - CSA/UL
1089 9489 31 ZT75 - 440-460V/60Hz - CSA/
UL
1090 • 1 Circuit breaker
1089 9551 22 ZT75 - 575V/60Hz - IEC
1089 9551 22 ZT75 - 500V/50Hz - IEC
1089 9551 22 ZT55 - 380V/60Hz - IEC
1089 9551 22 ZT90 - 500V/50Hz - IEC
1089 9551 22 ZT90 - 575V/60Hz - IEC
1089 9551 22 ZT75 - 575V/60Hz - CSA/UL
1089 9551 22 ZT55 - 380V/60Hz - CSA/UL
1089 9551 22 ZT90 - 575V/60Hz - CSA/UL
1089 9551 39 ZT75 - 400V/50Hz - IEC
1089 9551 39 ZT75 - 440-460V/60Hz - IEC
1089 9551 39 ZT75 - 440-460V/60Hz - CSA/
UL
1095 • 1 Transformer
1089 9514 08 ZR75 - 575V/60Hz - IEC
1089 9514 09 ZT75 - 575V/60Hz - IEC
1089 9514 09 ZT75 - 500V/50Hz - IEC
1089 9514 09 ZT55 - 380V/60Hz - IEC
1089 9514 09 ZT75 - 400V/50Hz - IEC
1089 9514 09 ZT75 - 440-460V/60Hz - IEC
1089 9514 09 ZT90 - 500V/50Hz - IEC
1089 9514 09 ZT90 - 575V/60Hz - IEC
1089 9514 09 ZR75 - 575V/60Hz - CSA/UL
1089 9514 09 ZR55 - 380V/60Hz - CSA/UL
1089 9514 09 ZR75 - 440-460V/60Hz - CSA/
UL
1089 9514 09 ZR90 - 575V/60Hz - CSA/UL
1089 9514 09 ZT75 - 575V/60Hz - CSA/UL
1089 9514 09 ZT55 - 380V/60Hz - CSA/UL
1089 9514 09 ZT90 - 575V/60Hz - CSA/UL
1089 9514 09 ZT75 - 440-460V/60Hz - CSA/
UL
1089 9514 09 ZR75 - 400V/50Hz - IEC
1089 9514 09 ZR75 - 500V/50Hz - IEC
1089 9514 09 ZR55 - 380V/60Hz - IEC
1089 9514 09 ZR75 - 440-460V/60Hz - IEC
Cubicle - ZT/R55 380V, ZT/R75 400V - 440-460V - 500V - 575V, ZT/R90 500V - 575V - 2) 40
80 2930 1343 02
Parts list
40
62918_12
2930 1343 02 81
Parts list
Cubicle - ZT/R55 380V, ZT/R75 400V - 440-460V - 500V - 575V, ZT/R90 500V - 575V - 2) 40
Ref. Part number Qty Name Remarks
1089 9514 09 ZR90 - 500V/50Hz - IEC
1089 9514 09 ZR90 - 575V/60Hz - IEC
1100 1089 9514 01 • 1 Transformer
1105 1079 9906 09 • 1 Label
1110 9823 1899 51 • 1 Service diagram
1115 • 1 Dataplate
1613 6639 02 IEC
1614 8949 01 CSA/UL
1120 1088 0031 13 • 1 Connector 13p 2X9
1125 1088 0031 29 • 1 Connector 9p 2X10
1130 1088 0031 49 • 1 Connector 9p 2X11
1135 1088 0031 30 • 1 Connector 10p 2X12
1140 1088 0031 03 • 3 Connector 3p 1X11-1X12-
1X20
1145 1088 0031 05 • 5 Connector 5p 1X13-1X14-
1X15-1X16-1X17
1150 1088 0031 02 • 4 Connector 2p 1X18-1X19-
1X21-1X22
1155 1089 9398 13 • 24 Terminal block
1160 1089 9398 14 • 3 Earth Terminals
1165 1089 9398 34 • 1 Terminal block
1180 • 1 Label type 1
1079 9911 01 CSA/UL
1 Option Fan dryer
1900 3004 06 ZT75 - 500V/50Hz - IEC
1900 3004 06 ZT90 - 500V/50Hz - IEC
1900 3004 06 ZT75 - 575V/60Hz - IEC
1900 3004 06 ZT90 - 575V/60Hz - IEC
1900 3004 07 ZT75 - 400V/50Hz - IEC
1900 3004 07 ZT55 - 380V/60Hz - IEC
1900 3004 07 ZT75 - 440-460V/60Hz - IEC
1900 3004 25 ZT75 - 575V/60Hz - CSA/UL
1900 3004 25 ZT90 - 575V/60Hz - CSA/UL
1900 3004 26 ZT55 - 380V/60Hz - CSA/UL
1900 3004 26 ZT75 - 440-460V/60Hz -
CSA/UL
2010 • 1 Contactor
1089 9489 11 ZT75 - 500V/50Hz - IEC
1089 9489 11 ZT90 - 500V/50Hz - IEC
1089 9489 11 ZT75 - 575V/60Hz - IEC
1089 9489 11 ZT90 - 575V/60Hz - IEC
1089 9489 11 ZT75 - 400V/50Hz - IEC
1089 9489 11 ZT55 - 380V/60Hz - IEC
1089 9489 11 ZT75 - 440-460V/60Hz - IEC
1089 9489 31 ZT75 - 575V/60Hz - CSA/UL
1089 9489 31 ZT90 - 575V/60Hz - CSA/UL
1089 9489 31 ZT55 - 380V/60Hz - CSA/UL
1089 9489 31 ZT75 - 440-460V/60Hz -
CSA/UL
2020 • 1 Circuit breaker
1089 9551 07 ZT75 - 500V/50Hz - IEC
1089 9551 07 ZT90 - 500V/50Hz - IEC
1089 9551 07 ZT75 - 575V/60Hz - IEC
1089 9551 07 ZT90 - 575V/60Hz - IEC
1089 9551 07 ZT75 - 575V/60Hz - CSA/UL
1089 9551 07 ZT90 - 575V/60Hz - CSA/UL
1089 9551 08 ZT75 - 400V/50Hz - IEC
1089 9551 08 ZT55 - 380V/60Hz - IEC
1089 9551 08 ZT75 - 440-460V/60Hz - IEC
1089 9551 08 ZT55 - 380V/60Hz - CSA/UL
1089 9551 08 ZT75 - 440-460V/60Hz -
CSA/UL
Ref. Part number Qty Name Remarks
2030 1089 9551 97 • 1 Auxilliary contact
1 Option Gear motor dryer
1900 3004 02 IEC
1900 3004 22 CSA/UL
3010 • 1 Circuit breaker
1089 9526 71 IEC
1089 9526 73 CSA/UL
3020 1088 0031 63 • 1 Connector 1X20
3030 1088 0031 03 • 1 Connector 1X20
3040 1088 0031 05 • 3 Connector 1X15-1X16-
1X17
2) From following serial No. onwards:
Geldig vanaf volgend serienummer:
Fr.o.m. tillverkningsnummer:
Gültig ab Seriennummer:
Valable à partir du numéro de série suivant:
A partir del siguiente número de serie:
Dai seguenti numeri di serie in avanti:
Gælder fra følgende serienumre:
A partir do número de série:
Fra og med følgende serienummer:
Alkaen valmistusnumerosta
AIF-085 713
82 2930 1343 02
Parts list
41
62919_12
2930 1343 02 83
Parts list
Cubicle - ZT/R55 200V - 230V - 220-230V, ZT/R75 380V, ZT/R90 380V - 400V - 440-460V - 2) 41
Ref. Part number Qty Name Remarks
1 Cubicle
1900 3025 10 ZR90 - 400V/50Hz - IEC
1900 3025 10 ZR75 - 380V/60Hz - IEC
1900 3025 10 ZR90 - 440-460V/60Hz - IEC
1900 3025 11 ZR55 - 200V/50Hz - IEC
1900 3025 11 ZR55 - 230V/50Hz - IEC
1900 3025 11 ZR55 - 220-230V/60Hz - IEC
1900 3025 11 ZR90 - 380V/60Hz - IEC
1900 3025 12 ZR55 - 200V/60Hz - IEC
1900 3025 32 ZT55 - 230V/50Hz - IEC
1900 3025 32 ZT90 - 400V/50Hz - IEC
1900 3025 32 ZT75 - 380V/60Hz - IEC
1900 3025 33 ZT90 - 440-460V/60Hz - IEC
1900 3025 34 ZT55 - 220-230V/60Hz - IEC
1900 3025 34 ZT90 - 380V/60Hz - IEC
1900 3025 35 ZT55 - 200V/50Hz - IEC
1900 3025 35 ZT55 - 200V/60Hz - IEC
1900 3026 09 ZR75 - 380V/60Hz - CSA/UL
1900 3026 09 ZR90 - 440-460V/60Hz -
CSA/UL
1900 3026 10 ZR90 - 380V/60Hz - CSA/UL
1900 3026 11 ZR55 - 220-230V/60Hz -
CSA/UL
1900 3026 30 ZT75 - 380V/60Hz - CSA/UL
1900 3026 30 ZT90 - 440-460V/60Hz -
CSA/UL
1900 3026 31 ZT90 - 380V/60Hz - CSA/UL
1900 3026 32 ZT55 - 220-230V/60Hz -
CSA/UL
1010 1089 9526 05 • 1 Circuit breaker
1015 1089 9526 70 • 1 Circuit breaker
1020 1089 9489 30 • 1 Contatcor
1025 1089 9513 01 • 1 Button
1030 1089 9513 02 • 1 Contact block
1035 • 1 Circuit breaker
1089 9526 73 IEC
1089 9526 75 CSA/UL
1040 • 1 Overload relay
1089 9512 36 ZR90 - 400V/50Hz - IEC
1089 9512 36 ZR75 - 380V/60Hz - IEC
1089 9512 36 ZR90 - 440-460V/60Hz - IEC
1089 9512 36 ZR55 - 200V/50Hz - IEC
1089 9512 36 ZR55 - 230V/50Hz - IEC
1089 9512 36 ZR55 - 220-230V/60Hz - IEC
1089 9512 36 ZR90 - 380V/60Hz - IEC
1089 9512 36 ZT55 - 230V/50Hz - IEC
1089 9512 36 ZT90 - 400V/50Hz - IEC
1089 9512 36 ZT75 - 380V/60Hz - IEC
1089 9512 36 ZT90 - 440-460V/60Hz - IEC
1089 9512 36 ZT55 - 220-230V/60Hz - IEC
1089 9512 36 ZT90 - 380V/60Hz - IEC
1089 9512 36 ZR75 - 380V/60Hz - CSA/UL
1089 9512 36 ZR90 - 440-460V/60Hz -
CSA/UL
1089 9512 36 ZR90 - 380V/60Hz - CSA/UL
1089 9512 36 ZT75 - 380V/60Hz - CSA/UL
1089 9512 36 ZT90 - 440-460V/60Hz -
CSA/UL
1089 9512 36 ZT90 - 380V/60Hz - CSA/UL
1089 9512 36 ZT55 - 220-230V/60Hz -
CSA/UL
1089 9512 37 ZT55 - 200V/50Hz - IEC
1089 9512 37 ZT55 - 200V/60Hz - IEC
1089 9512 38 ZR55 - 200V/60Hz - IEC
1089 9512 38 ZR55 - 220-230V/60Hz -
CSA/UL
Ref. Part number Qty Name Remarks
1045 • 2 L/D Contactor
1089 9489 22 IEC
1089 9489 42 CSA/UL
1050 • 1 Y Contactor
1089 9489 18 ZT55 - 230V/50Hz - IEC
1089 9489 18 ZT90 - 400V/50Hz - IEC
1089 9489 18 ZT75 - 380V/60Hz - IEC
1089 9489 18 ZT90 - 440-460V/60Hz - IEC
1089 9489 20 ZR90 - 400V/50Hz - IEC
1089 9489 20 ZR75 - 380V/60Hz - IEC
1089 9489 20 ZR90 - 440-460V/60Hz - IEC
1089 9489 20 ZR55 - 200V/50Hz - IEC
1089 9489 20 ZR55 - 230V/50Hz - IEC
1089 9489 20 ZR55 - 220-230V/60Hz - IEC
1089 9489 20 ZR90 - 380V/60Hz - IEC
1089 9489 20 ZR55 - 200V/60Hz - IEC
1089 9489 20 ZT55 - 220-230V/60Hz - IEC
1089 9489 20 ZT90 - 380V/60Hz - IEC
1089 9489 20 ZT55 - 200V/50Hz - IEC
1089 9489 20 ZT55 - 200V/60Hz - IEC
1089 9489 38 ZR75 - 380V/60Hz - CSA/UL
1089 9489 38 ZR90 - 440-460V/60Hz -
CSA/UL
1089 9489 38 ZT75 - 380V/60Hz - CSA/UL
1089 9489 38 ZT90 - 440-460V/60Hz -
CSA/UL
1089 9489 38 ZT90 - 380V/60Hz - CSA/UL
1089 9489 38 ZT55 - 220-230V/60Hz -
CSA/UL
1089 9489 40 ZR90 - 380V/60Hz - CSA/UL
1089 9489 40 ZR55 - 220-230V/60Hz -
CSA/UL
1055 • 1 Y-point connecting
1089 9489 92 ZR55 - 200V/50Hz - IEC
1089 9489 92 ZR55 - 230V/50Hz - IEC
1089 9489 92 ZR55 - 220-230V/60Hz - IEC
1089 9489 92 ZR90 - 380V/60Hz - IEC
1089 9489 92 ZR55 - 200V/60Hz - IEC
1089 9489 92 ZT55 - 220-230V/60Hz - IEC
1089 9489 92 ZT90 - 380V/60Hz - IEC
1089 9489 92 ZT55 - 200V/50Hz - IEC
1089 9489 92 ZT55 - 200V/60Hz - IEC
1089 9489 92 ZR90 - 380V/60Hz - CSA/UL
1089 9489 92 ZR55 - 220-230V/60Hz -
CSA/UL
1089 9489 92 ZT90 - 380V/60Hz - CSA/UL
1089 9489 92 ZT55 - 220-230V/60Hz -
CSA/UL
1060 • 2 Auxilliary contact
1089 9602 01 ZR90 - 400V/50Hz - IEC
1089 9602 01 ZR75 - 380V/60Hz - IEC
1089 9602 01 ZR90 - 440-460V/60Hz - IEC
1089 9602 01 ZR55 - 200V/50Hz - IEC
1089 9602 01 ZR55 - 230V/50Hz - IEC
1089 9602 01 ZR55 - 220-230V/60Hz - IEC
1089 9602 01 ZR90 - 380V/60Hz - IEC
1089 9602 01 ZR55 - 200V/60Hz - IEC
1089 9602 01 ZR90 - 380V/60Hz - CSA/UL
1089 9602 01 ZR75 - 380V/60Hz - CSA/UL
1089 9602 01 ZR90 - 440-460V/60Hz -
CSA/UL
1089 9602 01 ZT55 - 230V/50Hz - IEC
1089 9602 01 ZT90 - 400V/50Hz - IEC
1089 9602 01 ZT75 - 380V/60Hz - IEC
1089 9602 01 ZT90 - 440-460V/60Hz - IEC
1089 9602 01 ZT55 - 220-230V/60Hz - IEC
84 2930 1343 02
Parts list
41
62919_12
2930 1343 02 85
Parts list
Cubicle - ZT/R55 200V - 230V - 220-230V, ZT/R75 380V, ZT/R90 380V - 400V - 440-460V - 2) 41
Ref. Part number Qty Name Remarks
1089 9602 01 ZT90 - 380V/60Hz - IEC
1089 9602 01 ZT55 - 200V/50Hz - IEC
1089 9602 01 ZT55 - 200V/60Hz - IEC
1089 9602 01 ZR55 - 220-230V/60Hz -
CSA/UL
1065 • Auxilliary contact
1089 9602 02 2 ZR90 - 400V/50Hz - IEC
1089 9602 02 2 ZR75 - 380V/60Hz - IEC
1089 9602 02 2 ZR90 - 440-460V/60Hz - IEC
1089 9602 02 2 ZR55 - 200V/50Hz - IEC
1089 9602 02 2 ZR55 - 230V/50Hz - IEC
1089 9602 02 2 ZR55 - 220-230V/60Hz - IEC
1089 9602 02 2 ZR90 - 380V/60Hz - IEC
1089 9602 02 2 ZR55 - 200V/60Hz - IEC
1089 9602 02 2 ZR75 - 380V/60Hz - CSA/UL
1089 9602 02 2 ZR90 - 440-460V/60Hz -
CSA/UL
1089 9602 02 2 ZR90 - 380V/60Hz - CSA/UL
1089 9602 02 2 ZT90 - 380V/60Hz - CSA/UL
1089 9602 02 2 ZT55 - 220-230V/60Hz -
CSA/UL
1089 9602 02 2 ZR55 - 220-230V/60Hz -
CSA/UL
1089 9602 02 2 ZT75 - 380V/60Hz - CSA/UL
1089 9602 02 2 ZT90 - 440-460V/60Hz -
CSA/UL
1089 9602 02 2 ZT55 - 230V/50Hz - IEC
1089 9602 02 2 ZT90 - 400V/50Hz - IEC
1089 9602 02 2 ZT75 - 380V/60Hz - IEC
1089 9602 02 2 ZT90 - 440-460V/60Hz - IEC
1089 9602 02 2 ZT55 - 220-230V/60Hz - IEC
1089 9602 02 2 ZT90 - 380V/60Hz - IEC
1089 9602 02 2 ZT55 - 200V/50Hz - IEC
1089 9602 02 2 ZT55 - 200V/60Hz - IEC
1089 9489 02 1 ZR90 - 400V/50Hz - IEC
1089 9489 02 1 ZR75 - 380V/60Hz - IEC
1089 9489 02 1 ZR90 - 440-460V/60Hz - IEC
1089 9489 02 1 ZR55 - 200V/50Hz - IEC
1089 9489 02 1 ZR55 - 230V/50Hz - IEC
1089 9489 02 1 ZR55 - 220-230V/60Hz - IEC
1089 9489 02 1 ZR90 - 380V/60Hz - IEC
1089 9489 02 1 ZR55 - 200V/60Hz - IEC
1089 9489 02 1 ZT55 - 230V/50Hz - IEC
1089 9489 02 1 ZT90 - 400V/50Hz - IEC
1089 9489 02 1 ZT75 - 380V/60Hz - IEC
1089 9489 02 1 ZT90 - 440-460V/60Hz - IEC
1089 9489 02 1 ZT55 - 220-230V/60Hz - IEC
1089 9489 02 1 ZT90 - 380V/60Hz - IEC
1089 9489 02 1 ZT55 - 200V/50Hz - IEC
1089 9489 02 1 ZT55 - 200V/60Hz - IEC
1089 9489 02 1 ZR75 - 380V/60Hz - CSA/UL
1089 9489 02 1 ZR90 - 440-460V/60Hz -
CSA/UL
1089 9489 02 1 ZR90 - 380V/60Hz - CSA/UL
1089 9489 02 1 ZR55 - 220-230V/60Hz -
CSA/UL
1070 • 3 Auxilliary contact
1089 9602 01 ZT75 - 380V/60Hz - CSA/UL
1089 9602 01 ZT90 - 440-460V/60Hz -
CSA/UL
1089 9602 01 ZT90 - 380V/60Hz - CSA/UL
1089 9602 01 ZT55 - 220-230V/60Hz -
CSA/UL
1080 • 1 Circuit breaker
1089 9551 06 ZR90 - 400V/50Hz - IEC
1089 9551 06 ZR75 - 380V/60Hz - IEC
Ref. Part number Qty Name Remarks
1089 9551 06 ZR90 - 440-460V/60Hz - IEC
1089 9551 06 ZT90 - 440-460V/60Hz - IEC
1089 9551 06 ZR75 - 380V/60Hz - CSA/UL
1089 9551 06 ZR90 - 440-460V/60Hz -
CSA/UL
1089 9551 06 ZR90 - 380V/60Hz - CSA/UL
1089 9551 06 ZT75 - 380V/60Hz - CSA/UL
1089 9551 06 ZT90 - 440-460V/60Hz -
CSA/UL
1089 9551 06 ZT90 - 380V/60Hz - CSA/UL
1089 9551 07 ZT55 - 220-230V/60Hz -
CSA/UL
1089 9551 07 ZR55 - 220-230V/60Hz -
CSA/UL
1089 9551 07 ZR55 - 200V/50Hz - IEC
1089 9551 07 ZR55 - 230V/50Hz - IEC
1089 9551 07 ZR55 - 220-230V/60Hz - IEC
1089 9551 07 ZR90 - 380V/60Hz - IEC
1089 9551 07 ZR55 - 200V/60Hz - IEC
1089 9551 07 ZT55 - 230V/50Hz - IEC
1089 9551 07 ZT90 - 400V/50Hz - IEC
1089 9551 07 ZT75 - 380V/60Hz - IEC
1089 9551 07 ZT55 - 220-230V/60Hz - IEC
1089 9551 07 ZT90 - 380V/60Hz - IEC
1089 9551 07 ZT55 - 200V/50Hz - IEC
1089 9551 07 ZT55 - 200V/60Hz - IEC
1085 • 1 Contactor
1089 9489 11 ZT55 - 230V/50Hz - IEC
1089 9489 11 ZT90 - 400V/50Hz - IEC
1089 9489 11 ZT75 - 380V/60Hz - IEC
1089 9489 11 ZT90 - 440-460V/60Hz - IEC
1089 9489 12 ZT55 - 220-230V/60Hz - IEC
1089 9489 12 ZT90 - 380V/60Hz - IEC
1089 9489 12 ZT55 - 200V/50Hz - IEC
1089 9489 12 ZT55 - 200V/60Hz - IEC
1089 9489 31 ZT75 - 380V/60Hz - CSA/UL
1089 9489 31 ZT90 - 440-460V/60Hz -
CSA/UL
1089 9489 31 ZT90 - 380V/60Hz - CSA/UL
1089 9489 31 ZT55 - 220-230V/60Hz -
CSA/UL
1090 • 1 Circuit breaker
1089 9551 10 ZT55 - 230V/50Hz - IEC
1089 9551 10 ZT90 - 400V/50Hz - IEC
1089 9551 10 ZT75 - 380V/60Hz - IEC
1089 9551 10 ZT55 - 220-230V/60Hz - IEC
1089 9551 10 ZT90 - 380V/60Hz - IEC
1089 9551 10 ZT90 - 380V/60Hz - CSA/UL
1089 9551 10 ZT55 - 220-230V/60Hz -
CSA/UL
1089 9551 11 ZT55 - 200V/50Hz - IEC
1089 9551 11 ZT55 - 200V/60Hz - IEC
1089 9551 22 ZT90 - 440-460V/60Hz - IEC
1089 9551 39 ZT75 - 380V/60Hz - CSA/UL
1089 9551 39 ZT90 - 440-460V/60Hz -
CSA/UL
1091 • 1 Aux.contact
1089 9551 97 ZT90 - 380V/60Hz - CSA/UL
1089 9551 97 ZT55 - 220-230V/60Hz -
CSA/UL
1089 9551 97 ZT55 - 230V/50Hz - IEC
1089 9551 97 ZT90 - 400V/50Hz - IEC
1089 9551 97 ZT75 - 380V/60Hz - IEC
1095 1089 9514 09 • 1 Transformer
1100 1089 9514 01 • 1 Transformer
1105 1079 9906 09 • 1 Label
86 2930 1343 02
Parts list
41
62919_12
2930 1343 02 87
Parts list
Ref. Part number Qty Name Remarks
1110 9823 1899 51 • 1 Service diagram
1115 • 1 Dataplate
1613 6639 02 IEC
1614 8949 01 CSA/UL
1120 1088 0031 13 • 1 Connector 13p 2X9
1125 1088 0031 29 • 1 Connector 9p 2X10
1130 1088 0031 49 • 1 Connector 9p 2X11
1135 1088 0031 30 • 1 Connector 10p 2X12
1140 1088 0031 03 • 3 Connector 3p
1X11-1X12-1X20
1145 1088 0031 05 • 5 Connector 5p
1X13-1X14-1X15-1X16-1X17
1150 1088 0031 02 • 4 Connector 2p
1X18-1X19-1X21-1X22
1155 1089 9398 13 • 24 Terminal block
1160 1089 9398 14 • 3 Earth Terminals
1165 1089 9398 34 • 1 Terminal block
1180 • 1 Label type 1
1079 9911 01 CSA/UL
1 Option Fan dryer
1900 3004 07 ZT90 - 400V/50Hz - IEC
1900 3004 07 ZT75 - 380V/60Hz - IEC
1900 3004 07 ZT90 - 380V/60Hz - IEC
1900 3004 07 ZT90 - 440-460V/60Hz - IEC
1900 3004 08 ZT55 - 200V/50Hz - IEC
1900 3004 08 ZT55 - 230V/50Hz - IEC
1900 3004 08 ZT55 - 200V/60Hz - IEC
1900 3004 08 ZT55 - 220-230V/60Hz - IEC
1900 3004 26 ZT75 - 380V/60Hz - CSA/UL
1900 3004 26 ZT90 - 380V/60Hz - CSA/UL
1900 3004 26 ZT90 - 440-460V/60Hz -
CSA/UL
1900 3004 27 ZT55 - 220-230V/60Hz -
CSA/UL
2010 • 1 Contactor
1089 9489 11 ZT90 - 400V/50Hz - IEC
1089 9489 11 ZT75 - 380V/60Hz - IEC
1089 9489 11 ZT90 - 380V/60Hz - IEC
1089 9489 11 ZT90 - 440-460V/60Hz - IEC
1089 9489 11 ZT55 - 200V/50Hz - IEC
1089 9489 11 ZT55 - 230V/50Hz - IEC
1089 9489 11 ZT55 - 200V/60Hz - IEC
1089 9489 11 ZT55 - 220-230V/60Hz - IEC
1089 9489 11 ZT55 - 220-230V/60Hz -
CSA/UL
1089 9489 31 ZT75 - 380V/60Hz - CSA/UL
1089 9489 31 ZT90 - 380V/60Hz - CSA/UL
1089 9489 31 ZT90 - 440-460V/60Hz -
CSA/UL
2020 • 1 Circuit breaker
1089 9551 08 ZT90 - 400V/50Hz - IEC
1089 9551 08 ZT75 - 380V/60Hz - IEC
1089 9551 08 ZT90 - 380V/60Hz - IEC
1089 9551 08 ZT90 - 440-460V/60Hz - IEC
1089 9551 08 ZT75 - 380V/60Hz - CSA/UL
1089 9551 08 ZT90 - 380V/60Hz - CSA/UL
1089 9551 08 ZT90 - 440-460V/60Hz -
CSA/UL
1089 9551 09 ZT55 - 200V/50Hz - IEC
1089 9551 09 ZT55 - 230V/50Hz - IEC
1089 9551 09 ZT55 - 200V/60Hz - IEC
1089 9551 09 ZT55 - 220-230V/60Hz - IEC
1089 9551 09 ZT55 - 220-230V/60Hz -
CSA/UL
Ref. Part number Qty Name Remarks
2030 1089 9551 97 • 1 Auxilliary contact
1 Option Gear motor dryer
1900 3004 02 IEC
1900 3004 22 CSA/UL
3010 • 1 Circuit breaker
1089 9526 71 IEC
1089 9526 73 CSA/UL
3020 1088 0031 63 • 1 Connector 1X20
3030 1088 0031 03 • 1 Connector 1X20
3040 1088 0031 05 • 3 Connector
1X15-1X16-1X17
2) From following serial No. onwards:
Geldig vanaf volgend serienummer:
Fr.o.m. tillverkningsnummer:
Gültig ab Seriennummer:
Valable à partir du numéro de série suivant:
A partir del siguiente número de serie:
Dai seguenti numeri di serie in avanti:
Gælder fra følgende serienumre:
A partir do número de série:
Fra og med følgende serienummer:
Alkaen valmistusnumerosta
AIF-085 713
Cubicle - ZT/R55 200V - 230V - 220-230V, ZT/R75 380V, ZT/R90 380V - 400V - 440-460V - 2) 41
88 2930 1343 02
Parts list
42
62920_12
2930 1343 02 89
Parts list
Cubicle - ZT/R55 200V, ZT/ZR75 230V - 220-230V - 2) 42
Ref. Part number Qty Name Remarks
1 Cubicle
1900 3025 13 ZR75 - 230V/50Hz - IEC
1900 3025 13 ZR75 - 220-230V/60Hz - IEC
1900 3025 36 ZT75 - 230V/50Hz - IEC
1900 3025 36 ZT75 - 220-230V/60Hz - IEC
1900 3026 12 ZR55 - 200V/60Hz - CSA/UL
1900 3026 33 ZT55 - 200V/60Hz - CSA/UL
1010 1089 9526 05 • 1 Circuit breaker
1015 1089 9526 70 • 1 Circuit breaker
1020 1089 9489 30 • 1 Contatcor
1025 1089 9513 01 • 1 Button
1030 1089 9513 02 • 1 Contact block
1035 • 1 Circuit breaker
1089 9526 74 ZR75 - 230V/50Hz - IEC
1089 9526 74 ZR75 - 220-230V/60Hz - IEC
1089 9526 75 ZR55 - 200V/60Hz - CSA/UL
1089 9526 76 ZT75 - 230V/50Hz - IEC
1089 9526 76 ZT75 - 220-230V/60Hz - IEC
1089 9526 76 ZT55 - 200V/60Hz - CSA/UL
1040 1089 9512 38 • 1 Overload relay
1045 • 2 Contactor
1089 9489 23 IEC
1089 9489 43 CSA/UL
1050 • 1 Contactor
1089 9489 22 IEC
1089 9489 42 CSA/UL
1055 1089 9489 93 • 1 Y-point connect
1060 1089 9602 01 • 3 Auxilliary contact
1065 1089 9602 02 • 2 Auxilliary contact
1080 1089 9551 08 • 1 Circuit breaker
1085 • 1 Contactor
1089 9489 32 ZT55 - 200V/60Hz - CSA/UL
1089 9489 13 ZT75 - 230V/50Hz - IEC
1089 9489 13 ZT75 - 220-230V/60Hz - IEC
1090 • 1 Circuitbreaker
1089 9551 11 ZT55 - 200V/60Hz - CSA/UL
1089 9551 11 ZT75 - 230V/50Hz - IEC
1089 9551 11 ZT75 - 220-230V/60Hz - IEC
1092 • 1 Aux.contact
1089 9551 97 ZT55 - 200V/60Hz - CSA/UL
1089 9551 97 ZT75 - 230V/50Hz - IEC
1089 9551 97 ZT75 - 220-230V/60Hz - IEC
1095 1089 9514 03 • 1 Transformer
1100 1089 9514 01 • 1 Transformer
1105 1079 9906 09 • 1 Label
1110 9823 1899 51 • 1 Service diagram
1115 • 1 Dataplate
1613 6639 02 IEC
1614 8949 01 CSA/UL
Ref. Part number Qty Name Remarks
1120 1088 0031 13 • 1 Connector 13p 2X9
1125 1088 0031 29 • 1 Connector 9p 2X10
1130 1088 0031 49 • 1 Connector 9p 2X11
1135 1088 0031 30 • 1 Connector 10p 2X12
1140 1088 0031 03 • 3 Connector 3p
1X11-1X12-1X20
1145 1088 0031 05 • 5 Connector 5p
1X13-1X14-1X15-1X16-1X17
1150 1088 0031 02 • 4 Connector 2p
1X18-1X19-1X21-1X22
1155 1089 9398 13 • 24 Terminal block
1160 1089 9398 14 • 3 Earth Terminals
1180 • 1 Label type 1
1079 9911 01 CSA/UL
1 Option Fan dryer
1900 3004 08 ZT75 - 230V/50Hz - IEC
1900 3004 08 ZT75 - 220-230V/60Hz - IEC
1900 3004 27 ZT55 - 200V/60Hz - CSA/UL
2010 • 1 Contactor
1089 9489 11 ZT75 - 230V/50Hz - IEC
1089 9489 11 ZT75 - 220-230V/60Hz - IEC
1089 9489 11 ZT55 - 200V/60Hz - CSA/UL
2020 • 1 Circuit breaker
1089 9551 09 ZT75 - 230V/50Hz - IEC
1089 9551 09 ZT75 - 220-230V/60Hz - IEC
1089 9551 09 ZT55 - 200V/60Hz - CSA/UL
2030 1089 9551 97 • 1 Auxilliary contact
1 Option Gear motor dryer
1900 3004 02 IEC
1900 3004 22 CSA/UL
3010 • 1 Circuit breaker
1089 9526 71 IEC
1089 9526 73 CSA/UL
3020 1088 0031 63 • 1 Connector 1X20
3030 1088 0031 03 • 1 Connector 1X20
3040 1088 0031 05 • 3 Connector
1X15-1X16-1X17
2) From following serial No. onwards:
Geldig vanaf volgend serienummer:
Fr.o.m. tillverkningsnummer:
Gültig ab Seriennummer:
Valable à partir du numéro de série suivant:
A partir del siguiente número de serie:
Dai seguenti numeri di serie in avanti:
Gælder fra følgende serienumre:
A partir do número de série:
Fra og med følgende serienummer:
Alkaen valmistusnumerosta
AIF-085 713
90 2930 1343 02
Parts list
43
62921_12
2930 1343 02 91
Parts list
Cubicle - ZT/R75 200V - 220-230V, ZT/ZR90 200V - 230V - 220-230V - 2) 43
Ref. Part number Qty Name Remarks
1 Cubicle
1900 3025 14 ZR75 - 200V/50Hz - IEC
1900 3025 14 ZR90 - 230V/50Hz - IEC
1900 3025 14 ZR75 - 200V/60Hz - IEC
1900 3025 14 ZR90 - 220-230V/60Hz - IEC
1900 3025 15 ZR90 - 200V/50Hz - IEC
1900 3025 15 ZR90 - 200V/60Hz - IEC
1900 3025 37 ZT75 - 200V/50Hz - IEC
1900 3025 37 ZT90 - 230V/50Hz - IEC
1900 3025 37 ZT75 - 200V/60Hz - IEC
1900 3025 37 ZT90 - 220-230V/60Hz - IEC
1900 3025 38 ZT90 - 200V/50Hz - IEC
1900 3025 39 ZT90 - 200V/60Hz - IEC
1900 3026 13 ZR75 - 220-230V/60Hz - CSA/
UL
1900 3026 13 ZR90 - 220-230V/60Hz - CSA/
UL
1900 3026 14 ZR75 - 200V/60Hz - CSA/UL
1900 3026 15 ZR90 - 200V/60Hz - CSA/UL
1900 3026 34 ZT75 - 220-230V/60Hz - CSA/
UL
1900 3026 34 ZT90 - 220-230V/60Hz - CSA/
UL
1900 3026 35 ZT75 - 200V/60Hz - CSA/UL
1900 3026 36 ZT90 - 200V/60Hz - CSA/UL
1010 1089 9526 05 • 1 Circuit breaker
1015 1089 9526 70 • 1 Circuit breaker
1020 1089 9489 30 • 1 Contatcor
1025 1089 9513 01 • 1 Button
1030 1089 9513 02 • 1 Contact block
1035 • 1 Circuit breaker
1089 9526 74 IEC
1089 9526 76 CSA/UL
1040 • 1 Overload relay
1089 9512 40 ZR75 - 200V/50Hz - IEC
1089 9512 40 ZR90 - 230V/50Hz - IEC
1089 9512 40 ZR75 - 200V/60Hz - IEC
1089 9512 40 ZR90 - 220-230V/60Hz - IEC
1089 9512 40 ZT75 - 200V/50Hz - IEC
1089 9512 40 ZT90 - 230V/50Hz - IEC
1089 9512 40 ZT75 - 200V/60Hz - IEC
1089 9512 40 ZT90 - 220-230V/60Hz - IEC
1089 9512 40 ZT90 - 200V/50Hz - IEC
1089 9512 40 ZR75 - 220-230V/60Hz -
CSA/UL
1089 9512 40 ZR90 - 220-230V/60Hz -
CSA/UL
1089 9512 40 ZR75 - 200V/60Hz - CSA/UL
1089 9512 40 ZT75 - 220-230V/60Hz -
CSA/UL
1089 9512 40 ZT90 - 220-230V/60Hz -
CSA/UL
1089 9512 40 ZT75 - 200V/60Hz - CSA/UL
1089 9512 41 ZR90 - 200V/50Hz - IEC
1089 9512 41 ZR90 - 200V/60Hz - IEC
1089 9512 41 ZT90 - 200V/60Hz - IEC
1089 9512 41 ZR90 - 200V/60Hz - CSA/UL
1089 9512 41 ZT90 - 200V/60Hz - CSA/UL
1042 1089 9553 85 • 1 Bridge
1045 • 2 L/D Contactor
1089 9489 24 ZR75 - 200V/50Hz - IEC
1089 9489 24 ZR90 - 230V/50Hz - IEC
1089 9489 24 ZR75 - 200V/60Hz - IEC
1089 9489 24 ZR90 - 220-230V/60Hz - IEC
1089 9489 24 ZT75 - 200V/50Hz - IEC
Ref. Part number Qty Name Remarks
1089 9489 24 ZT90 - 230V/50Hz - IEC
1089 9489 24 ZT75 - 200V/60Hz - IEC
1089 9489 24 ZT90 - 220-230V/60Hz - IEC
1089 9489 25 ZR90 - 200V/50Hz - IEC
1089 9489 25 ZR90 - 200V/60Hz - IEC
1089 9489 25 ZT90 - 200V/50Hz - IEC
1089 9489 25 ZT90 - 200V/60Hz - IEC
1089 9489 44 ZR75 - 220-230V/60Hz -
CSA/UL
1089 9489 44 ZR90 - 220-230V/60Hz -
CSA/UL
1089 9489 44 ZT75 - 220-230V/60Hz -
CSA/UL
1089 9489 44 ZT90 - 220-230V/60Hz -
CSA/UL
1089 9489 45 ZR75 - 200V/60Hz - CSA/UL
1089 9489 45 ZR90 - 200V/60Hz - CSA/UL
1089 9489 45 ZT75 - 200V/60Hz - CSA/UL
1089 9489 45 ZT90 - 200V/60Hz - CSA/UL
1050 • 1 Y Contactor
1089 9489 22 ZR75 - 200V/50Hz - IEC
1089 9489 22 ZR90 - 230V/50Hz - IEC
1089 9489 22 ZR75 - 200V/60Hz - IEC
1089 9489 22 ZR90 - 220-230V/60Hz - IEC
1089 9489 22 ZT75 - 200V/50Hz - IEC
1089 9489 22 ZT90 - 230V/50Hz - IEC
1089 9489 22 ZT75 - 200V/60Hz - IEC
1089 9489 22 ZT90 - 220-230V/60Hz - IEC
1089 9489 23 ZR90 - 200V/50Hz - IEC
1089 9489 23 ZR90 - 200V/60Hz - IEC
1089 9489 23 ZT90 - 200V/50Hz - IEC
1089 9489 23 ZT90 - 200V/60Hz - IEC
1089 9489 42 ZR75 - 220-230V/60Hz -
CSA/UL
1089 9489 42 ZR90 - 220-230V/60Hz -
CSA/UL
1089 9489 42 ZT75 - 220-230V/60Hz -
CSA/UL
1089 9489 42 ZT90 - 220-230V/60Hz -
CSA/UL
1089 9489 43 ZR75 - 200V/60Hz - CSA/UL
1089 9489 43 ZR90 - 200V/60Hz - CSA/UL
1089 9489 43 ZT75 - 200V/60Hz - CSA/UL
1089 9489 43 ZT90 - 200V/60Hz - CSA/UL
1055 1089 9489 93 • 1 Y-point connecting
1060 1089 9602 01 • 3 Auxilliary contact
1065 1089 9602 02 • 2 Auxilliary contact
1080 1089 9551 08 • 1 Circuit breaker
1085 • 1 Contactor
1089 9489 13 ZT75 - 200V/50Hz - IEC
1089 9489 13 ZT90 - 230V/50Hz - IEC
1089 9489 13 ZT75 - 200V/60Hz - IEC
1089 9489 13 ZT90 - 220-230V/60Hz - IEC
1089 9489 13 ZT90 - 200V/50Hz - IEC
1089 9489 13 ZT90 - 200V/60Hz - IEC
1089 9489 33 ZT75 - 220-230V/60Hz -
CSA/UL
1089 9489 33 ZT90 - 220-230V/60Hz -
CSA/UL
1089 9489 33 ZT75 - 200V/60Hz - CSA/UL
1089 9489 33 ZT90 - 200V/60Hz - CSA/UL
1090 • 1 Circuitbreaker
1089 9551 11 ZT75 - 200V/50Hz - IEC
1089 9551 11 ZT90 - 230V/50Hz - IEC
1089 9551 11 ZT75 - 200V/60Hz - IEC
92 2930 1343 02
Parts list
43
62921_12
2930 1343 02 93
Parts list
43
Ref. Part number Qty Name Remarks
1089 9551 11 ZT90 - 220-230V/60Hz - IEC
1089 9551 11 ZT90 - 200V/50Hz - IEC
1089 9551 11 ZT90 - 200V/60Hz - IEC
1089 9551 11 ZT75 - 220-230V/60Hz -
CSA/UL
1089 9551 11 ZT90 - 220-230V/60Hz -
CSA/UL
1089 9551 11 ZT75 - 200V/60Hz - CSA/UL
1089 9551 11 ZT90 - 200V/60Hz - CSA/UL
1092 • 1 Auxilliary contact
1089 9551 97 ZT75 - 200V/50Hz - IEC
1089 9551 97 ZT90 - 230V/50Hz - IEC
1089 9551 97 ZT75 - 200V/60Hz - IEC
1089 9551 97 ZT90 - 220-230V/60Hz - IEC
1089 9551 97 ZT90 - 200V/50Hz - IEC
1089 9551 97 ZT90 - 200V/60Hz - IEC
1089 9551 97 ZT75 - 220-230V/60Hz -
CSA/UL
1089 9551 97 ZT90 - 220-230V/60Hz -
CSA/UL
1089 9551 97 ZT75 - 200V/60Hz - CSA/UL
1089 9551 97 ZT90 - 200V/60Hz - CSA/UL
1095 1089 9514 03 • 1 Transfo
1100 1089 9514 01 • 1 Transformer
1105 1079 9906 09 • 1 Label
1110 9823 1899 51 • 1 Service diagram
1115 • 1 Dataplate
1613 6639 02 IEC
1614 8949 01 CSA/UL
1120 1088 0031 13 • 1 Connector 13p 2X9
1125 1088 0031 29 • 1 Connector 9p 2X10
1130 1088 0031 49 • 1 Connector 9p 2X11
1135 1088 0031 30 • 1 Connector 10p 2X12
1140 1088 0031 03 • 3 Connector 3p
1X11-1X12-1X20
1145 1088 0031 05 • 5 Connector 5p
1X13-1X14-1X15-1X16-1X17
1150 1088 0031 02 • 4 Connector 2p
1X18-1X19-1X21-1X22
1155 1089 9398 13 • 24 Terminal block
1160 1089 9398 14 • 3 Earth Terminals
1165 • 1 Terminal block
1089 9398 34 ZT90 - 200V/60Hz - IEC
1180 • 1 Label type 1
1079 9911 01 CSA/UL
1 Option Fan dryer
1900 3004 08 ZT75 - 200V/50Hz - IEC
1900 3004 08 ZT90 - 200V/50Hz - IEC
1900 3004 08 ZT90 - 230V/50Hz - IEC
1900 3004 08 ZT75 - 200V/60Hz - IEC
1900 3004 08 ZT90 - 200V/60Hz - IEC
1900 3004 08 ZT90 - 220-230V/60Hz - IEC
1900 3004 27 ZT75 - 200V/60Hz - CSA/UL
1900 3004 27 ZT90 - 200V/60Hz - CSA/UL
1900 3004 27 ZT75 - 220-230V/60Hz -
CSA/UL
1900 3004 27 ZT90 - 220-230V/60Hz -
CSA/UL
2010 1089 9489 11 • 1 Contactor
2020 1089 9551 09 • 1 Circuit breaker
2030 1089 9551 97 • 1 Auxilliary contact
1 Option Gear motor dryer
1900 3004 02 IEC
1900 3004 22 CSA/UL
Ref. Part number Qty Name Remarks
3010 • 1 Circuit breaker
1089 9526 71 IEC
1089 9526 73 CSA/UL
3020 1088 0031 63 • 1 Connector 1X20
3030 1088 0031 03 • 1 Connector 1X20
3040 1088 0031 05 • 3 Connector
1X15-1X16-1X17
2) From following serial No. onwards:
Geldig vanaf volgend serienummer:
Fr.o.m. tillverkningsnummer:
Gültig ab Seriennummer:
Valable à partir du numéro de série suivant:
A partir del siguiente número de serie:
Dai seguenti numeri di serie in avanti:
Gælder fra følgende serienumre:
A partir do número de série:
Fra og med følgende serienummer:
Alkaen valmistusnumerosta
AIF-085 713
Cubicle - ZT/R75 200V - 220-230V, ZT/ZR90 200V - 230V - 220-230V - 2)
94 2930 1343 02
Parts list
44
61683_10
2930 1343 02 95
Parts list
Ref. Part number Qty Name Remarks
1005 1621 0615 80 3 Door 1)
1621 0721 00 • 2 Lock
1010 1621 0606 00 9 Hinge
1015 1621 0607 00 9 Hinge
1020 1621 0611 80 1 Door 1)
1619 7705 00 • 1 Lock
1621 0721 00 • 1 Lock
1025 1621 0606 00 3 Hinge
1030 1621 0607 00 3 Hinge
1035 1089 9068 01 2 Key
1040 1089 9154 02 2 Key
2010 1619 2766 00 4 Bolt
2015 1619 2766 00 4 Bolt
2020 1619 5898 01 6 Bolt
2025 1619 5898 01 6 Bolt
2030 1619 2766 00 4 Bolt
1621 0654 80 1 Panel 1)
3005 1 Panel
3015 1621 0622 80 1 Stay 1)
3020 1619 2766 00 3 Bolt
3025 1621 0642 80 1 Stay 1)
3030 1619 2766 00 3 Bolt
4005 1621 0646 80 1 Stay 1)
4010 1619 2766 00 4 Bolt
4011 1619 2766 00 2 Bolt
4015 1613 2685 00 1 Hose support
4020 0147 1323 03 1 Bolt
4025 0266 2110 00 1 Nut
4030 0301 2335 00 2 Washer
4035 1621 0646 80 1 Stay 1)
4040 1619 2766 00 4 Bolt
4045 1619 2766 00 2 Bolt
5010 1619 2766 00 4 Bolt
5015 1619 2766 00 4 Bolt
5020 1619 5898 01 6 Bolt
5025 1619 5898 01 6 Bolt
5030 1619 2766 00 4 Bolt
1621 0647 80 1 Panel 1)
6005 • 1 Panel
6030 1621 0622 80 • 1 Stay 1)
6035 1619 2766 00 • 3 Bolt
6040 1621 0642 80 • 1 Stay 1)
Bodywork - ZT Pack / Full feature 44
Ref. Part number Qty Name Remarks
6045 1619 2766 00 • 3 Bolt
6050 0581 0000 86 • 4 Pipe coupling
6055 0661 1044 00 • 4 Sealing washer
1621 0626 80 1 Roof 1)
7005 • 1 Roof
7015 1621 0631 00 • 6 Foam holder
7020 0129 3108 00 • 12 Blind rivet
7040 1621 0632 80 • 1 Baffle 1)
1621 0631 00 •• 3 Foam holder
0129 3108 00 •• 6 Blind rivet
7045 0147 1322 03 • 4 Bolt
7050 1621 0637 80 • 1 Baffle 1)
1621 0639 00 •• 3 Foamholder
0129 3108 00 •• 6 Blind rivet
7055 1619 2766 00 • 7 Bolt
7060 1621 0648 80 • 1 Baffle 1)
1621 0663 00 •• 4 Foamholder
0129 3108 00 •• 8 Blind rivet
7065 1619 2766 00 • 6 Bolt
7070 1619 2766 00 • 8 Bolt
8015 1079 9922 36 1 Decal
8020 1503 0786 00 2 Rotation arrow
8070 1088 1001 01 2 Warning mark
9005 0690 1140 01 4 House mark
9010 1079 9901 09 2 Label
9015 1079 9901 29 1 Label
9020 1079 9920 56 1 Label
9025 1079 9922 11 1 Label
9030 1079 9922 35 1 Decal
9035 1088 1001 02 4 Warning mark
10245 1 Label
1621 1986 25 ZT55
1621 1986 26 ZT55 FF
1621 1986 11 ZT75
1621 1986 27 ZT75 FF
1621 1986 12 ZT95
1621 1986 28 ZT95 FF
1) Lined with / Bekleed met / Beklädd med / Ausgekleidet
mit / Garnir de / Rivestido de / Allineato con / Foret
med / Revestido com / Kledd med / Vuorattu :
Foam : 0395 6001 68 (AR) 40 x 2040 x 1650 selfadhesive
96 2930 1343 02
Parts list
45
61682_10
2930 1343 02 97
Parts list
Bodywork - ZR Pack / Full feature 45
Ref. Part number Qty Name Remarks
1005 1621 0615 80 3 Door 1)
1621 0721 00 • 2 Lock
1010 1621 0606 00 9 Hinge
1015 1621 0607 00 9 Hinge
1020 1621 0611 80 1 Door 1)
1619 7705 00 • 1 Lock
1621 0721 00 • 1 Lock
1025 1621 0606 00 3 Hinge
1030 1621 0607 00 3 Hinge
1035 1089 9068 01 2 Key
1040 1089 9154 02 2 Key
2010 1619 2766 00 4 Bolt
2015 1619 2766 00 4 Bolt
2020 1619 5898 01 6 Bolt
2025 1619 5898 01 6 Bolt
1621 0644 80 1 Panel 1)
3005 1621 0644 00 • 1 Panel
3015 1621 0622 80 • 1 Stay 1)
3020 1619 2766 00 • 3 Bolt
3025 1621 0642 80 • 1 Stay 1)
3030 1619 2766 00 • 3 Bolt
4010 1619 2766 00 4 Bolt
4015 1619 2766 00 4 Bolt
4020 1619 5898 01 6 Bolt
4025 1619 5898 01 6 Bolt
1621 0625 80 1 Panel 1)
5005 • 1 Panel
5015 1621 0622 80 • 1 Stay 1)
5020 1619 2766 00 • 3 Bolt
5025 1621 0642 80 • 1 Stay 1)
5030 1619 2766 00 • 3 Bolt
5035 0581 0000 86 • 4 Pipe coupling
5040 0661 1044 00 • 4 Sealing washer
1621 0634 80 1 Roof 1)
6005 1621 0634 00 • 1 Roof
6015 1621 0984 80 • 1 Baffle 1)
Ref. Part number Qty Name Remarks
6025 1079 1472 05 • 8 Bolt
7005 1621 0646 80 1 Stay 1)
7010 1619 2766 00 4 Bolt
7011 1619 2766 00 2 Bolt
7015 1613 2685 00 1 Hose support
7020 0147 1323 03 1 Bolt
7025 0266 2110 00 1 Nut
7030 0301 2335 00 2 Washer
7035 1621 0646 80 1 Stay 1)
7040 1619 2766 00 4 Bolt
7045 1619 2766 00 2 Bolt
8015 1079 9905 49 1 Label
8020 1079 9913 69 1 Inform.label
8025 1079 9913 79 1 Inform.label
8030 1079 9922 36 1 Decal
8070 1088 1001 01 2 Warning mark
9005 0690 1140 01 4 House mark
9010 1079 9901 09 2 Label
9015 1079 9901 29 1 Label
9020 1079 9920 56 1 Label
9025 1079 9922 11 1 Label
9030 1079 9922 35 1 Decal
9035 1088 1001 02 4 Warning mark
10250 1 Label
1621 1986 19 ZR55
1621 1986 20 ZR55 FF
1621 1986 08 ZR75
1621 1986 21 ZR75 FF
1621 1986 09 ZR90
1621 1986 22 ZR90 FF
1) Lined with / Bekleed met / Beklädd med / Ausgekleidet
mit / Garnir de / Rivestido de / Allineato con / Foret
med / Revestido com / Kledd med / Vuorattu :
Foam : 0395 6001 68 (AR) 40 x 2040 x 1650 selfadhesive
98 2930 1343 02
Parts list
46
61959_10
2930 1343 02 99
Parts list
Bodywork - Baffling & extension ZT Full feature 46
Ref. Part number Qty Name Remarks
1086 1621 1217 80 1 Roof 1)
2005 1621 1219 80 1 Stay 1)
2010 1619 2766 00 3 Bolt
2015 1079 1472 05 2 Bolt
2020 1621 1218 80 1 Stay 1)
2025 1619 2766 00 3 Bolt
2030 1079 1472 05 2 Bolt
2035 1619 5898 01 6 Bolt
2040 1619 5898 01 6 Bolt
3010 1621 0606 00 6 Hinge
3015 1621 0607 00 6 Hinge
1621 1237 80 2 Door 1) 2)
4005 • 1 Door
4015 1621 0721 00 • 2 Lock
1621 1240 80 1 Panel 1)
5005 • 1 Panel
5030 1621 0622 80 • 1 Stay 1)
5035 1619 2766 00 • 3 Bolt
5040 1621 0642 80 • 1 Stay 1)
5045 1619 2766 00 • 3 Bolt
5050 0581 0000 86 • 5 Pipe coupling
5055 0661 1044 00 • 5 Sealing washer
6005 1621 1227 00 2 Support
6010 0147 1362 03 4 Bolt
Ref. Part number Qty Name Remarks
6014 1621 1277 00 1 Support
6015 0147 1362 03 4 Bolt
6020 1619 2766 00 4 Bolt
6025 0266 2111 00 4 Nut
7005 1621 0711 80 3 Plate 1)
7010 1619 2766 00 9 Bolt
7015 1621 1236 00 1 Plate
7020 1619 2766 00 4 Bolt
7021 1621 1273 00 1 Plate
7022 1619 2766 00 8 Bolt
7025 1621 1294 80 1 Plate 1)
7030 1619 2766 00 3 Bolt
7035 0147 1362 03 1 Bolt
8015 1079 9922 36 1 Decal
9030 1079 9922 35 1 Decal
1-2) Lined with / Bekleed met / Beklädd med / Ausgekleidet
mit / Garnir de / Rivestido de / Allineato con / Foret
med / Revestido com / Kledd med / Vuorattu :
1) Foam: 0395 6001 68 (AR) 40 x 2040 x 1650 selfadhesive
2) Foam: 0395 6001 67 (AR) 30 x 2040 x 1650 selfadhesive
100 2930 1343 02
Parts list
47 Bodywork - Baffling ZT Pack
Ref. Part number Qty Name Remarks
1005 1621 0711 80 4 Plate 1)
1010 1619 2766 00 12 Bolt
1015 1621 0710 80 1 Plate 1)
1020 1619 2766 00 2 Bolt
1025 1621 0706 80 1 Plate 1)
1030 1619 2766 00 4 Bolt
1035 1621 0705 80 1 Plate 1)
1040 1619 2766 00 3 Bolt
1045 1621 0707 00 1 Plate
61680_10
Ref. Part number Qty Name Remarks
1050 1619 2766 00 16 Bolt
1055 1202 6584 00 AR Seal
1) Lined with / Bekleed met / Beklädd med / Ausgekleidet
mit / Garnir de / Rivestido de / Allineato con / Foret
med / Revestido com / Kledd med / Vuorattu :
Foam : 0395 6001 68 (AR) 40 x 2040 x 1650 selfadhesive
2930 1343 02 101
Parts list
Bodywork - Baffling ZT Full feature 48
Ref. Part number Qty Name Remarks
1005 1621 0712 80 3 Plate 1)
1010 1619 2766 00 6 Bolt
1015 1621 0710 80 1 Plate 1)
1020 1619 2766 00 2 Bolt
1025 1621 0711 80 1 Plate 1)
1030 1619 2766 00 3 Bolt
1035 1621 0706 80 1 Plate 1)
1040 1619 2766 00 4 Bolt
1045 1 Plate 1)
1621 0986 80 ZT55
1621 0705 80 ZT75, ZT90
Ref. Part number Qty Name Remarks
1050 1619 2766 00 3 Bolt
1055 1621 0708 00 1 Plate
1060 1619 2766 00 13 Bolt
1065 1202 6584 00 AR Seal
1) Lined with / Bekleed met / Beklädd med / Ausgekleidet
mit / Garnir de / Rivestido de / Allineato con / Foret
med / Revestido com / Kledd med / Vuorattu :
Foam : 0395 6001 68 (AR) 40 x 2040 x 1650 selfadhesive
61681_10
102 2930 1343 02
Parts list
49
61675_10
2930 1343 02 103
Parts list
Bodywork - Baffling ZR Pack / Full feature
Ref. Part number Qty Name Remarks
1010 1619 2766 00 4 Bolt
1020 1619 2766 00 6 Bolt
1025 1621 0699 00 1 Plate
1030 1619 2766 00 4 Bolt
1035 1202 6584 00 AR Seal
1040 1202 6584 00 AR Seal
1045 1 Baffle
1621 0702 00 ZR55
1621 0701 00 ZR75, ZR90
1050 0248 9980 47 4 Threaded rod
1055 0266 2110 00 8 Nut
1060 1202 6584 00 AR Seal
1065 1202 6584 00 AR Seal
1070 1621 0778 00 1 Support
1075 1619 2766 00 5 Bolt
1621 0720 80 1 Baffle 1)
2005 • 1 Baffle
2015 1621 0664 00 • 4 Foamholder
Ref. Part number Qty Name Remarks
2020 0129 3108 00 • 8 Blind rivet
2025 1621 0685 80 • 1 Baffle 1)
2030 1619 2766 00 • 6 Bolt
2035 1621 0719 80 • 1 Baffle 1)
2040 1619 2766 00 • 7 Bolt
2045 1621 0688 80 • 1 Baffle 1)
2050 1619 2766 00 • 9 Bolt
1621 0717 80 1 Air duct 1)
3005 1621 0717 00 • 1 Air duct
3015 1621 0716 00 • 1 Foamholder
3020 1621 0718 00 • 1 Plate
3030 1619 2766 00 • 8 Bolt
1) Lined with / Bekleed met / Beklädd med / Ausgekleidet
mit / Garnir de / Rivestido de / Allineato con / Foret
med / Revestido com / Kledd med / Vuorattu :
Foam : 0395 6001 68 (AR) 40 x 2040 x 1650 selfadhesive
49
104 2930 1343 02
Parts list
50 Service kits - ZT55, ZT75, ZT90
Ref. Part number Qty Name Remarks
2906 0176 00 1 Inlet valve overhaul kit
0335 1136 00 • 1 Circlip
0335 2101 21 • 1 Circlip
0500 4510 04 • 1 Bearing
1614 6747 00 • 1 Spring
2250 5629 00 • 1 Bearing
2906 0654 00 1 LP element exchange kit.
0663 2103 20 • 1 O-ring
0663 2106 58 • 1 O-ring
0663 2106 99 • 1 O-ring
0663 2107 79 • 1 O-ring
0663 2107 89 • 1 O-ring
0663 2107 97 • 1 O-ring
0663 2135 00 • 3 O-ring
0663 2156 00 • 1 O-ring
0663 3132 00 • 2 O-ring
2906 0655 00 1 HP element exchange kit
0663 2103 19 • 1 O-ring
0663 2106 48 • 1 O-ring
0663 2107 15 • 1 O-ring
0663 2107 25 • 1 O-ring
0663 2107 50 • 1 O-ring
0663 2107 80 • 1 O-ring
0663 2107 89 • 1 O-ring
0663 2107 92 • 1 O-ring
0663 2133 00 • 2 O-ring (ZT90)
0663 2135 00 • 5 O-ring
0663 3132 00 • 1 O-ring (ZT55-75)
0663 3142 00 • 1 O-ring
2906 0656 00 1 Drive shaft seal kit
0663 2110 03 • 1 O-ring
0663 6147 00 • 1 O-ring
1616 5448 00 • 1 Seal ring
1621 0469 00 • 1 Bushing
2906 0657 00 1 Drive shaft bearing kit
0335 2169 00 • 1 Circlip
0502 1092 01 • 1 Bearing
0502 2111 00 • 1 Bearing
2906 0658 00 1 Gearcasing seal kit
0661 1000 29 • 1 Seal washer
0661 1000 30 • 2 Seal washer
0661 1000 31 • 1 Seal washer
0661 1000 32 • 1 Seal washer
0663 2104 37 • 4 O-ring oil level indicator
0663 2135 00 • 2 O-ring breather
0663 2135 00 • 1 O-ring
9125 6303 00 • 1 Seal washer
2906 0659 00 1 Inlet valve service kit
0663 2106 10 • 1 O-ring
0663 2107 97 • 1 O-ring
0663 2111 84 • 1 O-ring (ZT/ZR 90 VSD)
0663 2156 00 • 1 O-ring
1613 4036 00 • 1 Membrane
1613 5723 00 • 1 Gasket
1615 3695 00 • 1 Diaphragm
2906 0660 00 1 Check valve kit
0500 4510 11 • 1 Bushing
0663 2106 15 • 1 O-ring
0663 2106 58 • 1 O-ring
0663 2108 26 • 1 O-ring
0663 3138 00 • 2 O-ring
1614 7368 00 • 1 Check valve
1621 0538 00 • 1 Valve seat
1621 3014 00 • 1 Spring
Ref. Part number Qty Name Remarks
2906 0661 00 1 Oil pump kit
0101 1951 35 • 1 Pin
0633 9742 00 • 1 O-ring
0663 6143 00 • 1 O-ring
1621 0513 00 • 1 Oil pump
1621 0515 00 • 1 Eccentric ring
1621 0518 00 • 1 Key
1621 1138 00 • 1 Ring
2906 0662 00 1 HP discharge silencer kit
0663 2106 58 • 1 O-ring
0663 2108 26 • 1 O-ring
0663 3138 00 • 2 O-ring
1621 0536 00 • 1 Glass wool
1621 3810 03 • 1 Insert
2906 0663 00 1 Cooler service kit
0661 1000 30 • 2 Seal washer
0663 2106 48 • 1 O-ring
0663 2106 58 • 1 O-ring
0663 2106 99 • 1 O-ring
0663 2107 79 • 1 O-ring
0663 2107 80 • 1 O-ring
0663 2107 97 • 6 O-ring
0663 3142 00 • 2 O-ring
0663 3143 00 • 1 O-ring
2906 0664 00 1 Air/oil filter kit
0661 1000 31 • 1 Seal washer
0663 2132 00 • 1 O-ring
0663 2135 00 • 2 O-ring breather cover
1613 9503 00 • 1 Air filter element
1614 8747 99 • 1 Oil filter
1621 0735 00 • 1 Filter breather air
1621 0975 00 • 1 Demister
2906 6255 01 • 1 Gearcase breather filter
2901 0673 00 1 Set of wearing parts
For electronic drains
2901 0674 00 1 Set of seals
For electronic drains
2906 0665 00 1 Maintenance kit
Yearly independent of running
hours
0661 1000 27 • 1 Seal washer
2906 0664 00 • 1 Air/oil filter kit
8204 0940 34 • 1 Intercooler drain check valve
2906 0666 00 1 Maintenance kit
8000h or every 2 years
0663 2106 15 • 1 O-ring
0663 2106 58 • 1 O-ring
0663 2108 26 • 1 O-ring
0663 3138 00 • 2 O-ring
1621 3014 00 • 1 Spring check valve
2906 0659 00 • 1 Inlet valve service kit
2906 0665 00 • 1 Maintenance kit
2906 0667 00 1 Maintenance kit
16000 h or every 4 years
1621 0082 00 • 1 Muffler
1621 0204 00 • 8 Drive coupling rubber element
2906 0176 00 • 1 Inlet valve overhaul kit
2906 0659 00 • 1 Inlet valve service kit
2906 0660 00 • 1 Check valve kit
2906 0665 00 • 1 Maintenance kit
2930 1343 02 105
Parts list
Service kits - ZR55, ZR75, ZR90
Ref. Part number Qty Name Remarks
2906 0176 00 1 Inlet valve overhaul kit
0335 1136 00 • 1 Circlip
0335 2101 21 • 1 Circlip
0500 4510 04 • 1 Bearing
1614 6747 00 • 1 Spring
2250 5629 00 • 1 Bearing
2906 0656 00 1 Drive shaft seal kit
0663 2110 03 • 1 O-ring
0663 6147 00 • 1 O-ring
1616 5448 00 • 1 Seal ring
1621 0469 00 • 1 Bushing
2906 0657 00 1 Drive shaft bearing kit
0335 2169 00 • 1 Circlip
0502 1092 01 • 1 Bearing
0502 2111 00 • 1 Bearing
2906 0658 00 1 Gearcasing seal kit
0661 1000 29 • 1 Seal washer
0661 1000 30 • 2 Seal washer
0661 1000 31 • 1 Seal washer
0661 1000 32 • 1 Seal washer
0663 2104 37 • 4 O-ring oil level indicator
0663 2135 00 • 2 O-ring breather
0663 2135 00 • 1 O-ring
9125 6303 00 • 1 Seal washer
2906 0659 00 1 Inlet valve service kit
0663 2106 10 • 1 O-ring
0663 2107 97 • 1 O-ring
0663 2111 84 • 1 O-ring (ZT/ZR 90 VSD)
0663 2156 00 • 1 O-ring
1613 4036 00 • 1 Membrane
1613 5723 00 • 1 Gasket
1615 3695 00 • 1 Diaphragm
2906 0661 00 1 Oil pump kit
0101 1951 35 • 1 Pin
0633 9742 00 • 1 O-ring
0663 6143 00 • 1 O-ring
1621 0513 00 • 1 Oil pump
1621 0515 00 • 1 Eccentric ring
1621 0518 00 • 1 Key
1621 1138 00 • 1 Ring
2906 0664 00 1 Air/oil filter kit
0661 1000 31 • 1 Seal washer
0663 2132 00 • 1 O-ring
0663 2135 00 • 2 O-ring breather cover
1613 9503 00 • 1 Air filter element
1614 8747 99 • 1 Oil filter
1621 0735 00 • 1 Filter breather air
1621 0975 00 • 1 Demister
2906 6255 01 • 1 Gearcase breather filter
2906 0669 00 1 LP element exchange kit
0663 2103 20 • 1 O-ring
0663 2106 99 • 1 O-ring
0663 2107 25 • 1 O-ring
0663 2107 86 • 2 O-ring
0663 2107 89 • 1 O-ring
0663 2135 00 • 3 O-ring
0663 2156 00 • 1 O-ring
0663 3132 00 • 2 O-ring
2906 0670 00 1 HP element exchange kit
0663 2103 19 • 1 O-ring
0663 2107 80 • 1 O-ring
0663 2107 89 • 1 O-ring
0663 2107 92 • 2 O-ring
Ref. Part number Qty Name Remarks
0663 2107 97 • 1 O-ring
0663 2133 00 • 2 O-ring (ZR90)
0663 2135 00 • 8 O-ring
0663 2148 00 • 3 O-ring
0663 3132 00 • 1 O-ring (ZR55-75)
2906 0671 00 1 Check valve kit
0500 4510 11 • 1 Bushing
0663 2106 15 • 1 O-ring
0663 2107 75 • 1 O-ring
0663 2107 80 • 1 O-ring
0663 2107 92 • 1 O-ring
0663 3138 00 • 2 O-ring
1614 7368 00 • 1 Check valve
1621 0538 00 • 1 Valve seat
1621 3014 00 • 1 Spring
2906 0672 00 1 HP discharge silencer kit
0663 2107 75 • 1 O-ring
0663 2107 80 • 1 O-ring
0663 2107 92 • 1 O-ring
0663 3138 00 • 2 O-ring
1621 0536 00 • 1 Glass wool
1621 3810 03 • 1 Insert
2906 0673 00 1 Cooler service kit
0661 1000 25 • 5 Seal washer
0663 2107 26 • 1 O-ring
0663 2107 32 • 2 O-ring
0663 2107 75 • 1 O-ring
0663 2107 86 • 2 O-ring
0663 2107 93 • 1 O-ring
0663 2111 73 • 1 O-ring
0663 2144 00 • 1 O-ring
0663 2148 00 • 1 O-ring
0663 2153 00 • 1 O-ring
0663 6147 00 • 2 O-ring
0663 6156 00 • 3 O-ring
1621 0496 00 • 1 Gasket water separator
2901 0673 00 1 Set of wearing parts
For electronic drains
2901 0674 00 1 Set of seals
For electronic drains
2906 0665 00 1 Maintenance kit
Yearly independent of running
hours
0661 1000 27 • 1 Seal washer
2906 0664 00 • 1 Air/oil filter kit
8204 0940 34 • 1 Intercooler drain check valve
2906 0674 00 1 Maintenance kit
8000h or every 2 years
0663 2106 15 • 1 O-ring
0663 2107 75 • 1 O-ring
0663 2107 80 • 1 O-ring
0663 2107 92 • 1 O-ring
0663 3138 00 • 2 O-ring
1621 3014 00 • 1 Spring check valve
2906 0659 00 • 1 Inlet valve service kit
2906 0665 00 • 1 Maintenance kit
2906 0675 00 1 Maintenance kit
16000 h or every 4 years
1621 0082 00 • 1 Muffler
1621 0204 00 • 8 Drive coupling rubber element
2906 0176 00 • 1 Inlet valve overhaul kit
2906 0659 00 • 1 Inlet valve service kit
2906 0665 00 • 1 Maintenance kit
2906 0671 00 • 1 Check valve kit
106 2930 1343 02
Parts list
Notes:
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2930 1343 02 107
Parts list
Notes:
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
108 2930 1343 02
Parts list
Notes:
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Atlas Copco Stationary Air Compressors
ZT55, -75, -90
ZR55, -75, -90
Parts list
What sets Atlas Copco apart as a company is our
conviction that we can only excel in what we do if we
provide the best possible know-how and technology to
really help our customers produce, grow and succeed.
There is a unique way of achieving that - we simply
call it the Atlas Copco way. It builds on interaction, on
long-term relationships and involvement in the customers’
process, needs and objectives. It means having the
flexibility to adapt to the diverse demands of the people
we cater for.
It’s the commitment to our customers’ business that
drives our effort towards increasing their productivity
through better solutions. It starts with fully supporting
existing products and continuously doing things better, but
it goes much further, creating advances in technology
through innovation. Not for the sake of technology, but
for the sake of our customer’s bottom line and peace-ofmind.
That is how Atlas Copco will strive to remain the first
choice, to succeed in attracting new business and to
maintain our position as the industry leader.
*2930134302*
