ZS 308041-0302020 Air Oil Separator CS4/6/8 - GS11/GSV11 Replacement

ZS 308041-0302020 Air Oil Separator GS11/GSV11/CS8 Replacement

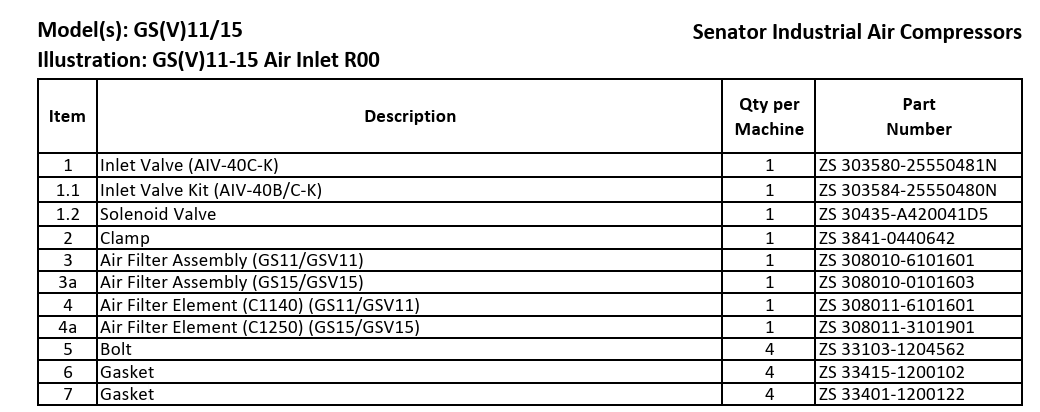

odel(s): GS(V)11/15 Senator Industrial Air Compressors Illustration: GS(V)11-15 Air Inlet R00 Item Description Qty per Part Number Machine 1 Inlet Valve (AIV-40C-K) 1.1 Inlet Valve Kit (AIV-40B/C-K) 1.2 Solenoid Valve 2 Clamp 3 Air Filter Assembly (GS11/GSV11) 3a Air Filter Assembly (GS15/GSV15) 1 1 ZS 303580-25550481N ZS 303584-25550480N 1 1 1 1 4 Air Filter Element (C1140) (GS11/GSV11) 4a Air Filter Element (C1250) (GS15/GSV15) 5 Bolt 6 Gasket 7 Gasket 1 1 4 4 4 © Glenco Air & Power Pty Ltd ZS 30435-A420041D5 ZS 3841-0440642 ZS 308010-6101601 ZS 308010-0101603 ZS 308011-6101601 ZS 308011-3101901 ZS 33103-1204562 ZS 33415-1200102 ZS 33401-1200122

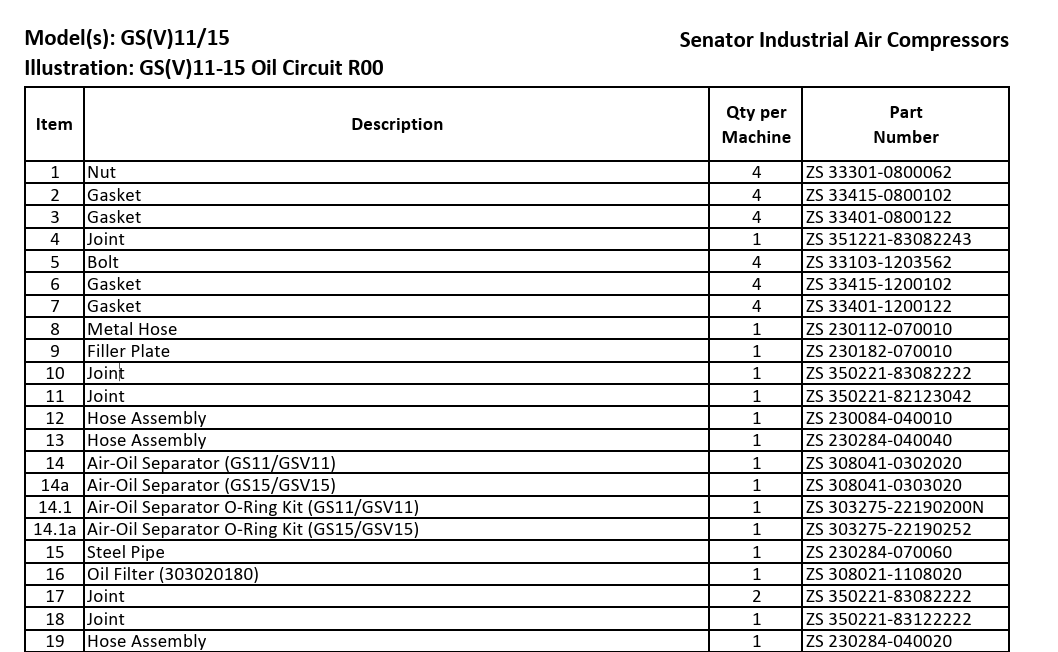

1 Nut 4 ZS 33301-0800062 2 Gasket 4 ZS 33415-0800102 3 Gasket 4 ZS 33401-0800122 4 Joint 1 ZS 351221-83082243 5 Bolt 4 ZS 33103-1203562 6 Gasket 4 ZS 33415-1200102 7 Gasket 4 ZS 33401-1200122 8 Metal Hose 1 ZS 230112-070010 9 Filler Plate 1 ZS 230182-070010 10 Joint 1 ZS 350221-83082222 11 Joint 1 ZS 350221-82123042 12 Hose Assembly 1 ZS 230084-040010 13 Hose Assembly 1 ZS 230284-040040 14 Air-Oil Separator (GS11/GSV11) 1 ZS 308041-0302020 14a Air-Oil Separator (GS15/GSV15) 1 ZS 308041-0303020 14.1 Air-Oil Separator O-Ring Kit (GS11/GSV11) 1 ZS 303275-22190200N 14.1aAir-Oil Separator O-Ring Kit (GS15/GSV15) 1 ZS 303275-22190252 15 Steel Pipe 1 ZS 230284-070060 16 Oil Filter (303020180) 1 ZS 308021-1108020 17 Joint 2 ZS 350221-83082222 18 Joint 1 ZS 350221-83122222 19 Hose Assembly 1 ZS 230284-040020 20 Hose Assembly 1 ZS 230084-040140 21 Oil Recovery Sight Glass (VRO19 1.2D) 1 ZS 30501-1341D2 22 Joint 1 ZS 350231-83022123 23 Joint 1 ZS 355921-23023020 24 Joint (GS11/GSV11) 1 ZS 351921-83082242 24a Joint (GS15/GSV15) 1 ZS 351921-83122240 25 Joint (GS11/GSV11) 2 ZS 350921-83082221 25a Joint (GS15/GSV15) 2 ZS 350921-83122225 26 Joint 1 ZS 352211-83023020 27 Combination Valve (GS11/GSV11) 1 ZS 303270-22190201N 27a Combination Valve (GS15/GSV15) 1 ZS 303270-22190253

1 Pressure Sensor (0-1.6MPa R1/4 2.5m 4-20mA) 1 ZS 30502-3121114 2 Air-Oil Receiver 1 ZS 230084-091100 3 Plug 2 ZS 355021-83060003 4 Joint 2 ZS 350921-83082221 5 Joint 1 ZS 350221-83082222 6 Combination Valve 1 ZS 303270-22190201N 7 Joint 1 ZS 350921-83122225 8 Joint 2 ZS 352211-83023020 9 Joint 1 ZS 355921-23023020 10 Oil Recovery Sight Glass (VRO19 0.6D) 1 ZS 30501-1341D6 11 Joint 1 ZS 350231-83022123 12 Hose Assembly 1 ZS 230084-040010 13 Hose Assembly 1 ZS 230084-040050 14 Hose Assembly 1 ZS 230084-040040 15 Joint 1 ZS 350221-83062222 16 Joint 1 ZS 350931-84042120 17 Air End (AC-077) 1 ZS 301012-220077000 18 Hose Assembly 1 ZS 230084-040140 19 Joint 1 ZS 350931-83022122 20 Inlet Valve (CS4/CS6/CS8) 1 ZS 303580-25550480N 20.1 Inlet Valve Kit (CS4/CS6/CS8) 1 ZS 303584-25550480N 20.2 Solenoid Valve (CS4/CS6/CS8) 1 ZS 30435-A420041D5 21 Inlet Valve (CSV8) 1 ZS 303580-25550402E 21.1 Inlet Valve Kit (CSV8) 1 ZS 303590-45550401E 21.2 Solenoid Valve (CSV8) 1 ZS 303580-25504025 21a Inlet Valve (CSV8) (2018-06 onwards) 1 ZS 303580-25550480N 21.1a Inlet Valve Kit (CSV8) (2018-06 onwards) 1 ZS 303584-25550480N 21.2a Solenoid Valve (CSV8) (2018-06 onwards) 1 ZS 30435-A420041D5 22 Air Filter Assembly (CS) 1 ZS 308010-6101601 23 Air Filter Assembly (CSV) 1 ZS 308010-6101601 24 Air Filter Element (C1140) 1 ZS 308011-6101601 25 Joint 1 ZS 350221-83082222 26 Joint 2 ZS 350221-83062222 27 Cooler (CS4/CS6) 1 ZS 23008L-060020 28 Cooler (CS8/CSV8) 1 ZS 23008F-060020 29 Temperature Sensor (TS100-1 LM30WG41C2-AA-35) 1 ZS 30502-1211214 30 Air-Oil Separator 1 ZS 308041-0302020 31 Oil Filter (303020180) 1 ZS 308021-1108020 32 Hose Assembly 1 ZS 230084-040030 33 Hose Assembly 1 ZS 230084-040070 34 Discharge Hose (metal) (superseded) 1 ZS 230084-070020 34a Discharge Hose (rubber) 1 ZS 230084-070070 35 Steel Pipe 1 ZS 230084-070060 36 Hose Assembly 1 ZS 230084-040020 37 Hose Assembly 1 ZS 230084-040130 38 Joint 1 ZS 351221-83082243 39 Joint 1 ZS 350931-83022122 40 Plug 1 ZS 355011-83160000 41 Joint 1 ZS 350221-83162362 42 Safety Valve 1 CR SRV390-1150 43 Pressure Gauge (YN50Z/0-1.6MPa - 1/4") 1 ZS 30501-3162423 44 Gasket 1 ZS 230081-040040 45 Oil Level Gauge 1 ZS 30501-12022722 46 O-Ring (27*1.8) 1 ZS 38111-02700180 47 Ball Valve (1/2") 1 ZS 303040-21230041 48 Joint 1 ZS 351921-83082242
