• Watermark Certified
  • Blue press-fit indicators, providing peace of mind that your piping connection is leak-free and secure.
  • FKM O-ring fitted (HNBR O-ring type available)
  • Suitable for compressed air and fluids

Need a BIM file for this product? Check out our BIM Library here.

  • Maximum pressure of 40 bar

Complies with Australian Standards and is Watermark Certified.

Evaluated to and complies with

  • AS 3688:2016 – Water supply and gas systems – Metallic fittings and end connectors
  • AS 5200.053:2008 – Plumbing and drainage products – Stainless steel pipes and tubes for pressure applications

Rated up to 40 Bar

Capable of handling a maximum pressure of 40 bar* the Infinity Stainless range is designed to meet the needs of demanding applications. Whether it’s for compressed air or hydraulic piping systems, these products deliver superior strength and safety.

* 40 bar maximum pressure is guaranteed when installed using high-pressure ACO203XL Novopress tool. Standard pressure is between 16-40 bar when installed using a standard clamping tool.

Available sizes

CodeDescription

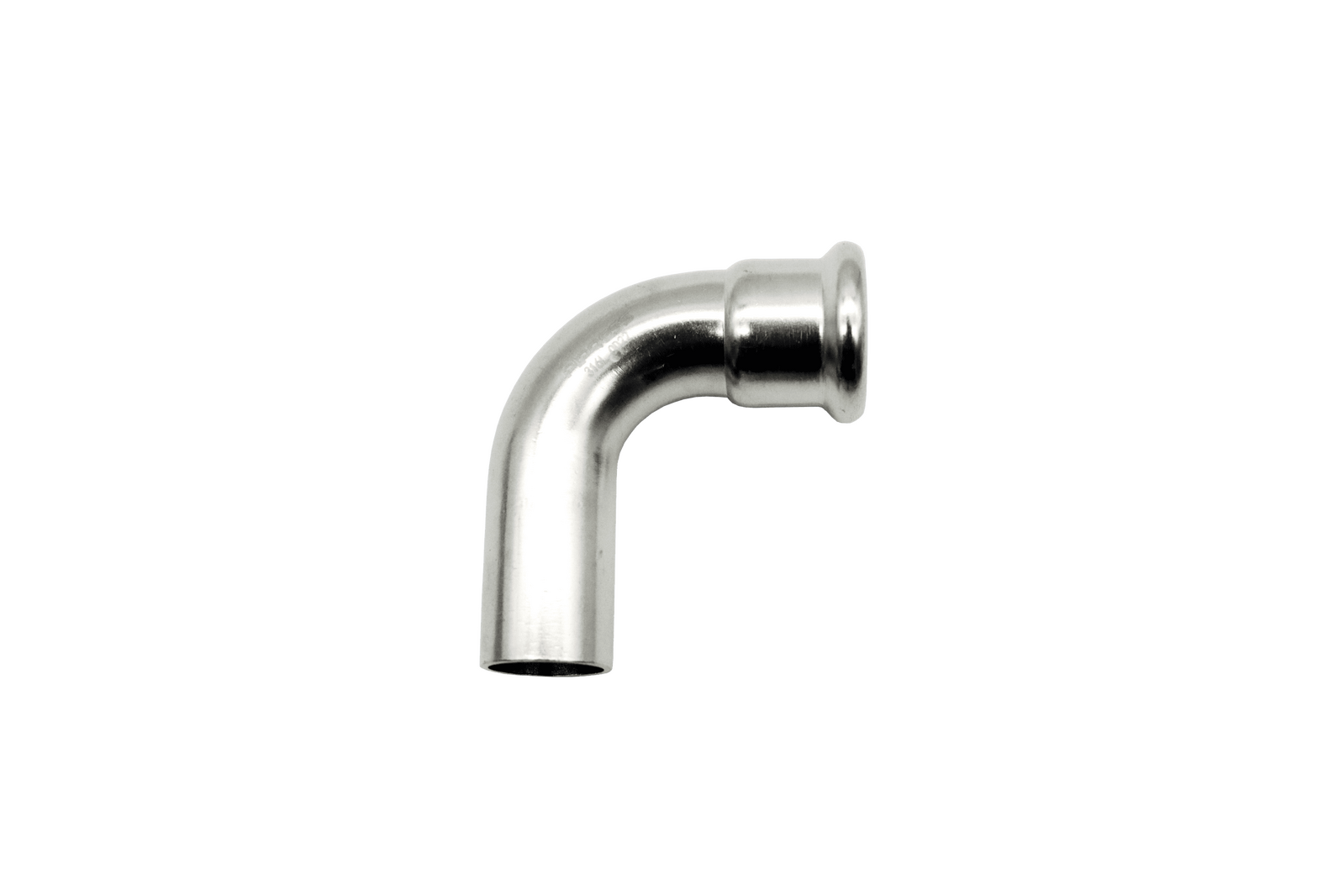

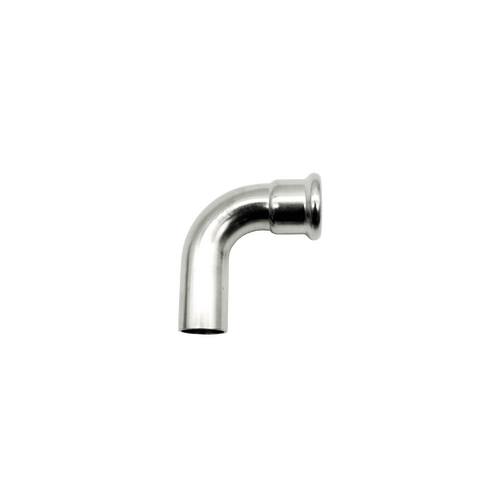

INSSE15-9015mm B-Type Elbow – Stainless Steel 316
INSSE22-9022mm B-Type Elbow – Stainless Steel 316
INSSE28-9028mm B-Type Elbow – Stainless Steel 316
INSSE35-9035mm B-Type Elbow – Stainless Steel 316
INSSE42-9042mm B-Type Elbow – Stainless Steel 316
INSSE54-9054mm B-Type Elbow – Stainless Steel 316
SKU SS316-B-ELBOW
