• Watermark Certified
  • Blue press-fit indicators, providing peace of mind that your piping connection is leak-free and secure.
  • FKM O-ring fitted (HNBR O-ring type available)
  • Suitable for compressed air and fluids
  • Maximum pressure of 40 bar

Complies with Australian Standards and is Watermark Certified.

Evaluated to and complies with

  • AS 3688:2016 – Water supply and gas systems – Metallic fittings and end connectors
  • AS 5200.053:2008 – Plumbing and drainage products – Stainless steel pipes and tubes for pressure applications

Rated up to 40 Bar

Capable of handling a maximum pressure of 40 bar* the Infinity Stainless range is designed to meet the needs of demanding applications. Whether it’s for compressed air or hydraulic piping systems, these products deliver superior strength and safety.

* 40 bar maximum pressure is guaranteed when installed using high-pressure ACO203XL Novopress tool. Standard pressure is between 16-40 bar when installed using a standard clamping tool.



Available sizes

CodeDescription

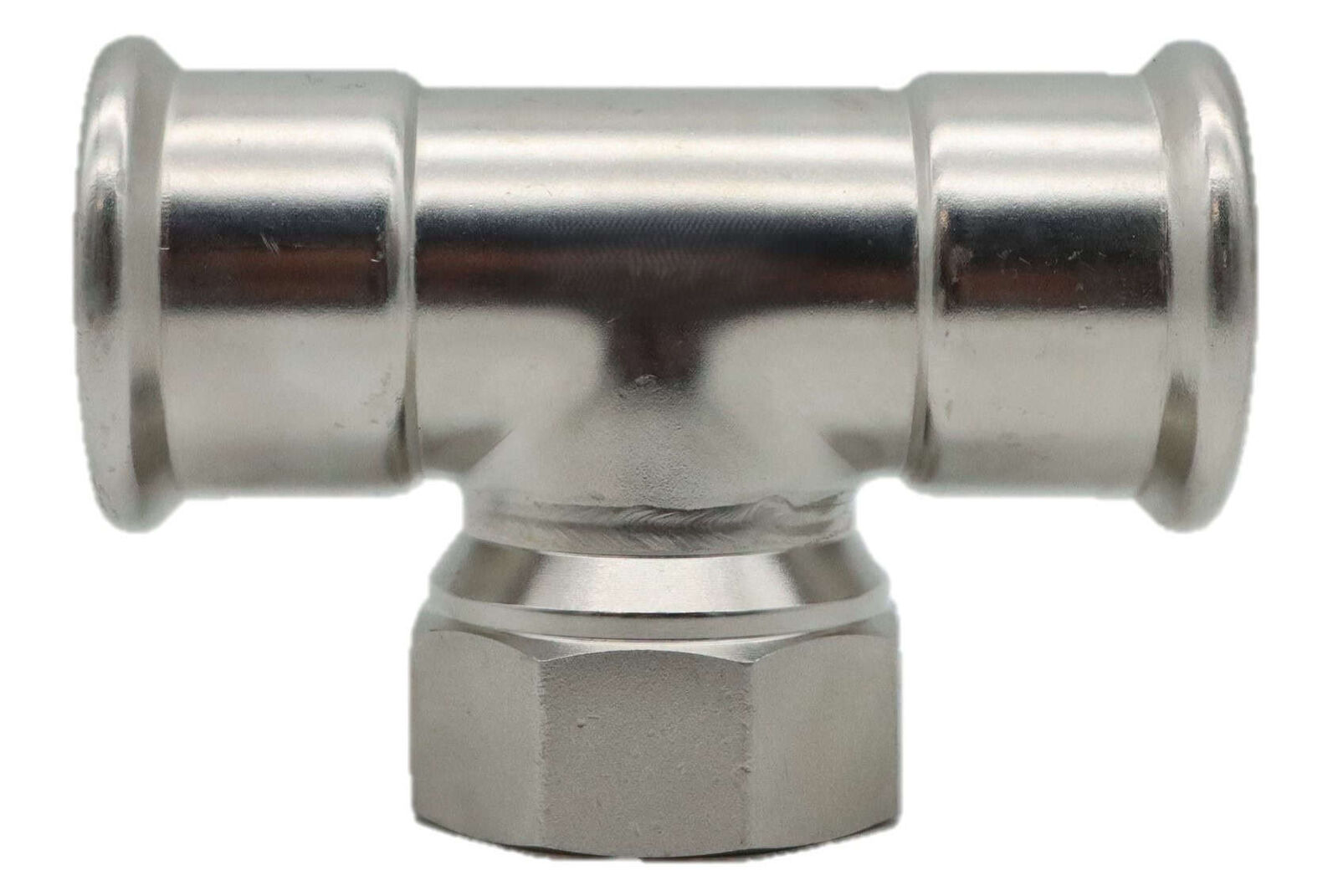

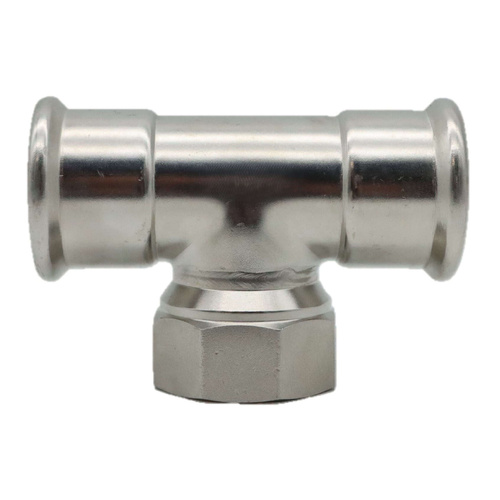

INSSTF15-1215 x 1/2" Female Tee – Stainless Steel 316
INSSTF22-1222 x 1/2" Female Tee – Stainless Steel 316
INSSTF22-3422 x 3/4" Female Tee – Stainless Steel 316
INSSTF28-1228 x 1/2" Female Tee – Stainless Steel 316
INSSTF28-3428 x 3/4" Female Tee – Stainless Steel 316
INSSTF35-1235 x 1/2" Female Tee – Stainless Steel 316
INSSTF35-3435 x 3/4" Female Tee – Stainless Steel 316
INSSTF42-1242 x 1/2" Female Tee – Stainless Steel 316
INSSTF42-3442 x 3/4" Female Tee – Stainless Steel 316
INSSTF54-1254 x 1/2" Female Tee – Stainless Steel 316
INSSTF54-3454 x 3/4" Female Tee – Stainless Steel 316
SKU SS316-FEMALE-TEE
