Our stainless steel pipe and fittings are crafted with premium-grade 316L Stainless Steel and engineered to withstand the test of time.

With a 20-year market-leading warranty, you can trust in the long-term reliability and performance of your Infinity Stainless system.

Watermark Certified.


Need a BIM file for this product? Check out our BIM Library here.

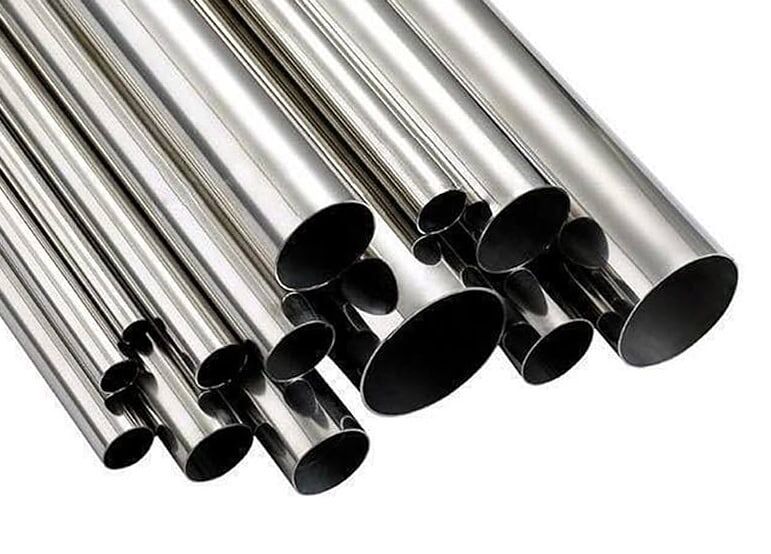

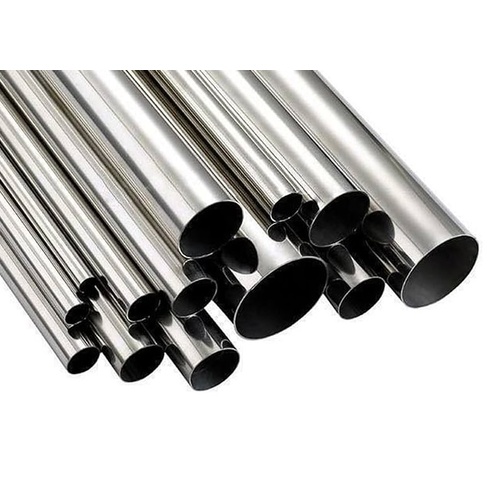

Infinity Stainless 316L Pipe – High performance 316L Stainless Steel piping system, engineered for air and fluid applications.

Complies with Australian Standards and is Watermark Certified.

Evaluated to and complies with

  • AS 3688:2016 – Water supply and gas systems – Metallic fittings and end connectors
  • AS 5200.053:2008 – Plumbing and drainage products – Stainless steel pipes and tubes for pressure applications

Rated up to 40 Bar

Capable of handling a maximum pressure of 40 bar* the Infinity Stainless range is designed to meet the needs of demanding applications. Whether it’s for compressed air or hydraulic piping systems, these products deliver superior strength and safety.

* 40 bar maximum pressure is guaranteed when installed using high-pressure ACO203XL Novopress tool. Standard pressure is between 16-40 bar when installed using a standard clamping tool.

Available sizes

CodeDescription
INSS15X6M15mm x 6m Pipe Length – Stainless Steel 316
INSS22X6M22mm x 6m Pipe Length – Stainless Steel 316
INSS28X6M28mm x 6m Pipe Length – Stainless Steel 316
INSS35X6M35mm x 6m Pipe Length – Stainless Steel 316
INSS42X6M42mm x 6m Pipe Length – Stainless Steel 316
INSS54X6M54mm x 6m Pipe Length – Stainless Steel 316
SKU SS316-PIPE
