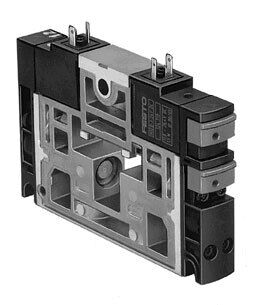

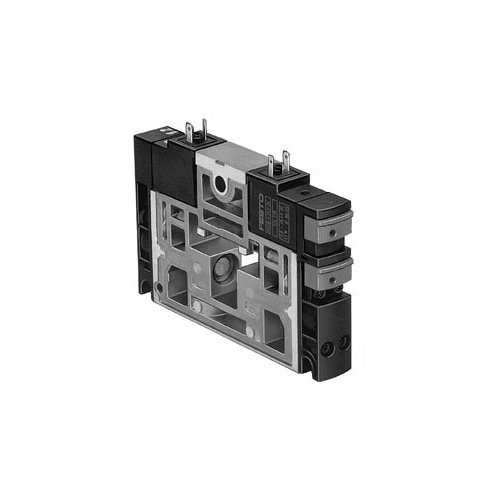

Solenoid valve

CPV18-M1H-5LS-1/4

163190





GTIN: 4052568133474

Valve function
5/2-way, single solenoid
Standard nominal flow rate (standardised to DIN 1343)
1600 l/min
Pneumatic connection, port 1
Common line
Type of actuation
Electrical

Technical Data

  • Valve function5/2-way, single solenoid
  • Type of actuationElectrical
  • Valve size18 mm
  • Standard nominal flow rate (standardised to DIN 1343)1600 l/min
  • pneumatic working portG1/4
  • Operating voltage24 V DC
  • Operating pressure-0.09 MPa ... 1 MPa
  • Operating pressure-0.9 bar ... 10 bar
  • DesignPiston gate valve
  • Type of resetPneumatic spring
  • ApprovalC-Tick
  • Degree of protectionIP65
  • Nominal size8 mm
  • Exhaust-air functionCannot be throttled
  • Sealing principleSoft
  • Mounting positionAny
  • Manual overrideDetenting Non-detenting
  • Type of pilotingPiloted
  • Pilot air supplyExternal Internal
  • Flow directionNon-reversible
  • Symbol00991027
  • lapOverlap
  • Pilot pressure0.3 MPa ... 0.8 MPa
  • Pilot pressure3 bar ... 8 bar
  • b value0.38
  • C value6.3 l/sbar
  • Switching time off26 ms
  • Switching time on18.5 ms
  • Duty cycle100%
  • Electrical power consumption1.5 W
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Storage temperature-20 °C ... 40 °C
  • Media temperature-5 °C ... 50 °C
  • Ambient temperature-5 °C ... 50 °C
  • Product weight260 g
  • Type of mountingWith through-hole
  • Pilot air port 12/14Common line
  • Pilot exhaust port 82/84Common line
  • Pneumatic connection, port 1Common line
  • Pneumatic connection, port 11Common line
  • Pneumatic connection, port 2G1/4
  • Pneumatic connection 3/5 combinedCommon line
  • Pneumatic connection, port 4G1/4
  • Note on materialsRoHS compliant
  • Material sealsHNBR NBR
  • Material housingDie-cast aluminium Brass POM PPS Steel





SKU 163190
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
