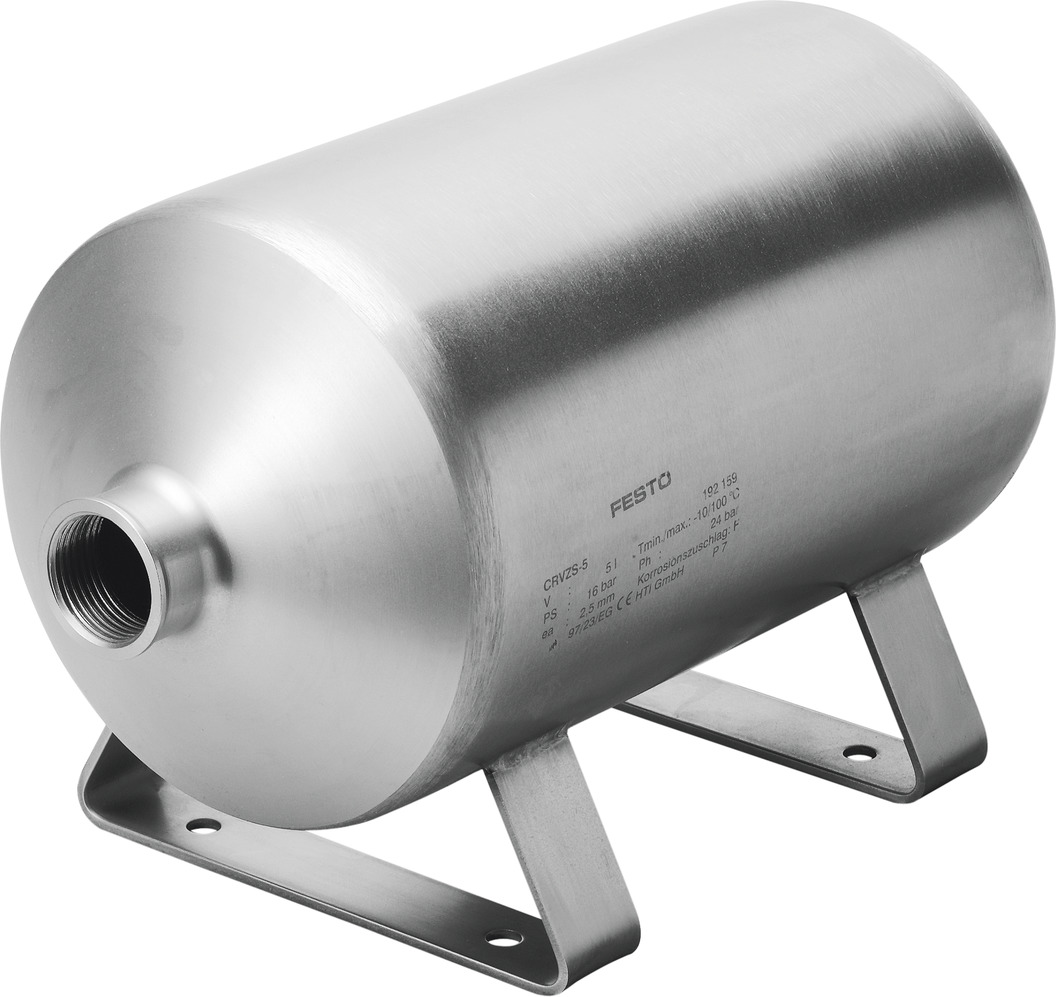

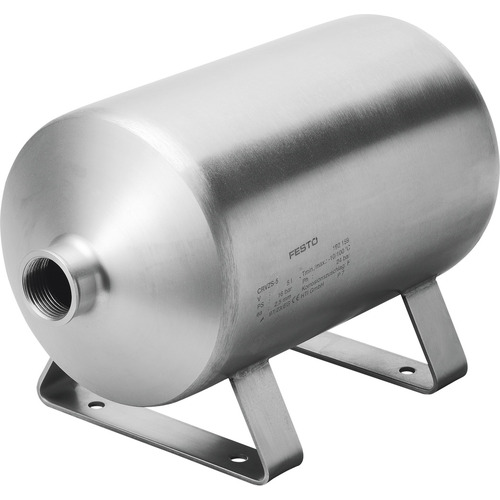

Air reservoir / Air Receiver / Air Tank

CRVZS-20

534845

Volume
20 l
Material air reservoir
High-alloy stainless steel
Conforms to standard
AD 2000
Condensate drain connection
G3/8

GTIN: 4052568015848

Technical Data

  • Volume20 l
  • Mounting positionCondensate drain underneath
  • Conforms to standardAD 2000

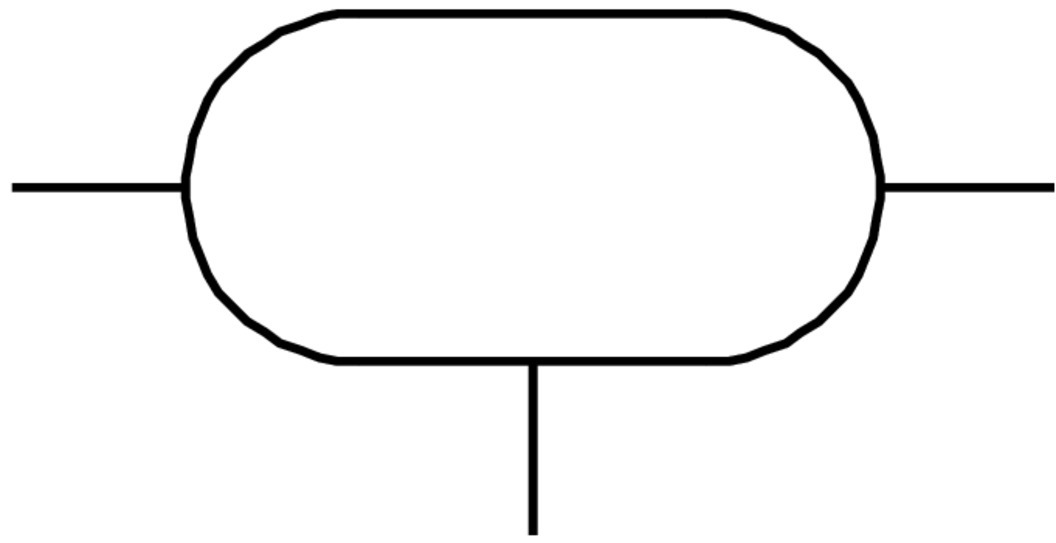

  • Symbol00991474
  • Operating pressure-0.095 MPa ... 1.6 MPa
  • Operating pressure-0.95 bar ... 16 bar
  • Operating pressure-13.78 psi ... 232 psi
  • ApprovalGerman Technical Control Board (TÜV)
  • CE mark (see declaration of conformity)In accordance with EU Pressure Equipment Directive
  • UKCA marking (see declaration of conformity)to UK Pressure Equipment Regulations
  • Operating mediumNitrogen
  • Corrosion resistance class CRC3 - high corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Suitable for use with foodSee supplementary material information
  • Media temperature-10 °C ... 100 °C
  • Ambient temperature-10 °C ... 100 °C
  • Max. tightening torque for connecting thread130 Nm
  • Max. tightening torque for condensate drain27 Nm
  • Product weight10208 g
  • Type of mountingWith through-hole
  • Condensate drain connectionG3/8
  • Pneumatic connectionG1
  • Note on materialsRoHS-compliant
  • Material air reservoirHigh-alloy stainless steel

Downloads

CRVZS_EN.PDF

Technical data

Links

Spare parts

Volume - 20 l

Material air reservoir High-alloy stainless steel

Conforms to standard AD 2000

Condensate drain connection G3/8



Air reservoir

SKU 534845
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
