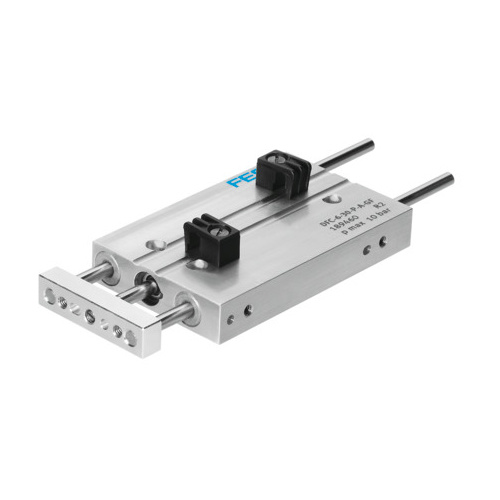

Mini guided driveDFC-10-30-P-A-KF

189478

GTIN: 4052568150235

Piston diameter
10 mm
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke
47 N
Stroke
30 mm
Cushioning
Elastic cushioning rings/plates at both ends
Position detection
Via proximity switch



Technical Data Mini guided drive DFC-10-30-P-A-KF

  • Distance from centre of gravity of load to yoke plate xs15 mm
  • Stroke30 mm
  • Piston diameter10 mm
  • Operating mode, drive unitYoke
  • CushioningElastic cushioning rings/plates at both ends
  • Mounting positionAny
  • GuideRecirculating ball bearing guide
  • DesignGuidance
  • Position detectionVia proximity switch
  • Symbol00991737
  • Operating pressure0.1 MPa ... 1 MPa
  • Operating pressure1 bar ... 10 bar
  • Max. speed1 m/s
  • Mode of operationDouble-acting
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • Corrosion resistance class CRC0 - No corrosion stress
  • LABS (PWIS) conformityVDMA24364-B2-L
  • Ambient temperature-5 °C ... 60 °C
  • Impact energy in end positions0.05 J
  • Max. moment Mx0.3 Nm
  • Max. effective load dependent upon stroke at defined distance xs9.8 N
  • Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke35 N
  • Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke47 N
  • Torsional backlash0.03 deg
  • Moving mass27.2 g
  • Moving mass for 0 mm stroke27.2 g
  • Additional moving mass per 10 mm stroke7.2 g
  • Product weight134 g
  • Pneumatic connectionM5
  • Material coverWrought aluminium alloy
  • Material sealsNBR
  • Material housingWrought aluminium alloy
  • Material piston rodHigh-alloy stainless steel
