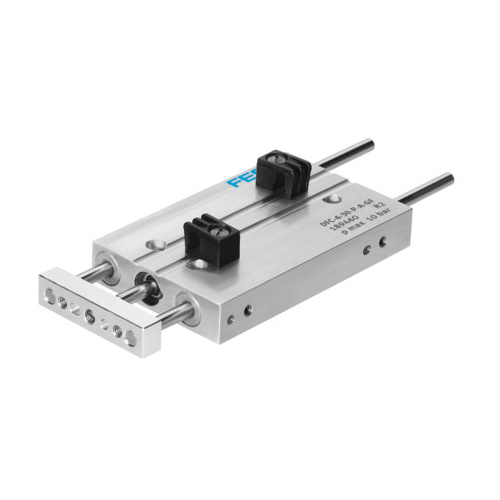

Mini guided driveDFC-6-25-P-A-GF

189459

GTIN: 4052568150044

Piston diameter
6 mm
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke
17 N
Stroke
25 mm
Cushioning
Elastic cushioning rings/plates at both ends
Position detection
Via proximity switch



Technical Data Mini guided drive DFC-6-25-P-A-GF

  • Distance from centre of gravity of load to yoke plate xs10 mm
  • Stroke25 mm
  • Piston diameter6 mm
  • Operating mode, drive unitYoke
  • CushioningElastic cushioning rings/plates at both ends
  • Mounting positionAny
  • GuidePlain-bearing guide
  • DesignGuidance
  • Position detectionVia proximity switch
  • Symbol00991737
  • Operating pressure0.15 MPa ... 1 MPa
  • Operating pressure1.5 bar ... 10 bar
  • Max. speed1 m/s
  • Mode of operationDouble-acting
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364-B2-L
  • Ambient temperature-5 °C ... 60 °C
  • Impact energy in end positions0.008 J
  • Max. moment Mx0.1 Nm
  • Max. effective load dependent upon stroke at defined distance xs4.8 N
  • Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke12.5 N
  • Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke17 N
  • Torsional backlash0.05 deg
  • Moving mass8.8 g
  • Moving mass for 0 mm stroke8.8 g
  • Additional moving mass per 10 mm stroke2.8 g
  • Product weight49 g
  • Pneumatic connectionM3
  • Material coverWrought aluminium alloy
  • Material sealsNBR
  • Material housingWrought aluminium alloy
  • Material piston rodHigh-alloy stainless steel





SKU 189459
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
