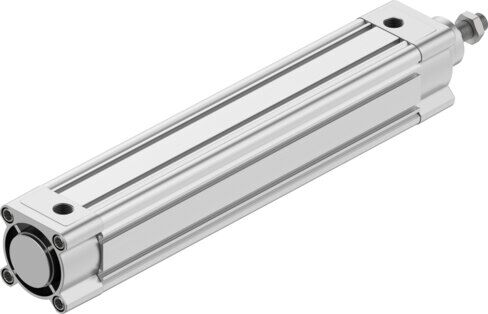

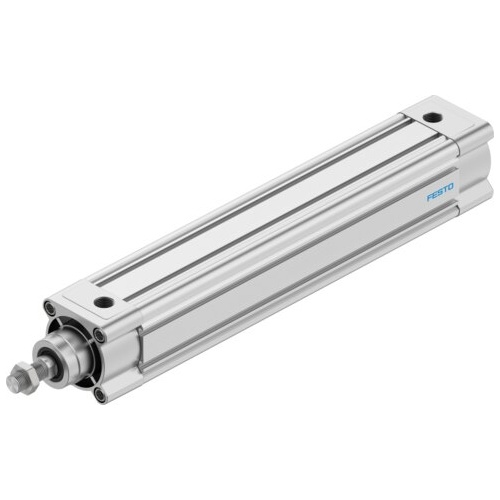

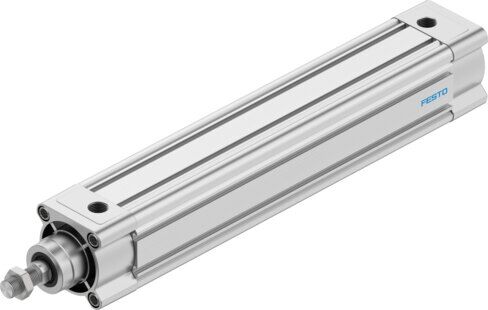

ISO cylinder

DSBC-63-320-D3-PPSA-N3

3657826





GTIN: 4052568272456

Mode of operation
Double-acting
Piston diameter
63 mm
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke
1870 N
Stroke
320 mm
Cushioning
Self-adjusting pneumatic end-position cushioning

Technical Data

  • Stroke320 mm
  • Piston diameter63 mm
  • Piston rod threadM16x1.5
  • CushioningSelf-adjusting pneumatic end-position cushioning
  • Mounting positionoptional
  • Conforms to standardISO 15552
  • Piston-rod endMale thread
  • DesignPiston Piston rod Profile barrel
  • Position detectionVia proximity switch
  • Symbol00992970
  • VariantsPiston rod at one end
  • Operating pressure0.04 MPa ... 1.2 MPa
  • Operating pressure0.4 bar ... 12 bar
  • Mode of operationDouble-acting
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Ambient temperature-20 °C ... 80 °C
  • Impact energy in end positions1.3 J
  • Cushioning length22 mm
  • Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke1682 N
  • Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke1870 N
  • Moving mass1230 g
  • Moving mass for 0 mm stroke430 g
  • Additional moving mass per 10 mm stroke25 g
  • Product weight4717 g
  • Basic weight for 0 mm stroke1774 g
  • Additional weight per 10 mm stroke92 g
  • Type of mountingVia female thread With accessories
  • Pneumatic connectionG3/8
  • Note on materialsRoHS-compliant
  • Material coverCoated die-cast aluminium
  • Material piston sealTPE-U(PU)
  • Material pistonWrought aluminium alloy
  • Material piston rodHigh-alloy steel
  • Material piston rod wiperTPE-U(PU)
  • Buffer seal materialTPE-U(PU)
  • Material of cushioning bossPOM
  • Material cylinder barrelSmooth-anodised wrought aluminium alloy
  • Material nutGalvanised steel
  • Material rod wiperTPE-E
  • Material bearingMetal polymer compound
  • Material collar screwsGalvanised steel



SKU 3657826
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
