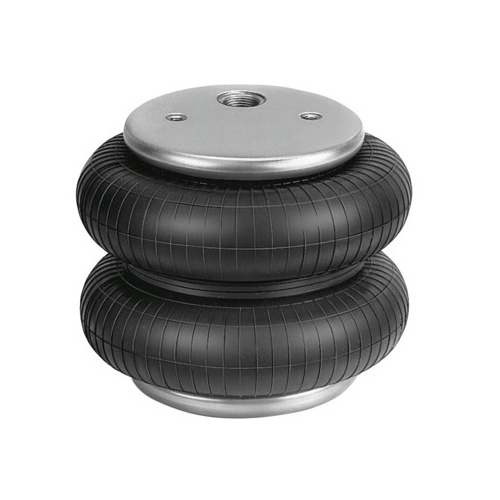

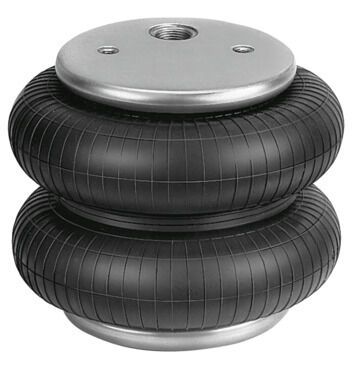

Bellows cylinderEB-325-215

193790

GTIN: 4052568153397

Size
325
Stroke
215 mm
Pneumatic connection
G1/4



Technical Data Bellows cylinder EB-325-215

  • Size325
  • Required installation diameter340 mm
  • Stroke215 mm
  • Max. extended height305 mm
  • Max. angle of inclination20 deg
  • Max. offset20 mm
  • Min. installation height75 mm
  • Mounting positionAny
  • Mode of operationSingle-acting
  • Symbol00991205
  • Operating pressure0 MPa ... 0.8 MPa
  • Operating pressure0 bar ... 8 bar
  • Operating pressure0 psi ... 116 psi
  • Operating mediumCompressed air to ISO 8573-1:2010 [-:-:4]
  • Note on operating and pilot mediumLubricated operation not possible
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Ambient temperature-40 °C ... 70 °C
  • Reset force300 N
  • Product weight4800 g
  • Type of mountingWith female thread
  • Pneumatic connectionG1/4
  • Note on materialsRoHS compliant
  • Material bellowsNR/BR
  • Material housingSteel Galvanised



SKU 193790
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
