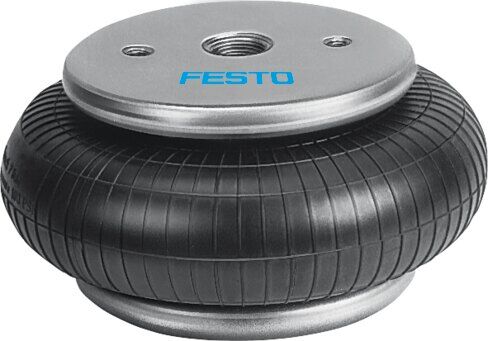

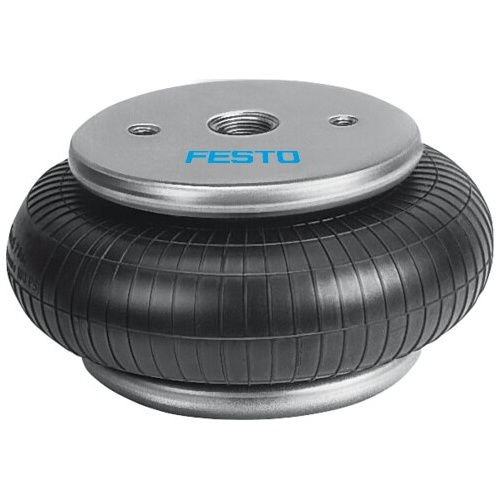

Bellows cylinderEB-325-95

193788

GTIN: 4052568153373

Size
325
Stroke
95 mm
Pneumatic connection
G1/4



Technical Data Bellows cylinder EB-325-95

  • Size325
  • Required installation diameter340 mm
  • Stroke95 mm
  • Max. extended height150 mm
  • Max. angle of inclination15 deg
  • Max. offset10 mm
  • Min. installation height51 mm
  • Mounting positionAny
  • Mode of operationSingle-acting
  • Symbol00991205
  • Operating pressure0 MPa ... 0.8 MPa
  • Operating pressure0 bar ... 8 bar
  • Operating pressure0 psi ... 116 psi
  • Operating mediumCompressed air to ISO 8573-1:2010 [-:-:4]
  • Note on operating and pilot mediumLubricated operation not possible
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Ambient temperature-40 °C ... 70 °C
  • Reset force300 N
  • Product weight4100 g
  • Type of mountingWith female thread
  • Pneumatic connectionG1/4
  • Note on materialsRoHS compliant
  • Material bellowsNR/BR
  • Material housingSteel Galvanised



SKU 193788
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
