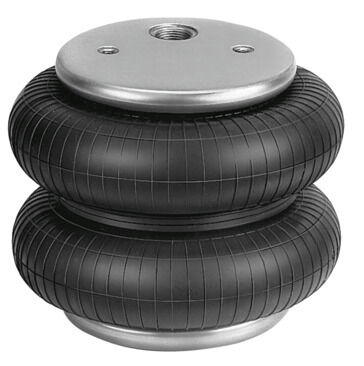

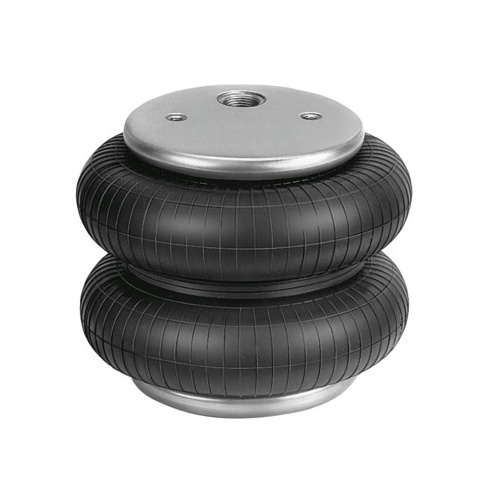

Bellows cylinderEB-385-230

193791

GTIN: 4052568153403

Size
385
Stroke
230 mm
Pneumatic connection
G1/4



Technical Data Bellows cylinder EB-385-230

  • Size385
  • Required installation diameter400 mm
  • Stroke230 mm
  • Max. extended height310 mm
  • Max. angle of inclination20 deg
  • Max. offset20 mm
  • Min. installation height77 mm
  • Mounting positionAny
  • Mode of operationSingle-acting
  • Symbol00991205
  • Operating pressure0 MPa ... 0.8 MPa
  • Operating pressure0 bar ... 8 bar
  • Operating pressure0 psi ... 116 psi
  • Operating mediumCompressed air to ISO 8573-1:2010 [-:-:4]
  • Note on operating and pilot mediumLubricated operation not possible
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Ambient temperature-40 °C ... 70 °C
  • Reset force400 N
  • Product weight6900 g
  • Type of mountingWith female thread
  • Pneumatic connectionG1/4
  • Note on materialsRoHS compliant
  • Material bellowsNR/BR
  • Material housingSteel Galvanised





SKU 193791
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
