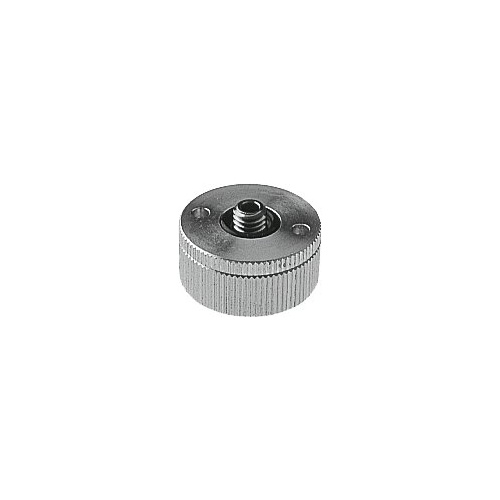

Vacuum filterESF-4A

191203

GTIN: 4052568079192

Technical Data Vacuum filter ESF-4A

  • Mounting positionAny
  • Grade of filtration10 µm
  • Symbol00991483
  • Operating pressure-0.95 bar ... 4 bar
  • Flow rate with vacuum = -0.075 MPa (-0.75 bar, -10.875 psi)260 l/min
  • Operating mediumAtmospheric air based on ISO 8573-1:2010 [7:-:-]
  • Corrosion resistance class CRC1 - Low corrosion stress
  • LABS (PWIS) conformityVDMA24364-A1-L
  • Ambient temperature0 °C ... 60 °C
  • Product weight19 g
  • Type of mountingWith male thread Via vacuum port
  • Pneumatic connectionM6
  • Vacuum connectionM6
  • Note on materialsRoHS compliant
  • Material sealsNBR
  • Material filterPVF
  • Material housingAluminium Brass, nickel-plated







SKU 191203
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
